2018 MITSUBISHI OUTLANDER III odometer

Multi Information display - Type 2
Features and controls 5-173
5
1. Press and hold the mu
lti information dis-
play switch (for about 2 seconds or more)to switch from the setting mode screen tothe menu screen.Refer to “Changing th
e function settings”
on page 5-167.2. Lightly press the multi information dis-play switch to select “RESET” (return tothe factory settings).3. Press and hold the mu
lti information dis-
play switch (for about 5 seconds or more),the buzzer sounds and all of the functionsettings are returned to the factory set-tings.
N00555001291
The multi information display displays theodometer, trip odometer, service reminder,fuel remaining, outside
temperature, selector
lever position, averag
e fuel consumption,
driving range, etc.It is also possible to change elements such asthe units used on the multi information dis-play.
NOTE
The factory settings are as follows.• Average fuel consumption and averagespeed reset mode: A (Auto reset)• Fuel consumption di
splay unit: mpg (US)
or (L/100 km)• Temperature unit: °F (Fahrenheit) or {°C(Celsius)}• Display language: ENGLISH• Cooperative language
setting: A (language
cooperation: enabled)• Operation sounds: ON (Operation soundon)• “REST REMINDER” display: OFF• Turn signal sound: Turn signal sound 1• Momentary fuel consumption with thegreen bar graph: ON
The tire ID set cannot be returned to the fac-tory settings.
Multi Information display - Type 2 1- Frozen road warning
 P.5-176
2- Information display
 P.5-174
NOTE
3- Selector lever position display
 P.5-70, 5-77
4- Service reminder
 P.5-177
5- Fuel remaining display
 P.5-177
NOTE
When the ignition switch is in the “OFF”
lever position display,
fuel remaining display and frozen road warn-ing are not displayed.
BK0249100US.book 173 ページ ２０１７年５月１０日　水曜日　午前８時４９分

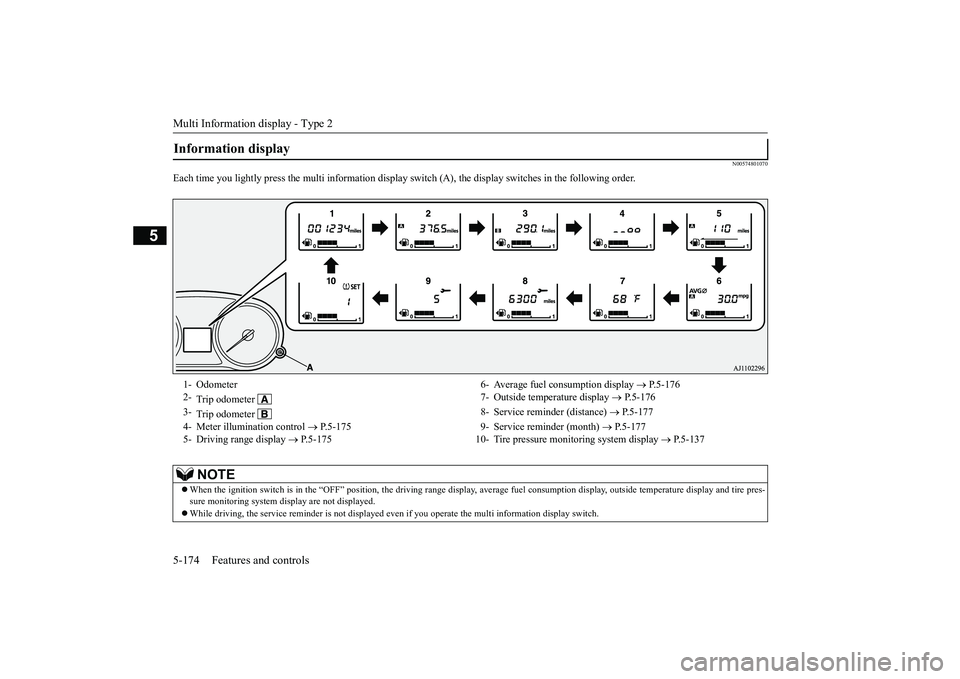

Multi Information display - Type 25-174 Features and controls
5
N00574801070
Each time you lightly press th
e multi information display switch (A), th
e display switches in
the following order.
Information display 1- Odometer 6- Average fuel
consumption display
 P.5-176
2-
Trip odometer
7- Outside temperature display
 P.5-176
3-
Trip odometer
8- Service reminder (distance)
 P.5-177
4- Meter illumination control
 P.5-175 9- Service reminder (month)
 P.5-177
5- Driving range display
 P.5-175 10- Tire pressure monitoring system display
 P.5-137
NOTE
When the ignition switch is in the “OFF” position, the driving ra
nge display, average fuel consum
ption display, outside tempera
ture display and tire pres-
sure monitoring system di
splay are not displayed.
While driving, the service reminder is
not displayed even if you operate th
e multi information display switch.
BK0249100US.book 174 ページ ２０１７年５月１０日　水曜日　午前８時４９分

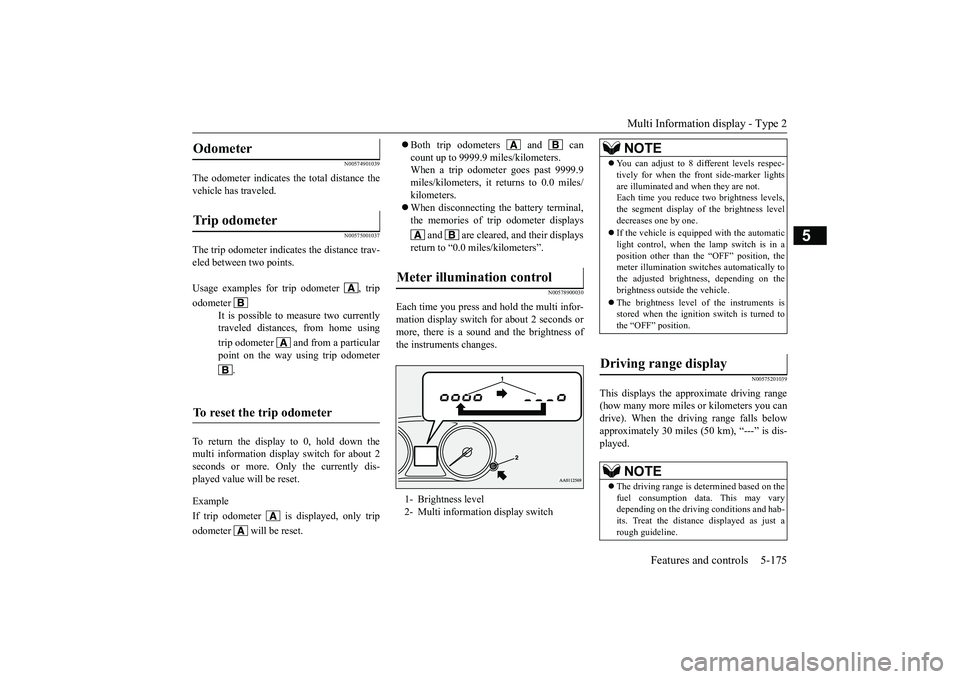

Multi Information display - Type 2
Features and controls 5-175
5
N00574901039
The odometer indicates the total distance thevehicle has traveled.
N00575001037
The trip odometer indicates the distance trav-eled between two points.To return the display to 0, hold down themulti information display switch for about 2seconds or more. Only the currently dis-played value wi
ll be reset.
ExampleIf trip odometer is displayed, only tripodometer will be reset.
Both trip odometers and cancount up to 9999.9 m
iles/kilometers.
When a trip odometer goes past 9999.9miles/kilometers, it returns to 0.0 miles/kilometers.When disconnecting th
e battery terminal,
the memories of trip odometer displays
and are cleared, and their displays
return to “0.0 miles/kilometers”.
N00578900030
Each time you press a
nd hold the multi infor-
mation display switch for about 2 seconds ormore, there is a sound and the brightness ofthe instruments changes.
N00575201039
This displays the approximate driving range(how many more miles or
kilometers you can
drive). When the driving range falls belowapproximately 30 miles (
50 km), “---” is dis-
played.
Odometer Trip odometer Usage examples for trip odometer , tripodometer
It is possible to
measure two currently
traveled distances, from home usingtrip odometer and from a particularpoint on the way using trip odometer
.
To reset the trip odometer
Meter illumination control 1- Brightness level2- Multi information display switch
NOTE
You can adjust to 8 di
fferent levels respec-
tively for when the front side-marker lightsare illuminated and when they are not.Each time you reduce tw
o brightness levels,
the segment display of
the brightness level
decreases one by one.If the vehicle is equi
pped with the automatic
light control, when the lamp switch is in aposition other than the
“OFF” position, the
meter illumination switches automatically tothe adjusted bright
ness, depending on the
brightness outsi
de the vehicle.
The brightness level of the instruments isstored when the ignition switch is turned tothe “OFF” position.
Driving range display
NOTE
The driving range is determined based on thefuel consumption data. This may varydepending on the drivi
ng conditions and hab-
its. Treat the distance displayed as just arough guideline.
BK0249100US.book 175 ページ ２０１７年５月１０日　水曜日　午前８時４９分

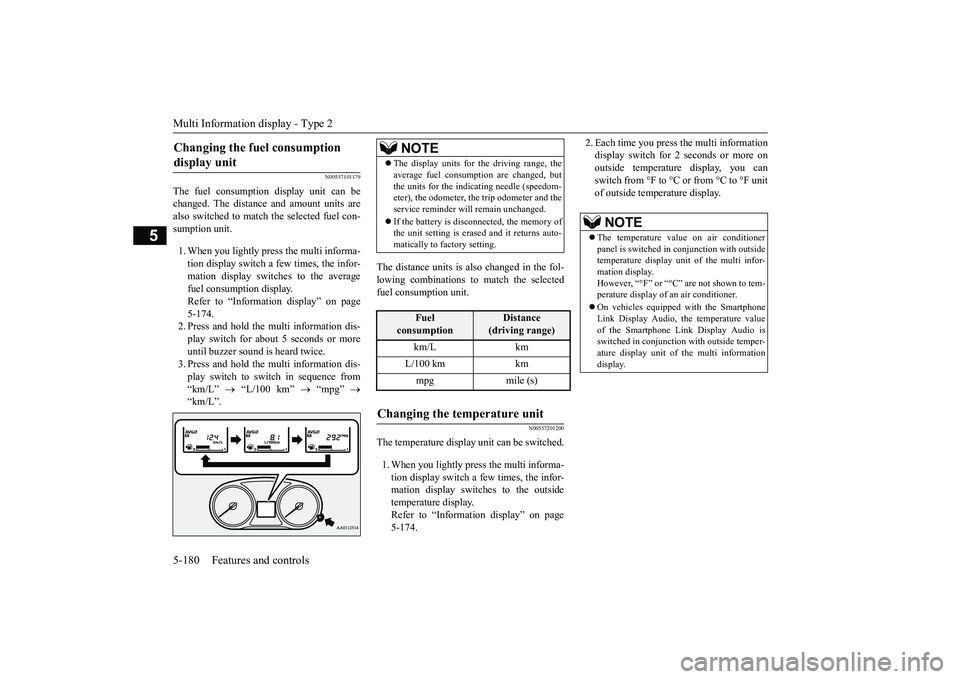

Multi Information display - Type 25-180 Features and controls
5
N00557101179
The fuel consumption display unit can bechanged. The distance and amount units arealso switched to match the selected fuel con-sumption unit.1. When you lightly press the multi informa-tion display switch a few times, the infor-mation display switches to the averagefuel consumption display.Refer to “Information display” on page5-174.2. Press and hold the multi information dis-play switch for about 5 seconds or moreuntil buzzer sound is
heard twice.
3. Press and hold the multi information dis-play switch to swit
ch in sequence from
“km/L”
 “L/100 km”
 “mpg”
The distance units is also changed in the fol-lowing combinations to match the selectedfuel consumption unit.
N00557201200
The temperature display unit can be switched.1. When you lightly press the multi informa-tion display switch a few times, the infor-mation display switches to the outsidetemperature display.Refer to “Information display” on page5-174.
2. Each time you press the multi informationdisplay switch for 2 seconds or more onoutside temperatur
e display, you can
switch from °F to °C or from °C to °F unitof outside temperature display.
Changing the fuel consumption display unit
NOTE
The display units for the driving range, theaverage fuel consumption are changed, butthe units for the indica
ting needle (speedom-
eter), the odometer, the trip odometer and theservice reminder will
remain unchanged.
If the battery is disconnected, the memory ofthe unit setting is erased and it returns auto-matically to factory setting.
Fuel
consumption
Distance
(driving range)
L/100 km kmmpg mile (s)
Changing the temperature unit
NOTE
The temperature value on air conditionerpanel is switched in
conjunction with outside
temperature display unit of the multi infor-mation display.However, “°F” or “°C” are not shown to tem-perature display of
an air conditioner.
On vehicles equippe
d with the Smartphone
Link Display Audio, the temperature valueof the Smartphone Li
nk Display Audio is
switched in conjunction
with outside temper-
ature display unit of
the multi information
display.
