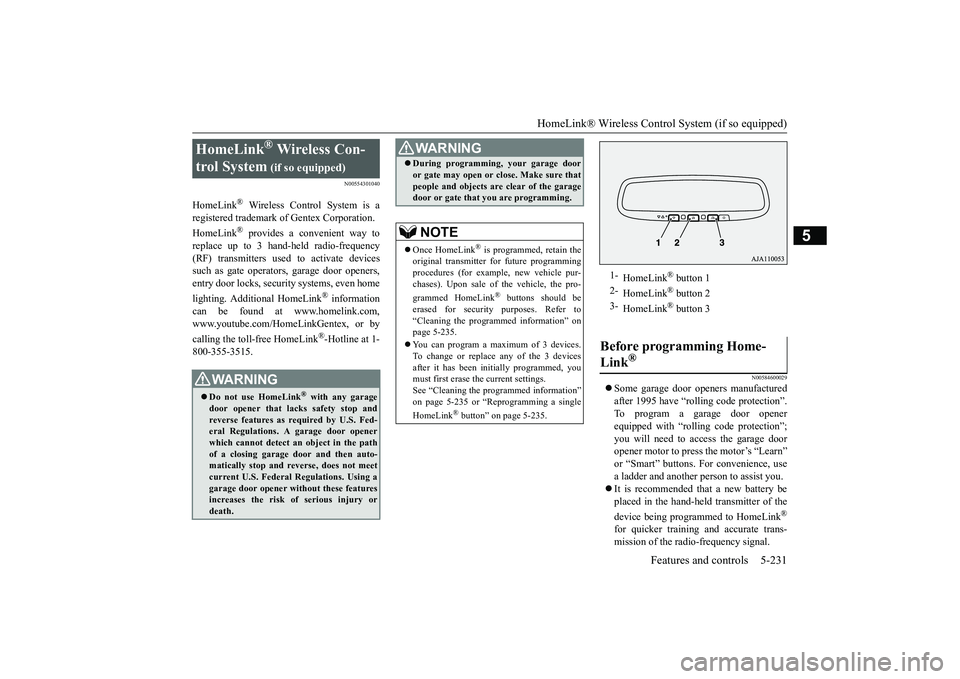

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-231
5
N00554301040
HomeLink
® Wireless Control System is a
registered trademark of Gentex Corporation.HomeLink
® provides a convenient way to
replace up to 3 hand-held radio-frequency(RF) transmitters used
to activate devices
such as gate operators, garage door openers,entry door locks, securi
ty systems, even home
lighting. Addi
tional HomeLink
® information
can be found at www.homelink.com,www.youtube.com/HomeL
inkGentex, or by
calling the toll-free HomeLink
®-Hotline at 1-
800-355-3515.
N00584600029
Some garage door openers manufacturedafter 1995 have “rollin
g code protection”.
To program a garage door openerequipped with “rolli
ng code protection”;
you will need to access the garage dooropener motor to press the motor’s “Learn”a ladder and another person to assist you.It is recommended that a new battery beplaced in the hand-held transmitter of thedevice being programmed to HomeLink
®
for quicker training and accurate trans-mission of the radio-frequency signal.
HomeLink
® Wireless Con-
trol System
(if so equipped)
Do not use HomeLink
® with any garage
door opener that lacks safety stop andreverse features as re
quired by U.S. Fed-
eral Regulations.
A garage door opener
which cannot detect an object in the pathof a closing garage d
oor and then auto-
matically stop and reverse, does not meetcurrent U.S. Federal Regulations. Using agarage door opener wi
thout these features
increases the risk of serious injury ordeath.
During programming, your garage dooror gate may open or cl
ose. Make sure that
people and ob
jects are clear of the garage
door or gate that you are programming.NOTE
Once HomeLink
® is programmed, retain the
original transmitter for future programmingprocedures (for exam
ple, new vehicle pur-
chases). Upon sale of the vehicle, the pro-grammed HomeLink
® buttons should be
erased for security purposes. Refer to“Cleaning the programmed information” onpage 5-235.You can program a maximum of 3 devices.To change or replace any of the 3 devicesafter it has been in
itially programmed, you
must first erase the current settings.See “Cleaning the programmed information”on page 5-235 or “Reprogramming a singleHomeLink
® button” on page 5-235.
WA R N I N G
1-
HomeLink
® button 1
2-
HomeLink
® button 2
3-
HomeLink
® button 3
Before programming Home-Link
®
BK0249100US.book 231 ページ ２０１７年５月１０日 水曜日 午前８時４９分

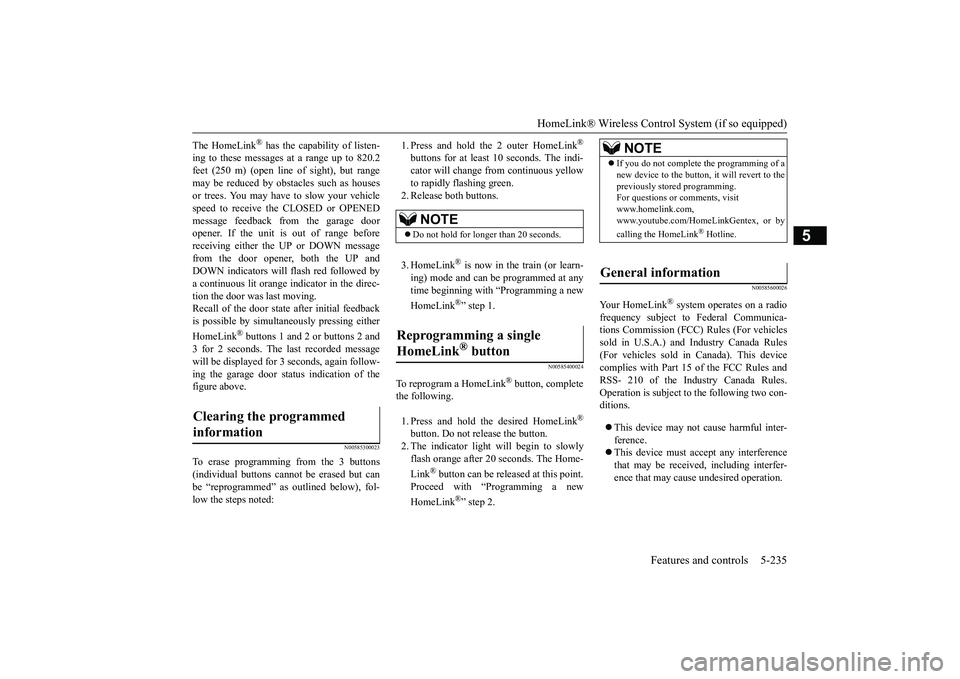

HomeLink® Wireless Control System (if so equipped)
Features and controls 5-235
5
The HomeLink
® has the capability of listen-
ing to these messages at a range up to 820.2feet (250 m) (open line
of sight), but range
may be reduced by obstacles such as housesor trees. You may have to slow your vehiclespeed to receive the CLOSED or OPENEDmessage feedback from the garage dooropener. If the unit is out of range beforereceiving either the UP or DOWN messagefrom the door opener, both the UP andDOWN indicators will fl
ash red followed by
a continuous lit orange
indicator in the direc-
tion the door was last moving.Recall of the door stat
e after initial feedback
is possible by simultane
ously pressing either
HomeLink
® buttons 1 and 2 or buttons 2 and
3 for 2 seconds. The la
st recorded message
will be displayed for 3
seconds, again follow-
ing the garage door st
atus indication of the
figure above.
N00585300023
To erase programming from the 3 buttons(individual buttons cannot
be erased but can
be “reprogrammed” as
outlined below), fol-
low the steps noted:
1. Press and hold the 2 outer HomeLink
®
buttons for at least
10 seconds. The indi-
cator will change
from continuous yellow
to rapidly flashing green.2. Release both buttons.3. HomeLink
® is now in the train (or learn-
ing) mode and can be programmed at anytime beginning with “Programming a newHomeLink
®” step 1.
N00585400024
To reprogram a HomeLink
® button, complete
the following.1. Press and hold the desired HomeLink
®
button. Do not release the button.2. The indicator light will begin to slowlyflash orange after 20
seconds. The Home-
Link
® button can be released at this point.
Proceed with “P
rogramming a new
HomeLink
®” step 2.
N00585600026
Your HomeLink
® system operates on a radio
frequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules(For vehicles sold in Canada). This devicecomplies with Part 15 of the FCC Rules andRSS- 210 of the Industry Canada Rules.Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
that may be received, including interfer-ence that may cause undesired operation.
Clearing the programmed information
NOTE
Do not hold for longer than 20 seconds.
Reprogramming a single HomeLink
® button
NOTE
If you do not complete the programming of anew device to the button,
it will revert to the
previously stored programming.For questions or
comments, visit
www.homelink.com,www.youtube.com/HomeLinkGentex, or bycalling the HomeLink
® Hotline.
General information
