2018 MITSUBISHI L200 keyless

Exterior - front E085004020551. Fuel tank filler door p. 2-032. Locking and unlocking p. 3-15 Keyless entry system p. 3-04
3. Outside rear-view mirrors p. 6-09
4. Side turn-signal lamps p. 5-20, 10-23
5. Headlamp washer* p. 5-26
6. Headlamps p. 5-17, 10-23, 10-24
7. Front turn-signal lamps p. 5-20, 10-23, 10-26
8. Position lamps p. 5-17, 10-23, 10-26
9. Front fog lamps* p. 5-22, 10-23, 10-26 Daytime running lamp p. 5-19, 10-23, 10-26
10. Bonnet p. 10-04 Engine compartment p. 10-02, 11-17
11. Wiper and washers p. 5-23, 10-15
12. Antenna p. 7-75
Exterior - front
1-09OKTE18E1Overview/Quick guide1Single cab

1. Fuel tank filler door* p. 2-03
2. Keyless entry system* p. 3-04 Keyless operation system* p. 3-07
Locking and unlocking p. 3-15
3. Side turn-signal lamps (on outside rear-view mirror)* p. 5-20, 10-23
4. Outside rear-view mirrors p. 6-09
5. Side turn-signal lamps (on fender)* p. 5-20, 10-23
6. Headlamp washer* p. 5-26
7. Headlamps p. 5-17, 10-23
8. Daytime running lamp p. 5-19, 10-22 Position lamps p. 5-17, 10-23
9. Front turn-signal lamps p. 5-20, 10-23, 10-26
10. Front fog lamps p. 5-22, 10-23, 10-26
11. Front fog lamps* p. 5-22, 10-23, 10-26 Daytime running lamp p. 5-19, 10-23, 10-26
12. Position lamps p. 5-17, 10-23, 10-26
13. Front turn-signal lamps p. 5-20, 10-23, 10-26
14. Headlamps p. 5-17, 10-23, 10-24
15. Bonnet p. 10-04 Engine compartment p. 10-02, 11-17
16. Wiper and washers p. 5-23, 10-15
17. Antenna p. 7-75
Exterior - front
1-10OKTE18E1Overview/Quick guide1Club cabExcept for high intensity discharge
headlamp type High intensity discharge headlamp type

1. Fuel tank filler door* p. 2-03
2. Keyless entry system* p. 3-04 Keyless operation system* p. 3-07
Locking and unlocking p. 3-15
3. Side turn-signal lamps (on outside rear-view mirror)* p. 5-20, 10-23
4. Outside rear-view mirrors p. 6-09
5. Side turn-signal lamps (on fender)* p. 5-20, 10-23
6. Headlamp washer* p. 5-26
7. Headlamps p. 5-17, 10-23
8. Daytime running lamp p. 5-19, 10-22 Position lamps p. 5-17, 10-23
9. Front turn-signal lamps p. 5-20, 10-23, 10-26
10. Front fog lamps p. 5-22, 10-23, 10-26
11. Front fog lamps* p. 5-22, 10-23, 10-26 Daytime running lamp p. 5-19, 10-23, 10-26
12. Position lamps p. 5-17, 10-23, 10-26
13. Front turn-signal lamps p. 5-20, 10-23, 10-26
14. Headlamps p. 5-17, 10-23, 10-24
15. Bonnet p. 10-04 Engine compartment p. 10-02, 11-17
16. Wiper and washers p. 5-23, 10-15
17. Antenna p. 7-75
Exterior - front
1-11OKTE18E1Overview/Quick guide1Double cabExcept for high intensity discharge
headlamp type High intensity discharge headlamps
type

Quick guideE08500500010Locking and unlocking the
doors
E08500601454
Keyless entry system*
Press the key switch, and all doors will be
locked or unlocked as desired.
It is also possible to operate the outside rear-
view mirrors. (Vehicles equipped with the mirror retractor switch)
The key switch will operate within approxi-
mately 4 m from the vehicle.
1. LOCK switch
2. UNLOCK switch
3. Indication lamp
Refer to “Keyless entry system*” on page
3-04.
For vehicles equipped with the mirror retrac- tor switch, the outside rear-view mirrors can
be folded and extended automatically if you press the LOCK switch (1) or UNLOCK
switch (2).
Refer to “Operation of the outside rear- view mirrors” on page 3-05.
Keyless operation system*
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door switch (A), the doors are locked/unlocked.The operating range is approximately 70 cm from the driver’s or front passenger’s door
lock/unlock switch.
Refer to “Keyless operation system*” on page 3-07.
Around the driver’s seat
E08500801775
Quick guide
1-15OKTE18E1Overview/Quick guide1Keyless entry key Keyless operation key

1-Electric remote-controlledoutside rear-view mirrors*
To adjust the mirror position
L-Left outside mirror adjustmentR-Right outside mirror adjustment1-Up2-Down3-Right4-Left5-Mirror retractor switch*

Refer to “Outside rear-view mirrors” on
page 6-09.
2-Engine switch*
If you are carrying the keyless operation key, you can start the engine. If you press the en-
gine switch without depressing the brake pedal ( A/T) or the clutch pedal ( M/T), you
can change the operation mode in the order of OFF, ACC, ON, OFF.
OFF-The indication lamp on the en-
gine switch turns off.ACC-The indication lamp on the en-
gine switch illuminates orange.ON-The indication lamp on the en-
gine switch illuminates green.

Refer to “Engine switch” on page 6-14.
3-Combination headlamps
Rotate the switch to turn on the lamps.
Type 1
OFFAll lamps offPosition, tail, licence plate and
instrument panel lamps onHeadlamps and other lamps go
on
Quick guide
1-16OKTE18E1Overview/Quick guide1Except for vehicles
equipped with the mirror
retractor switch
Vehicles equipped with
the mirror retractor
switch

Keys.................................................................................................... 3-02Key number tag................................................................................... 3-02
Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Keyless operation system*.................................................................. 3-07
Doors................................................................................................... 3-15
Central door locks............................................................................... 3-17
Dead Lock System*............................................................................ 3-18
“Child-protection” rear doors (Double cab)........................................3-20
Rear gate............................................................................................. 3-20
Manual window control*.................................................................... 3-21
Electric window control*.................................................................... 3-21Locking and unlocking
OKTE18E13

KeysE00300104319
1. Master key
2. Keyless entry key
3. Keyless operation key
4. Emergency key
WARNINGl When taking a key on flights, do not press
any switches on the key while on the plane. If a switch is pressed on the plane,the key emits electromagnetic waves,which could adversely affect the plane’s
flight operation.
When carrying a key in a bag, be careful that no switches on the key can be easily
pressed by mistake.NOTEl The key is a precision electronic device with
a built-in signal transmitter. Please observe
the following in order to prevent a malfunc- tion.
• Do not leave in a place that is exposed to
direct sunlight, for example on the dash- board.
• Do not disassemble or modify.
• Do not excessively bend the key or sub-
ject it to strong impacts.
• Do not expose to water.
• Keep away from magnetic key rings.
• Keep away from audio systems, personal
computers, TVs, and other equipment that generates a magnetic field.
• Keep away from devices that emit strong
electromagnetic waves, such as cellular phones, wireless devices and high fre-
quency equipment (including medical de- vices).NOTE• Do not clean with ultrasonic cleaners or
similar equipment.
• Do not leave the key where it may be ex-
posed to high temperature or high humidi-
ty.
l The engine is designed so that it will not
start if the ID code registered in the immo-
bilizer computer and the key’s ID code do
not match. Refer to the “Electronic immobil- izer” section for details and key usage.
l If you lose one of them, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible to prevent theft.Key number tag
E00312701092
The key number is stamped on the tag as in-
dicated in the illustration.
Keys
3-02OKTE18E1Locking and unlocking3Key Keyless operation keyKeyless entry key

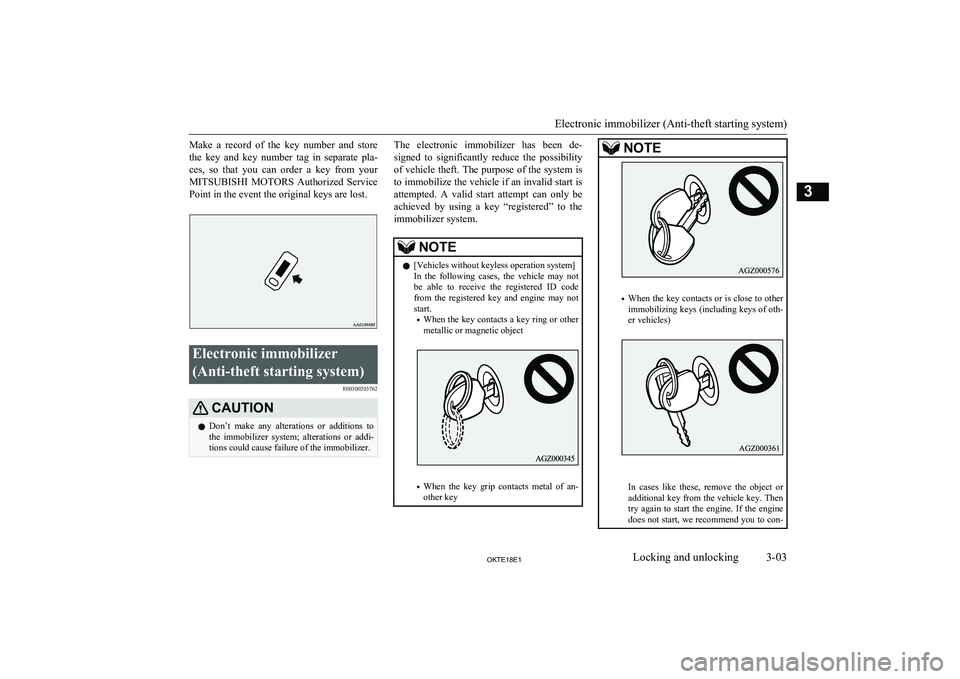

Make a record of the key number and storethe key and key number tag in separate pla-
ces, so that you can order a key from your MITSUBISHI MOTORS Authorized Service
Point in the event the original keys are lost.Electronic immobilizer
(Anti-theft starting system) E00300203762CAUTIONlDon’t make any alterations or additions to
the immobilizer system; alterations or addi-tions could cause failure of the immobilizer.The electronic immobilizer has been de-
signed to significantly reduce the possibility of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system.NOTEl [Vehicles without keyless operation system]
In the following cases, the vehicle may not be able to receive the registered ID code from the registered key and engine may not
start.
• When the key contacts a key ring or other
metallic or magnetic object
• When the key grip contacts metal of an-
other key
NOTE
• When the key contacts or is close to other
immobilizing keys (including keys of oth-er vehicles)

In cases like these, remove the object or additional key from the vehicle key. Then
try again to start the engine. If the engine
does not start, we recommend you to con-
Electronic immobilizer (Anti-theft starting system)
3-03OKTE18E1Locking and unlocking3
