2018 MITSUBISHI L200 fuse box

1. Front passenger’s airbag indicator* p. 4-25, 4-27
2. Steering wheel height and reach adjustment lever p. 6-07
3. Audio remote control switches* p. 7-28, 7-51
4. Cruise control switch* p. 6-63
5. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-28
Horn switch p. 5-28
6. Bluetooth ®
2.0 interface* p. 7-76
7. Hazard warning flasher switch p. 5-21
8. Cigarette lighter p. 7-100
9. USB input terminal* p. 7-95 HDMI terminal* p. 7-98
10. Auto Stop & Go (AS&G) OFF switch* p. 6-23
11. Parking brake lever p. 6-05
12. Floor console box p. 7-104, 7-105 Accessory socket p. 7-101
13. Cup holder p. 7-106
14. Easy Select 4WD* p. 6-35 Super Select 4WD II* p. 6-40
15. Gearshift lever* p. 6-27 Selector lever* p. 6-29
16. Centre console under tray p. 7-104, 7-105
17. Key slot* p. 6-21
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Fuses p. 10-17
21. Glove box p. 7-104
22. Side ventilators p. 7-02
23. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-25, 4-28
24. Heater*/Air conditioning* p. 7-04
25. Centre ventilators p. 7-02
26. Rear window demister switch p. 5-27
Instruments and Controls
1-04OKTE18E1Overview/Quick guide1

Fusible linksE01002901721
The fusible links will melt to prevent a fire if
a large current attempts to flow through cer- tain electrical systems.
In case of a melted fusible link, we recom- mend you to have your vehicle inspected.For the fusible links, please refer to “Passen-
ger compartment fuse location table” on page
10-18 and “Engine compartment fuse location
table” on page 10-19.WARNINGl Fusible links must not be replaced by any
other device. Failing to fit the correct fusi-
ble link may result in fire in the vehicle,
property destruction and serious or fatal injuries at any time.Fuses
E01003000849Fuse block location
E01007601677
To prevent damage to the electrical systemdue to short-circuiting or overloading, each individual circuit is provided with a fuse.
There are fuse blocks in the passenger com- partment and in the engine compartment.
Passenger compartment (LHD
vehicles)
The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front of the driver’s seat at the position shown in
the illustration.
Pull the fuse lid to remove it.
Passenger compartment (RHD
vehicles)
The fuse block in the passenger compartment
is located behind the glove box at the posi-
tion shown in the illustration.
1- Open the glove box.
2- Move the rod (A) on the right side of the
glove box to the right side of the box. (if
so equipped)
Fusible links
10-17OKTE18E1Maintenance10

3-While pressing the side of the glove box,
unhook the left and right hooks (B) and lower the glove box.
4- Remove the glove box fastener (C), and
then remove the glove box.
Engine compartment
In the engine compartment, the fuse block is
located as shown in the illustration.
1- Push the tab.
2- Remove the cover.
Fuse load capacity
E01007701838
The fuse capacity and the names of electrical systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles), the back side of the glove box (RHD vehi-cles) and inside of the fuse block cover (in-
side of the engine compartment).
NOTEl Spare fuses are provided in the fuse block of
the engine compartment. Always use a fuse
of the same capacity for replacement.Passenger compartment fuse lo-
cation table
E01007901944
No.Sym- bolElectrical sys- temCa-
pacity1Tail lamp (left)7.5 A2Cigarette lighter15 A3Ignition coil10 A4Starter motor7.5 A* : Fusible link
Fuses
10-18OKTE18E1Maintenance10

Ca-
pacityColour30 AGreen (fuse type) / Pink (fusible link type)40 AGreen (fusible link type)Fuse replacement

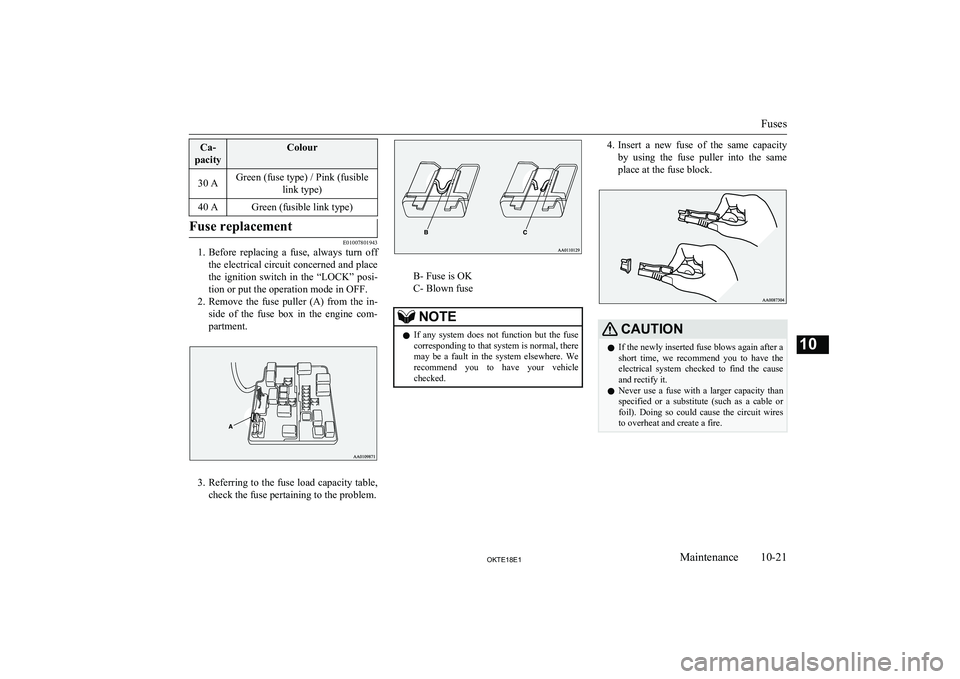

E01007801943
1.Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion or put the operation mode in OFF.
2. Remove the fuse puller (A) from the in-
side of the fuse box in the engine com- partment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.4. Insert a new fuse of the same capacity
by using the fuse puller into the same
place at the fuse block.CAUTIONl If the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or
foil). Doing so could cause the circuit wires
to overheat and create a fire.
Fuses
10-21OKTE18E1Maintenance10
