2018 MAZDA MODEL MX-5 MIATA language

4. If the correct passcode is input, voiceguidance “XXXXXX... (Ex. “Mary's
device”) (Device tag) is connected” is
announced.
If the passcode is incorrect, voice
guidance “XXXX (4-digit passcode,
Pcode) incorrect passcode, please try
again” is announced.
Canceling the passcode
NOTE
Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to be
effective.
1. Press the pick-up button or talk button
with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confirmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Passcode”
5. Prompt: “Passcode is enabled. Would
you like to disable it?”
6. Say: [Beep] “Yes”
7. Prompt: “Passcode is disabled.”
Confirmation Prompts
The confirmation prompt confirms the
command content to the user before
advancing to the operation requested by
the user. When this f unction is turned on,
the system reads out the voice input
command previously received and
confirms whether the command is correct
before advancing to the command
execution.
When the confirmation prompt function is
turned on:
(Ex. “Calling John's device. Is this
correct?”)
When the confirmation prompt function is
turned off:
(Ex. “Calling John's device.”)
NOTE
If the confirmation prompt function is
turned off when making an emergency
call, the system reads out and confirms the
command before executing it.
1. Press the pick-up button or talk button with a short press.
2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:
Pairing options, confirmation prompts,
language, passcode, select phone or
select music player.”
4. Say: [Beep] “Confirmation prompts”
5. Prompt: “Confirmation prompts are
on/off. Would you like to turn
confirmation prompts off/on?”
6. Say: [Beep] “Yes”
7. Prompt: “Confirmation prompts are
off/on.”
Interior Features
Audio Set [Type A (non-touchscreen)]
5-50
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

SymptomCauseSolution method
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is re-
quired.
―
Interior Features
Audio Set [Type A (non-touchscreen)]
5-67
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

Home screen
IconFunction
Applications
Information such as average fuel economy, maintenance, and warn ings can be verified.
Depending on the grade and specification, the screen display ma y differ.
Entertainment
Operates audio such as the radio and CDs. The audio source most recently used is dis-
played. An audio source which can not be used at that time is skipped and the previous
audio source is displayed.
To change the audio source, select the
icon displayed at the bottom of the screen.
Communication
Bluetooth® related functions are available.
Navigation
Navigation screen is displayed (v ehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direc-
tion in which the vehicle is moving is displayed.
The compass may not indicate th e correct bearing when the vehicle is stopped or traveling
at a slow speed.
Settings
Overall setting menu (Such a s display, sound, Bluetooth® and Language).
Depending on the grade and specification, the screen display ma y differ.
Interior Features
Audio Set [Type B (touchscreen)]
5-73
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

Deleting all devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Select
.
▼ Changing PIN code
PIN code (4 digits) can be changed.
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.
Available Language
The Bluetooth® Hands-Free System
applies to the following languages:
English
Spanish
French
Refer to Settings on page 5-123.
Interior Features
Audio Set [Type B (touchscreen)]
5-99
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

IconFunction
Only replies to the sender of the currently displayed message.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select
.
(Only E-mail)
Replies to all memb ers including CC.
Select the sentence on the displ ayed reply screen and select the sentence for sending from
the preset message.
Select
.
Makes a call to a person who sent a message.
For E-mail, this function may no t work depending on the device.
Deletes a message.
The messages stored in a device is also deleted.
NOTE
Up to three preset messages can be selected.
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.

3. Select the unread message displayed in bold.
4. The details of the message are displayed and replying to the message,
making a call, or playback can be
performed.
Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would like to display. Only the messages for
the selected account are displayed in
the inbox.
Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you would like to edit. The keyboard
screen is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.
NOTE
Select the icon to change the
language.
Select the icon to switch between
capitalized and lower-case characters.
Interior Features
Audio Set [Type B (touchscreen)]
5-117
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27

TabItem Function
System Tool Tips
Turns button explanations ON/OFF.
Language Changes the language.
Temperature Changes the setting between Fahrenheit and
Celsius.
Distance Changes the setting between miles and kilome-
ters.
Music Database Update Used to update Gracenote
®. Gracenote® is
used with USB Audio , and provides:
1. Supplemental music information (Such as song name, artist name)
2. Voice recognition assistance for Play Ar- tist and Play Album
Gracenote
® can be download ed from the Maz-
da Handsfree Website.
Refer to Gracenote
® Database on page 5-91.
Restore All Factory Settings Memory and settings are initialized to the fac-
tory settings.
The initialization launches by selecting the
button.
About Agreements and
Disclaimers
Verify the disclaimer and agree.
Version Information Can verify the current audio unit OS version
and Gracenote
® Database version.
Interior Features
Audio Set [Type B (touchscreen)]
5-124
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

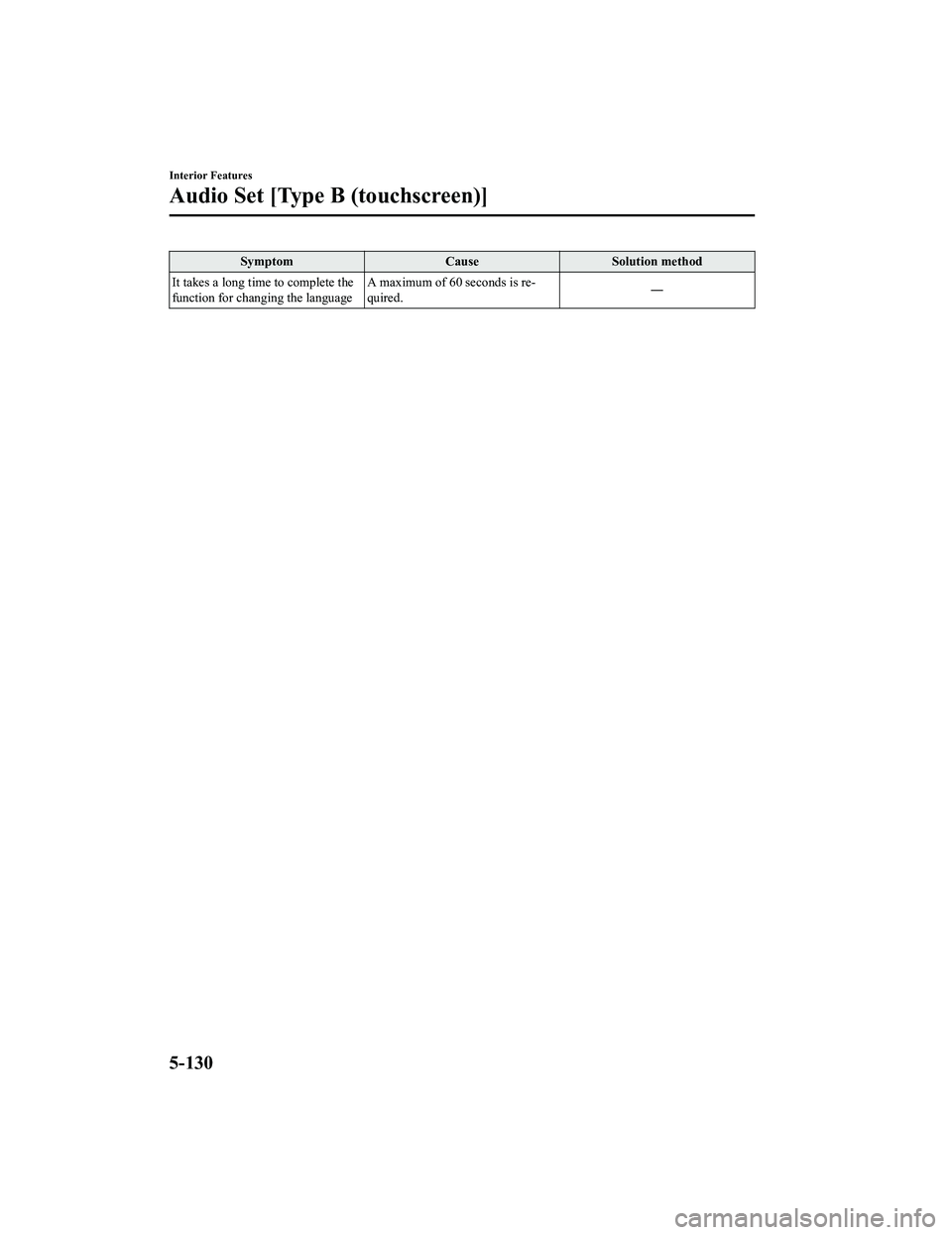

SymptomCauseSolution method
It takes a long time to complete the
function for changing the language A maximum of 60 seconds is re-
quired.
―
Interior Features
Audio Set [Type B (touchscreen)]
5-130
MX-5_8GF7-EA-17J_Edition2
2017-10-31 14:07:27

ItemFeatureFactory Set-
ting Available Settings Settings
Change
Method
Auto headlight off*3 (page
4-44). Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/
Off
*4
A―
Auto-light control (page
4-44). Timing by which lig
hts turn on Medium High/
Med. High/ Medium/
Med. Low/ Low A―
High Beam Control System
(HBC) (page 4-76).
Operational/non-operational*5On
On/Off A ―
Adaptive Front Lighting
System (AFS) (page 4-75). Operational/non-operational*5On
On/Off A ―
Lights-on reminder*6 (page
7-49). Warning beep volume High High/Low/Off A ―
Coming home light (page
4-47).
Time until headlights turn off 30 seconds 120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A―
Leaving home light (page
4-48).
Operational/non-operational On On/Off A ―
Turn indicator (page 4-49). Beep volume
LowHigh/Low A ―
Three-flash turn signal
(page 4-49). Operational/non-operational On On/Off A ―
System
Language Language indicated in display English
Depends on market
*7A―
TemperatureTemperature unit indicated in
display °F °F/°C A F
DistanceDistance unit indicated in dis-
play mi mi/km A ―
Fuel Economy Monitor
(page 4-68).
Ending display On/off OffOn/Off B ―
Fuel economy resetting
procedure Linkage/non-linkage with fuel
economy reset and trip meter A
reset
Off
On/Off B ―
*1 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation ca n be changed. The
volume of the warning beep during Rear Cross Traffic Alert (RCT A) operation cannot be changed.
Specifications
Personalization Features
9-11
MX-5_8GF7-EA-17J_Edition2 2017-10-31 14:07:27
