2018 MAZDA MODEL CX-5 warning

▼AUTOHOLD Warning Beep
Warning light flashes/message is displayed
and beep sound is activated
simultaneously for about five seconds
when using AUTOHOLD function or
when AUTOHOLD switch is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the warning light flashes/message is
displayed and the beep sound is activated
simultaneously, h
ave your vehicle
inspected at an Authorized Mazda Dealer.
▼ Power Steering Warning Buzzer
If the power steering system has a
malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Indication/Warning
Lights on page 4-30.
▼Tire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds if the tire pressures
decrease.
Refer to Tire Pressure Monitoring System
on page 4-162.
▼Blind Spot Monitoring (BSM)
Warning Beep*
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-9.
Reversing
The Blind Spot Monitoring (BSM)
warning sound is activated if there is a
possibility of collision with a vehicle
approaching from behind and from the
rear on the left and right sides of the
vehicle.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-45
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

▼Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
•The volume of the Lane-keep Assist
System (LAS) & Lane Departure
Warning System (LDWS) warning sound
can be changed.
Refer to Personalization Features on
page 9-9.
•The type of the Lane-keep Assist System
(LAS) & Lane Departure Warning
System (LDWS) warning sound can be
changed.
Refer to Personalization Features on
page 9-9.
▼Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed on the active driving
display, the warning sound is activated and
the area around the speed limit sign
displayed on the active driving display
flashes 3 times in amber, and if the vehicle
speed continues to exceed the displayed
speed limit sign, the indication stops
flashing and remains on.
▼Collision warning*
If there is a possibility of a collision with a
vehicle ahead or an obs
truction at the rear
of the vehicle, the warning light in the
instrument cluster flashes at the same time
as the warning indication is displayed in
the multi-information d isplay or the active
driving display, and a warning sound is
activated intermittently.
▼ Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
Wa r n i n g s
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) system warnings notify the
driver of system problems and precautions
on use when required. Check after hearing
a warning beep sound.
Warning beep What to check
While the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system is operating,
a single beep sound is
heard when “Front radar
blocked” is displayed in
the multi-information
display. Cancel the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system if the radar
sensor (front) becomes
dirty. Clean the area
around the radar sensor
(front).
The beep sounds inter-
mittently while the vehi-
cle is being driven. The distance between
your vehicle and the ve-
hicle ahead is too close.
Verify the safety of the
surrounding area and re-
duce vehicle speed.
While the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system is operating,
a single beep sound is
heard when “Front radar
sensor system malfunc-
tion” is displayed in the
multi-information dis-
play. A malfunction in the
system may be indicated.
Check the center display
to verify th
e problem
and then have your vehi-
cle inspected by an Au-
thorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-46*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

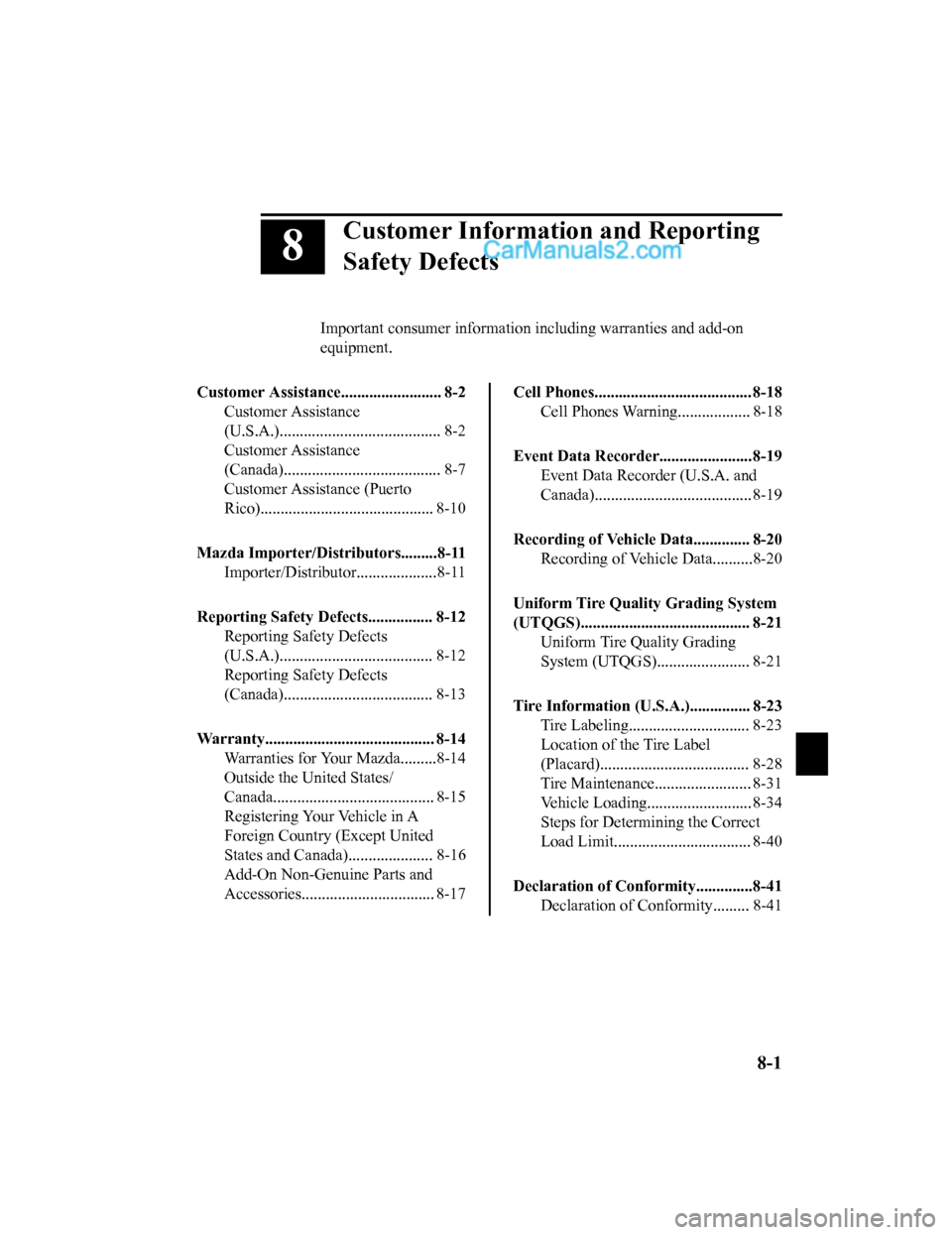

8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on
equipment.
Customer Assistance......................... 8-2 Customer Assistance
(U.S.A.)........................................ 8-2
Customer Assistance
(Canada)....................................... 8-7
Customer Assistance (Puerto
Rico)........................................... 8-10
Mazda Importer/Distributors.........8-11 Importer/Distributor....................8-11
Reporting Safety Def ects................ 8-12
Reporting Safety Defects
(U.S.A.)...................................... 8-12
Reporting Safety Defects
(Canada)..................................... 8-13
Warranty.......................................... 8-14 Warranties for Your Mazda.........8-14
Outside the United States/
Canada........................................ 8-15
Registering Your Vehicle in A
Foreign Country (Except United
States and Canada)..................... 8-16
Add-On Non-Genuine Parts and
Accessories................................. 8-17
Cell Phones....................................... 8-18
Cell Phones Warning.................. 8-18
Event Data Recorder. ......................8-19
Event Data Recorder (U.S.A. and
Canada)....................................... 8-19
Recording of Vehicle Data.............. 8-20 Recording of Vehicle Data..........8-20
Uniform Tire Quality Grading System
(UTQGS).......................................... 8-21 Uniform Tire Quality Grading
System (UTQGS)....................... 8-21
Tire Information (U.S.A.)............... 8-23 Tire Labeling.............................. 8-23
Location of the Tire Label
(Placard)..................................... 8-28
Tire Maintenance........................ 8-31
Vehicle Loading.......................... 8-34
Steps for Determining the Correct
Load Limit.................................. 8-40
Declaration of Confo rmity..............8-41
Declaration of Conformity......... 8-41
8-1
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Cell Phones Warning
WA R N I N G
Please comply with the legal regulations concerning the use of communication equipment in
vehicles in your country:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a
number on a cell phone while driving also ties-up the driver's hands. Use of these devices will
cause the driver to be distracted and could lead to a serious accident. If a passenger is unable
to use the device, pull off the right-of-way to a safe area before use. If use of a cell phone is
necessary despite this warning, use a hands-free system to at least leave the hands free to
drive the vehicle. Never use a cell phone or othe r electrical devices while the vehicle is moving
and, instead, concentrate on the full-time job of driving.
Customer Information and Reporting Safety Defects
Cell Phones
8-18
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This inform ation identifies and describes the fundam ental characteristics of the tire
and also provides a tire identification number for safety standard certification and in case of
a recall.
▼ Information on Passenger Vehicle Tires
Please refer to the sample below.
1. TIN: U.S. DOT tire identification number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Run-flat tire
7. Rim diameter code
8. Load index & speed symbol
9. Severe snow conditions
10. Tire ply composition and materials used
11. Max. load rating
12. Tread wear, traction and temperature grades
13. Max. permissible inflation pressure
14. SAFETY WARNING
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-23
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

Traction: The traction grades, from highe st to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measure d under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Te m p e r a t u r e : The temperature grades are A (the highest), B and C, represent ing the tire's
resistance to the generation of heat and its ability to dissipa te heat when tested under
controlled conditions on a spec ified indoor laboratory test whe el.
Snow Tires
In some heavy snow areas, local governments may require true sn ow tires, those with very
deeply cut tread. These tires should only be used in pairs or p laced on all four wheels. Make
sure you purchase snow tires that are the same size and construction type as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning a ppears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
•EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM D IAMETER; NEVER EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
•TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/
DAMAGE-FOLLOW OWNER'S MANUAL AND PLACARD IN
VEHICLE-FREQUENTLY CHECK INFLATION PRESSURE AND INSPECT FOR
DAMAGE.
▼ Information on Temporary Tires
Please refer to the sample below.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-26
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

Personalization Features
The following personalization features can be set or changed by the customer or an Author-
ized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the persona lization features can be changed by the customer depend-
ing on the feature.
Personalization features and settings which can be changed diff er depending on the market
and specification.
Settings Change Method
Settings can be changed by opera ting the center display screen.
A: Refer to Settings on page 5-115.
B: Refer to Fuel Economy Monitor on page 4-79.
C: Refer to Active Drivi ng Display on page 4-27.
Settings can be changed by op erating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-16.
E: Refer to Transmitter on page 3-4.
F: Refer to Locking, Unlocking with Request Switch (With the ad vanced keyless function)
on page 3-13.
Settings can be changed by an Authorized Mazda Dealer.
Item FeatureFactory
Setting Available Settings Settings
Change
Method
Safety
Advanced Smart City
Brake Support (Ad-
vanced SCBS) (page
4-136)
Smart Brake Support
(SBS) (page 4-144) The system can be changed so that Ad-
vanced Smart City Brake Support (Ad-
vanced SCBS) does not operate.
*1On On/Off A ―
The distance at which the collision warn-
ing activates can be changed.
Med. Far/Med./Near A ―
The volume of the
collision warning can
be changed. High High/Low/Off A ―
Smart City Brake Sup-
port (SCBS) (page
4-140)The system can be changed so that Smart
City Brake Support (SCBS) does not op-
erate.
*1On On/Off A ―
Specifications
Personalization Features
9-9
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

ItemFeatureFactory
Setting Available Settings Settings
Change
Method
Lane-keep Assist Sys-
tem (LAS) & Lane De-
parture Warning System
(LDWS) (page 4-125) The system can be changed so that the
steering wheel assist does not operate.
On On/Off A ―
When the steering
wheel operation assis-
tance is turned onThe cancel sensi-
tivity of the steer-
ing assistance for
the system can be
changed.
High High/Low A ―
The system can
be changed so
that the Lane De-
parture Warning
does not activate.
On On/Off A ―
When the steering
wheel operation assis-
tance is turned off The warning tim-
ing in which the
system deter-
mines that the ve-
hicle may be de-
viating from its
lane can be
changed.
At At/Before A ―
The sensitivity of
the warning for
the system can be
changed.
Often Often/Rare A ―
Lane-keep Assist Sys-
tem (LAS) & Lane De-
parture Warning System
(LDWS) (page 4-125) The type of Lane-keep Assist System
(LAS) & Lane Departure Warning Sys-
tem (LDWS) warning can be changed.
Vi b r a t i o n
Vibration/Beep/
Rumbl. A―
The warning intensi-
ty/volume of the sys-
tem can be changed. Vibration Low High/Low A ―Rumbl.
Low High/Mid/Low A ―
Beep Low High/Low A ―
Blind Spot Monitoring
(BSM) (page 4-93) The system can be ch
anged so that Blind
Spot Monitoring (BSM) does not oper-
ate.*1On On/Off A ―
Warning beep volume*2High High/
Low/ Off A―
Specifications
Personalization Features
9-10
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27
