Protected ComponentsFuse RatingFuse or Relay Number
Front climate controlled seats.30A177
Not used.-78
Blower motor.40A279
Wiper motor 2.25A180
Inverter.40A181
Not used.–82
Transmission Range Control Module shifter.20A183
Starter solenoid.30A184
Wide open panoramic roof 2.30A185
Anti-lock brake system pump.60A287
1 M case fuse.2 J case fuse.
293
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses

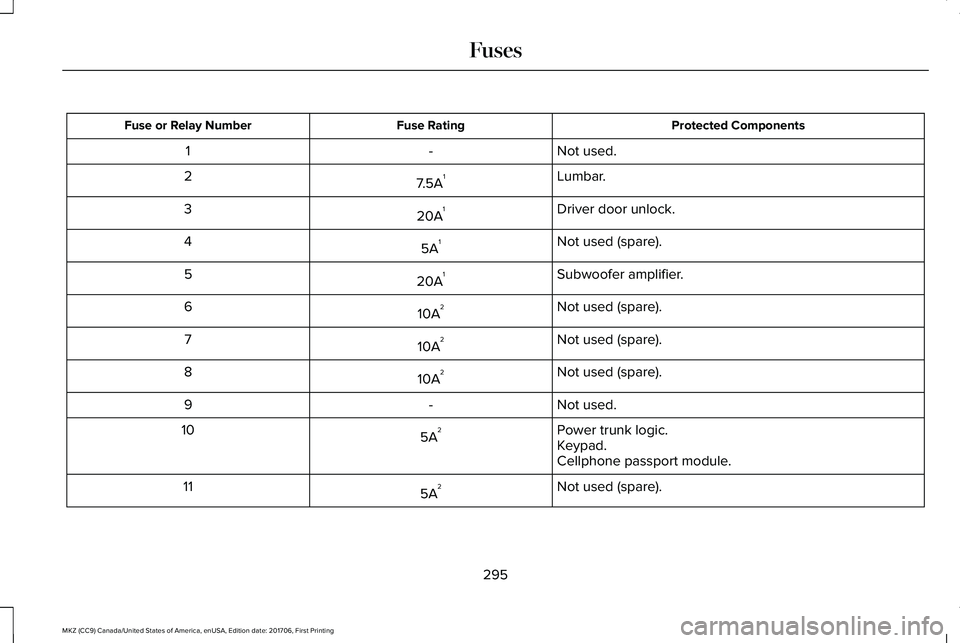

Protected ComponentsFuse RatingFuse or Relay Number
Not used.-1
Lumbar.7.5A12
Driver door unlock.20A13
Not used (spare).5A14
Subwoofer amplifier.20A15
Not used (spare).10A26
Not used (spare).10A27
Not used (spare).10A28
Not used.-9
Power trunk logic.5A210Keypad.Cellphone passport module.
Not used (spare).5A211
295
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Climate control.7.5A212Gear shift.
Steering wheel column.7.5A213Cluster.Datalink logic.
Extended power module.10A214
Datalink-Gateway module.10A215
Trunk release.15A116
Not used (spare).5A217
Push button stop-start.5A218
Extended power module.7.5A219
Adaptive headlamps.7.5A220
Humidity and in-car temperature sensor.5A221
Not used (spare).5A222
296
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Delayed accessory (power inverter logic all smart windowlogic, driver window switch).10A123
Rear sunshade.Moonroof.Panoramic roof.
Central lock-unlock.20A124
Driver door (window, mirror).30A125
Front passenger door (window, mirror).30A126
Moonroof.30A127
Amplifier.20A128
Rear driver side door (window).30A129
Rear passenger side door (window).30A130
Not used (spare).15A131
Voice control.10A132Radio frequency receiver.Display.
297
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Radio.20A133Active noise control.CD changer.
Run-start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).30A134
Not used (spare).5A135
Continuous control damping suspension module.15A136Auto dimming rear view mirror.Rear heated seats.
Heated steering wheel.20A137
Not used.-38
1 Micro 2 fuse.2 Micro 3 fuse.
298
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Fuses
