2018 LEXUS RCF service indicator

370 5-4. Using the other interior features
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)“SOS” button
LED light indicators
MicrophoneLEXUS Enform Safety Connect 
 : If equippedSafety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embe dded cellular techno logy to provide
safety and security features to subscribers. Safety Connect is supported by
Lexus’ designated response center, wh ich operates 24 hours per day, 7 days
per week.
Safety Connect service is available by subscription on select, telematics
hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by the
Telematics Subscription Service Agre ement and its Terms and Conditions, as
in effect and amended from time to time, a current copy of which is available
at Lexus.com. All use of the Safety Co nnect service is subject to such then-
applicable Terms and Conditions.
System components 1
2
3

372 5-4. Using the other interior features
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Languages
The Safety Connect response ce nter will offer support in mu ltiple languages. The Safety
Connect system will offer voice prompts in En glish, Spanish, and Fr ench. Please indicate
your language of ch oice when enrolling.■
When contacting the response center
You may be unable to contact the resp onse center if the network is busy.
When the engine switch is turned to IGNITION ON mode, the red indicator
light comes on for 2 seconds then turns off. Afterward, the green indicator light
comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage conditions: ●
Green indicator light on = Active service ●
Green indicator light flashing = Safety Connect call in process●
Red indicator light (except at vehicle start-up) = System malfunction (contact
your Lexus dealer) ●
No indicator light (off) = Safety Connect service not active ■
Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the system is
designed to automatically call the re sponse center. The responding agent
receives the vehicle’s location and attempts to speak with the vehicle occu-
pants to assess the level of emergency. If the occupants are unable to commu-
nicate, the agent automatically treats the call as an emergency, contacts the
nearest emergency services provider to describe the situation, and requests
that assistance be sent to the location.Safety Connect LED light Indicators
Safety Connect services

3876-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 6
Maintenance and care

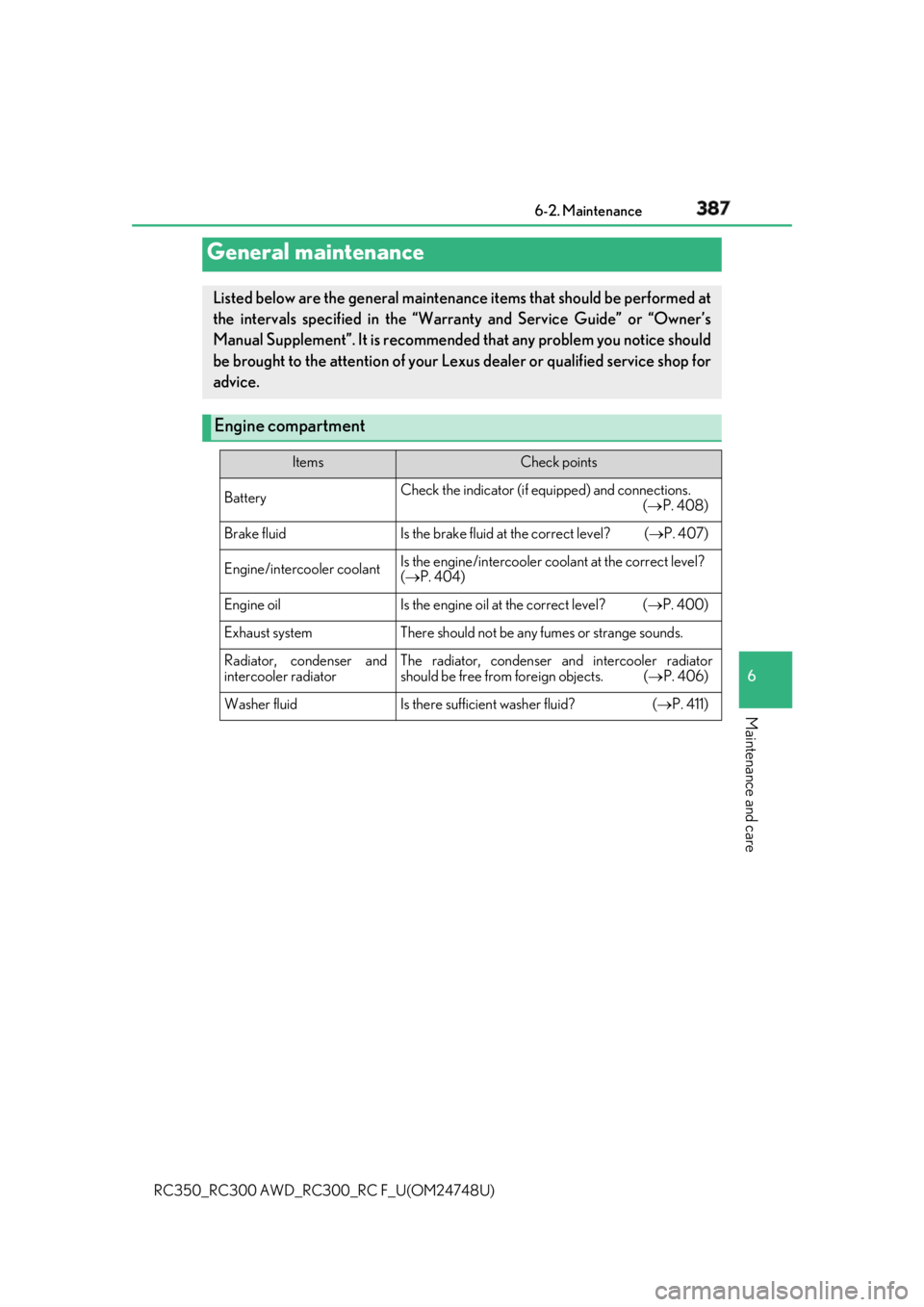

General maintenance Listed below are the general maintenanc e items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommende d that any problem you notice should
be brought to the attention of your Lexu s dealer or qualified service shop for
advice.
Engine compartment Items Check points
Battery Check the indicator (if equipped) and connections.
(  P. 408)
Brake fluid Is the brake fluid at the correct level? (  P. 407)
Engine/intercooler coolant Is the engine/intercooler c oolant at the correct level?
(  P. 404)
Engine oil Is the engine oil at the correct level? (  P. 400)
Exhaust system There should not be any fumes or strange sounds.
Radiator, condenser and
intercooler radiator The radiator, condenser and intercooler radiator
should be free from foreign objects. (  P. 406)
Washer fluid Is there sufficient washer fluid? (  P. 411)

390 6-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)The OBD system determines that a problem exists somewhere in the emission
control system. Your vehicle may not pass the I/M test and may need to be
repaired. Contact your Lexus dealer to service the vehicle. ●
When the battery is disconnected or discharged
Readiness codes that are set duri ng ordinary driving are erased.
Also, depending on your driving habits , the readiness codes may not be com-
pletely set. ●
When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary malfunction
and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is driven
40 or more times.
Contact your Lexus dealer to pr epare the vehicle for re-testing.Emission inspection and maintenance (I/M)
programs Some states have vehicle emission in spection programs which include OBD
(On Board Diagnostics) checks. The OBD system monitors the operation of
the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M te st in the following situations:
When the malfunction indicator lamp still remains on after several driv-
ing trips
If your vehicle does not pass the I/M test

5558-1. Specifications
8
Vehicle specifications
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Recommendation of the use of gasoline containing detergent additives ●
Lexus recommends the use of gasoline that contains detergent additives to avoid the
build-up of engine deposits. ●
All gasoline sold in the U.S.A. contains minimum detergent additives to clean and/or
keep clean intake systems, per EPA’s lowest additives concentration program.●
Lexus strongly recommends the use of Top Tier Detergent Gasoline. For more informa-
tion on Top Tier Detergent Gasoline and a lis t of marketers, please go to the official
website www.toptiergas.com. ■
Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as et hers and ethanol, as well as reformulated
gasolines, are available in some cities. Thes e fuels are typically acceptable for use, pro-
viding they meet other fuel requirements.
Lexus recommends these fuels, since the form ulations allow for reduced vehicle emis-
sions. ■
Non-recommendation of the use of blended gasoline
●
If you use gasohol in your vehicle, be sure that it has an octane ra ting no lower than 91.●
Lexus does not recommend the use of gasoline containing methanol. ■
Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancin g additive called MMT (Methylcyclopenta-
dienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be ad versely affected.
The malfunction indicator lamp on the instru ment cluster may come on. If this happens,
contact your Lexus dealer for service. ■
If your engine knocks ●
Consult your Lexus dealer. ●
You may occasionally notice light knocking for a short time while accelerating or driv-
ing uphill. This is normal and there is no need for concern.●
Use only gasoline containing up to 15% etha-
nol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol, includ-
ing from any pump labeled E30, E50, E85
(which are only some examples of fuel con-
taining more than 15% ethanol). DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

629Alphabetical index
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Seat heaters ............................................ 345
Seat position memory...........................166
Seat ventilators ...................................... 346
Seating capacity.................................... 204
Seats, Front ................................................ 161
Adjustment ............................................... 161
Adjustment precautions .................. 163
Child seats/child restraint
system installation............................. 58
Cleaning .................................................. 381
Driving position memory ................ 166
Head restraints ....................................... 171
Jam protection function ................... 162
Properly sitting in the seat ................ 32
Seat heaters ..........................................345
Seat position memory....................... 166
Seat ventilators ....................................346
Seats, Rear ................................................164
Fold down the seatback .................. 164
Luggage security system ................ 152 Sensor
Automatic headlig ht system ........ 226
Camera sensor....................................247
Inside rear view mirror...................... 177
Intuitive parking assist......................280
Radar sensor............................ 252, 292
Rain-sensing windshield
wipers................................................... 239
Service reminder indicators ............... 84
Shift lever ................................................... 213
Automatic transmission .................... 213
If the shift lever
cannot be shifted from P .............. 219
Shift lock system ..................................... 218
Shift position and gear
position...............................................91, 96
Side airbags ............................................... 40
Side marker lights .................................225
Light switch........................................... 225
Replacing light bulbs ....................... 439
* : Refer to the “NAVIGATIO N AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
