2018 LEXUS NX300h display

3677-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises ■
ABS warning light
■
Electric power steering system warning light (warning buzzer)
■
PCS warning light Warning light Details/Actions(U.S.A.)
(Canada)
Indicates a malfunction in:
 The ABS; or
 The brake assist system
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions(Yellow)
(Red) Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions
(Flashes or
illuminates) Indicates a malfunction in th e PCS (Pre-Collision System)
or that the system is temporarily unavailable due to the
vehicle being extremely hot/cold, or dirt around a front sen-
sor, etc. ( → P.209, 376)
→ Follow the instructions displayed on the multi-informa-
tion display. ( → P.209, 376)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
→ P.210

368 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
LDA indicator
■
PKSB OFF indicator
■
Slip indicator light
■
Brake hold operated indicator Warning light Details/Actions
(Orange)
Indicates a malfunction in the LDA (Lane Departure Alert
with steering control)
→ When “Lane Departure Alert Unavailable” is dis-
played on the multi-information display, turn the LDA
system off, drive the vehicle for a short time, and then
turn the LDA system back on. ( → P.210)
When a message other than above is displayed, follow
the instructions displayed in the message.
Warning light Details/Actions
(Flashes) When a buzzer sounds: Indicates a malfunction in the PKSB
(Parking Support Brake) system
→ Have the vehicle inspected by your Lexus dealer
immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable, pos-
sibly due to a sensor being di rty or covered with ice, etc.
→ Clear the dirt, etc.
Warning light Details/Actions
Indicates a malfunction in:
 The VSC system;
 The TRAC system; or
 The hill-start assist control system
The light will flash when the ABS, VSC or TRAC system is
operating.
→ Have the vehicle inspected by your Lexus dealer
immediately.
Warning light Details/Actions
(Flashes) Indicates a malfunction in the brake hold system
→ Have the vehicle inspected by your Lexus dealer
immediately.

3717-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises ■
Brake Override System/Drive-S tart Control warning light *
*
: This light illuminates on the multi-information display.
■
SRS warning light
This warning light system monitors the air-
bag sensor assembly, fr ont impact sensors,
side impact sensors (front door), side
impact sensors (rear), driver’s seat position
sensor, driver’s seat be lt buckle switch, front
passenger occupant cl assification system
(ECU and sensors), “AIR BAG ON” indi-
cator light, “AIR BAG OFF” indicator light,
front passenger’s seat belt buckle switch,
driver’s seat belt pretensioner, front passen-
ger’s seat belt pretensioner and force lim-
iter, airbags, interconnecting wiring and
power sources. ( → P.32)
■
Front passenger detection sensor, seat
belt reminder and warning buzzer
●
If luggage is placed on the front passen-
ger seat, the front passenger detection
sensor may cause th e warning light to
flash and the warning buzzer to sound even if a passenger is not sitting in the
seat. ●
If a cushion is placed on the seat, the sen-
sor may not detect a passenger, and the
warning light may no t operate properly.■
Electric power steering system warning
light (warning buzzer)
When the 12-volt battery charge becomes
insufficient of the voltage temporarily drops,
the electric power steering system warning
light may come on and the warning buzzer
may sound.
■
If the malfunction indicator lamp comes
on while driving
First check the following:
●
Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●
Is the fuel tank cap loose?
If it is, tighten it securely.Warning light Details/Actions
Brake Override System
Indicates that the accelerato r and brake pedals are being
depressed simultaneously, and the Brake Override System
is operating.
→ Release the accelerator pedal and depress the brake
pedal.
Indicates a malfunction in the Brake Override System (with
warning buzzer)
→ Have the vehicle inspected by your Lexus dealer
immediately.
Drive-Start Control
Indicates that the shift position was changed and Drive-
Start Control was operated wh ile depressing the accelera-
tor pedal. (with warning buzzer)
→ Momentarily release th e accelerator pedal.
Indicates a malfunction in th e Drive-Start Control system
(with warning buzzer)
→ Have the vehicle inspected by your Lexus dealer
immediately.

374 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U If a warning message is dis-
played The multi-information display
shows warnings of system malfunc-
tions, incorrectly performed opera-
tions, and messages that indicate a
need for maintenance. When a
message is shown, perform the cor-
rection procedure appropriate to
the message.
Master warning lightThe master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.
Multi-information displayFollow the instructions of the message
on the multi-information display.
If any of the warning messages are
shown again after the following actions
have been performed, contact your
Lexus dealer. A
B

3757-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7
When trouble arises The warning lights and warning buzzers op erate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.
*
: A buzzer sounds the first time a message is shown on the multi-information display.
■
System warning lights
The master warning light does not come on
or flash in the following cases. Instead, a
separate system warning light will come on
along with a message shown on the multi-
information display.
●
Malfunction of the ABS
The ABS warning light comes on.
( → P.367)
●
Malfunction of the charging system
The charging system warning light comes
on. ( → P.365)
■
If “Hybrid System Overheated Reduced
Output Power” is shown
This message may be displayed when driv-
ing under severe operating conditions. (For example, when driving up a long steep hill.)
Handling method: → P.394■
If “Maintenance required for Traction
battery cooling parts at your dealer” is
shown
The filter may be clogge d, or the air intake
vents or ducts may be blocked. Have the
vehicle inspected by your Lexus dealer.
■
If “Aux Battery Low” is shown
●
When the display goes off after several
seconds *
Maintain the hybrid system operation for
more than 15 minutes and charge the 12-
volt battery.
●
When the display does not go off
Start up the hybrid system using the pro-
cedures for “If the 12-volt battery is dis-Messages and warnings System
warning
light Warning buzzer *
Warning
Comes
on ⎯ Sounds Indicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the cor-
rection procedure is not performed
⎯ Comes
on
or flashes Sounds Indicates an important situation, such as
when the systems shown on the multi-infor-
mation display may be malfunctioning
Flashes ⎯ Sounds Indicates a situation, such as when damage
to the vehicle or danger may result
Comes
on ⎯ Does not sound Indicates a condition, such as malfunction of
electrical components, their condition, or
indicates the need for maintenance
Flashes ⎯ Does not sound Indicates a situation, such as when an opera-
tion has been performed incorrectly, or indi-
cates how to perform an operation correctly

376 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U charged” ( → P.390).*
: Displays for about 6 seconds ■
If “Traction Battery Needs to be Pro-
tected Refrain From the Use of N Posi-
tion” is shown
This message may be displayed when the
shift lever is in N.
As the hybrid battery (traction battery) can-
not be charged when the shift lever is in N,
when the vehicle is to be stopped for a long
period of time, shift the shift lever to P. ■
If “Traction battery needs to be pro-
tected. Shift into P to restart.” is shown
Message is displayed when the remaining
charge for the hybrid battery (traction bat-
tery) is low, because vehicle has been
shifted N for a long period of time.
When operating the vehicle, restart the
hybrid system. ■
If “Shift to P Before Exiting Vehicle” is
shown
Message is displayed when the driver’s
door is opened with out turning the power
switch to OFF with the shift lever in any
position other than P.
Shift the shift lever to P. ■
If “Shift Is in N Release Accelerator
Before Shifting” is shown
Message is displayed when the accelerator
pedal has been depressed and the shift
lever is in N. Releas e the accelerator pedal
and shift the shift lever to D, S or R. ■
If “Depress Brake When Vehicle Is
Stopped Hybrid Syst em May Overheat”
is shown
Message is displayed when the accelerator
pedal is depressed to maintain the vehicle
position when stopped on a upward slope,
etc.
If this continues, th e hybrid system may
overheat.
Release the accelerator pedal and depress
the brake pedal.
■
If “Front Camera Unavailable” or “Front
Camera Unavailable Remove Debris
On Windshield” is shown
The following systems may be suspended
until the problem shown in the message is resolved. ( → P.209, 367)●
PCS (Pre-Collision System) ●
LDA (Lane Departure Alert with steering
control) ●
Dynamic radar cruise control with full-
speed range ●
Adaptive High-beam System ●
Automatic High Beam ■
If “Oil Maintenance Required Soon” is
shown
Indicates that the engine oil is scheduled to
be changed. (The indicator will not work
properly unless the oi l maintenance data
has been reset.)
Check the engine oil, and change if neces-
sary. After changing th e engine oil, the oil
change system should be reset. ( → P.329)■
If “Oil Maintenance Required” is shown
Indicates that the engine oil should be
changed. (After the engine oil is changed
and the oil maintenance data has been
reset.)
Check and change the en gine oil, and oil fil-
ter by your Lexus dealer. After changing the
engine oil, the oil change system should be
reset. ( → P.329)■
If “See Owner’s Manual” is shown ●
If the following messages are shown, fol-
lowing the instruct ions, accordingly.
• “Engine Coolant Temp High” ( → P.394)
• “Aux Battery Low” ( → P.375)●
If the following messages are shown,
there may be a malfunction.
Immediately have the vehicle inspected
by your Lexus dealer.
• “Hybrid System Malfunction”
•“Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Braking Power Low”
• “Smart Access System Malfunction”
●
If the following messages are shown,
there may be a malfunction.
Immediately stop the vehicle in a safe
place and contact your Lexus dealer.
Continuing to drive the vehicle may be
dangerous.
• “Oil Pressure Low”

3897-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 7

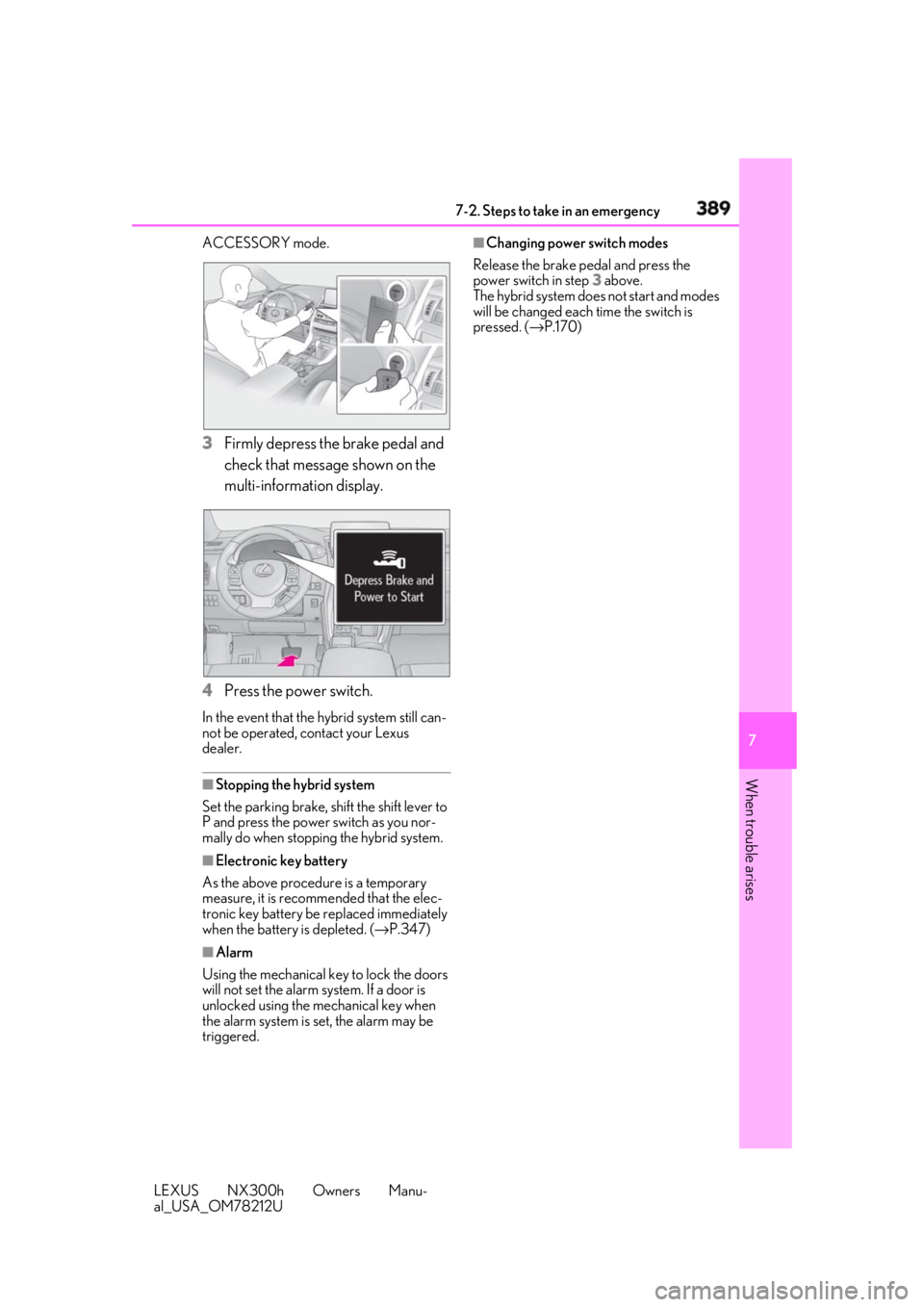

When trouble arises ACCESSORY mode.
3 Firmly depress the brake pedal and
check that message shown on the
multi-information display.
4 Press the power switch.In the event that the hybrid system still can-
not be operated, contact your Lexus
dealer.
■
Stopping the hybrid system
Set the parking brake, shift the shift lever to
P and press the power switch as you nor-
mally do when stopping the hybrid system.
■
Electronic key battery
As the above procedure is a temporary
measure, it is recomme nded that the elec-
tronic key battery be replaced immediately
when the battery is depleted. ( → P.347)
■
Alarm
Using the mechanical key to lock the doors
will not set the alarm system. If a door is
unlocked using the mechanical key when
the alarm system is set, the alarm may be
triggered. ■
Changing power switch modes
Release the brake pe dal and press the
power switch in step 3 above.
The hybrid system does not start and modes
will be changed each time the switch is
pressed. ( → P.170)

394 7-2. Steps to take in an emergency
LEXUS NX300h Owners Manu-
al_USA_OM78212U 
“Engine Coolant Temp High” is
shown on the multi-information dis-
play
1 Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the hybrid system.
2 If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.
3 After the hybrid system has cooled
down sufficiently, inspect the hoses and radiator core (radiator) for any
leaks.
Radiator
Cooling fans If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
4 The coolant level is satisfactory if it
is between the “FULL” and “LOW”
lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary. Water can be used in an emergency if If your vehicle overheats The following may indicate that
your vehicle is overheating.
 The needle of the engine coolant
temperature gauge ( → P.79)
enters the red zone, or a loss of
hybrid system power is experi-
enced. (For example, the vehicle
speed does not increase.)
 “Engine Coolant Temp High” or
“Hybrid System Overheated” is
shown on the multi-information
display.
 Steam comes out from under the
hood.
Correction procedures A
B
A
B
C
