2474-5. Using the driving support systems
LS500h_OM_OM50F42U_(U) 4
Driving For how to change settings, refer to
→ P.481 *
: If equipped
Vehicle sway
warning function Turn function on and
off
Adjust alert sensitivity
Lane centering
function Turn function on and
offFunction Setting details
RSA (Road Sign Assist) *
The RSA system recognizes spe-
cific road signs using the camera
sensor and navigation system
(when data is available) to provide
information to the driver via the
multi-information display and
head-up display.
If the system judges that the vehicle
is being driven over the speed limit,
performing prohibited actions, etc.
in relation to the recognized road
signs, it alerts the driver using a
warning display and warning
buzzer *
. *
: This setting needs to be customized.
WARNING
■
Before using the RSA
Do not rely solely upon the RSA system.
RSA is a system which supports the
driver by providing information, but it is
not a replacement for a driver’s own
vision and awareness. Drive safely by
always paying careful attention to the
traffic rules.
Inappropriate or neg ligent driving could
lead to an unexpected accident.

248 4-5. Using the driving support systems
LS500h_OM_OM50F42U_(U) When the camera sensor recognizes a
sign or information of a sign is available
from the navigation system , the sign
will be displayed on the multi-informa-
tion display.
 When the driving support system
information is selected, a maximum
of 3 signs can be displayed.
( → P.86)  When a tab other than the driving
support system information tab is
selected, only a recognized speed
limit sign or do not enter sign (when
notification is necessary) will be dis-
played. ( → P.86)
If signs other than speed limit signs are rec-
ognized, they will be displayed in an over-
lapping stack under th e current speed limit
sign.
The following types of ro ad signs are recognized.Non-official or recently introduced traffic signs may not be recognized.Indication on the multi-informa-
tion display
Supported types of road signs Type Multi-information display
Speed limit begins/ends *
Do Not Enter

2494-5. Using the driving support systems
LS500h_OM_OM50F42U_(U) 4
Driving *
: Displayed when speed limit information for th e road is available from the navigation sys-
tem
In the following situations, the RSA sys-
tem will alert the driver.
 When the vehicle speed exceeds
the speed warning threshold of the
speed limit sign displayed, the sign
display will be emphasized and a
buzzer will sound.
 When the RSA system recognizes a
do not enter sign and determines
that your vehicle has entered a
no-entry area, the displayed sign will
flash and a buzzer will sound.
Depending on the situation, traffic
environment (traffic direction, speed,
unit) may be detected incorrectly and a
warning display may not operate prop-
erly. ■
Turning the system on/off
1 Select on of the multi-informa-
tion display ( → P.86)
2 Press on the steering wheel.
■
Automatic turn-off of RSA sign display
In the following situations, a displayed
speed limit sign will stop being displayed
automatically: ●
A new sign is not recognized for a certain
distance. (When speed limit information
is not available from the navigation sys-
tem)
In the following situations, do not enter, stop
and yield signs will stop being displayed
automatically: ●
The system determines that your vehicle
has passed the sign. ●
The road changes due to a left or right
turn, etc. ■
Conditions in which the function may
not operate or detect correctly
In the following situations, RSA does not
operate normally and may not recognize
signs, display the incorrect sign, etc. How-
ever, this does not indicate a malfunction. ●
The camera sensor is misaligned due to a
strong impact being applied to the sen-
sor, etc. ●
Dirt, snow, stickers, etc. are on the wind-
shield near the camera sensor. ●
In inclement weather such as heavy rain,
fog, snow or sand storms
●
Light from an oncoming vehicle, the sun,
etc. enters the camera sensor.
●
The sign is dirty, faded, tilted or bent.
●
All or part of the sign is hidden by the
leaves of a tree, a pole, etc.
●
The sign is only visible to the camera sen-
sor for a short amount of time.
●
The driving scene (turning, lane change,
etc.) is judged incorrectly.Stop
Yield Type Multi-information display
Warning indication

250 4-5. Using the driving support systems
LS500h_OM_OM50F42U_(U) ●
Even if it is a sign not appropriate for the
currently traveled lane, such a sign exists
directly after a freeway branches, or in an
adjacent lane just before merging.●
Stickers are attached to the rear of the
preceding vehicle.●
A sign resembling a system compatible
sign is recognized.●
The front of the vehicle is raised or low-
ered due to the carried load.●
The surrounding brightness is not suffi-
cient or changes suddenly.●
When a sign intended for trucks, etc. is
recognized.●
The navigation system map data is old.●
The navigation system is not operating.●
Side road speed signs may be detected
and displayed (if positioned in sight of the
camera sensor) while the vehicle is trav-
eling on the main road.●
Roundabout exit road speed signs may
be detected and displayed (if positioned
in sight of the camera sensor) while trav-
eling on a roundabout.■
Speed limit sign display
If the power switch was last turned off while
a speed limit sign wa s displayed on the
multi-information display, the same sign dis-
plays again when the power switch is turned
to ON mode. ■
Customization
Some functions can be customized.
( → P.481) ■
Meter display
Display
Set speed

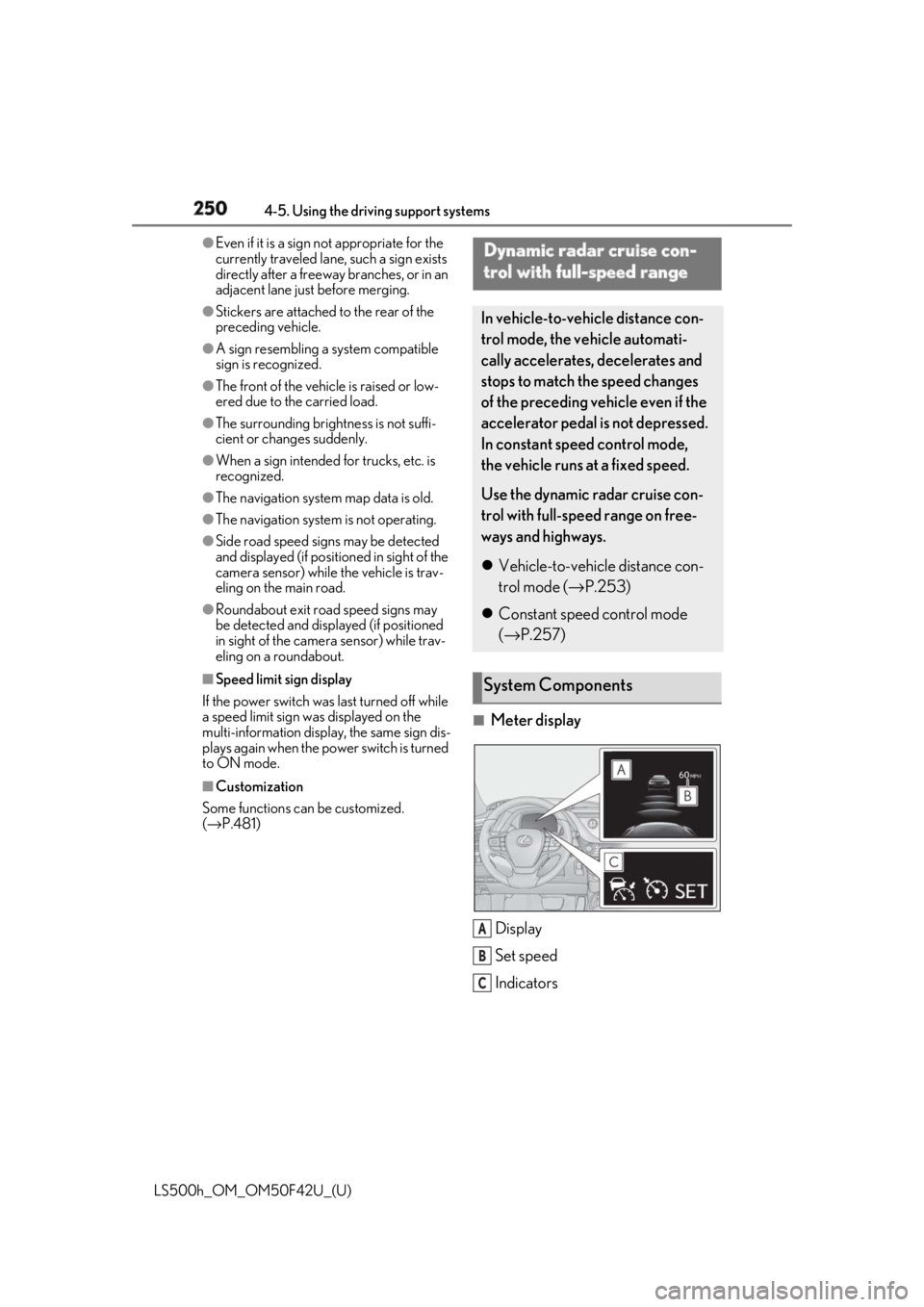

IndicatorsDynamic radar cruise con-
trol with full-speed range In vehicle-to-vehicle distance con-
trol mode, the ve hicle automati-
cally accelerates, decelerates and
stops to match the speed changes
of the preceding vehicle even if the
accelerator pedal is not depressed.
In constant speed control mode,
the vehicle runs at a fixed speed.
Use the dynamic radar cruise con-
trol with full-speed range on free-
ways and highways.
 Vehicle-to-vehicle distance con-
trol mode ( → P.253)
 Constant speed control mode
( → P.257)
System Components
A
B
C

314 5-1. Remote Touch/Display
LS500h_OM_OM50F42U_(U) 5-1.Remote Touch/Display
■
Switches
“MAP” buttonVehicles with navigation function:
Press this button to display the vehicle’s
current position.
Vehicles without navigation function:
Press this button to display the compass
mode screen.
“MENU” buttonPress this button to display the menu
screen.
Back buttonPress this button to display the previous
screen.
TouchpadSlide your finger on the touchpad and
move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, su ch as changing map
scalings and scrolling list screens.
Sub function button When is displayed on the screen, a
function screen assigned to the screen can
be displayed. ■
Using the touchpad
1 Select: Touch the touchpad to
select the desired button on the
screen.
2 Enter: Buttons on the screen can be
selected by either depressing or
double tapping the touchpad.
Once a button has been selected,
the screen will change. ■
Touch operation
Operations are performed by touching
the touchpad with your finger.
 Trace Trace the pad surface while maintaining
contact with the touchpad. Moving the
cursor and the pointer.Remote Touch The Remote Touch can be used to
operate the Center Display.
For details on the Remote touch,
refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Remote Touch operation
A
B
C
D E

316 5-1. Remote Touch/Display
LS500h_OM_OM50F42U_(U) ■
Menu screen
Press the “MENU” button on the
Remote Touch to display the menu
screen.
The displays shown in the illustrations
are used for example only and may dif-
fer from the actual vehicle. *1
: Refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S
MANUAL”. *2
: This function is not available on some
models.
■
Split-screen display
Different information can be displayed on the left and right sides of the screen. For
example, air conditioning system screen can be displayed and operated while the
fuel consumption information screen is be ing displayed. The large screen on the
left of the display is called the main display, and the small screen to the right is
called the side display.Center Display
Center Display overview
Switch Function
Select to display the
“Destination”
screen. *1
Select to display the
radio control
screen. *1 Select to display the
media control
screen. *1
Select to display the
hands-free control
screen. *1
Select to display the
“Apps” screen. *1, 2
Select to display the
information screen. *1

( → P.97)
Select to display the
setup screen. *1
Select to display the
air conditioning con-
trol screen.
( → P.326)Switch Function

3175-1. Remote Touch/Display
LS500h_OM_OM50F42U_(U) 5
Interior features ■
Main display
For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”. ■
Side display
The following functions can be dis-
played and operated on the side dis-
play.
Select or to display the desired
screen.
Navigation system *
Audio *
Vehicle information ( → P.100)
Air conditioning system ( → P.329) Show/hide the side display **
: Refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
■
Screen display during low temperatures
When the ambient temperature is
extremely low, screen response may be
delayed even if the Remote Touch is oper-
ated.
A
B
C
D E

318 5-1. Remote Touch/Display
LS500h_OM_OM50F42U_(U) *
:If equipped
■
Home screen
Touch to display the audio control
screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Touch to display the rear air condi-
tioning control screen. ( → P.334)
Touch to display the rear seat
adjustment screen. ( → P.136)
Touch to display the relaxation seat
(if equipped) control screen.
( → P.138)
Touch to display the rear sunshade (if equipped)/rear interior light con-
trol screen. ( → P.355)
Touch to display the Rear Multi
Operation Panel settings screen.
( → P.318)
Show the progress of unlocking the
Rear Multi Operation Panel.
Touch and hold to unlock the Rear
Multi Operation Panel.
Shortcut button Shortcut screen is displayed. Touch to dis-
play/hide commonly used buttons for a
selected mode on the bottom portion of
the screen.
buttonPress to display the home screen. ■
Rear Multi Operation Panel set-
tings screen
Screen operation settings and the
brightness of the screen can be
changed.Rear Multi Operation Panel *
The Rear Multi Operation Panel
built-into the rear armrest can be
used to operate the rear audio sys-
tem, air conditioning system, etc.
Rear Multi Operation Panel
overview
A
B
C
D
