2-1. Instrument cluster
panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine , this could mean that these systems are not available to help protect you in an
accident, which could result in death or serious injury. Have the vehicle inspected by any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.186)
Tail light indicator ( P.191)
Headlight high beam indica-
tor ( P.192)
(If equipped)
Automatic High Beam indica-
tor*1 ( P.193)
Rear fog light indicator
( P.196)
(If equipped)
Gear Shift Indicator*2
( P.178, 185)
Cruise control indicator*2
( P.229, 239)
(If equipped)
Dynamic radar cruise control
indicator*2 ( P.229)
Cruise control “SET” indica-
tor*2 ( P.229, 239)
(white)
LKA indicator*2 (P.218)
(green)
LKA indicator*2 (P.218)
(orange)
LKA indicator*2, 3 (P.218)
Lexus parking assist-sensor
indicator ( P.243)
Slip indicator*1, 3 ( P.263)
VSC OFF indicator*1
( P.263)
PCS warning light*1, 4
( P.212)
(If equipped)
BSM (Blind Spot Monitor)
outside rear view mirror indi-
cators*5, 6 ( P.248)
(If equipped)
BSM (Blind Spot Monitor)
indicator ( P.248)
(If equipped)
RCTA (Rear Crossing Traffic
Alert) indicator ( P.248)
Brake hold standby indica-
tor*1 ( P.189)
Brake hold operated indica-
tor*1 ( P.189)
Security indicator*7 ( P.70,
76)
Smart entry & start system
indicator*2 ( P.163)

85
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
*1: These lights turn on when the engine
switch is turned to
IGNITION ON mode to
indicate that a system check is being
performed. They will turn off after the
engine is started, or
after a few seconds. There may be a
malfunction in a syst em if a light does
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.
*2: This light illuminates on the multi-infor-
mation display.
*3: The light flashes to indicate that the sys-
tem is operating.
*4: The light comes on when the system is
turned off.
*5: In order to confirm operation, the BSM
outside rear view mirror indicators illu-
minate in the following situations:
When the engine switch
is turned to IGNITION ON mode mode> while the BSM main switch is
turned on.
When the BSM main switch is turned
on while the engine switch switch> is in IGNITION ON mode
.
If the system is func tioning correctly, the
BSM outside rear view mirror indica-
tors will turn off after a few seconds.
If the BSM outside rear view mirror indi-
cators do not illuminate or do not turn
off, there may be a malfunction in the
system.
If this occurs, have the vehicle inspected
(If equipped)
“READY” indicator ( P.167)
Low outside temperature
indicator*2, 8 ( P.88)
(If equipped)
Eco Driving Indicator Light*1
( P.86)
(If equipped)
EV indicator ( P.63)
Parking brake indicator
( P.187)
Snow mode indicator
( P.177, 183)
(If equipped)
EV drive mode indicator
( P.171)
“Normal” indicator*2
( P.242)
“Eco” indicator*2 ( P.242)
“Sport S” indicator*2
( P.242)
“Sport S+” indicator*2
( P.242)
“Comfort” indicator*2
( P.242)
“Custom” indicator*2
( P.242)
“PASSENGER AIR BAG”
indicator*7 ( P.46)

86
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
by any authorized Lexus retailer or
Lexus authorized repairer, or any reli-
able repairer.
*6: This light illuminates on the outside rear
view mirrors.
*7: This light illuminates on the center
panel.
*8: When the outside temperature is
approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10
seconds, then stay on.

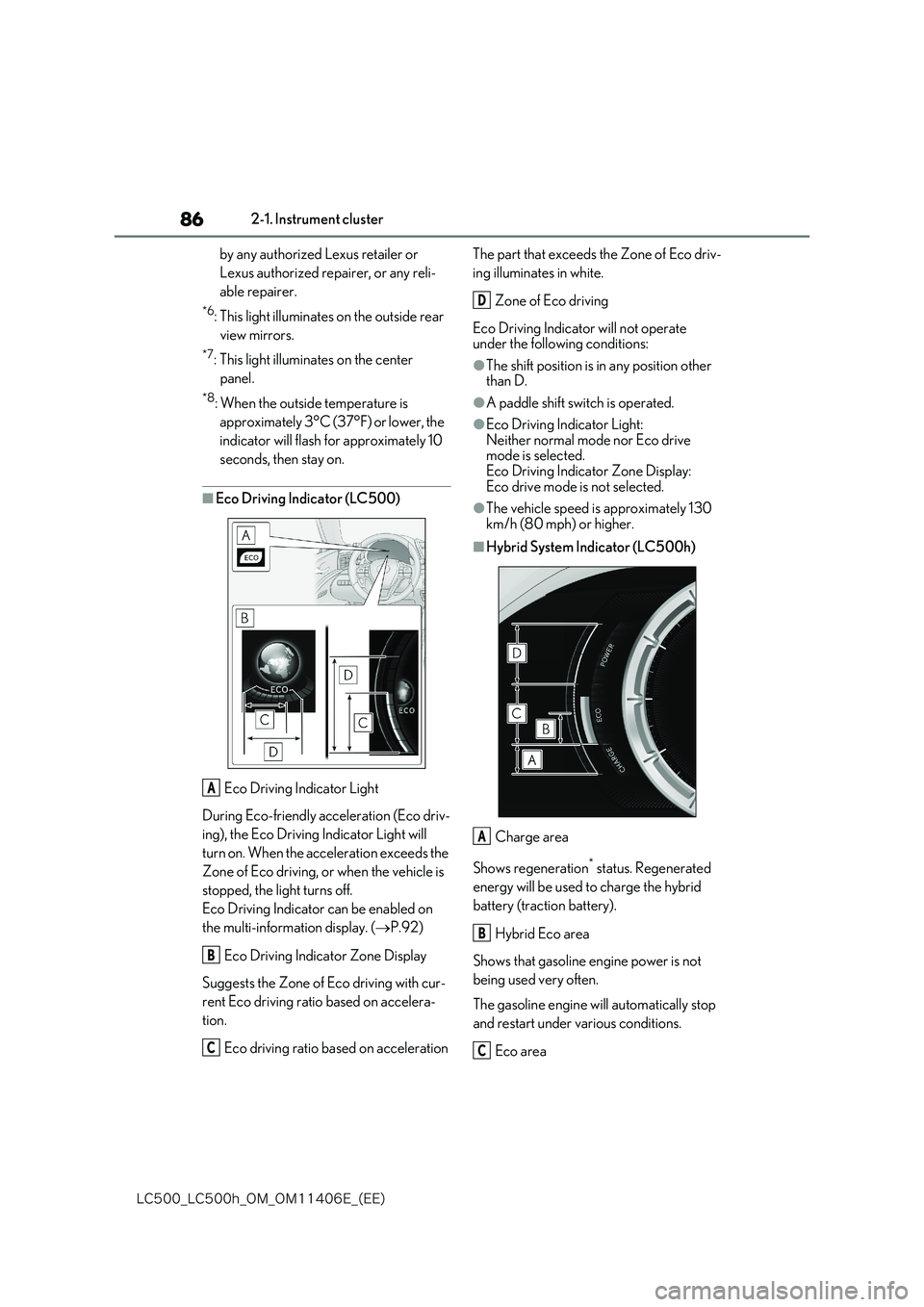

■Eco Driving Indicator (LC500)
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driv-
ing), the Eco Driving Indicator Light will
turn on. When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator can be enabled on
the multi-information display. ( P.92)
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.
Eco driving ratio based on acceleration
The part that exceeds the Zone of Eco driv-
ing illuminates in white.
Zone of Eco driving
Eco Driving Indicator will not operate under the following conditions:
●The shift position is in any position other than D.
●A paddle shift swit ch is operated.
●Eco Driving Indicator Light: Neither normal mode nor Eco drive mode is selected.
Eco Driving Indicator Zone Display: Eco drive mode is not selected.
●The vehicle speed is approximately 130 km/h (80 mph) or higher.
■Hybrid System Indicator (LC500h)
Charge area
Shows regeneration* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco area
A
B
C
D
A
B
C

3
111
-$@-$I@0.@0.&@ &&

3
Before driving
Before driving
3-1. Key information
Keys .................................................. 112
3-2. Opening, closing and locking the
doors and trunk
Doors ............................................... 115
Trunk ................................................ 119
Smart entry & start system ..... 122
3-3. Adjusting the seats
Front seats..................................... 138
Driving position memory ........ 140
Head restraints............................ 143
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ............................ 145
Inside rear view mirror............. 146
Outside rear view mirrors ...... 147
3-5. Opening, closing the windows
Power windows .......................... 150

140
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
1Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Adjust the driver’s seat, steering
wheel, outside rear view mirrors
and head-up display to the desired
positions.
4 While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.
If the selected button has already been preset, the previously recorded position
WARNING
■Lever-operated “Front, Fold & Return” seat
●Before operating the lever-operated “Front, Fold & Return” seat, ensure that any surrounding passengers or objects
will not contact the seat.
●Make sure the seatback is locked securely before driving.
●Never operate the lever-operated “Front, Fold & Return” seat while the
vehicle is moving.
■Jam protection function
Do not use a hand, foot, or any other part
of your body to intentionally activate the jam protection function.
Driving position memory
This feature automatically adjusts
the positions of the driver’s seat,
steering wheel, outside rear view
mirrors and head-up display (if
equipped) to suit your preferences.
Up to 3 different driving positions
can be recorded.
Each electronic key can be regis-
tered to recall your preferred driv-
ing position.
Recording a driving position into
memory

142
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Carry only the key you want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the
driving position cannot be recorded
properly.
1 Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Recall the driving position that you
want to record.
4 While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.
If the button could not be registered, the buzzer sounds continuously for approxi-mately 3 seconds.
■Cancelation procedure
1 Carry only the key you want to can-
cel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled prop-erly.
2 Turn the engine switch switch> to IGNITION ON mode
.
3 While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recall procedure
1 Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart entry & start system or wire-
less remote control.
The driving position will move to the recorded position (not including the steer-
ing wheel and head-up display).
If the driving position is in a position that
has already been recorded, the seat and outside rear view mirrors will not move.
2 Turn the engine switch switch> to ACCESSORY mode or
IGNITION ON mode mode>.
The steering wheel and head-up display will move to the recorded position.
■Recalling the driving position using the
memory recall function
●Different driving positions can be regis-
tered for each electronic key. Therefore, the driving position that is recalled may be different depending on the key being
carried.
●If the passenger’s door is unlocked with
the smart entry & start system, the driving position cannot be recalled. In this case, press the driving position button which
has been set.
■Customization
The unlock door settings of the memory
recall function can be changed. (Customizable features: P.423)

146
-$@-$I@0.@0.&@ &&

3-4. Adjusting the steering wheel and mirrors
The height of the rear view mirror can
be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view mir-
ror by moving it up and down.
Responding to the level of brightness
of the headlights of vehicles behind, the
reflected light is automatically
reduced.
Turn the automatic anti-glare function
mode on/off
When the automatic anti-glare function is
in ON mode, the indicator illuminates.
The function will set to ON mode each
time the engine switch is
turned to IGNITION ON mode mode>.
Pressing the button turns the function to
OFF mode. (The indicator also turns
off.)
■To prevent sensor error
To ensure that the sensors operate properly, do not touch or cover them.
Inside rear view mirror
The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.
Adjusting the height of rear view
mirror
WARNING
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in death or serious injury.
Anti-glare function
A
A

147
3
-$@-$I@0.@0.&@ &&

3-4. Adjusting the steering wheel and mirrors
Before driving
1To select a mirror to adjust, press
the switch.
The indicator comes on.
Left
Right
Pressing the same switch again will put the
switch in neutral.
2 To adjust the mirror, press the
switch.
Up
Right
Down
Left
■Mirror angle can be adjusted when
The engine switch

is in ACCESSORY or IGNITION ON mode .
■Defogging the mirrors
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on
the rear window defogger to turn on the outside rear view mirror defoggers. ( P.281)
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside rear
view mirrors will activate in conjunction with the anti-glare inside rear view mirror to reduce reflected light. ( P.146)
■Automatic adjustment of the mirror
angle
A desired mirror face angle can be entered
to memory and recalled automatically by the driving position memory. ( P.140)
Outside rear view mirrors
The rear view mirror’s position can
be adjusted to enable sufficient
confirmation of the rear view.
WARNING
■Important points while driving
Observe the following precautions while
driving. Failure to do so may result in loss of con-trol of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and prop-erly adjusted before driving.
Adjustment procedure
A
B
A
B
C
D
