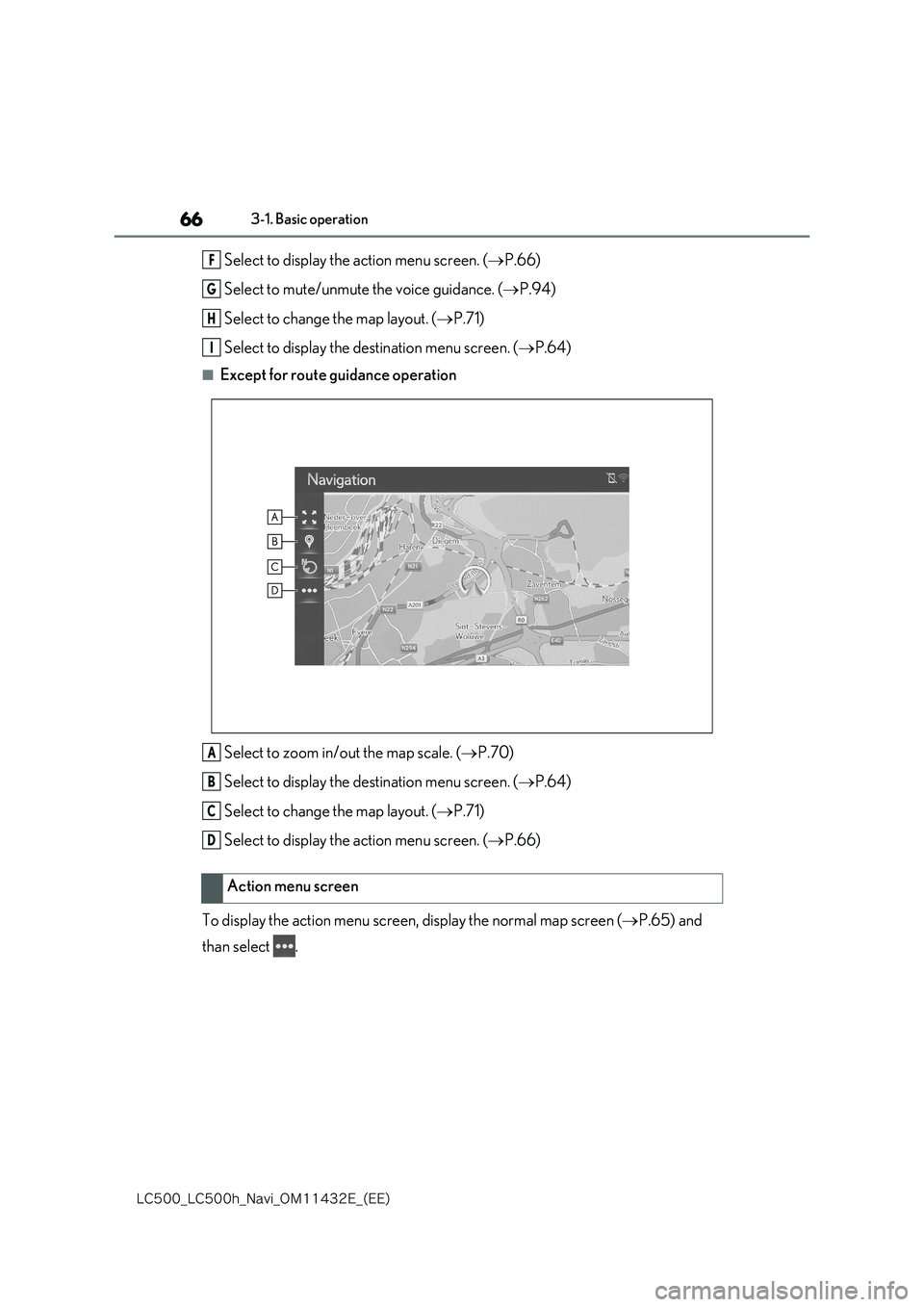

3-1. Basic operation
Select to display the action menu screen. (P.66)
Select to mute/unmute the voice guidance. ( P.94)
Select to change the map layout. ( P.71)
Select to display the destination menu screen. ( P.64)
■Except for route guidance operation
Select to zoom in/out the map scale. ( P.70)
Select to display the destination menu screen. ( P.64)
Select to change the map layout. ( P.71)
Select to display the action menu screen. ( P.66)
To display the action menu screen, display the normal map screen ( P.65) and
than select .
Action menu screen
F
G
H
I
A
B
C
D

67
3
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
Navigation system
■During route guidance operation
Select to pause or resume route guidance.
Select to display the traffic messages. It displays a list of traffic messages relat-
ing to the set route, all traffic messages, and warnings. ( P.76)
Select to display fuel station information. The location and fuel price can also be
checked. ( P.227)
Select to display parking lot information. The location, price and available
spaces of parking lots can be checked. ( P.226)
Select to display the route information screen. Route options for the route cal-
culations can be selected. ( P.95)
A
B
C
D
E

68
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
■Except for route guidance operation
Select to display the traffic messages. ( P.76)
Select to display fuel station information. The location and fuel price can also be
checked. ( P.227)
Select to display parking lot information. The location, price and available
spaces of parking lots can be checked. ( P.226)
Select to display the current position information screen.
A
B
C
D

69
3
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
Navigation system
1Press the “MAP” button on the
Remote Touch.
2 Select “Continue”.
 After about a few seconds, the cau-
tion screen automatically switches
to the map screen.
When starting the navigation system,
the current position is displayed first.
This screen displays the current vehicle
position and a map of the surrounding
area.
1 A short while later after the select-
ing “MAP” button on the Remote
Touch, the display automatically
switches to map screen.
 The current vehicle position mark
appears in the centre of the map
screen.
●While driving, the current vehicle posi- tion mark is fixed on the screen and the map moves.
●The current position is automatically set as the vehicle receives signals from the
GPS (Global Positioning System). If the current position is not correct, it is auto-matically corrected after the vehicle
receives signals from the GPS.
●After battery disconnection, or on a new vehicle, the current position may not be correct. As soon as the system receives
signals from the GPS, the correct current position is displayed.
Use the scroll feature to move the
desired point to the center of the
screen for looking at a point on the
map screen that is different from the
current position.
1 Select the desired point on the map
screen.
 Move the desired point on the cen-
ter of the map screen.
 After the screen is scrolled, it is pos-
sible to do the drag or flick opera-
tion on the touchpad.
Map screen operation
Displaying map screen
Current vehicle position display
Screen scroll operation

70
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
2Press the button on the Remote
Touch.
 Press the touch pad to return to the
current position.
3 Select the desired entry.
Select to register in favourites list.
To change the icon, name, etc.:
( P.103)
Select to set as a destination.
( P.90)
Select to display the Street View.
( P.224)
1 Select on the map.
2 Select “+” or “-” to change the scale
of the map screen.
The scale of the map screen can also be changed on the touchpad of the Remote Touch with your finger.
Pinch out on the touchpad to zoom in and pinch in to zoom out. ( P.30)
●The scale of the map screen can also be changed the following ways:
• Dragging the scale bar marking to the desired point.
●Each time “Automatic map zoom” is selected, the automatic map zoom is turned on/off.
The default automatic zoom level can be selected. ( P.109)
●The scale range is from 10 m to 1000 km (10 yd. to 600 miles).
●After the scale has been changed, the new scale indicator will be displayed for a while.
A
B
C
Map scale

71
3
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
Navigation system
The map layout can be changed
between 3D heading-up, 2D heading-
up and 2D north-up by selecting the
map layout button.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
: North-up symbol
Regardless of the direction of vehicle
travel, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
●Each time map layout button is selected,
the map layout changes as follows: 3D heading-up 2D north-up2D heading-up
Various information can be displayed
on the map.
The speed limit of the road currently
being traveled on can be displayed.
Displays information about the
speed limits icon and limited speed
on the current road.
*:If equipped
Buildings can be displayed in 3D on
the map.
●This feature is displayed on the map in
Map layoutMap screen information
Displaying various information
on the map
Speed limits*
3D buildings
A

72
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
zoom scales up to 50m (50yd.).
Landmarks can be displayed in 3D on
the map.
●This feature is displayed on the map in
zoom scales up to 50m (50yd.).
Safety cameras can be displayed as
icons on the map.
Safety camera location on the map.
Displays information about the
safety camera icon and distance to
safety camera.
●The above items will be displayed
depending on the map scale.
●The above items will be displayed
depending on the available map data.
●The displaying of the above items can be
switched off. ( P.106)
To change the map mode displayed on
the side display.
1 Select or to change the
map mode.
“Map”: Display the single map screen.
“Compass”: Display the compass
mode screen. ( P.72)
“Highway”: Display the highway infor-
mation list screen.* ( P.93)
*: Only available with active route guid-
ance and on highway
Information about the destination, cur-
rent position and a compass is dis-
played on the screen.
●The destination mark is displayed in the
direction of the dest ination. When driv- ing, refer to the longitude and latitude
coordinates, and the compass, to make sure that the vehicle is headed in the direction of th e destination.
3D landmarks
Safety cameras
A
B
Switching the map mode
Compass

73
3
-$@-$I@/BWJ@0.&@ &&

3-1. Basic operation
Navigation system
POI (points of interest) icons such as
petrol stations and restaurants can be
displayed on the map screen. Their
location can also be set as a destina-
tion.
●A particular type of POI icons displayed on the screen can be selected. ( P.109)
Public
Traffic
POI icons
Displaying POI icons
List of POI icons
IconName
Library
College/University
School
Tourist office
Cemetery, funeral director
Government Office, Institution,
City hall, Community gen.
Community
Court house
Place of Worship
Accomodation, Hotel/Motel
Pharmacy
Convention Centre, Exhibition
Centre
Finance, Bank
Cash Dispenser
Post Office
Business, B. Company, B. Gen-
eral, B. facility
Medical, Doctor, Health & Care
Ambulance, Hospital/Polyclinic
Fire Station
Police Station
Phone Box, Communication
Dentist
Veterinarian
IconName
Car Dealer/Repair, Repair Facil-
ity, Repair General, Car Wash,
Tire Repair
Car Dealer
IconName
