2018 Lexus LC500 bluetooth

206
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
The contact can be transferred from a
Bluetooth® phone to the system.
The contact also can be added, edited
and deleted.
The call history can be deleted and
contacts and favourites can be
changed.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Phone” on the sub menu.
4 Select “Contacts/Call history”.
5 Select the desired item to be set.
For PBAP compatible Bluetooth®
phones: Select to change the con-
tact/history transfer settings.
( P.206)
Select to update contacts from the
connected device. ( P.207)
Select to sort contacts by the first
name or last name field.
Select to add contacts to the favou-
rites list. ( P.210)
Select to delete contacts from the
favourites list. ( P.210)
Select to clear contacts from the
call history.*
Select to add new contacts to the
contact list.* ( P.209)
Select to edit contacts in the con-
tact list.* ( P.209)
Select to delete contacts from the
contact list.* ( P.210)
Select to reset all setup items.
*: For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic transfer” is set to off.
( P.206)
●Depending on the type of phone, certain
functions may not be available.
●Contact data is managed independently
for every registered phone. When one phone is connected, another phone’s registered data cannot be read.
The automatic contact/history function
is available for PBAP compatible
Bluetooth® phones only.
1 Select “Automatic transfer”.
“Contacts/Call history” screen
A
B
Setting automatic contact/his-
tory transfer
C
D
E
F
G
H
I
J

207
7
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
Phone
2Select the desired item to be set.
Select to set automatic contact/his-
tory transfer on/off. When set to on,
the phone’s contact data and his-
tory are automatically transferred.
Select to update contacts from the
connected phone. ( P.207)
Select to set the transferred con-
tact image display on/off.
• When set to off, the contact image can-
not be displayed on the side display
when a call is received.
Select to reset all setup items.
■Updating contacts from phone
1 Select “Update now”.
 Contacts are transferred automati-
cally.
2 Check that a confirmation screen is
displayed when the operation is
complete.
 This operation may be unnecessary
depending on the type of cellular
phone.
 If another Bluetooth® device is con-
nected when transferring contact
data, depending on the phone, the
connected Bluetooth® device may
need to be disconnected.
 Depending on the type of
Bluetooth® phone being con-
nected, it may be necessary to per-
form additional steps on the phone.
When the contact is not registered
1 Select “Transfer contacts from
device”.
2 Select “From phone (Bluetooth*)”.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
3 Transfer the contact data to the sys-
tem using a Bluetooth® phone.
 This operation may be unnecessary
depending on the type of cellular
phone.
 To cancel this function, select “Can-
cel”.
4 Check that a confirmation screen is
displayed when the operation is
complete.
 This function is only for OPP com-
patible Bluetooth® phone.
When the contact is registered
1 Select “Transfer contacts from
device”.
2 Select “From phone (Bluetooth*)”.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
A
B
C
D
Transfer contacts from device
From phone

208
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
3Select “Replace contacts” or “Add
contact”.
“Replace contacts”: Select to transfer the contact from the connected cellular phone
and replace the current one.
“Add contact”: Select to transfer the
desired contact data from the connected cellular phone to add to the current one.
4 Transfer the contact data to the sys-
tem using a Bluetooth® phone.
 This operation may be unnecessary
depending on the type of cellular
phone.
 To cancel this function, select “Can-
cel”.
5 Check that a confirmation screen is
displayed when the operation is
complete.
 This function is only for OPP com-
patible Bluetooth® phone.
■Updating the contacts (From the
“History” screen)*
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “History” on the sub
menu and select a contact not yet
registered in the contact list.
4 Select “Update contact”.
5 Select the desired contact.
6 Select a phone type for the phone
number.
*: For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic transfer” is set to off.
( P.206)
Backed-up contact data (“vCard” for-
matted) can be transferred from USB
device or Bluetooth® phone to this
system.
1 Slide the armrest as far back while
pressing the button.
2 Lift the armrest while pulling the
knob.
3 Open the cover and connect a
device or Bluetooth® phone.
From USB

209
7
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
Phone
Turn on the power of the USB
device if it is not turned on.
4 Select “Transfer contacts from
device”.
5 Select “From USB”.
6 Select “USB 1” or “USB 2” when
the multiple USB devices are con-
nected. If a USB device is con-
nected, skip this procedure.
7 Select “Replace contacts” or “Add
contact”. If the contact is not regis-
tered, skip this procedure.
“Replace contacts”: Select to transfer the
contact from the connected USB device or
Bluetooth® phone and replace the current
one.
“Add contact”: Select to transfer the
desired contact data from the connected
USB device or Bluetooth® phone to add
to the current one.
8 Select a desired file from vCard file
list.
9 Check that a confirmation screen is
displayed when the operation is
complete.
●Depending on the type of phone used
and number of files, it may take time to download contacts.
●Downloading may not complete cor-rectly in the following cases:• If the engine switch is
turned off during downloading.
• If the USB device or Bluetooth® phone is
removed before downloading is com- plete.
New contact data can be registered.
Up to 4 numbers per person can be
registered.
1 Select “New contact”.
2 Enter the name and select “OK”.
3 Enter the phone number and select
“OK”.
4 Select the phone type for the
phone number.
5 To add another number to this con-
tact, select “Yes”.
■Registering a new contact in a dif-
ferent way (From the “History”
screen)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “History” on the sub
menu and select a contact not yet
registered in the contact list.
4 Select “Add to contacts”.
5 Follow the steps in “Registering a
new contact to the contacts list”
from step 2. (P.209)
1 Select “Edit contact”.
2 Select the desired contact.
3 Select next to the name or
desired number.
4 Enter the name or the phone num-
ber and select “OK”.
Registering a new contact to the
contacts list
Editing the contact data

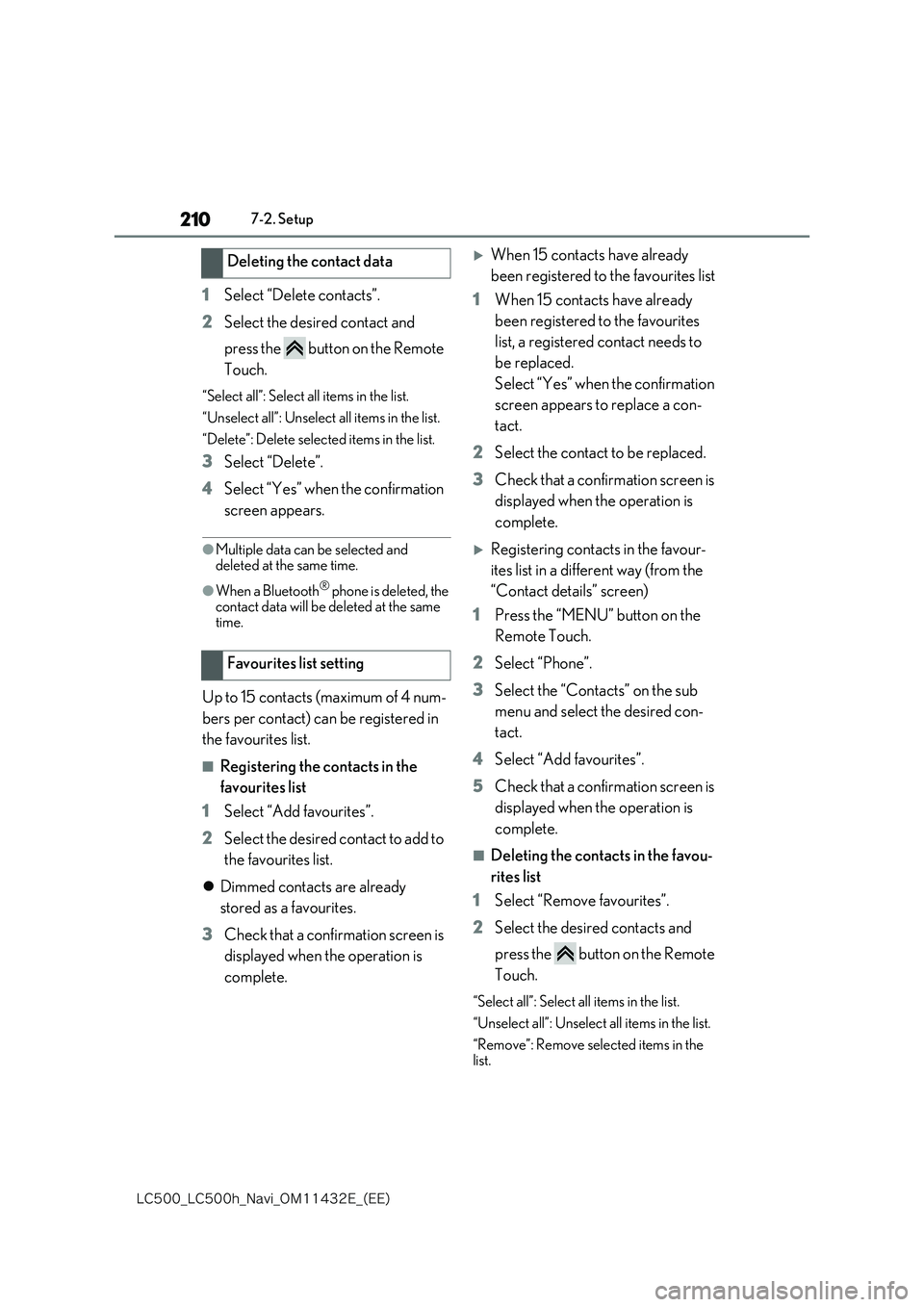

210
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
1Select “Delete contacts”.
2 Select the desired contact and
press the button on the Remote
Touch.
“Select all”: Select all items in the list.
“Unselect all”: Unselect all items in the list.
“Delete”: Delete selected items in the list.
3 Select “Delete”.
4 Select “Yes” when the confirmation
screen appears.
●Multiple data can be selected and deleted at the same time.
●When a Bluetooth® phone is deleted, the
contact data will be deleted at the same time.
Up to 15 contacts (maximum of 4 num-
bers per contact) can be registered in
the favourites list.
■Registering the contacts in the
favourites list
1 Select “Add favourites”.
2 Select the desired contact to add to
the favourites list.
 Dimmed contacts are already
stored as a favourites.
3 Check that a confirmation screen is
displayed when the operation is
complete.
When 15 contacts have already
been registered to the favourites list
1 When 15 contacts have already
been registered to the favourites
list, a registered contact needs to
be replaced.
Select “Yes” when the confirmation
screen appears to replace a con-
tact.
2 Select the contact to be replaced.
3 Check that a confirmation screen is
displayed when the operation is
complete.
Registering contacts in the favour-
ites list in a different way (from the
“Contact details” screen)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “Contacts” on the sub
menu and select the desired con-
tact.
4 Select “Add favourites”.
5 Check that a confirmation screen is
displayed when the operation is
complete.
■Deleting the contacts in the favou-
rites list
1 Select “Remove favourites”.
2 Select the desired contacts and
press the button on the Remote
Touch.
“Select all”: Select all items in the list.
“Unselect all”: Unselect all items in the list.
“Remove”: Remove selected items in the
list.
Deleting the contact data
Favourites list setting

213
7
-$@-$I@/BWJ@0.&@ &&

7-3. What to do if...
Phone
7-3.What to do if ...
■The connected device may not be a
compatible Bluetooth® cellular
phone.
For a list of specific devices which
operation has been confirmed on this
system, check with your Lexus retailer
or Lexus authorized repairer, or any
reliable repairer.
■The Bluetooth® version of the con-
nected cellular phone may be
older than the specified version.
Use a cellular phone with Bluetooth®
version 2.0 or higher (recommended:
Ver. 4.1 +EDR) ( P.42)
■An incorrect passcode was
entered on the cellular phone.
Enter the correct passcode on the cel-
lular phone.
■The registration operation has not
been completed on the cellular
phone side.
Complete the registration operation
on the cellular phone (approve regis-
tration on the phone).
■Old registration information
remains on either this system or the
cellular phone.
Delete the existing registration infor-
mation from both this system and the
cellular phone, then register the cellu-
lar phone you wish to connect to this
system. ( P.44)
■Another Bluetooth® device is
already connected.
Manually connect the cellular phone
you wish to use to this system. ( P.45)
■Bluetooth® function is not enabled
on the cellular phone.
Enable the Bluetooth® function on the
cellular phone.
Troubleshooting
If there is a problem with the hands-
free system or a Bluetooth® device,
first check the table below.
Troubleshooting
When using the hands-free sys-
tem with a Bluetooth® device
The hands-free system or
Bluetooth® device does not work.
When registering/connecting a
cellular phone
A cellular phone cannot be regis-
tered.
A Bluetooth® connection cannot be
made.

214
-$@-$I@/BWJ@0.&@ &&

7-3. What to do if...
■Automatic Bluetooth® connec-
tion on this system is set to off.
Set automatic Bluetooth® connection
on this system to on when the engine
switch is in ACCES-
SORY or IGNITION ON mode mode>. ( P.49)
■Preferred device settings function
on this system is set to on.
Set preferred device settings function
on this system to off. ( P.49)
Set the desired cellular phone to the
highest automatic connection priority.
( P.50)
■Your vehicle is in a area.
Move to where no longer appears
on the display.
■The profile version of the con-
nected cellular phone may not be
compatible with transferring
phonebook data.
For a list of specific devices which
operation has been confirmed on this
system, check with your Lexus retailer
or Lexus authorized repairer, or any
reliable repairer.
■Automatic contact transfer func-
tion on this system is set to off.
Set automatic contact transfer function
on this system to on. ( P.206)
■Passcode has not been entered on
the cellular phone.
Enter the passcode on the cellular
phone if requested (default passcode:
1234).
■Transfer operation on the cellular
phone has not completed.
Complete transfer operation on the
cellular phone (approve transfer oper-
ation on the phone).
■Automatic contact transfer func-
tion on this system is set to on.
Set automatic contact transfer function
on this system to off. ( P.206)
■Message transfer is not enabled on
the cellular phone.
Enable message transfer on the cellu-
lar phone (approve message transfer
on the phone).
■Automatic transfer function on this
system is set to off.
Set automatic transfer function on this
When making/receiving a call
A call cannot be made/received.
When using the phonebook
Phonebook data cannot be trans-
ferred manually/automatically.
Phonebook data cannot be edited.
When using the Bluetooth® mes-
sage function
Messages cannot be viewed.

215
7
-$@-$I@/BWJ@0.&@ &&

7-3. What to do if...
Phone
system to on. (P.206)
■Notification of SMS/MMS/E-mail
reception on this system is set to
off.
Set notification of SMS/MMS/E-mail
reception on this system to on.
( P.205)
■Automatic message transfer func-
tion is not enabled on the cellular
phone.
Enable automatic transfer function on
the cellular phone.
■Connection confirmation display
on this system is set to on.
To turn off the display, set connection
confirmation display on this system to
off. ( P.50)
*: The engine switch is in
ACCESSORY or IGNITION ON
mode .
■The cellular phone is not close
enough to this system.
Bring the cellular phone closer to this
system.
■Radio interference has occurred.
Turn off Wi-Fi® devices or other
devices that may emit radio waves.
■The cellular phone is the most likely
cause of the symptom.
Turn the cellular phone off, remove and
reinstall the battery pack, and then
restart the cellular phone.
Enable the cellular phone’s Bluetooth®
connection.
Disable the Wi-Fi® connection of the
cellular phone.
Stop the cellular phone’s security soft-
ware and close all applications.
Before using an application installed on
the cellular phone, carefully check its
source and how its operation might
affect this system.
●For details, refer to the owner’s manual that came with the cellular phone.
New message notifications are not
displayed.
In other situations
The Bluetooth® connection status is
displayed at the top of the screen
each time the system is activated.*
Even though all conceivable mea-
sures have been taken, the symptom
status does not change.
