2018 Lexus LC500 buttons

101
3
-$@-$I@/BWJ@0.&@ &&

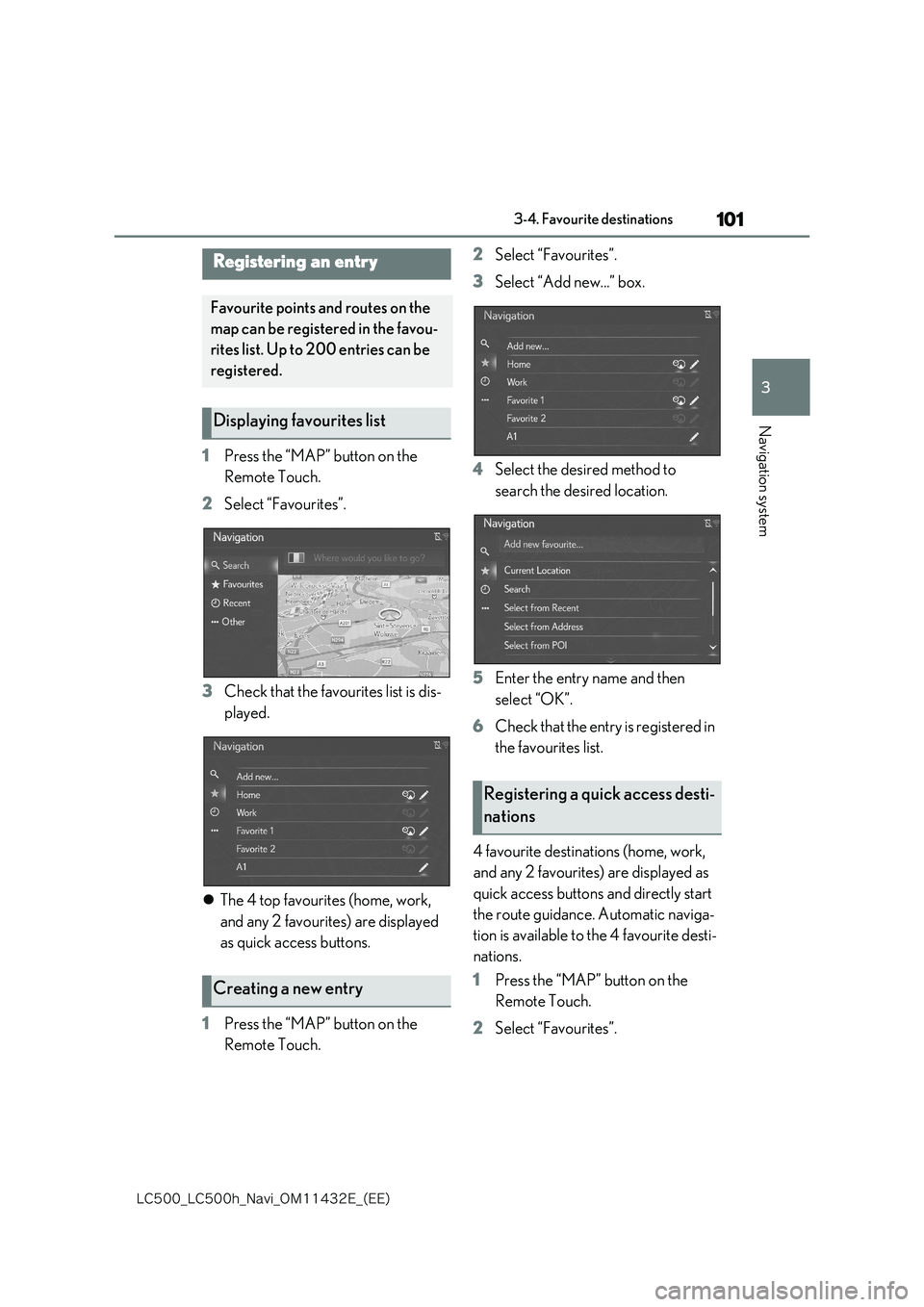

3-4. Favourite destinations
Navigation system
3-4.Favourite destinations
1Press the “MAP” button on the
Remote Touch.
2 Select “Favourites”.
3 Check that the favourites list is dis-
played.
 The 4 top favourites (home, work,
and any 2 favourites) are displayed
as quick access buttons.
1 Press the “MAP” button on the
Remote Touch.
2 Select “Favourites”.
3 Select “Add new...” box.
4 Select the desired method to
search the desired location.
5 Enter the entry name and then
select “OK”.
6 Check that the entry is registered in
the favourites list.
4 favourite destinations (home, work,
and any 2 favourites) are displayed as
quick access buttons and directly start
the route guidance. Automatic naviga-
tion is available to the 4 favourite desti-
nations.
1 Press the “MAP” button on the
Remote Touch.
2 Select “Favourites”.
Registering an entry
Favourite points and routes on the
map can be registered in the favou-
rites list. Up to 200 entries can be
registered.
Displaying favourites list
Creating a new entry
Registering a quick access desti-
nations

120
-$@-$I@/BWJ@0.&@ &&

4-1. Basic operation
4-1.Basic operation
The audio control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “RADIO” or “MEDIA”
button.
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Radio”
or “Media”.
The audio functions can also be displayed and operated on the side display. ( P.33)
■Control screen
■Audio control switch
•Using the radio ( P.126)
• Playing an audio CD or
MP3/WMA/AAC disc ( P.130)
• Playing a DVD ( P.132)
• Playing a USB memory ( P.135)
• Playing an iPod ( P.137)
• Playing a Bluetooth® device
( P.139)
• Using the Miracast™ ( P.142)
•Using the AUX port ( P.144)
• Using the steering wheel audio
switches ( P.146)
• Audio system settings ( P.148)
●The position and shapes of the buttons may differ slightly between right-hand
drive vehicles and left-hand drive vehi- cles.
Quick reference
Functional overview

121
4
-$@-$I@/BWJ@0.&@ &&

4-1. Basic operation
Audio/visual system
■Certification
• CAUTION:
THIS PRODUCT IS A CLASS I LASER PRODUCT. USE OF CONTROLS OR
ADJUSTMENTS OR PERFOR- MANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADI- ATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR BY
YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
“PWR·VOL” knob: Press to turn the
audio/visual system on and off. The sys-
tem turns on in the last mode used.
Turn this knob to adjust the volume.
 A function that enables automatic
return to the previous screen from
the audio/visual screen can be
selected. ( P.56)
Using the audio control switch
1 Display the audio control screen.
2 Each time the “RADIO” or
“MEDIA” button is pressed, the
audio source changes.
“RADIO” button: To change radio
modes.
“MEDIA” button: To change media
modes.
From the audio source selection
screen
1 Display the audio control screen.
2 Select “Source” on the sub menu.
3 Select the desired source.
●Dimmed screen buttons cannot be oper- ated.
Some basics
This section describes some of the
basic features of the audio/visual
system. Some information may not
pertain to your system.
Your audio/visual system works
when the engine switch switch> is in ACCESSORY or
IGNITION ON mode .
NOTICE
●To prevent the 12-volt battery from
being discharged, do not leave the audio/visual system on longer than necessary when the engine is not run-
ning .
Turning the system on and off
Selecting an audio source

126
-$@-$I@/BWJ@0.&@ &&

4-2. Radio operation
4-2.Radio operation
The radio control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “RADIO” button.
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Radio”.
Select to tune to preset sta-
tions/ensembles. ( P.126)
Favorites: Turn to move up/down
the preset stations.
Station list: Turn to move up/down
the station list.
Manual: Seek up/down (Hold to
non stop seek up/down)
Favorites: Turn to move up/down
the preset stations.
Station list: Turn to move up/down
the station list.
Manual: (AM/FM) Tune up/down
(DAB) Seek up/down.
DAB time shift screen: Turn to jump
forward/ backwards.
●The radio automatically changes to ste- reo reception when a stereo broadcast is
received.
●If the signal becomes weak, the radio
reduces the amount of channel separa- tion to prevent the weak signal from cre-ating noise. If the signal becomes
extremely weak, the radio switches from stereo to mono reception.
Up to 6 preset stations can be regis-
tered.
1 Tune in the desired station.
2 Select one of the screen buttons (1-
6) and hold it until a beep is heard.
 The station’s frequency will be dis-
played in the screen button.
 To change the preset station to a dif-
AM/FM/DAB radio
Overview
Control screen
Audio control switch
A
A
Presetting a station
B
