497
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(→ P. 197)
●There may be a malfunction in th e engine immobilizer system. (→P. 72)
One of the following may be the cause of the problem:
●The battery may be discharged. ( →P. 504)
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfun ctioning due to an electrical problem
such as electronic key battery depletio n or a blown fuse. However, an interim
measure is available to start the engine. ( →P. 498)
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. ( →P. 504)
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures
are unknown.
If the engine will not start even though correct starting procedures are being
followed (→P. 197), consider each of the following points:
The engine will not start even thoug h the starter motor operates nor-
mally.
The starter motor turns over slowly , the interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume.
The starter motor does not turn over
The starter motor does not turn over, the interior lights and headlights
do not turn on, or the horn does not sound.
528
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
GS350/GS300 (Type A)
GS350/GS300 (Type B)
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size225/50R17 94W
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront tire
psi (kPa, kgf/cm2
or bar)Rear tire
psi (kPa, kgf/cm2
or bar)
More than 118 mph
(190 km/h)45 (310, 3.1)45 (310, 3.1)
118 mph (190 km/h)
or less35 (240, 2.4)35 (240, 2.4)
Wheel size17 × 7 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size235/45R18 94Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)45 (310, 3.1)45 (310, 3.1)
137 mph (220 km/h)
or less35 (240, 2.4)35 (240, 2.4)
Wheel size18 × 8J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
540
GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
■Temperature A, B, C
The temperature grades are A (the highes
t), B, and C, representing the tire’s
resistance to the generation of heat and its ability to dissipate heat when
tested under controlled conditions on a specified indoor laboratory test
wheel.
Sustained high temperature can cause the ma terial of the tire to degenerate and
reduce tire life, and excessive temperature can lead to sudden tire failure.
Grade C corresponds to a level of perfor mance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory test
wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly inflated and
not overloaded.
Excessive speed, underi nflation, or excessive loading, either separately or in com-
bination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more than 1
mile or 1.5 km un der that condition
Maximum inflation pres-
sureThe maximum cold inflated pr essure to which a tire may
be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a manu-
facturer
Accessory weight
The combined weight (in exce ss of those standard items
which may be replaced) of automatic transmission,
power steering, power brakes, power windows, power
seats, radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard equipment,
including the maximum capacity of fuel, oil and coolant,
and if so equipped, air co nditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the numb er of occupants specified
in the second column of Table 1
* that follows

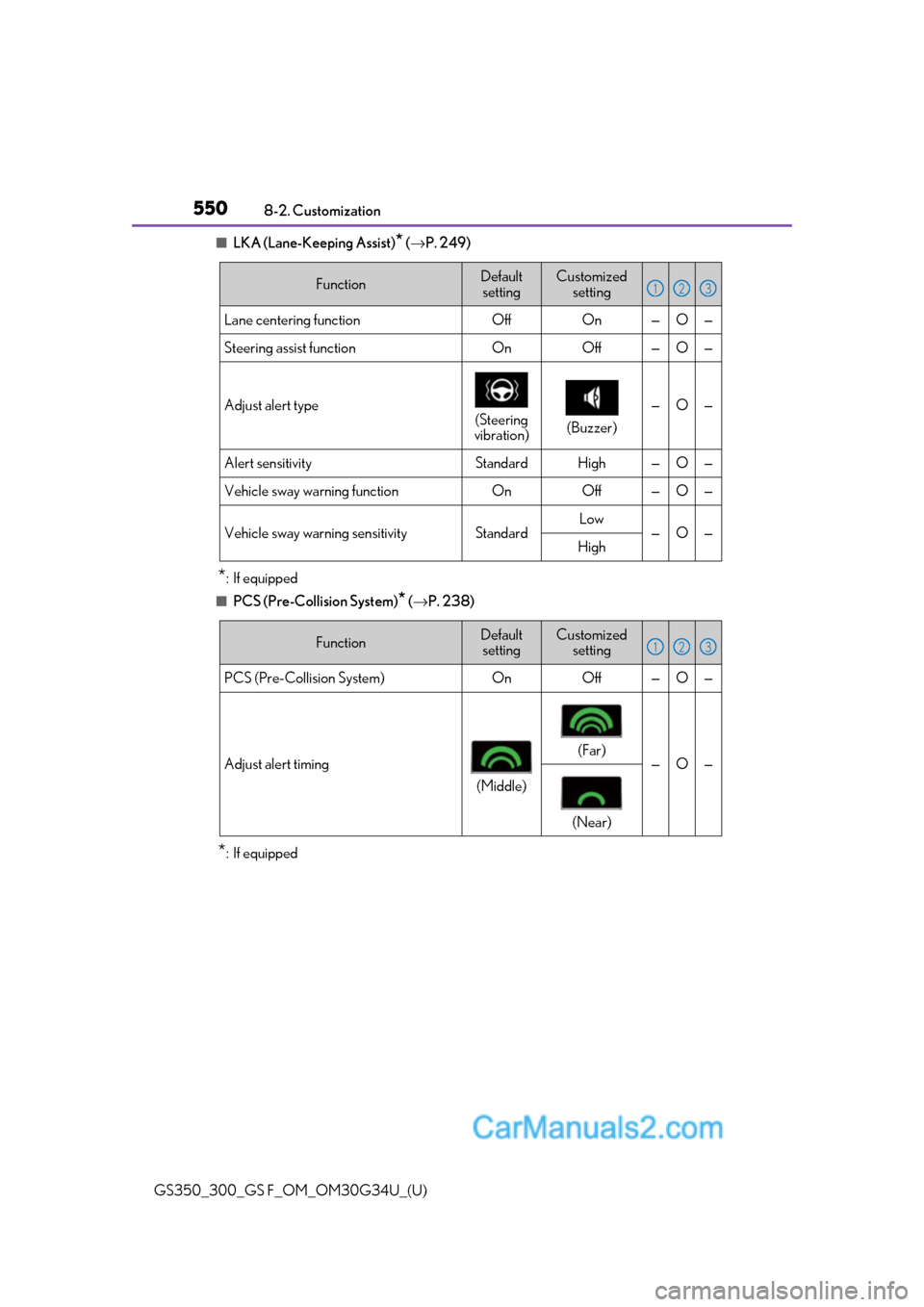

550
GS350_300_GS F_OM_OM30G34U_(U)8-2. Customization
■LKA (Lane-Keeping Assist)* (
→ P. 249)
*: If equipped
■PCS (Pre-Collision System)* (→ P. 238)
*: If equipped
FunctionDefault
settingCustomized setting
Lane centering functionOffOn—O—
Steering assist functionOnOff—O—
Adjust alert type(Steering
vibration)(Buzzer)
—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warning functionOnOff—O—
Vehicle sway warning sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized setting
PCS (Pre-Collision System)OnOff—O—
Adjust alert timing
(Middle)
(Far)—O—
(Near)
123
577What to do if... (Troubleshooting)
GS350_300_GS F_OM_OM30G34U_(U)
●Did you press the engine switch while firmly depressing the brake pedal?
(→ P. 197)
●Is the shift lever in P? ( →P. 199)
●Is the electronic key anywhere detectable inside the vehicle? ( →P. 150)
●Is the steering wheel unlocked? (→ P. 199)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (→P. 502)
●Is the battery discharged? ( →P. 504)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode (→ P. 208)
●It is locked automatically to prevent theft of the vehicle. ( →P. 199)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( →P. 175)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 199)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
583Alphabetical index
GS350_300_GS F_OM_OM30G34U_(U)
Dimensions .............................................. 518
Dinghy towing..........................................196
Display12.3-inch display................................ 306
Drive information ..................... 102, 109
Dynamic radar cruise control with full-speed range ................... 258
Energy monitor ..................................... 127
LKA (Lane-Keeping Assist) .........253
Multi-information display .....100, 108
Trip information ............................ 78, 92
Warning message .............................. 441
Do-it-yourself maintenance ............... 371
Door courtesy lights Location .................................................. 327
Door lock Doors .........................................................137
Smart access system with push-button start ............................. 150
Wireless remote control ..................137
Doors........................................................... 137 Automatic door locking and unlocking system.................... 140
Door glasses ......................................... 175
Door lock ................................................ 139
Open door warning buzzer............ 151
Open door warning light...............436
Outside rear view mirrors ................ 171
Rear door child-protector.............. 140 Drive info 1/Drive info 2/
Drive info 3................................... 105, 116 Drive information...................... 102, 109
Resetting ....................................... 102, 109
Drive-Start Control................... 183, 207
Driver’s seat position memory.......... 160 Driving position memory.................. 161
Memory recall function .................... 162
Power easy access system ............ 160
Driving ........................................................ 182 Break-in tips .......................................... 183
Correct driving posture .................... 34
Driving mode select switch ...........273
Procedures .............................................182
Winter drive tips ................................ 296
DRS (Dynamic Rear Steering) ....... 289 Function .................................................. 289
Warning message............................... 441
DVD player
*
Dynamic radar cruise control with full-speed range Function ..................................................258
Warning message............................... 441
Dynamic Rear Steering (DRS) ....... 289 Function .................................................. 289
Warning message............................... 441
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
584Alphabetical index
GS350_300_GS F_OM_OM30G34U_(U)
Eco drive mode ..................................... 273
Eco Driving Indicator............................. 85
Eco driving meter .................................... 92
EDR (Event data recorder) ...................10
Electric Power Steering (EPS) ....... 289Function ................................................. 289
Warning light .......................................435
Warning message .............................. 441
Electronic key ..........................................132 Battery-saving function .................... 152
If the electronic key does not operate properly.............................. 501
Replacing the battery ........................ 410
Emergency, in case of If a warning buzzer sounds...........434
If a warning light turns on...............434
If a warning message is displayed ......................................... 441
If the electronic key does not operate properly ......... 501
If the engine will not start................ 497
If the parking brake cannot be released ....................... 499
If the vehicle battery is discharged ........................................ 504
If you have a flat tire ..............472, 483
If you think something is wrong............................................... 432
If your vehicle becomes stuck ...... 515
If your vehicle has to be stopped in an emergency .............................425
If your vehicle needs to be towed .......................................426
If your vehicle overheats ............... 509 Emergency flashers .............................424
Emergency tire puncture repair
kit ............................................................. 483
Engine Accessory mode ................................ 198
Compartment ..................................... 376
Engine switch ........................................ 197
Hood........................................................ 373
How to start the engine.................... 197
Identification number.......................520
Ignition switch (engine switch.................................... 197
Overheating........................................ 509
Engine compartment cover..............379
Engine coolant ...................................... 386 Capacity................................................. 525
Checking ...............................................386
Preparing and checking before winter .................................... 296
Engine coolant temperature gauge ................................................ 86, 94
Engine immobilizer system .................. 72
Engine oil ...................................................381 Capacity................................................. 522
Checking ................................................ 381
Oil level warning message ............. 441
Oil pressure warning message............................. 441
Preparing and checking before winter .................................... 296
E
585Alphabetical index
GS350_300_GS F_OM_OM30G34U_(U)
Engine oil maintenance data ........... 366
Engine switch ........................................... 197Auto power off function................... 199
Changing the engine switch modes ................................................... 198
If your vehicle has to be stopped in an emergency ..........425
Starting the engine ..............................197
EPS (Electric Power Steering) ....... 289 Function ................................................. 289
Warning light .......................................435
Warning message .............................. 441
Event data recorder (EDR) ...................10
Expert mode ........................................... 292
First-aid kit storage net ...................... 335
Flat tire Vehicles with spare tire .................. 472
Vehicles without spare tire .......... 483
Floor mats ................................................... 32
Fluid Automatic transmission ..................526
Brake ........................................................ 527
Washer ...................................................392
Footwell light .......................................... 327
Front passenger occupant classification system ............................ 52
Front personal lights............................ 328 Front seats .................................................158
Adjustment............................................. 158
Cleaning................................................. 362
Correct driving posture .................... 34
Driving position memory................ 160
Head restraints .....................................165
Power easy access system ............ 160
Seat heaters .......................................... 323
Seat position memory ...................... 160
Seat ventilators.................................... 323
Front side marker lights....................... 216 Light switch............................................. 216
Replacing light bulbs ....................... 420
Welcome light illumination control................................................... 138
Front turn signal lights .......................... 210 Replacing light bulbs ............ 419, 420
Turn signal lever ...................................210
Wattage ...................................................531
Fuel Capacity................................................... 521
Fuel gauge ...................................... 87, 94
Fuel pump shut off system ............ 433
Information............................................ 532
Type............................................................ 521
Warning light ....................................... 436
Warning messages ............................ 441
Fuel consumption Average fuel consumption............................ 102, 109
Average fuel consumption after refueling .......................... 102, 109
Current fuel consumption.... 102, 109
F
