GS350_300_GS F_OM_OM30G34U_(U)
872. Instrument cluster
2
Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to 122 °F
(50 °C). Low outside temperature indicator comes on when the ambient temperature
is 37 °F (3 °C) or lower.
Clock
Time displayed is linked to the anal og clock on the instrument panel. (→P. 339)
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 100)
Displays warning me ssages in case of a malfunction ( →P. 441)
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information: • Displays the maintenance requ ired information when the engine switch is in IGNI-
TION ON mode.
• It can be reset from of th e multi-information display. (→P. 100)
Shift position and shift range
Displays the selected shift posi tion or selected shift range (→P. 202)
1
2
3
4
5
6
7
8
9

GS350_300_GS F_OM_OM30G34U_(U)
912. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. (→ P. 509)

94
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
Multi-information display
Presents the driver with a variety of vehicle data (
→P. 108)
Displays warning me ssages in case of a malfunction ( →P. 441)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge
indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red
and start flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator
( ) enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient temperature
is 37°F (3°C) or lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position and gear position
Displays the selected shift posi tion or selected shift range (→P. 202)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Eco driving meter
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the
lower the number of blue segments displayed, indicating that your driving is less eco-
friendly. This meter is designed as a guideline to show the eco-friendliness of your
driving.
1
2
3
4
5
6
7
8
9
10
11

GS350_300_GS F_OM_OM30G34U_(U)

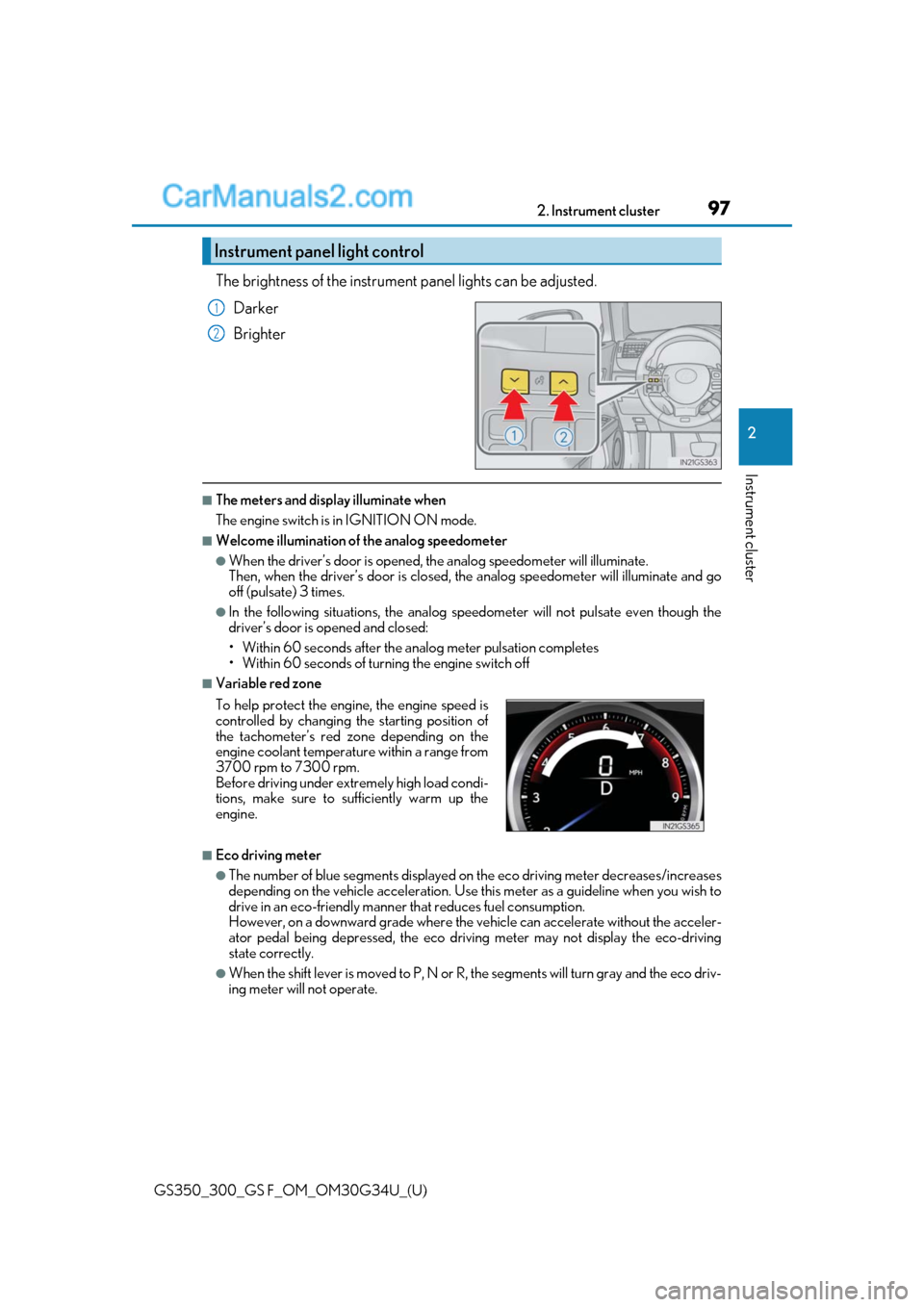

972. Instrument cluster
2
Instrument cluster
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Welcome illumination of the analog speedometer
●When the driver’s door is opened, the analog speedometer will illuminate.
Then, when the driver’s door is closed, the analog speedometer will illuminate and go
off (pulsate) 3 times.
●In the following situations, the analog sp eedometer will not pulsate even though the
driver’s door is opened and closed:
• Within 60 seconds after the an alog meter pulsation completes
• Within 60 seconds of turning the engine switch off
■Variable red zone
■Eco driving meter
●The number of blue segments displayed on the eco driving meter decreases/increases
depending on the vehicle acceleration. Use this meter as a guideline when you wish to
drive in an eco-friendly manner that reduces fuel consumption.
However, on a downward grade where the ve hicle can accelerate without the acceler-
ator pedal being depressed, the eco driv ing meter may not display the eco-driving
state correctly.
●When the shift lever is moved to P, N or R, the segments will turn gray and the eco driv-
ing meter will not operate.
Instrument panel light control
1
2
To help protect the engine, the engine speed is
controlled by changing the starting position of
the tachometer’s red zone depending on the
engine coolant temperature within a range from
3700 rpm to 7300 rpm.
Before driving under extremely high load condi-
tions, make sure to su fficiently warm up the
engine.

GS350_300_GS F_OM_OM30G34U_(U)
992. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator of the tachometer enter the red zone, as it represents the
engine speed range which exceeds the maximum safe engine speed.
●In the following situations, th e engine may be overheating. In this case, immediately
stop the vehicle in a safe place, and check the engine after it has cooled completely.
( → P. 509)
• The engine coolant temperature gauge indicator ( ) is in the red zone and flash- ing.
• The engine oil temperature gauge indicator ( ) is in the red zone and flashing.

206
GS350_300_GS F_OM_OM30G34U_(U)4-2. Driving procedures
When in the M position, the gear will no
t change unless the shift lever or paddle
shift switches are operated.
However, even when in the M position, the gears will be automatically changed in
the following situation:
●When vehicle speed drops (downshift only).
●When the automatic transmission fluid or engine coolant temperature is low.
●GS350/GS300: When automatic transm ission fluid temperature is high.
●GS350/GS300: When the needle of the tachometer is in the red zone (the
range which exceeds the allowable revs of the engine).
In the following situations, the gear will no t shift even if the shift lever or paddle
shift switches are operated.
●“Slippery Road. Cannot Shift to Lower Ge ar.” is displayed on the multi-infor-
mation display.
●The vehicle speed is low (upshift only).

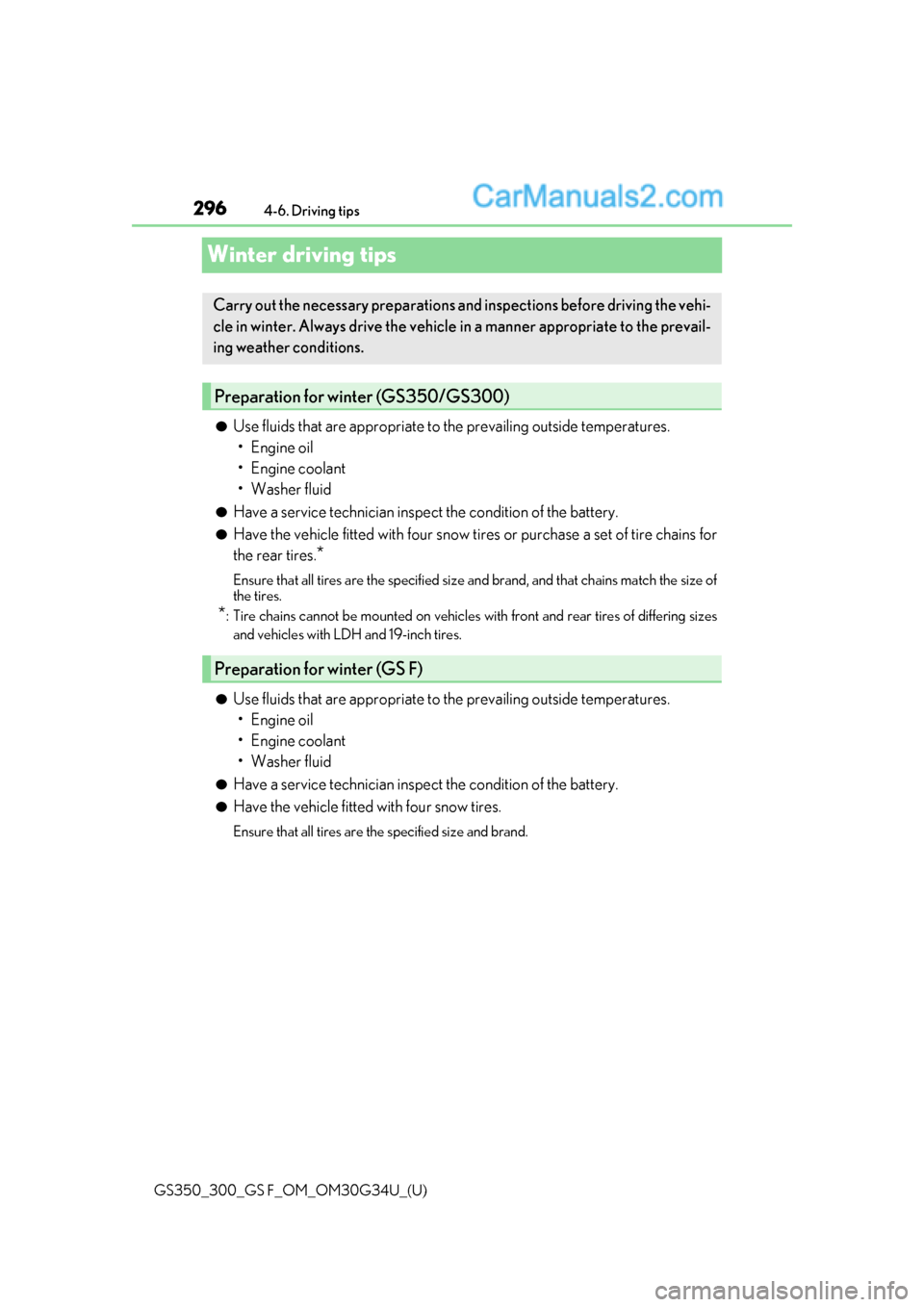

296
GS350_300_GS F_OM_OM30G34U_(U)4-6. Driving tips
Winter driving tips
●Use fluids that are appropriate to
the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the rear tires.
*
Ensure that all tires are the specified size and brand, and that chains match the size of
the tires.
*: Tire chains cannot be mounted on vehicles with front and rear tires of differing sizes
and vehicles with LDH and 19-inch tires.
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires.
Ensure that all tires are th e specified size and brand.
Carry out the necessary preparations an d inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Preparation for winter (GS350/GS300)
Preparation for winter (GS F)

367
GS350_300_GS F_OM_OM30G34U_(U)6-2. Maintenance
6
Maintenance and care
General maintenance
Listed below are the general maintenanc
e items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommende d that any problem you notice should
be brought to the attention of your Lexu s dealer or qualified service shop for
advice.
Engine compartment
ItemsCheck points
BatteryCheck the battery fluid level and connections.
( → P. 390)
Brake fluidIs the brake fluid at the correct level? ( →P. 389)
Engine coolantIs the engine coolant at the correct level?
(→ P. 386)
Engine oilIs the engine oil at the correct level? ( →P. 381)
Exhaust systemThere should not be any fumes or strange sounds.
Radiator/condenserThe radiator and condenser should be free from for-
eign objects. ( →P. 388)
Washer fluidIs there sufficient washer fluid? (→ P. 392)
