Maintenance and care

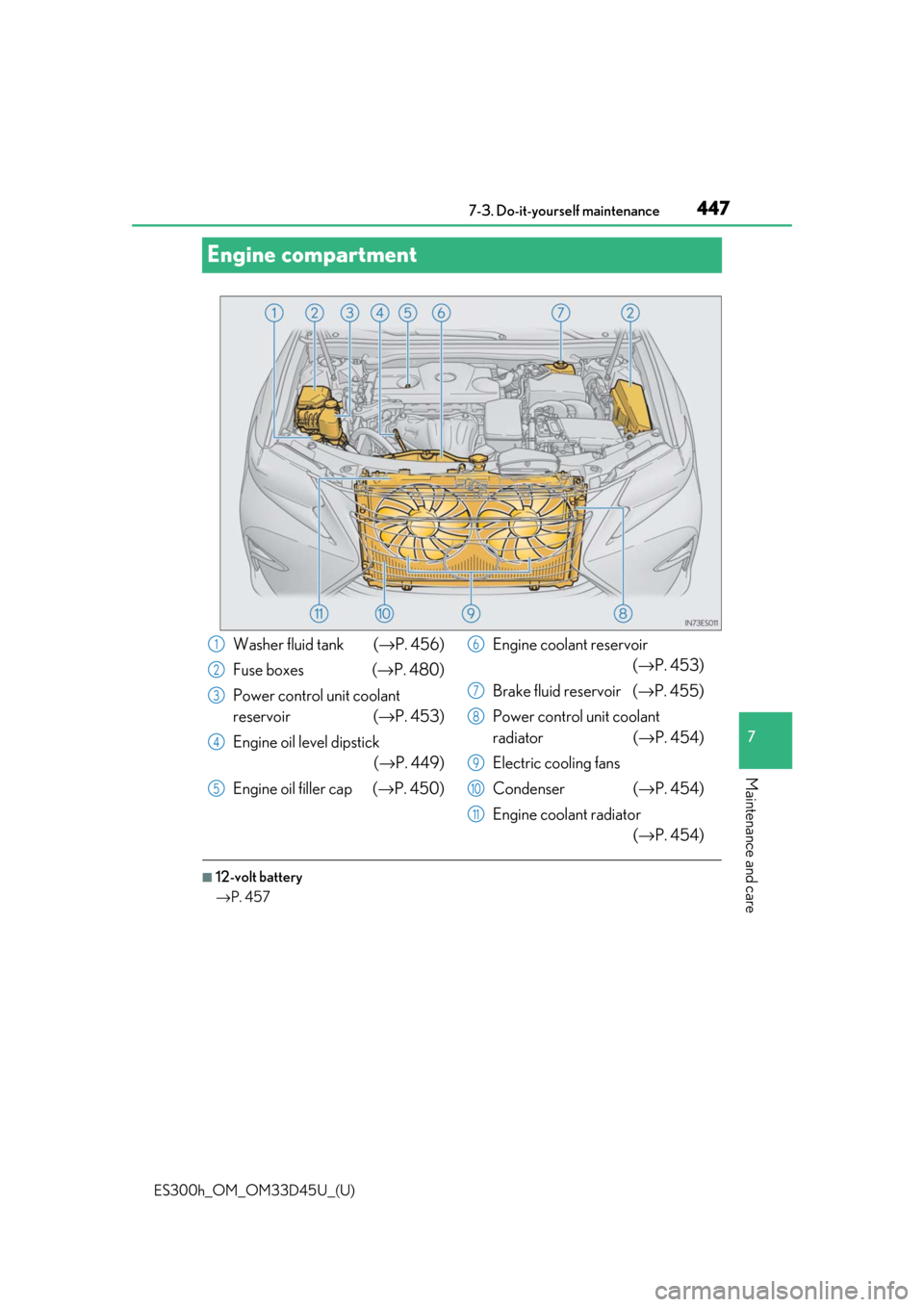

Engine compartment
■12-volt battery
→
P. 457
Washer fluid tank ( →P. 456)
Fuse boxes (→ P. 480)
Power control unit coolant
reservoir ( →P. 453)
Engine oil level dipstick (→P. 449)
Engine oil filler cap (→ P. 450)Engine coolant reservoir
(→P. 453)
Brake fluid reservoir ( →P. 455)
Power control unit coolant
radiator (→ P. 454)
Electric cooling fans
Condenser ( →P. 454)
Engine coolant radiator (→P. 454)1
2
3
4
5
6
7
8
9
10
11

480
ES300h_OM_OM33D45U_(U)7-3. Do-it-yourself maintenance

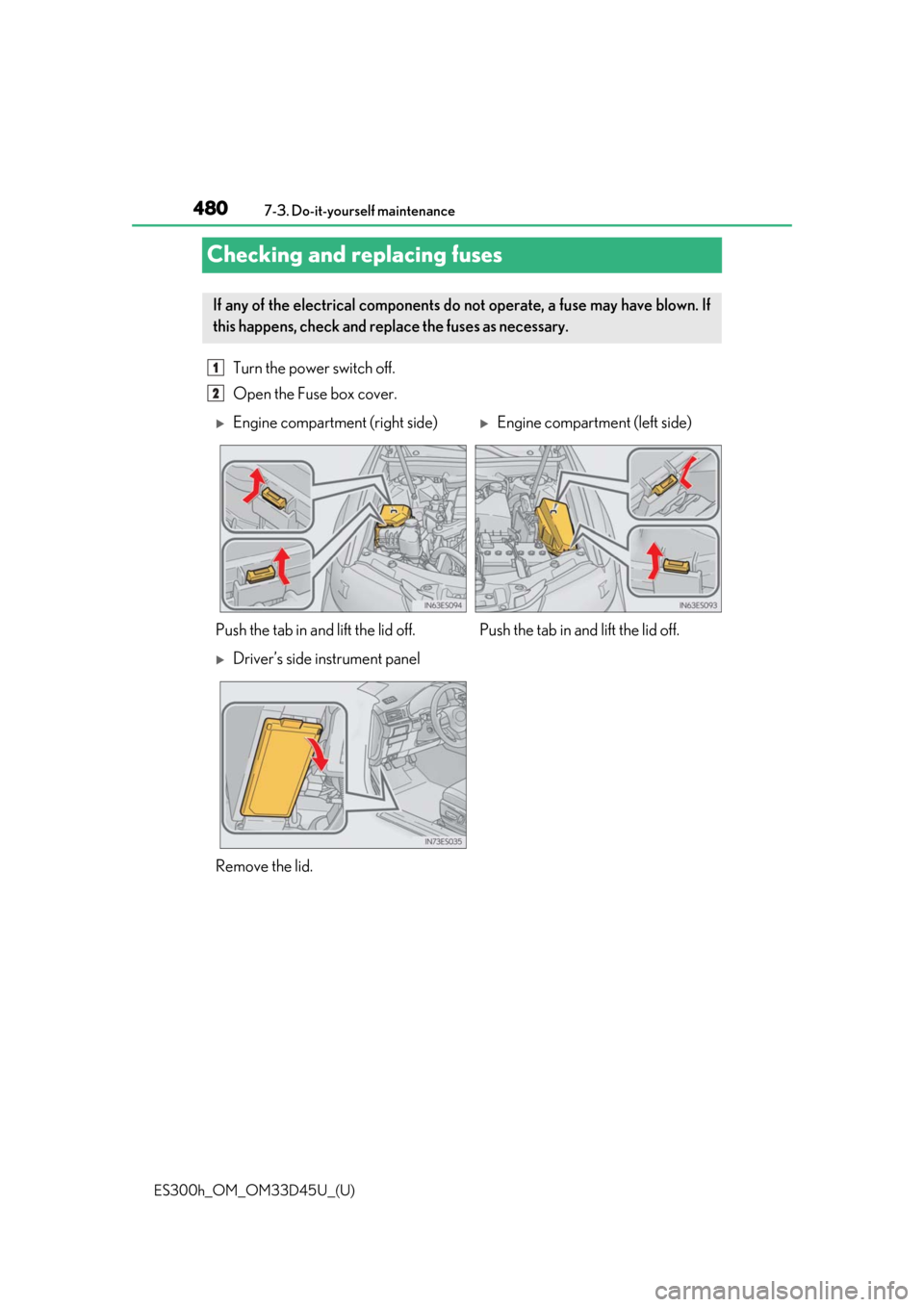

Checking and replacing fuses
Turn the power switch off.
Open the Fuse box cover.
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl
ace the fuses as necessary.
1
2
Engine compartment (right side)Engine compartment (left side)
Push the tab in and lift the lid off. Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.

ES300h_OM_OM33D45U_(U)
4817-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the fuse with the pullout
tool.
Only type A fuse can be removed using
the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C:
Contact your Lexus dealer.
3
4
1
2
Type AType B
Type C

482
ES300h_OM_OM33D45U_(U)7-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (
→P. 483)
●If the replaced fuse blows again, have th e vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circui ts designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to th e vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.
