2018 KIA SORENTO ECO mode

Maintenance
64
7

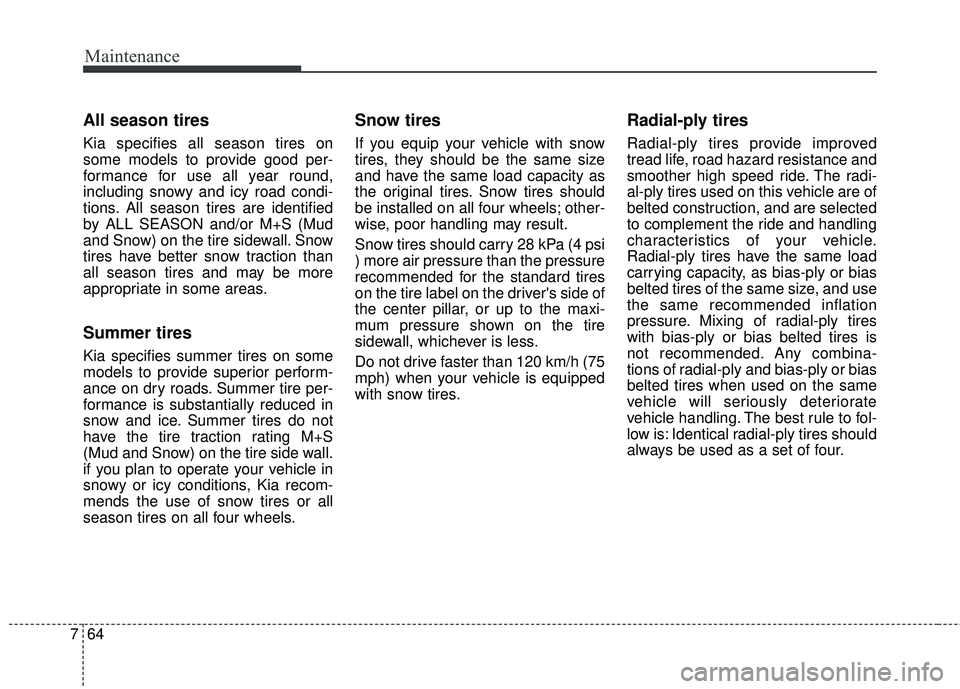

All season tires
Kia specifies all season tires on
some models to provide good per-
formance for use all year round,
including snowy and icy road condi-
tions. All season tires are identified
by ALL SEASON and/or M+S (Mud
and Snow) on the tire sidewall. Snow
tires have better snow traction than
all season tires and may be more
appropriate in some areas.
Summer tires
Kia specifies summer tires on some
models to provide superior perform-
ance on dry roads. Summer tire per-
formance is substantially reduced in
snow and ice. Summer tires do not
have the tire traction rating M+S
(Mud and Snow) on the tire side wall.
if you plan to operate your vehicle in
snowy or icy conditions, Kia recom-
mends the use of snow tires or all
season tires on all four wheels.
Snow tires
If you equip your vehicle with snow
tires, they should be the same size
and have the same load capacity as
the original tires. Snow tires should
be installed on all four wheels; other-
wise, poor handling may result.
Snow tires should carry 28 kPa (4 psi
) more air pressure than the pressure
recommended for the standard tires
on the tire label on the driver's side of
the center pillar, or up to the maxi-
mum pressure shown on the tire
sidewall, whichever is less.
Do not drive faster than 120 km/h (75
mph) when your vehicle is equipped
with snow tires.
Radial-ply tires
Radial-ply tires provide improved
tread life, road hazard resistance and
smoother high speed ride. The radi-
al-ply tires used on this vehicle are of
belted construction, and are selected
to complement the ride and handling
characteristics of your vehicle.
Radial-ply tires have the same load
carrying capacity, as bias-ply or bias
belted tires of the same size, and use
the same recommended inflation
pressure. Mixing of radial-ply tires
with bias-ply or bias belted tires is
not recommended. Any combina-
tions of radial-ply and bias-ply or bias
belted tires when used on the same
vehicle will seriously deteriorate
vehicle handling. The best rule to fol-
low is: Identical radial-ply tires should
always be used as a set of four.

Index
2I
Advanced smart cruise control system (ASCC) . . . . . . 5-65Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-75
Speed setting (ASCC) . . . . . . . . . . . . . . . . . . . . . . . 5-66
To adjust the sensitivity of advanced smartcruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-74
To convert to cruise control mode . . . . . . . . . . . . . . 5-75
Vehicle to vehicle distance setting (ASCC) . . . . . . . 5-70
Air bag - advanced supplemental restraint system . . . 3-44 Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-68
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-47
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61
Do not install a child restraint on the frontpassenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47
Driver's and passenger's front air bag . . . . . . . . . . . 3-57
How does the air bag system operate . . . . . . . . . . . 3-45
Inflation and non-inflation conditions of the air bag . . 3-62
Occupant Detection System (ODS) . . . . . . . . . . . . . 3-51
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
SRS components and functions . . . . . . . . . . . . . . . . 3-48
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
All wheel drive (AWD) . . . . . . . . . . . . . . . . . . . . . . . . 5-20 All wheel drive (AWD) transfer mode selection . . . 5-22
For safe all wheel drive operation . . . . . . . . . . . . . . 5-23
Tight corner brake effect . . . . . . . . . . . . . . . . . . . . . 5-21 Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-91
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-98
Autonomous emergency braking (AEB)/ Forward collision warning (FCW). . . . . . . . . . . . . 5-50
AEB warning message and system control . . . . . . . 5-52
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-56
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 5-59
Sensor to detect the distance from the vehicle in front (front radar) . . . . . . . . . . . . . . . . . . . . . . . . 5-54
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-55
System setting and activation. . . . . . . . . . . . . . . . . . 5-50
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-174 Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-174
AUX, USB and iPod
®port . . . . . . . . . . . . . . . . . . 4-176
How vehicle audio works. . . . . . . . . . . . . . . . . . . . 4-177
Steering wheel remote controller . . . . . . . . . . . . . . 4-175
Using iPod
®device . . . . . . . . . . . . . . . . . . . . . . . . 4-182
Using the USB device . . . . . . . . . . . . . . . . . . . . . . 4-181
Automatic climate control system . . . . . . . . . . . . . . . 4-141 3rd row air conditioning. . . . . . . . . . . . . . . . . . . . . 4-150
Automatic heating and air conditioning. . . . . . . . . 4-143
Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-154
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-153
Manual heating and air conditioning . . . . . . . . . . . 4-144
A

Index
4I
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
129Rear window defroster . . . . . . . . . . . . . . . . . . . . . . 4-129
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
22 Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-25
Impact sensing door unlock system . . . . . . . . . . . . . 4-25
Operating door locks from inside the vehicle . . . . . 4-23
Operating door locks from outside the vehicle . . . . 4-22
Drive mode integrated control system . . . . . . . . . . . . . 5-81 Drive mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-81
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-97
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Push-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
Emission control system . . . . . . . . . . . . . . . . . . . . . . . 7-101 Crankcase emission control system . . . . . . . . . . . . 7-101
Evaporative emission control (including ORVR:Onboard refueling vapor recovery) system . . . . . 7-101
Exhaust emission control system . . . . . . . . . . . . . . 7-102
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36 Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Checking the coolant level . . . . . . . . . . . . . . . . . . . . 7-36
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
34 Changing the engine oil and filter . . . . . . . . . . . . . . 7-35
Checking the engine oil level. . . . . . . . . . . . . . . . . . 7-34
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-9 Engine start/stop button position . . . . . . . . . . . . . . . . 5-9
Illuminated engine start/stop button. . . . . . . . . . . . . . 5-9
Starting the engine with a smart key . . . . . . . . . . . . 5-11
Explanation of scheduled maintenance items . . . . . . . 7-29
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-173 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-173
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
5 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-5
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-7
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-46
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-48
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-46
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
F
E
D

I9
Index
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-18Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-108 Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . 5-110
Hitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10\
9
If you do decide to pull a trailer. . . . . . . . . . . . . . . 5-114
Maintenance when trailer towing . . . . . . . . . . . . . . 5-113
Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Trailer brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-109
Trip modes (trip computer). . . . . . . . . . . . . . . . . . . . . . 4-80 A/V mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
Digital speedometer . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
One time driving information mode . . . . . . . . . . . . 4-83
ASCC/LDWS mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-82\
Trip Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-80
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-84
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-86
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . 8-10
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle handling instructions . . . . . . . . . . . . . . . . . . . . . 1-5 Vehicle identification number (VIN) . . . . . . . . . . . . . . 8-10
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-116
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-120
Tire and loading information label. . . . . . . . . . . . . 5-116
Vehicle weight glossary . . . . . . . . . . . . . . . . . . . . . . . 5-122 Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . 5-122
Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-122
GAW (Gross axle weight) . . . . . . . . . . . . . . . . . . . 5-122
GAWR (Gross axle weight rating). . . . . . . . . . . . . 5-122
GVW (Gross vehicle weight). . . . . . . . . . . . . . . . . 5-122
GVWR (Gross vehicle weight rating) . . . . . . . . . . 5-122
Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . 5-122
Warning and indicator lights. . . . . . . . . . . . . . . . . . . . . 4-97 Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-40 Checking the washer fluid level. . . . . . . . . . . . . . . . 7-40
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128 Headlight (headlamp) escort function . . . . . . . . . . 4-128
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-39 Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Windshield defrosting and defogging. . . . . . . . . . . . . 4-155 Automatic climate control system . . . . . . . . . . . . . 4-156
V
W
