2018 KIA SEDONA key

Features of your vehicle
28
4

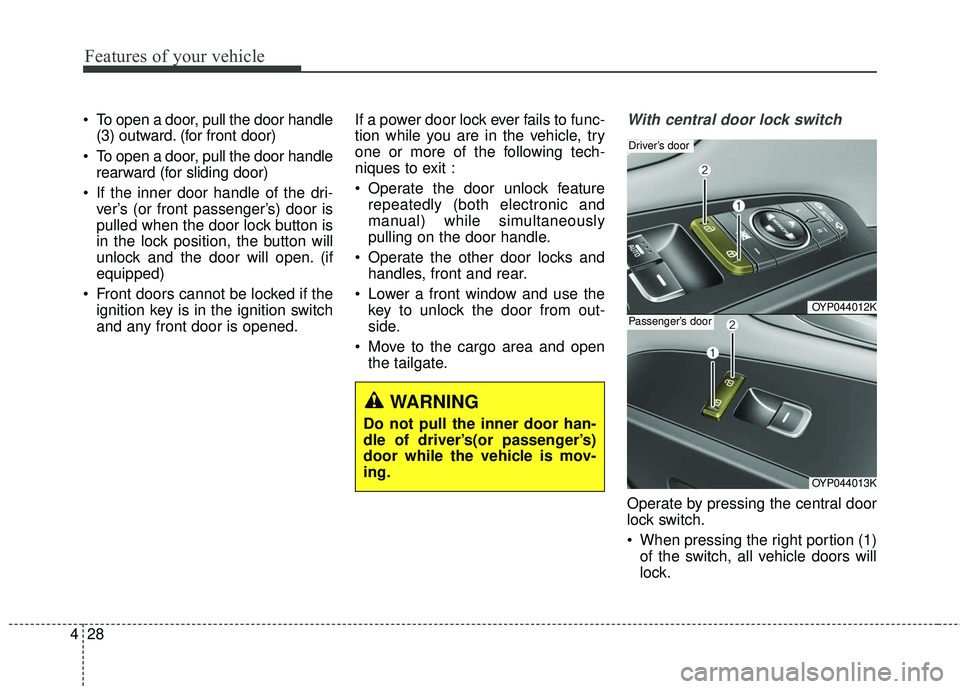

To open a door, pull the door handle
(3) outward. (for front door)
To open a door, pull the door handle rearward (for sliding door)
If the inner door handle of the dri- ver’s (or front passenger’s) door is
pulled when the door lock button is
in the lock position, the button will
unlock and the door will open. (if
equipped)
Front doors cannot be locked if the ignition key is in the ignition switch
and any front door is opened. If a power door lock ever fails to func-
tion while you are in the vehicle, try
one or more of the following tech-
niques to exit :
Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
Operate the other door locks and handles, front and rear.
Lower a front window and use the key to unlock the door from out-
side.
Move to the cargo area and open the tailgate.With central door lock switch
Operate by pressing the central door
lock switch.
When pressing the right portion (1)of the switch, all vehicle doors will
lock.
OYP044012K
Driver’s door
OYP044013K
Passenger’s door
WARNING
Do not pull the inner door han-
dle of driver’s(or passenger’s)
door while the vehicle is mov-
ing.

429
Features of your vehicle

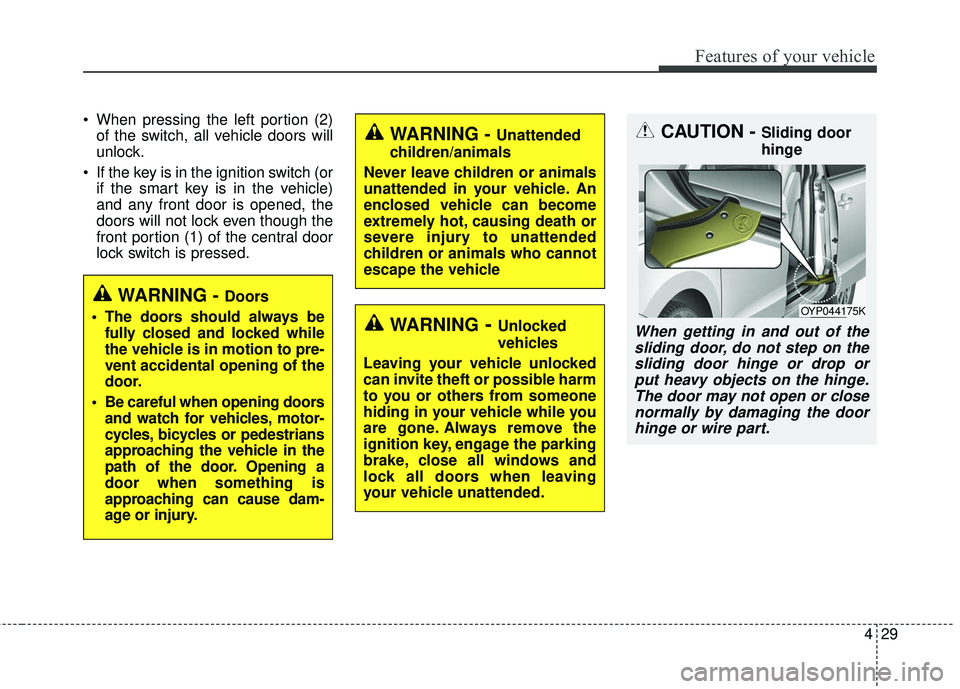

When pressing the left portion (2)of the switch, all vehicle doors will
unlock.
If the key is in the ignition switch (or if the smart key is in the vehicle)
and any front door is opened, the
doors will not lock even though the
front portion (1) of the central door
lock switch is pressed.
WARNING - Unattended
children/animals
Never leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended
children or animals who cannot
escape the vehicleCAUTION - Sliding door
hinge
When getting in and out of the sliding door, do not step on thesliding door hinge or drop orput heavy objects on the hinge.The door may not open or closenormally by damaging the doorhinge or wire part.
OYP044175KWARNING - Doors
The doors should always be fully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door.
Be careful when opening doors and watch for vehicles, motor-
cycles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a
door when something is
approaching can cause dam-
age or injury.
WARNING- Unlocked
vehicles
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving
your vehicle unattended.

431
Features of your vehicle

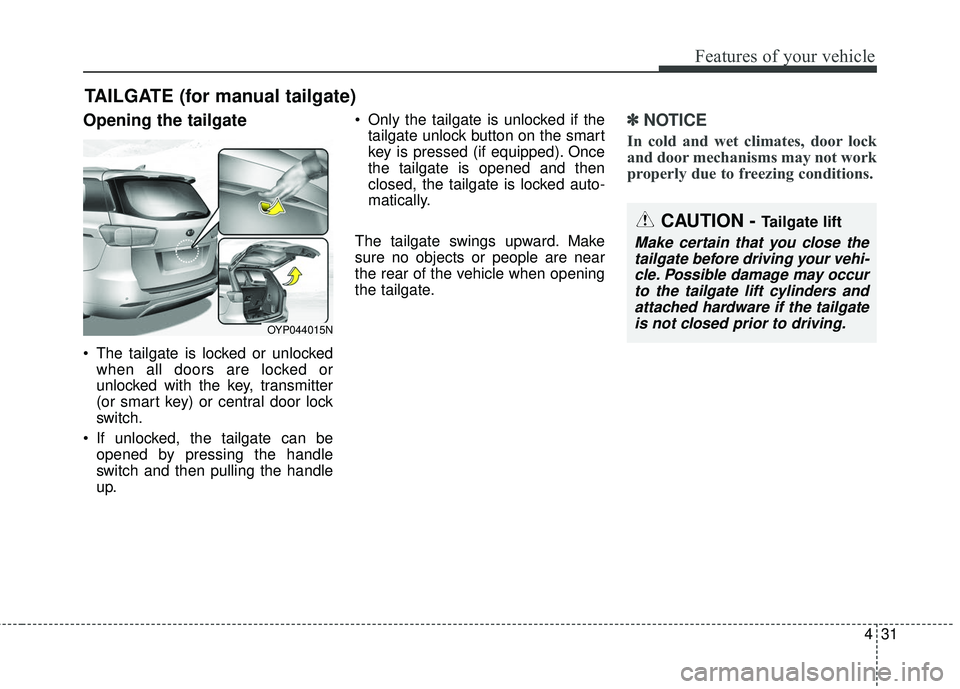

Opening the tailgate
The tailgate is locked or unlockedwhen all doors are locked or
unlocked with the key, transmitter
(or smart key) or central door lock
switch.
If unlocked, the tailgate can be opened by pressing the handle
switch and then pulling the handle
up. Only the tailgate is unlocked if the
tailgate unlock button on the smart
key is pressed (if equipped). Once
the tailgate is opened and then
closed, the tailgate is locked auto-
matically.
The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when opening
the tailgate.
✽ ✽ NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.
TAILGATE (for manual tailgate)
CAUTION - Tailgate lift
Make certain that you close the
tailgate before driving your vehi-cle. Possible damage may occurto the tailgate lift cylinders andattached hardware if the tailgateis not closed prior to driving.
OYP044015N

Features of your vehicle
34
4
POWER SLIDING DOOR AND POWER TAILGATE (IF EQUIPPED)
(1) Left power sliding door control
button
(2) Right power sliding door control button
(3) Power tailgate control button*
(4) Power door ON/OFF button
*: if equipped
The power sliding doors and power
tailgate can be opened and closed
automatically with the folding key or
smart key, the main control buttons
on the overhead console or the sub
control buttons on the center pillar
trim and the tailgate.
When the power door ON/OFF but-
ton is OFF (depressed), the power
sliding door and power tailgate can
be opened and closed manually by
pulling the door handles from inside
or outside vehicle.
✽ ✽ NOTICE
If the power sliding door is open
approximately 6 hours, the ECU will
enter Sleep mode to conserve bat-
tery power and the door might not
close automatically. Close the door
or tailgate manually and then oper-
ate the door with the power operat-
ing system.
OYP044017K
OYP044018K
OYP044027N
On the center pillar trim
On the tailgate
On the overhead console
WARNING - Unattended
children/pets
Never leave children or animals
unattended in your vehicle.
Children or animals might oper-
ate the power sliding door or
power tailgate that could result
in injury to themselves or oth-
ers or damage to the vehicle.

Features of your vehicle
42
4
Power tailgate operation
(if equipped)
Push the power tailgate main con-
trol button on the overhead con-
sole to open or close the power
tailgate. However, the power tail-
gate will not open with the main
control button when all power slid-
ing doors and power tailgate are
locked and closed. But the power
tailgate will be opened with the
folding key (or smart key).
When the power tailgate is operated with the main or sub control button
or transmitter, the chime sounds and
hazard warning lights flash 2 times. When the power door ON/OFF but-
ton is ON (not depressed), do as
follows to open or close the power
tailgate:
- Pushing the sub control button onthe bottom of the tailgate will close
the power tailgate automatically.
- Pressing and pulling up the tail- gate handle slightly will open the
power tailgate automatically
when the tailgate is unlocked. When the power door ON/OFF but-
ton is OFF (depressed), the power
tailgate can not be controlled with the
sub control buttons or tailgate handle.
However, the tailgate may be
opened manually by pulling the
exterior handle and lifting the tail-
gate upward. The tailgate may be
manually closed by pushing the
tailgate downward.
Do not drive the vehicle until the power tailgate completely closed.
The power tailgate may not close
completely if the vehicle is started
during automatic closing.
✽ ✽ NOTICE
The button on the tailgate will not
illuminated and operated when the
power door On/OFF button is OFF
(depressed).
OYP044026K
OYP044027N

Features of your vehicle
46
4

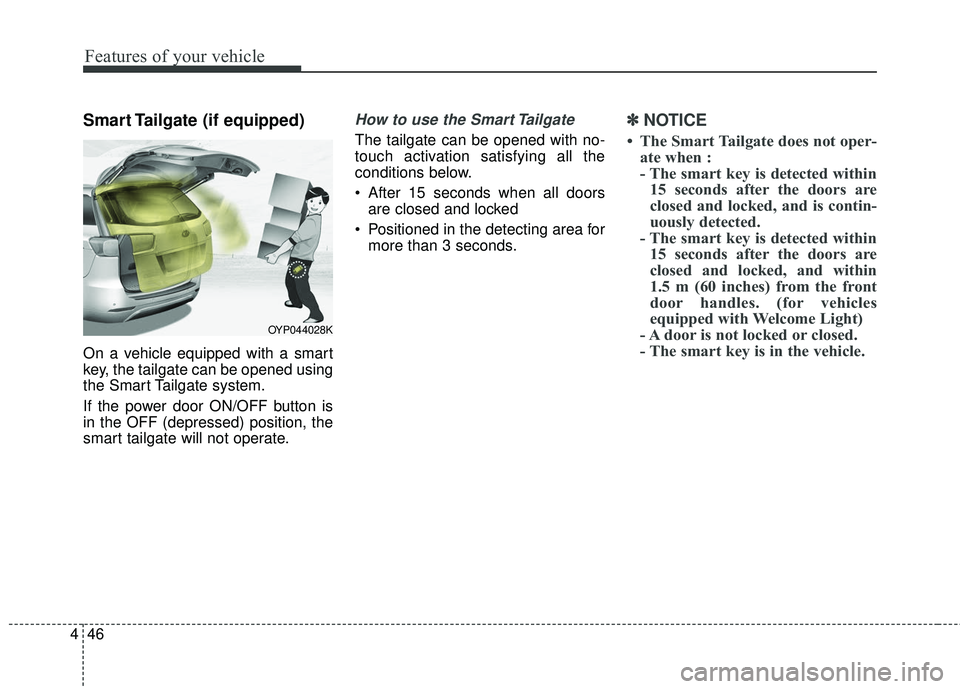

Smart Tailgate (if equipped)
On a vehicle equipped with a smart
key, the tailgate can be opened using
the Smart Tailgate system.
If the power door ON/OFF button is
in the OFF (depressed) position, the
smart tailgate will not operate.
How to use the Smart Tailgate
The tailgate can be opened with no-
touch activation satisfying all the
conditions below.
After 15 seconds when all doors
are closed and locked
Positioned in the detecting area for more than 3 seconds.
✽ ✽ NOTICE
• The Smart Tailgate does not oper-
ate when :
- The smart key is detected within15 seconds after the doors are
closed and locked, and is contin-
uously detected.
- The smart key is detected within 15 seconds after the doors are
closed and locked, and within
1.5 m (60 inches) from the front
door handles. (for vehicles
equipped with Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
OYP044028K

447
Features of your vehicle
1. Setting
To activate the Smart Tailgate, go to
User Settings Mode and select
Smart Tailgate on the LCD display.
For more information, refer to the
"LCD Display" section in this
chapter.2. Detect and Alert
If you are positioned in the detecting
area (50 ~100 cm (20~40 inches)
behind the vehicle) carrying a smart
key, the hazard warning lights will
blink and chime will sound for about
3 seconds to alert you the smart key
has been detected and the tailgate
will open.✽ ✽NOTICE
Do not approach the detecting area
if you do not want the tailgate to
open. If you have unintentionally
entered the detecting area and the
hazard warning lights and chime
starts to operate, leave the detecting
area with the smart key. The tailgate
will stay closed.
OYP044029N

Features of your vehicle
48
4

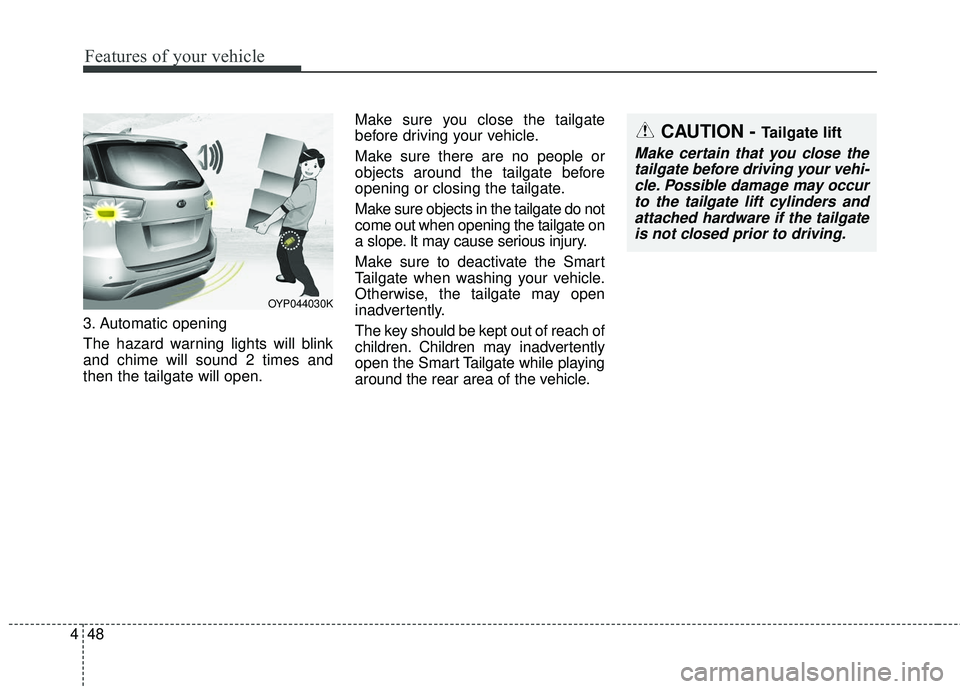

3. Automatic opening
The hazard warning lights will blink
and chime will sound 2 times and
then the tailgate will open. Make sure you close the tailgate
before driving your vehicle.
Make sure there are no people or
objects around the tailgate before
opening or closing the tailgate.
Make sure objects in the tailgate do not
come out when opening the tailgate on
a slope. It may cause serious injury.
Make sure to deactivate the Smart
Tailgate when washing your vehicle.
Otherwise, the tailgate may open
inadvertently.
The key should be kept out of reach of
children. Children may inadvertently
open the Smart Tailgate while playing
around the rear area of the vehicle.
OYP044030K
CAUTION - Tailgate lift
Make certain that you close the
tailgate before driving your vehi-cle. Possible damage may occurto the tailgate lift cylinders andattached hardware if the tailgateis not closed prior to driving.
