2018 KIA RIO headlamp

Maintenance
82
8
4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly

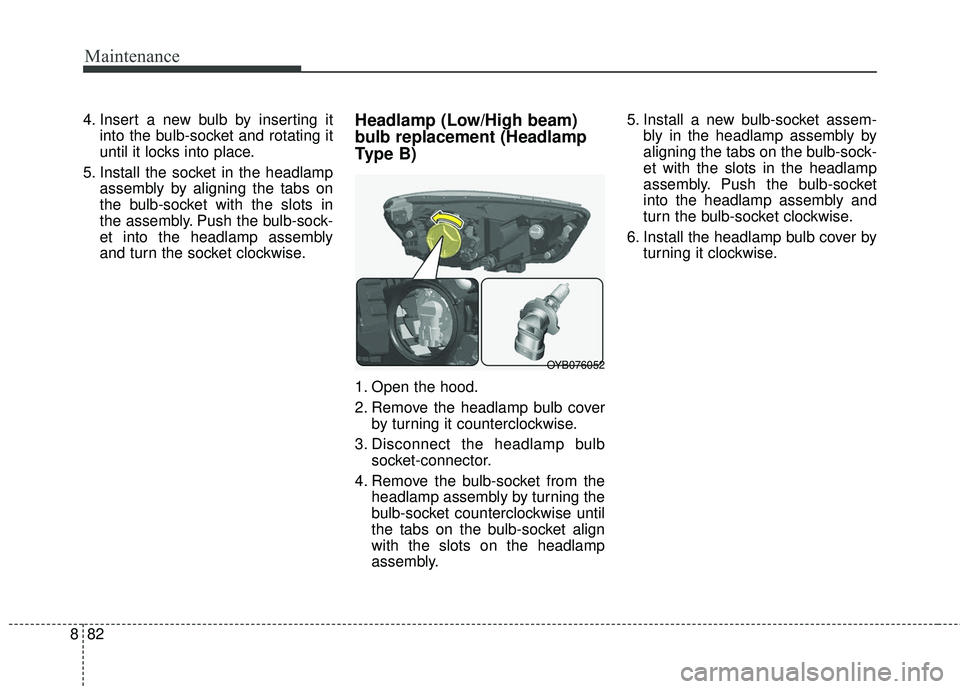

and turn the socket clockwise.Headlamp (Low/High beam)
bulb replacement (Headlamp
Type B)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
OYB076052

883
Maintenance
Headlamp bulb Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids. Never touch the glass with
bare hands. Residual oil may
cause the bulb to overheat and
burst when lit. A bulb should be
operated only when installed in a
headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Front turn signal lamp bulb
replacement (Headlamp Type B)
1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
OQL075058
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
OYB076054

Maintenance
84
8

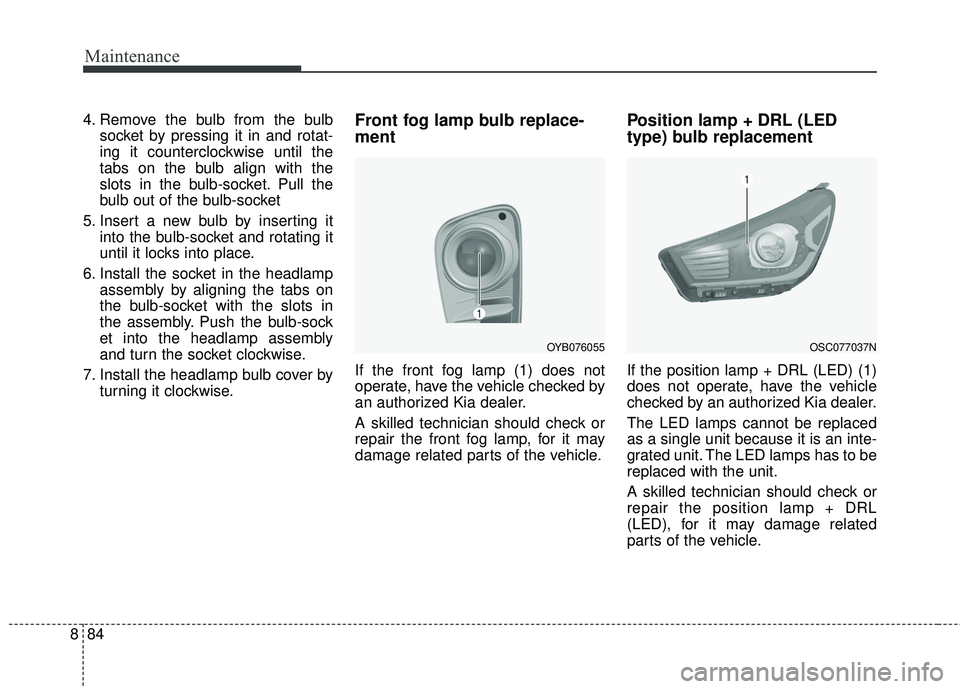

4. Remove the bulb from the bulb
socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket
5. Insert a new bulb by inserting it into the bulb-socket and rotating it
until it locks into place.
6. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock
et into the headlamp assembly
and turn the socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.Front fog lamp bulb replace-
ment
If the front fog lamp (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
A skilled technician should check or
repair the front fog lamp, for it may
damage related parts of the vehicle.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the position lamp + DRL
(LED), for it may damage related
parts of the vehicle.
OYB076055OSC077037N

93
Specifications & Consumer information

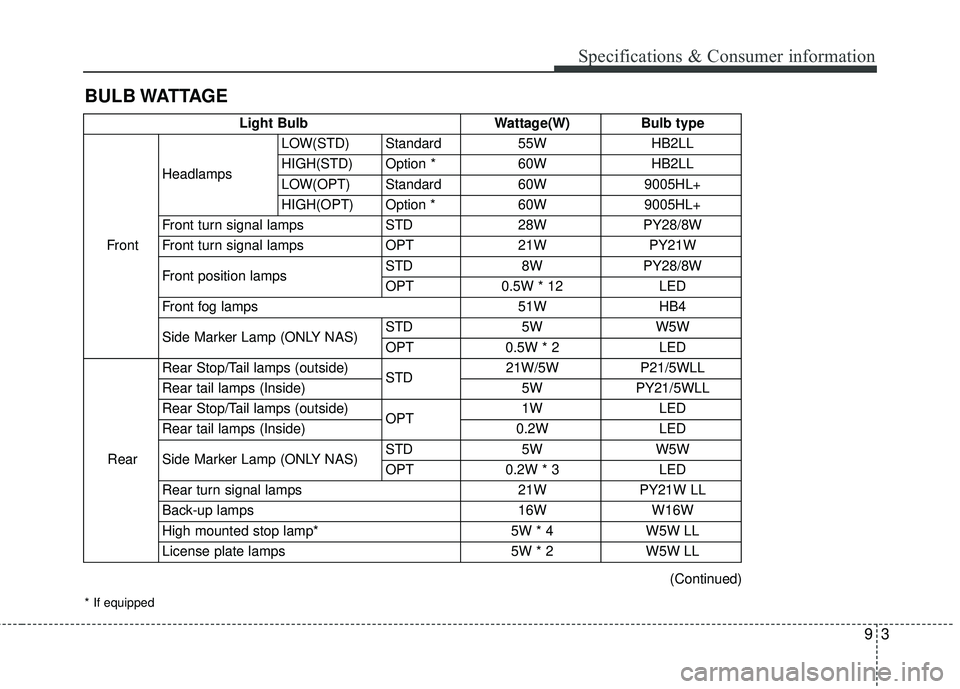

BULB WATTAGE
Light BulbWattage(W)Bulb type
Front Headlamps
LOW(STD) Standard
55WHB2LL
HIGH(STD) Option * 60WHB2LL
LOW(OPT) Standard 60W9005HL+
HIGH(OPT) Option * 60W9005HL+
Front turn signal lamps STD28WPY28/8W
Front turn signal lamps OPT21WPY21W
Front position lamps STD
8WPY28/8W
OPT 0.5W * 12 LED
Front fog lamps 51WHB4
Side Marker Lamp (ONLY NAS) STD
5WW5W
OPT 0.5W * 2 LED
Rear Rear Stop/Tail lamps (outside)
STD21W/5W
P21/5WLL
Rear tail lamps (Inside) 5WPY21/5WLL
Rear Stop/Tail lamps (outside) OPT1W LED
Rear tail lamps (Inside) 0.2WLED
Side Marker Lamp (ONLY NAS) STD
5WW5W
OPT 0.2W * 3 LED
Rear turn signal lamps 21WPY21W LL
Back-up lamps 16WW16W
High mounted stop lamp* 5W * 4W5W LL
License plate lamps 5W * 2W5W LL
* If equipped
(Continued)

I5
Index

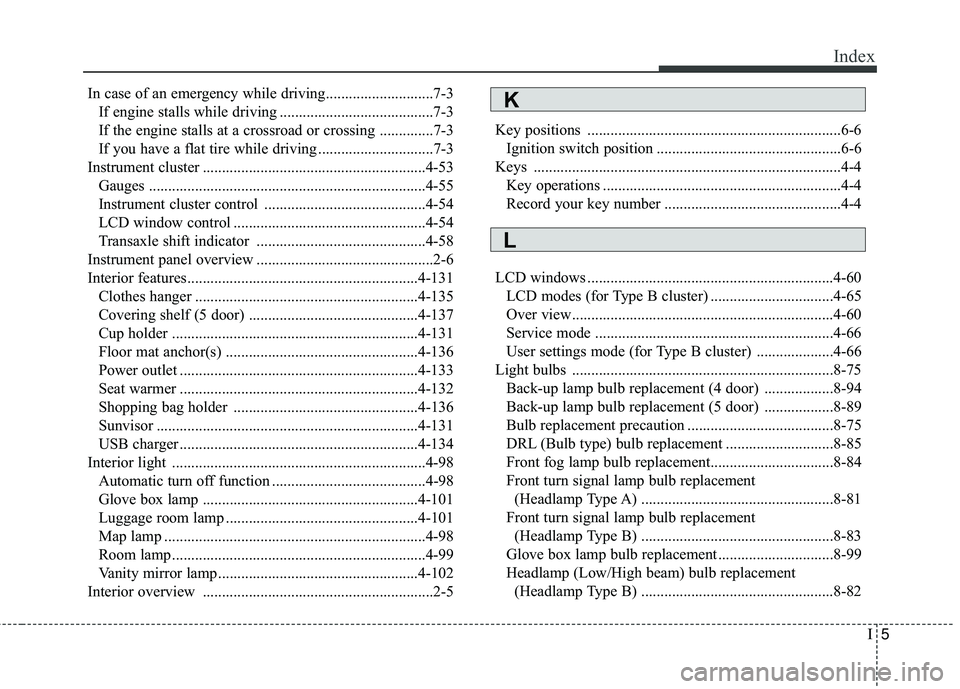

In case of an emergency while driving............................7-3If engine stalls while driving ........................................7-3
If the engine stalls at a crossroad or crossing ..............7-3
If you have a flat tire while driving ..............................7-3
Instrument cluster ..........................................................4-53 Gauges ........................................................................\
4-55
Instrument cluster control ..........................................4-54
LCD window control ..................................................4-54
Transaxle shift indicator ............................................4-58
Instrument panel overview ..............................................2-6
Interior features............................................................4-131 Clothes hanger ..........................................................4-135
Covering shelf (5 door) ............................................4-137
Cup holder ................................................................4-131
Floor mat anchor(s) ..................................................4-136
Power outlet ..............................................................4-133
Seat warmer ..............................................................4-132
Shopping bag holder ................................................4-136
Sunvisor ....................................................................4-13\
1
USB charger ..............................................................4-134
Interior light ..................................................................4-98 Automatic turn off function ........................................4-98
Glove box lamp ........................................................4-101
Luggage room lamp ..................................................4-101
Map lamp ....................................................................4-98\
Room lamp ..................................................................4-99
Vanity mirror lamp ....................................................4-102
Interior overview ............................................................2-5 Key positions ..................................................................6-6
Ignition switch position ................................................6-6
Keys ........................................................................\
........4-4 Key operations ..............................................................4-4
Record your key number ..............................................4-4
LCD windows ................................................................4-60 LCD modes (for Type B cluster) ................................4-65
Over view ....................................................................4-60\
Service mode ..............................................................4-66
User settings mode (for Type B cluster) ....................4-66
Light bulbs ....................................................................8-75\
Back-up lamp bulb replacement (4 door) ..................8-94
Back-up lamp bulb replacement (5 door) ..................8-89
Bulb replacement precaution ......................................8-75
DRL (Bulb type) bulb replacement ............................8-85
Front fog lamp bulb replacement................................8-84
Front turn signal lamp bulb replacement (Headlamp Type A) ..................................................8-81
Front turn signal lamp bulb replacement (Headlamp Type B) ..................................................8-83
Glove box lamp bulb replacement ..............................8-99
Headlamp (Low/High beam) bulb replacement (Headlamp Type B) ..................................................8-82K
L

Index
6I

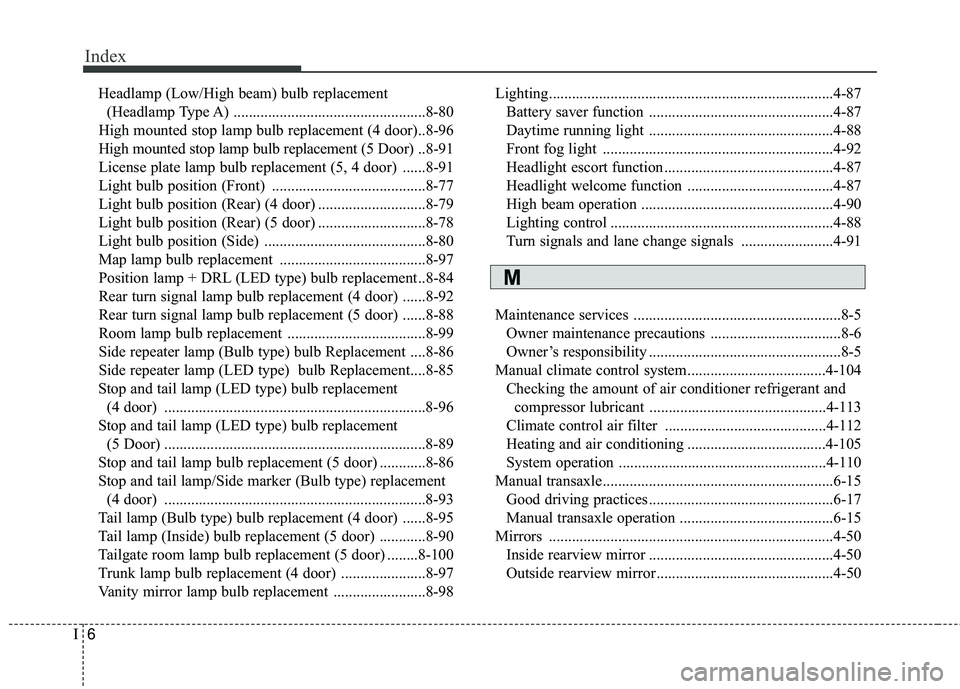

Headlamp (Low/High beam) bulb replacement(Headlamp Type A) ..................................................8-80
High mounted stop lamp bulb replacement (4 door)..8-96
High mounted stop lamp bulb replacement (5 Door) ..8-91
License plate lamp bulb replacement (5, 4 door) ......8-91
Light bulb position (Front) ........................................8-77
Light bulb position (Rear) (4 door) ............................8-79
Light bulb position (Rear) (5 door) ............................8-78
Light bulb position (Side) ..........................................8-80
Map lamp bulb replacement ......................................8-97
Position lamp + DRL (LED type) bulb replacement..8-84
Rear turn signal lamp bulb replacement (4 door) ......8-92
Rear turn signal lamp bulb replacement (5 door) ......8-88
Room lamp bulb replacement ....................................8-99
Side repeater lamp (Bulb type) bulb Replacement ....8-86
Side repeater lamp (LED type) bulb Replacement....8-85
Stop and tail lamp (LED type) bulb replacement (4 door) ....................................................................8-96\
Stop and tail lamp (LED type) bulb replacement (5 Door) ....................................................................8-89\
Stop and tail lamp bulb replacement (5 door) ............8-86
Stop and tail lamp/Side marker (Bulb type) replacement (4 door) ....................................................................8-93\
Tail lamp (Bulb type) bulb replacement (4 door) ......8-95
Tail lamp (Inside) bulb replacement (5 door) ............8-90
Tailgate room lamp bulb replacement (5 door) ........8-100
Trunk lamp bulb replacement (4 door) ......................8-97
Vanity mirror lamp bulb replacement ........................8-98 Lighting........................................................................\
..4-87
Battery saver function ................................................4-87
Daytime running light ................................................4-88
Front fog light ............................................................4-92
Headlight escort function ............................................4-87
Headlight welcome function ......................................4-87
High beam operation ..................................................4-90
Lighting control ..........................................................4-88
Turn signals and lane change signals ........................4-91
Maintenance services ......................................................8-5 Owner maintenance precautions ..................................8-6
Owner’s responsibility ..................................................8-5
Manual climate control system....................................4-104 Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-113
Climate control air filter ..........................................4-112
Heating and air conditioning ....................................4-105
System operation ......................................................4-110
Manual transaxle............................................................6-15 Good driving practices ................................................6-17
Manual transaxle operation ........................................6-15
Mirrors ........................................................................\
..4-50 Inside rearview mirror ................................................4-50
Outside rearview mirror ..............................................4-50
M
