2018 KIA OPTIMA PHEV reset sun roof

441
Features of your vehicle

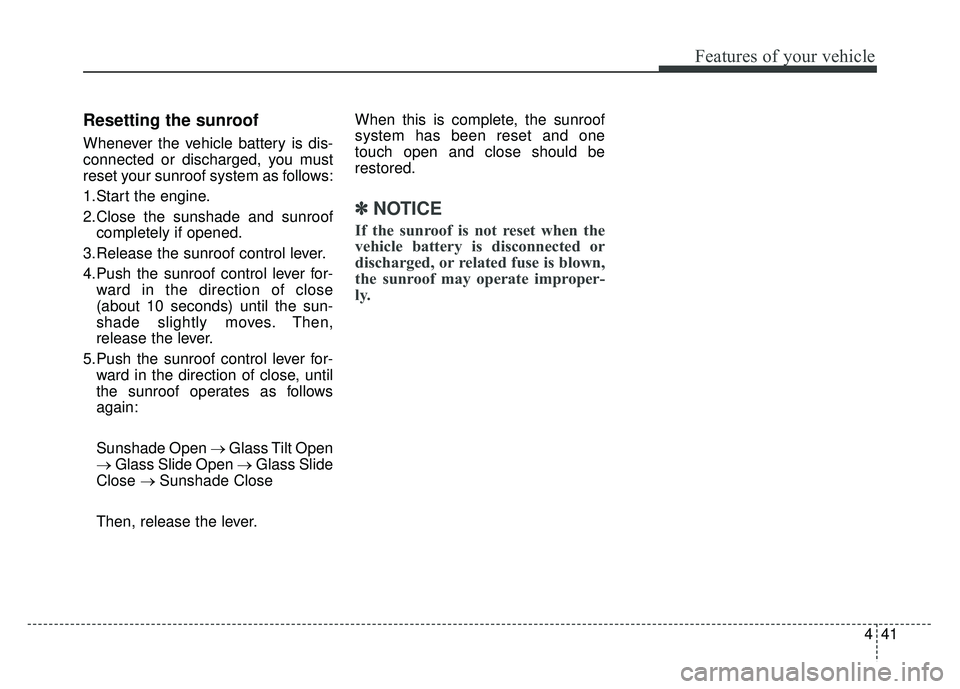

Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, you must
reset your sunroof system as follows:
1.Start the engine.
2.Close the sunshade and sunroofcompletely if opened.
3.Release the sunroof control lever.
4.Push the sunroof control lever for- ward in the direction of close
(about 10 seconds) until the sun-
shade slightly moves. Then,
release the lever.
5.Push the sunroof control lever for- ward in the direction of close, until
the sunroof operates as follows
again:
Sunshade Open → Glass Tilt Open
→ Glass Slide Open → Glass Slide
Close → Sunshade Close
Then, release the lever. When this is complete, the sunroof
system has been reset and one
touch open and close should be
restored.
✽ ✽
NOTICE
If the sunroof is not reset when the
vehicle battery is disconnected or
discharged, or related fuse is blown,
the sunroof may operate improper-
ly.

Maintenance
44
8
When recharging the battery,
observe the following precautions:
The battery must be removed from
the vehicle and placed in an area
with good ventilation.
Do not allow cigarettes, sparks, or flame near the battery.
Watch the battery during charging, and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of
any cell exceeds 120°F (49°C).
Wear eye protection when check- ing the battery during charging.
Disconnect the battery charger in the following order.
1. Turn off the battery charger main switch.
2. Unhook the negative clamp from the negative battery terminal.
3. Unhook the positive clamp from the positive battery terminal. Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
The negative battery cable must be removed first and installed last
when the battery is disconnected.Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
Auto up/down window (See chapter 4)
Sunroof (See chapter 4)
Trip computer (See chapter 4)
Climate control system (See chapter 4)
Driver position memory system (See chapter 3)
Audio (See chapter 5)

Index
10I
Maintenance schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8Normal Maintenance Schedule . . . . . . . . . . . . . . . . . 8-9
Maintenance Under Severe Usage Conditions. . . . . 8-19
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4 Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Owner maintenance precautions . . . . . . . . . . . . . . . . 8-5
Manual mode - Automatic transaxle . . . . . . . . . . . . . . 6-14
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11\
1
Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . . . 8-91
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-46 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-46
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-46
Electrochromic mirror (ECM) . . . . . . . . . . . . . . . . . 4-47
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-48
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Folding the outside rearview mirror. . . . . . . . . . . . . 4-50
Occupant Detection System . . . . . . . . . . . . . . . . . . . . . 3-50
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
56
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
Online factory authorized manuals . . . . . . . . . . . . . . . . 9-15
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Outside Temperature Gauge . . . . . . . . . . . . . . . . . . . . . 4-57
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6 Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 8-6 Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-37
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38\
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Parking brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20, 8-33 Checking the parking brake . . . . . . . . . . . . . . . . . . . 8-33
Personal lamp bulb replacement . . . . . . . . . . . . . . . . . . 8-92
Plug-in hybrid mode indicator . . . . . . . . . . . . . . . . . . . 4-55
Position lamp + DRL (LED type) bulb replacement . . 8-86
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-26
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . . 4-96 Operation of the rear parking assist system . . . . . . . 4-96
Non-operational conditions of rear parkingassist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
O
P
R

I11
Index
Rear parking assist system precautions . . . . . . . . . . 4-98
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Rear turn signal lamp bulb replacement . . . . . . . . . . . . 8-87
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
Recommended lubricants and capacities . . . . . . . . . . . . 9-6 Recommended SAE viscosity number. . . . . . . . . . . . 9-7
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Remote control (outside rear view mirror) . . . . . . . . . . 4-48
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . . . . 9-15
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Room lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 8-92
Rotation (Tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 8-8 Normal Maintenance Schedule . . . . . . . . . . . . . . . . . 8-9
Maintenance Under Severe Usage Conditions. . . . . 8-19
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-21
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-21 Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-21
Driver's seat belt warning . . . . . . . . . . . . . . . . . . . . . 3-22
Front passenger's seat belt warning . . . . . . . . . . . . . 3-23 "Front passenger andrear seat 3-point system
withcombination locking retractor" . . . . . . . . . . . . 3-25
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-27
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-4 Front seat adjustment (manual) . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment (power) . . . . . . . . . . . . . . . . . . 3-8
Driver position memory system . . . . . . . . . . . . . . . . 3-11
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket (front) . . . . . . . . . . . . . . . . . . . . . . 3-15
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
Shift-lock override - Automatic transaxle . . . . . . . . . . 6-16
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-61\
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Side repeater lamp bulb replacement . . . . . . . . . . . . . . 8-87
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-4 Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Smart key battery replacement . . . . . . . . . . . . . . . . . . . . 4-8
S
