2018 KIA OPTIMA PHEV fuel cap release

429
Features of your vehicle
Opening the fuel filler lid
The fuel filler lid must be opened
from inside the vehicle by pressing
the fuel filler lid opener button.
If the fuel filler lid does not open
because ice has formed around it,
tap lightly or push on the lid to break
the ice and release the lid. Do not pry
on the lid. If necessary, spray around
the lid with an approved de-icer fluid
(do not use radiator anti-freeze) or
move the vehicle to a warm place
and allow the ice to melt.1. Stop the engine.
2. To open the fuel filler lid, push the
fuel filler lid opener button.
3. Pull open the fuel filler lid (1).
4. To remove the cap, turn the fuel filler cap (2) counterclockwise(3).
5. Refuel as needed.
Closing the fuel filler lid
1. To install the cap, turn it clockwise until it “clicks” once. This indicates
that the cap is securely tightened.
2. Close the fuel filler lid and push it in lightly making sure that it is
securely closed.
✽ ✽NOTICE
There may be an intermittent noise
near the refueling hole while the
engine is idling if the fuel cap is not
closed securely. This occurs normal-
ly with the OBD system.
✽ ✽NOTICE
When refueling on unlevel ground,
the fuel gauge may not point to the F
position.
It is not a malfunction. If you move
your vehicle to a level ground, the fuel
gauge will move to the full position.
FUEL FILLER LID (HYBRID)
OJF045021
OJF045022L

435
Features of your vehicle
Closing the fuel filler lid
1. To install the cap, turn it clockwiseuntil it “clicks” once. This indicates
that the cap is securely tightened.
2. Close the fuel filler lid and push it in lightly making sure that it is
securely closed.
✽ ✽NOTICE - Refueling
Do not "top off" after the nozzle
automatically shuts off when refuel-
ing. If pressurized fuel sprays out, it
can cover your clothes or skin and
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
✽ ✽NOTICE
Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Emergency fuel filler lid release
If the fuel filler lid does not open
using the remote fuel filler lid
release, you can open it manually.
Remove the panel in the cargo area.
Pull the handle out slightly.
In this case, slowly open the fuel tank
cap, because the fuel tank may be
highly pressurized. If fuel leaks out,
or if air hisses out, wait until it disap-
pears, open the fuel tank cap, and
slowly refuel the vehicle. If you quick-
ly pour fuel into the fuel tank, the fuel
may overflow out of the fuel tank.
CAUTION
Do not pull the handle exces-
sively, otherwise the luggagecompartment area trim orrelease handle may be damaged.
OJFH045023

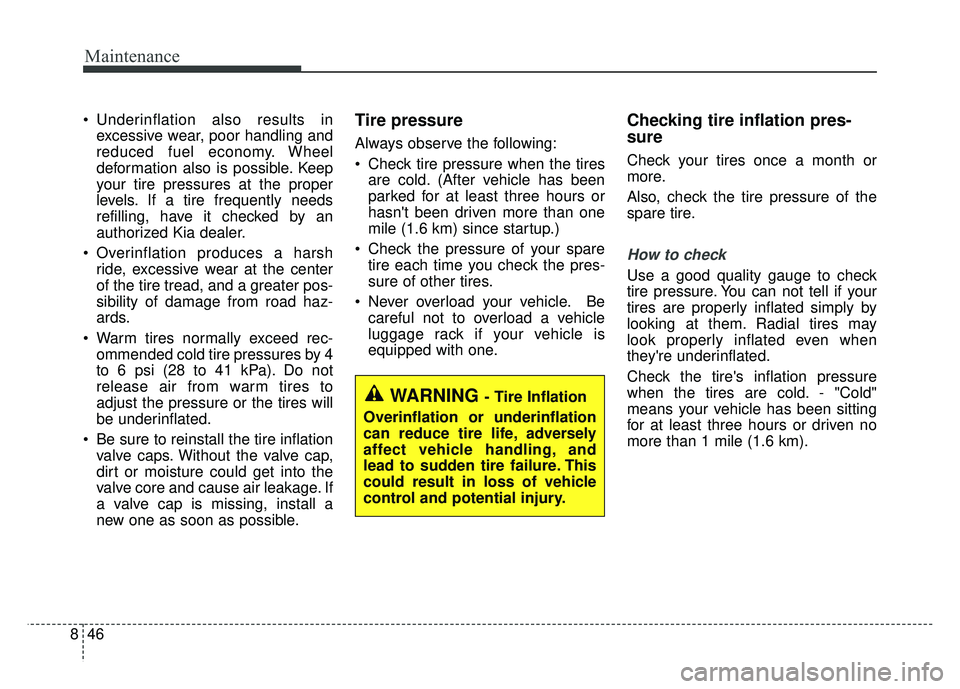

Maintenance
46
8
Underinflation also results in
excessive wear, poor handling and
reduced fuel economy. Wheel
deformation also is possible. Keep
your tire pressures at the proper
levels. If a tire frequently needs
refilling, have it checked by an
authorized Kia dealer.
Overinflation produces a harsh ride, excessive wear at the center
of the tire tread, and a greater pos-
sibility of damage from road haz-
ards.
Warm tires normally exceed rec- ommended cold tire pressures by 4
to 6 psi (28 to 41 kPa). Do not
release air from warm tires to
adjust the pressure or the tires will
be underinflated.
Be sure to reinstall the tire inflation valve caps. Without the valve cap,
dirt or moisture could get into the
valve core and cause air leakage. If
a valve cap is missing, install a
new one as soon as possible.Tire pressure
Always observe the following:
Check tire pressure when the tiresare cold. (After vehicle has been
parked for at least three hours or
hasn't been driven more than one
mile (1.6 km) since startup.)
Check the pressure of your spare tire each time you check the pres-
sure of other tires.
Never overload your vehicle. Be careful not to overload a vehicle
luggage rack if your vehicle is
equipped with one.
Checking tire inflation pres-
sure
Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.
How to check
Use a good quality gauge to check
tire pressure. You can not tell if your
tires are properly inflated simply by
looking at them. Radial tires may
look properly inflated even when
they're underinflated.
Check the tire's inflation pressure
when the tires are cold. - "Cold"
means your vehicle has been sitting
for at least three hours or driven no
more than 1 mile (1.6 km).
WARNING - Tire Inflation
Overinflation or underinflation
can reduce tire life, adversely
affect vehicle handling, and
lead to sudden tire failure. This
could result in loss of vehicle
control and potential injury.

Index
6I
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 6-6Illuminated engine start/stop button. . . . . . . . . . . . . . 6-6
Engine start/stop button position . . . . . . . . . . . . . . . . 6-6
Starting the hybrid system . . . . . . . . . . . . . . . . . . . . . 6-8
Engine start/stop button illumination . . . . . . . . . . . . . . . 6-6
Engine start/stop button position . . . . . . . . . . . . . . . . . . 6-6
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system . . . . . 8-102
Exhaust emission control system . . . . . . . . . . . . . . . . 8-103
Explanation of scheduled maintenance items . . . . . . . 8-20 Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
Hybrid starter & generator belt . . . . . . . . . . . . . . . . 8-20
Fuel filter (for gasoline) . . . . . . . . . . . . . . . . . . . . . . 8-20
Fuel lines, fuel hoses and connections . . . . . . . . . . . 8-20
Vapor hose and fuel filler cap . . . . . . . . . . . . . . . . . 8-20
Vacuum crankcase ventilation hoses . . . . . . . . . . . . 8-20
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Coolant (Engine / Inverter) . . . . . . . . . . . . . . . . . . . 8-21
Automatic transaxle fluid . . . . . . . . . . . . . . . . . . . . . 8-21
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Brake discs, pads, calipers and rotors . . . . . . . . . . . 8-22
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . 8-23
Suspension mounting bolts . . . . . . . . . . . . . . . . . . . 8-23 Steering gear box, linkage & boots/
lower arm ball joint . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Drive shafts and boots . . . . . . . . . . . . . . . . . . . . . . . 8-23
Air conditioning refrigerant . . . . . . . . . . . . . . . . . . . 8-23
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
Exterior overview (Front) . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (Rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Flat tires, see tire mobility kit. . . . . . . . . . . . . . . . . . . . 7-16
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Fluid Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-50
"Front passenger andrear seat 3-point system withcombination locking retractor" . . . . . . . . . . . . . 3-25
Front passenger's seat belt warning . . . . . . . . . . . . . . . 3-23
Front seat adjustment (manual) . . . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment (power) . . . . . . . . . . . . . . . . . . . . 3-8
Front turn signal lamp bulb replacement . . . . . . . . . . . 8-85
Fuel filler lid (Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . 4-29 Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-32
Fuel filler lid (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . 4-33 Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-35
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55\
