2018 KIA OPTIMA PHEV coolant

829
Maintenance
Recommended coolant
When adding coolant, use onlydeionized water or soft water for
your vehicle and never mix hard
water in the coolant filled at the fac-
tory. An improper coolant mixture
can result in serious malfunction or
engine damage.
The engine in your vehicle has alu- minum engine parts and must be
protected by an ethylene-glycol
with phosphate based coolant to
prevent corrosion and freezing.
DO NOT USE alcohol or methanol coolant or mix them with the spec-
ified coolant.
Do not use a solution that contains more than 60% antifreeze or less
than 35% antifreeze. This would
reduce the effectiveness of the
solution. For mixture percentage, refer to the
following table.
Ambient
Temperature Mixture Percentage
(volume)
Antifreeze Water
5°F (-15°C)35 65
-13°F (-25°C)4060
-31°F (-35°C)5050
-49°F (-45°C)6040OJF075007
OJFH075165

Maintenance
30
8
Changing the coolant
Have the coolant changed by an
authorized Kia dealer according to
the Maintenance Schedule at the
beginning of this chapter.
Put a thick cloth around the radiator
cap before refilling the coolant in
order to prevent the coolant from
overflowing into engine parts such as
the alternator.
CAUTION
Put a thick cloth or fabric
around the radiator cap beforerefilling the coolant in order toprevent the coolant from over-flowing into engine parts suchas the generator.
WARNING
Radiator cap
Do not remove the radiator cap
when the engine and radiator
are hot. Scalding hot coolant
and steam may blow out under
pressure which may result in
serious injury.

Maintenance
32
8

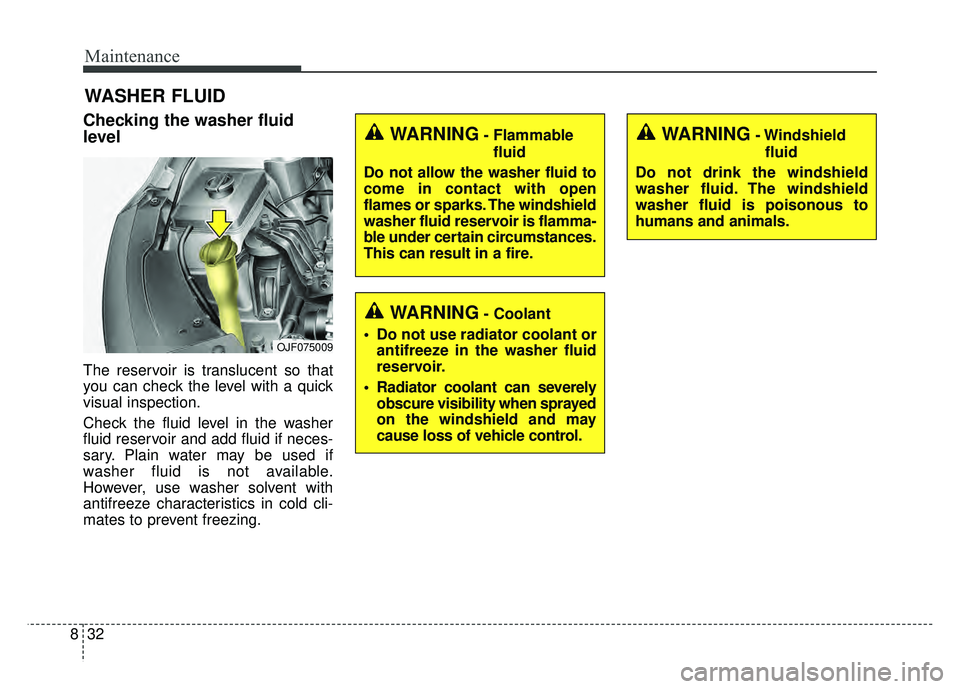

WASHER FLUID
Checking the washer fluid
level
The reservoir is translucent so that
you can check the level with a quick
visual inspection.
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary. Plain water may be used if
washer fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold cli-
mates to prevent freezing.
WARNING- Flammable
fluid
Do not allow the washer fluid to
come in contact with open
flames or sparks. The windshield
washer fluid reservoir is flamma-
ble under certain circumstances.
This can result in a fire.WARNING- Windshield fluid
Do not drink the windshield
washer fluid. The windshield
washer fluid is poisonous to
humans and animals.
WARNING- Coolant
Do not use radiator coolant or antifreeze in the washer fluid
reservoir.
Radiator coolant can severely obscure visibility when sprayed
on the windshield and may
cause loss of vehicle control.
OJF075009

Maintenance
54
8
Temperature -A, B & C
The temperature grades are A (the
highest), B and C representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C cor-
responds to a level of performance
which all passenger car tires must
meet under the Federal Motor
Vehicle Safety Standard No. 109.
Grades B and A represent higher
levels of performance on the labora-
tory test wheel than the minimum
required by law. Tire terminology and definitions
Air Pressure:
The amount of air
inside the tire pressing outward on
the tire. Air pressure is expressed in
kilopascal (kPa) or pounds per
square inch (psi).
Accessory Weight: This means the
combined weight of optional acces-
sories. Some examples of optional
accessories are, automatic
transaxle, power seats, and air con-
ditioning.
Aspect Ratio: The relationship of a
tire's height to its width.
Belt: A rubber coated layer of cords
that is located between the plies and
the tread. Cords may be made from
steel or other reinforcing materials.
Bead: The tire bead contains steel
wires wrapped by steel cords that
hold the tire onto the rim.
Bias Ply Tire: A pneumatic tire in
which the plies are laid at alternate
angles less than 90 degrees to the
centerline of the tread. Cold Tire Pressure:
The amount of
air pressure in a tire, measured in
kilopascals (kPa) or pounds per
square inch (psi) before a tire has
built up heat from driving.
Curb Weight: This means the weight
of a motor vehicle with standard and
optional equipment including the
maximum capacity of fuel, oil and
coolant, but without passengers and
cargo.
DOT Markings: A code molded into
the sidewall of a tire signifying that
the tire is in compliance with the U.S.
Department of Transportation motor
vehicle safety standards. The DOT
code includes the Tire Identification
Number (TIN), an alphanumeric des-
ignator which can also identify the
tire manufacturer, production plant,
brand and date of production.

8103
Maintenance
Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
formance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
Carbon monoxide can be present with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.

Specifications, Consumer information, Reporting safety defects
69
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API SM engine oil is not available, you can use API SN or above.
*4If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.
Lubricant VolumeClassification
Engine oil *1*2
(drain and refill)
Recommends
4.33 US qt. (4.1 l)API SM or above*3, ILSAC GF-4 or above*4,
ACEA-A5 or above
Automatic transaxle fluid6.34 US qt. (6.0 l)
- ATF SP-IV
(Recommended SK ATF SP-IV,
MICHANG ATF SP-IV, NOCA ATF SP-IV)
Coolant7.12 US qt. (6.74 l)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Inverter coolant3.30 US qt. (3.13 l)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
Brake0.52 ± 0.02 US qt. (0.49 ± 0.02 L)DOT 3 or DOT 4
FuelHybrid17.17 US gal. (65 l)Refer to Fuel requirements in chapter 1.Plug-in hybrid14.52 US gal. (55 l)

Index
4I
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-133
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-15
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-96
Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . . 4-127
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 8-46
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32 Selecting a Child Restraint System (CRS) . . . . . . . 3-33
Installing a Child Restraint System (CRS) . . . . . . . 3-36
Securing a child restraint with the LATCHanchors system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
"Securing a child restraint seatwith" "Tether Anchor" "system" . . . . . . . . . . . . . . . . . . . 3-39
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-16
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
132
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 8-36 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-36
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-127
Closing the sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Combined instrument, see instrument cluster . . . . . . . 4-51
consumer assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 8-27
Coolant(Engine/Inverter) . . . . . . . . . . . . . . . . . . . . . . . 8-27 Checking the coolant level . . . . . . . . . . . . . . . . . . . . 8-27
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 8-30
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 8-27 Crankcase emission control system . . . . . . . . . . . . . . 8-102
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 6-53
To increase cruise control set speed . . . . . . . . . . . . . 6-53
To decrease the cruising speed . . . . . . . . . . . . . . . . . 6-54
To temporarily accelerate with the cruise control on . . 6-54
To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 6-54
To resume cruising speed at more than approximately 20mph (30 km/h) . . . . . . . . . . . . . . 6-55
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 6-55
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
Dashboard illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-51
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-46
Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . 5-8 FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 5-8
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-129
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-114
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-129
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-\
2
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
D

I5
Index
Display illumination, see instrument panelillumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-51
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
13 from outside the vehicle . . . . . . . . . . . . . . . . . . . . . . 4-13
from inside the vehicle . . . . . . . . . . . . . . . . . . . . . . . 4-14
Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-15
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-16
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-135
Drive mode integrated control system . . . . . . . . . . . . . 6-73 Hybrid vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-73
ECO (Active ECO) mode. . . . . . . . . . . . . . . . . . . . . 6-73
SPORT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-74
Driver position memory system . . . . . . . . . . . . . . . . . . 3-11
Driver's and passenger's front air bag . . . . . . . . . . . . . . 3-58
Driver's seat belt warning . . . . . . . . . . . . . . . . . . . . . . . 3-22
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-92
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . . 6-94
Driving in the rain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-93
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94
ECO mode ( Active ECO system) . . . . . . . . . . . . . . . . 6-75
ECO mode (Drive mode integrated control system) . . 6-73
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 6-89
Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . . . 6-21
Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . . 4-42 Electrical equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14
Electrochromic mirror (ECM) . . . . . . . . . . . . . . . . . . . 4-47
Electronic stability control (ESC) . . . . . . . . . . . . . . . . 6-34
Emergency fuel filler lid release(Hybrid) . . . . . . . . . . . 4-32
Emergency fuel filler lid release(Plug-in Hybrid) . . . . 4-35
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Emergency trunk safety release . . . . . . . . . . . . . . . . . . 4-18
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . . 8-102 Crankcase emission control system . . . . . . . . . . . . 8-102
Evaporative emission control (including ORVR:Onboard Refueling Vapor Recovery) system. . . . 8-102
Exhaust emission control system . . . . . . . . . . . . . . 8-103
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 9-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Engine coolant temperature gauge . . . . . . . . . . . . . . . . 4-53
Engine maintenance mode(plug-in hybrid) . . . . . . . . . 8-26 Starting Engine Maintenance Mode. . . . . . . . . . . . . 8-26
Stopping Engine Maintenance Mode . . . . . . . . . . . . 8-26
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
24 Checking the engine oil level . . . . . . . . . . . . . . . . . . 8-24
Changing the engine oil and filter . . . . . . . . . . . . . . 8-25
Engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
E
