2018 KIA NIRO washer fluid

83
Maintenance
ENGINE COMPARTMENT
ODE076001
■
■Hybrid (Kappa 1.6 GDI)
❈ The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Engine oil dipstick
4. Brake fluid reservoir
5. Inverter coolant reservoir
6. Fuse box
7. Engine clutch actuator reservoir tank
8. Air cleaner
9. Windshield washer fluid reservoir

Maintenance
48
ODEP077001
■
■Plug-in Hybrid (Kappa 1.6 GDI)
❈ The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Engine oil dipstick
4. Brake fluid reservoir
5. Inverter coolant reservoir
6. Fuse box
7. Engine clutch actuator reservoir tank
8. Air cleaner
9. Windshield washer fluid reservoir

87
Maintenance
OWNER MAINTENANCE
The following lists are vehicle checks
and inspections that should be per-
formed by the owner or an author-
ized Kia dealer at the frequencies
indicated to help ensure safe,
dependable operation of your vehi-
cle.
Any adverse conditions should be
brought to the attention of your deal-
er as soon as possible.
These Owner Maintenance Checks
are generally not covered by war-
ranties and you may be charged for
labor, parts and lubricants used.Owner maintenance schedule
When you stop for fuel:
Check the engine oil level.
Check the coolant level in coolantreservoir.
Check the windshield washer fluid level.
Look for low or under-inflated tires.
While operating your vehicle:
Note any changes in the sound of the exhaust or any smell of
exhaust fumes in the vehicle.
Check for vibrations in the steering wheel. Notice any increased steer-
ing effort or looseness in the steer-
ing wheel, or change in its straight-
ahead position.
Notice if your vehicle constantly turns slightly or “pulls” to one side
when traveling on smooth, level
road.
When stopping, listen and check for unusual sounds, pulling to one
side, increased brake pedal travel
or “hard-to-push” brake pedal.
If any slipping or changes in the operation of your transaxle occurs,
check the transaxle fluid level.
Check the dual clutch transmission P (Park) function.
Check the parking brake.
Check for fluid leaks under your vehicle (water dripping from the air
conditioning system during or after
use is normal).
WARNING- Hot coolant
Be careful when checking your
engine coolant level when the
engine is hot. Scalding hot
coolant and steam may blow
out under pressure.
WARNING
When you open the engine
hood, turn the Hybrid system
off. If not, it may result in death
or serious injury because of the
high voltage flow.

Maintenance
88
At least monthly:
Check the coolant level in theengine coolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn
signals and hazard warning flash-
ers.
Check the inflation pressures of all tires including the spare.
At least twice a year
(i.e., every Spring and Fall) :
Check the radiator, heater and air conditioning hoses for leaks or
damage.
Check the windshield washer spray and wiper operation. Clean
the wiper blades with clean cloth
dampened with washer fluid.
Check the headlight alignment.
Check the muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts.
At least once a year :
Clean the body and door drainholes.
Lubricate the door hinges and check the hood hinges.
Lubricate the door and hood locks and latches.
Lubricate the door rubber weather- strips.
Check the air conditioning system.
Inspect and lubricate dual clutch transmission linkage and controls.
Clean the battery and terminals.
Check the brake fluid level.

825
Maintenance
Exhaust pipe and muffler
Visually inspect the exhaust pipes,
muffler and hangers for cracks, dete-
rioration, or damage. Start the
engine and listen carefully for any
exhaust gas leakage. Tighten con-
nections or replace parts as neces-
sary.
Suspension mounting bolts
Check the suspension connections
for looseness or damage. Retighten
to the specified torque.
Steering gear box, linkage &
boots/lower arm ball joint
With the vehicle stopped and engine
off, check for excessive free-play in
the steering wheel.
Check the linkage for bends or dam-
age. Check the dust boots and ball
joints for deterioration, cracks, or
damage. Replace any damaged
parts.
Drive shafts and boots
Check the drive shafts, boots and
clamps for cracks, deterioration, or
damage. Replace any damaged
parts and, if necessary, repack the
grease.
Air conditioning refrigerant
Check the air conditioning lines and
connections for leakage and dam-
age.When checking engine oil, engine
coolant, brake fluid, and washer fluid,
always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant or fluid. This is espe-
cially important in dusty or sandy
areas and when the vehicle is used
on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.
CHECKING FLUID LEVELS

Maintenance
36
8

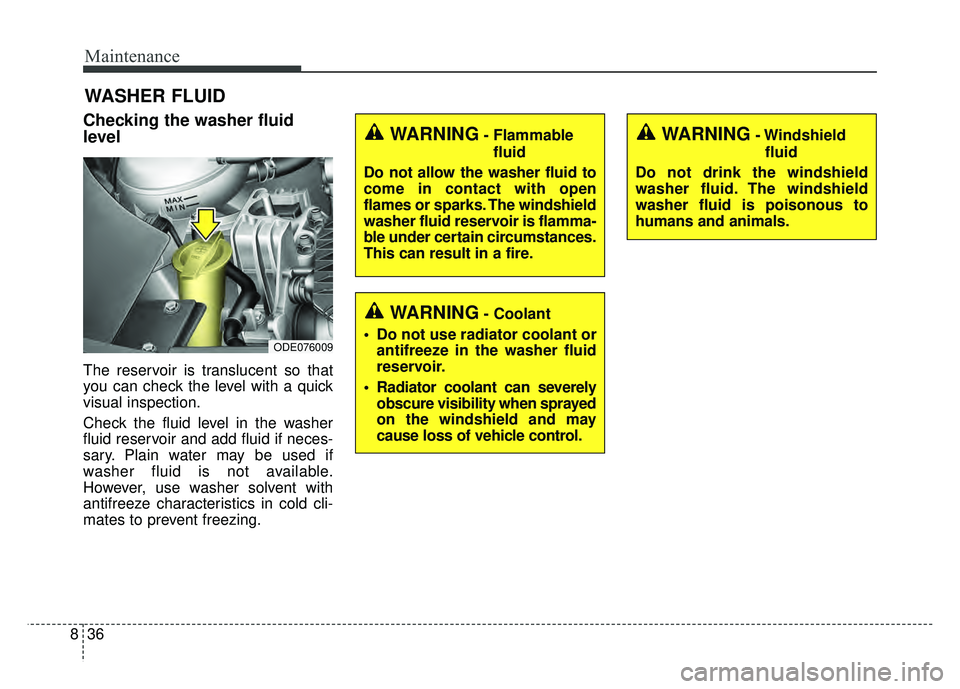

WASHER FLUID
Checking the washer fluid
level
The reservoir is translucent so that
you can check the level with a quick
visual inspection.
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary. Plain water may be used if
washer fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold cli-
mates to prevent freezing.
WARNING- Flammable
fluid
Do not allow the washer fluid to
come in contact with open
flames or sparks. The windshield
washer fluid reservoir is flamma-
ble under certain circumstances.
This can result in a fire.WARNING- Windshield fluid
Do not drink the windshield
washer fluid. The windshield
washer fluid is poisonous to
humans and animals.
WARNING- Coolant
Do not use radiator coolant or antifreeze in the washer fluid
reservoir.
Radiator coolant can severely obscure visibility when sprayed
on the windshield and may
cause loss of vehicle control.
ODE076009

Index
6I
Fuel lines, fuel hoses and connections . . . . . . . . . . . 8-22
Vapor hose and fuel filler cap . . . . . . . . . . . . . . . . . 8-22
Vacuum crankcase ventilation hoses . . . . . . . . . . . . 8-23
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Coolant (Engine/Inverter). . . . . . . . . . . . . . . . . . . . . 8-23
Dual clutch transmission Fluid . . . . . . . . . . . . . . . . 8-23
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
Brake discs, pads, calipers and rotors . . . . . . . . . . . 8-24
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . 8-25
Suspension mounting bolts . . . . . . . . . . . . . . . . . . . 8-25
Steering gear box, linkage & boots/lower arm ball joint . . . . . . . . . . . . . . . . . . . . . . . . 8-25
Drive shafts and boots . . . . . . . . . . . . . . . . . . . . . . . 8-25
Air conditioning refrigerant . . . . . . . . . . . . . . . . . . . 8-25
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-105
Exterior features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165 Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Exterior overview (Front) . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (Rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3 FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 5-35
Flat tire (with Tire Mobility Kit) . . . . . . . . . . . . . . . . . 7-18
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18
"Notes on the safe use of the Tire Mobility Kit" . . . 7-19
Components of the Tire Mobility Kit . . . . . . . . . . . 7-21
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 7-22
Distributing the sealant . . . . . . . . . . . . . . . . . . . . . . 7-24
Checking the tire inflation pressure . . . . . . . . . . . . . 7-25
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Fluid Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33
Engine clutch actuator fluid . . . . . . . . . . . . . . . . . . . 8-34
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-36
Fog lamp/DRL bulb replacement . . . . . . . . . . . . . . . . . 8-97
Fog light (Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Folding key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
4 Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-52
Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Front seat adjustment (Manual) . . . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment (Power) . . . . . . . . . . . . . . . . . . . . 3-8
Front turn signal lamp bulb replacement . . . . . . . . . . . 8-96
Fuel filler lid (Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . 4-34 Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-34
Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-34F

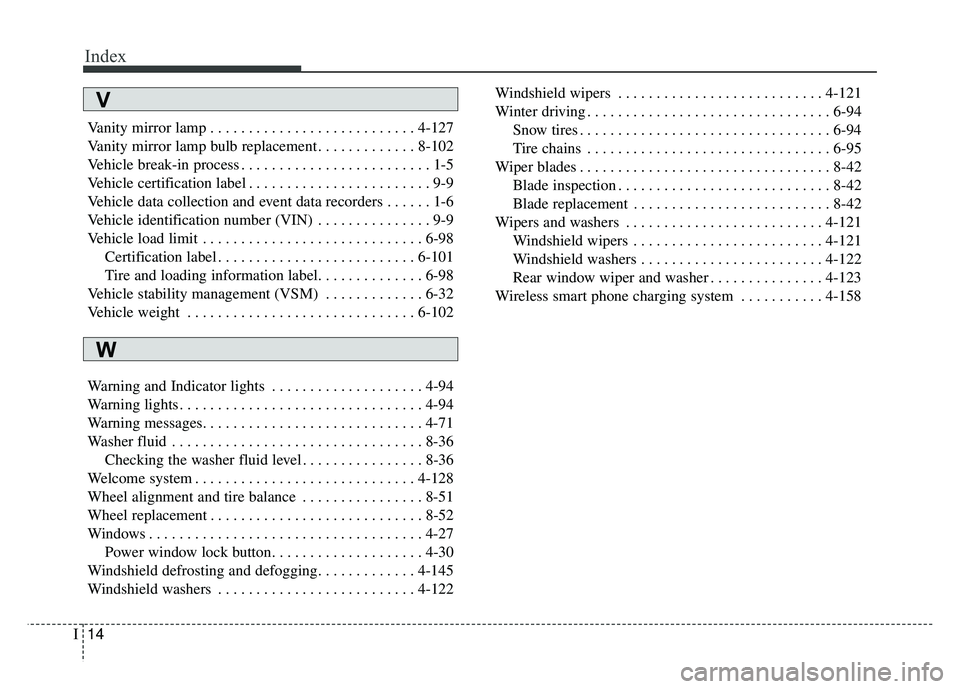

Index
14I
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Vanity mirror lamp bulb replacement . . . . . . . . . . . . . 8-102
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 9-9
Vehicle data collection and event data recorders . . . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 9-9
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-98Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 6-101
Tire and loading information label. . . . . . . . . . . . . . 6-98
Vehicle stability management (VSM) . . . . . . . . . . . . . 6-32
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-102
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . . 4-94
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
Warning messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-36 Checking the washer fluid level . . . . . . . . . . . . . . . . 8-36
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 8-51
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-52
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-27 Power window lock button. . . . . . . . . . . . . . . . . . . . 4-30
Windshield defrosting and defogging. . . . . . . . . . . . . 4-145
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122 Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-94
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121 Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-122
Rear window wiper and washer . . . . . . . . . . . . . . . 4-123
Wireless smart phone charging system . . . . . . . . . . . 4-158
W
V
