2018 KIA NIRO turn signal

Audio system
25
✽
✽NOTICE
If you install an after market HID
head lamp, your vehicle’s audio and
electronic device may malfunction.
Antenna
Pole type antenna
Your vehicle uses a roof antenna to
receive both AM and FM broadcast
signals. This antenna pole is remov-
able. To remove the antenna pole,
turn it counterclockwise. To install the
antenna, turn it clockwise.
Shark fin antenna (if equipped)
The shark fin antenna will receive the
transmit data.
AUDIO SYSTEM
CAUTION - Pole type
antenna
• Before entering a place with a low height clearance or a carwash, remove the antennapole by rotating it counter-clockwise. If not, the antennamay be damaged.
When reinstalling your anten- na pole, it is important that itis fully tightened and adjustedto the upright position toensure proper reception. But itcould be removed when park-ing the vehicle or when load-ing cargo on the roof rack.
When cargo is loaded on the roof rack, do not place thecargo near the antenna pole toensure proper reception.
ODE046453L
ODE046438
■Type A
■Type B

Driving your vehicle
68
6
If a vehicle is detected within the
boundary of the system, a warning
light will illuminate on the outside
rearview mirror.
If the detected vehicle is not in
detecting range, the warning will turn
off. The second stage alarm will activate
when:
1.The first stage alert is on
2.The turn signal is on to change a
lane
When the second stage alert is acti-
vated, a warning light will blink on the
outside rearview mirror and an alarm
will sound.
If you move the turn signal switch to
the original position, the second
stage alert will be deactivated. - The second stage alarm may be
deactivated.
To activate the alarm: Go to the User Settings Mode →
Sound and select “BSD” on the
LCD display.
To deactivate the alarm: Go to the User Settings Mode →
Sound and deselect “BSD” on the
LCD display.✽ ✽

NOTICE
The alarm function helps alert the
driver. Deactivate this function only
when it is necessary.
ODE056034
2nd stage
ODE056033
1st stage

679
Driving your vehicle
✽
✽NOTICE
The steering wheel may feel heavier
when the steering wheel is assisted
by the system than when it is not.
The system will be cancelled when:
You change lanes with the turn sig-
nal.
- Using the turn signal to change lanes.
- If you change lanes without the turn signal on, the steering wheel
might be controlled.
LKAS can transit to steering assist mode when the car is near to mid-
dle of the lane after system on or
the lane was changed. LKAS can
not assist steering if the vehicle fol-
lows lane marker too close contin-
uously before transition to steering
assist mode.
The control of ESC (Electronic Stability Control) or VSM (Vehicle
Stability Management) is activated.
The steering will not be assisted when your drive fast on a sharp
curve.
The steering will not be assisted when vehicle speed is below 40
mph (64 km/h) and over 110 mph
(177 km/h).
The steering will not be assisted when you change lanes fast. The steering will not be assisted
when you brake suddenly.
The steering will not be assisted when the lane is very wide or nar-
row.
The steering will not be assisted when only one side lane marker is
detected.
There are more than two lane markers such as a construction
area.
Radius of a curve is too small.
When you turn steering wheel sud- denly, the LKAS will be disabled
temporarily.
Driving on a steep slope or hill.
WARNING
The driver is responsible for accurate steering.
Even though the steering is assisted by the system, the
driver may control the steer-
ing wheel.
Turn off the system and drive the vehicle in below situa-
tions.
- In bad weather
- In bad road condition
- When the steering wheelneeds to be controlled by the
driver frequently.

What to do in an emergency
27

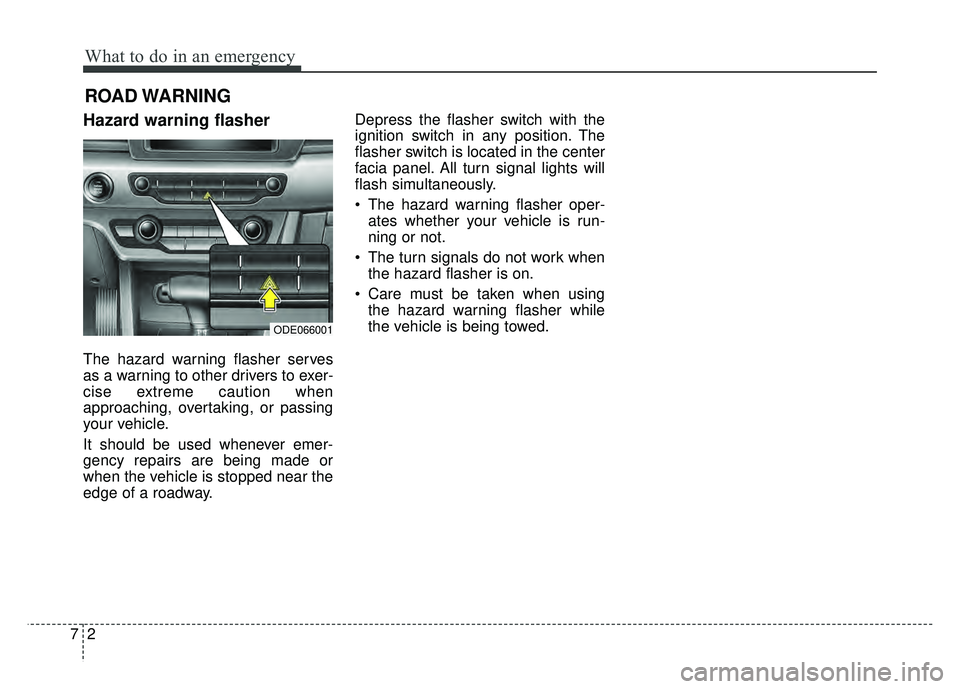

ROAD WARNING
Hazard warning flasher
The hazard warning flasher serves
as a warning to other drivers to exer-
cise extreme caution when
approaching, overtaking, or passing
your vehicle.
It should be used whenever emer-
gency repairs are being made or
when the vehicle is stopped near the
edge of a roadway.Depress the flasher switch with the
ignition switch in any position. The
flasher switch is located in the center
facia panel. All turn signal lights will
flash simultaneously.
• The hazard warning flasher oper-
ates whether your vehicle is run-
ning or not.
The turn signals do not work when the hazard flasher is on.
Care must be taken when using the hazard warning flasher while
the vehicle is being towed.
ODE066001

• Tire terminology and definitions . . . . . . . . . . . . . . . . 8-57
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-60
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-60
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
60
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-60\
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-61
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 8-61
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-63
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 8-64
• Engine compartment fuse replacement. . . . . . . . . . . 8-66
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 8-69
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-91
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . . 8-91
• Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 8-92
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 8-93
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 8-93
• Headlamp (HID type) bulb replacement . . . . . . . . . 8-94
• Headlamp (LED type) replacement. . . . . . . . . . . . . . 8-95
• Headlamp (High/Low beam) bulb replacement . . . 8-95
• Front turn signal lamp bulb replacement . . . . . . . . . 8-96
• Fog lamp/DRL bulb replacement . . . . . . . . . . . . . . . 8-97
• Stop and tail lamp bulb replacement . . . . . . . . . . . . 8-97
• Tail lamp (inside) bulb replacement . . . . . . . . . . . . . 8-99
• Stop and tail lamp (LED type) bulb replacement . 8-100
• Back-up lamp bulb replacement . . . . . . . . . . . . . . . 8-100• High mounted stop lamp bulb replacement . . . . . . 8-100
• License plate lamp bulb replacement . . . . . . . . . . . 8-101
• Side repeater lamp (LED type) bulb replacement . 8-101
• Map lamp (Bulb type) bulb replacement . . . . . . . . 8-102
• Map lamp (LED type) bulb replacement . . . . . . . . 8-102
• Vanity mirror lamp bulb replacement . . . . . . . . . . 8-102
• Room lamp (Bulb type) bulb replacement . . . . . . . 8-103
• Room lamp (LED type) bulb replacement . . . . . . . 8-104
• Liftgate room lamp bulb replacement . . . . . . . . . . 8-104
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . 8-105
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-105
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-110
Emission control system. . . . . . . . . . . . . . . . . . . . 8-113
• Crankcase emission control system . . . . . . . . . . . . . 8-113
• Evaporative emission control (including ORVR:
Onboard refueling vapor recovery) system . . . . . . 8-113
• Exhaust emission control system . . . . . . . . . . . . . . . 8-114
California perchlorate notice . . . . . . . . . . . . . . . 8-116
8

Maintenance
88
At least monthly:
Check the coolant level in theengine coolant reservoir.
Check the operation of all exterior lights, including the stoplights, turn
signals and hazard warning flash-
ers.
Check the inflation pressures of all tires including the spare.
At least twice a year
(i.e., every Spring and Fall) :
Check the radiator, heater and air conditioning hoses for leaks or
damage.
Check the windshield washer spray and wiper operation. Clean
the wiper blades with clean cloth
dampened with washer fluid.
Check the headlight alignment.
Check the muffler, exhaust pipes, shields and clamps.
Check the lap/shoulder belts for wear and function.
Check for worn tires and loose wheel lug nuts.
At least once a year :
Clean the body and door drainholes.
Lubricate the door hinges and check the hood hinges.
Lubricate the door and hood locks and latches.
Lubricate the door rubber weather- strips.
Check the air conditioning system.
Inspect and lubricate dual clutch transmission linkage and controls.
Clean the battery and terminals.
Check the brake fluid level.

865
Maintenance
3. Pull the suspected fuse straightout. Use the removal tool provided
on the engine compartment fuse
panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in theengine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips.
If it fits loosely, consult an authorized
Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuityou may not need for operating thevehicle, such as the power outletfuse.
If the head lamp, turn signal lamp,
stop signal lamp, fog lamp, DRL, tail
lamp, HMSL do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced.
✽ ✽ NOTICE
If the headlamp, fog lamp, turn sig-
nal lamp, or tail lamp malfunction
even without any problem to the
lamps, have the vehicle checked by
an authorized Kia dealer for assis-
tance.
CAUTION - Fuse Panel
Covers
Set all switches to ON before
driving.
If the vehicle is going to be unused for over 1 month, setall switches to OFF to preventthe batteries from draining.
The contact points of the switches may wear out withexcessive use. Please refrainfrom excessive use of theswitches (except for long-termparking for over 1 month).
ODE076020

Maintenance
92
8
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)(1) Headlamp (Low/High) (Bulb type)
(2) Front turn signal lamp (Bulb type)
(3) Position lamp (LED type)
(4) Side marker (Bulb type)
(5) Headlamp (Low/High) (LED type)
(6) Headlamp (Low) (LED type)
(7) Front turn signal lamp/Position
lamp (LED type)
(8) Side marker (LED type)
(9) Day time running lamp (LED type)
(10) Front fog lamp (Bulb type)
■Head lamp - Type B
■Head lamp - Type A
ODEP077029N■Fog lamp
ODE076029N
ODEP077030N
