2018 KIA NIRO camera

675
Driving your vehicle

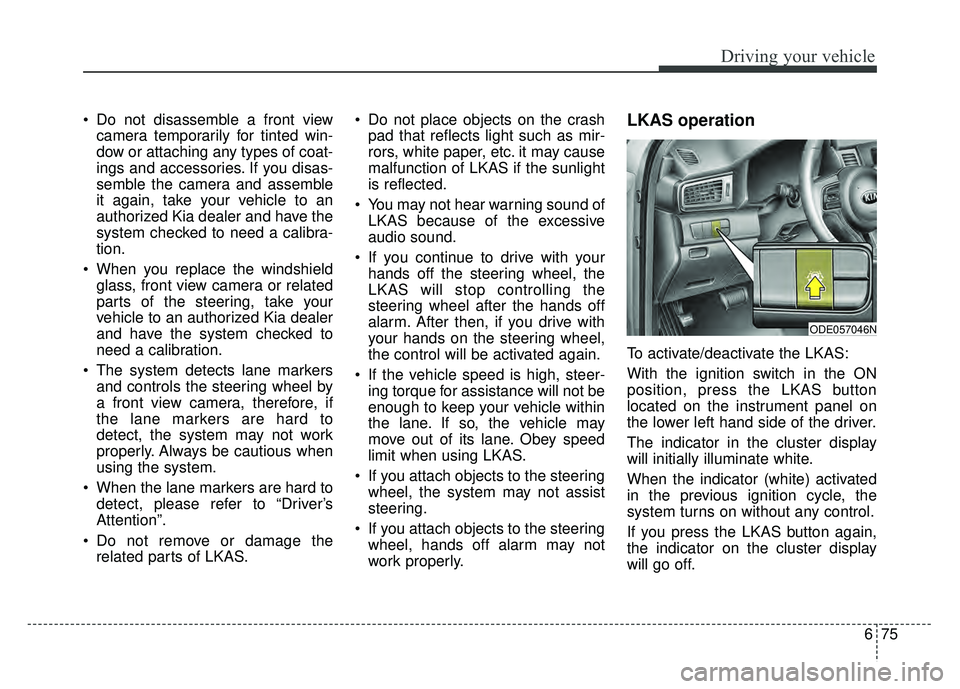

Do not disassemble a front viewcamera temporarily for tinted win-
dow or attaching any types of coat-
ings and accessories. If you disas-
semble the camera and assemble
it again, take your vehicle to an
authorized Kia dealer and have the
system checked to need a calibra-
tion.
When you replace the windshield glass, front view camera or related
parts of the steering, take your
vehicle to an authorized Kia dealer
and have the system checked to
need a calibration.
The system detects lane markers and controls the steering wheel by
a front view camera, therefore, if
the lane markers are hard to
detect, the system may not work
properly. Always be cautious when
using the system.
When the lane markers are hard to detect, please refer to “Driver’s
Attention”.
Do not remove or damage the related parts of LKAS. Do not place objects on the crash
pad that reflects light such as mir-
rors, white paper, etc. it may cause
malfunction of LKAS if the sunlight
is reflected.
You may not hear warning sound of LKAS because of the excessive
audio sound.
If you continue to drive with your hands off the steering wheel, the
LKAS will stop controlling the
steering wheel after the hands off
alarm. After then, if you drive with
your hands on the steering wheel,
the control will be activated again.
If the vehicle speed is high, steer- ing torque for assistance will not be
enough to keep your vehicle within
the lane. If so, the vehicle may
move out of its lane. Obey speed
limit when using LKAS.
If you attach objects to the steering wheel, the system may not assist
steering.
If you attach objects to the steering wheel, hands off alarm may not
work properly.LKAS operation
To activate/deactivate the LKAS:
With the ignition switch in the ON
position, press the LKAS button
located on the instrument panel on
the lower left hand side of the driver.
The indicator in the cluster display
will initially illuminate white.
When the indicator (white) activated
in the previous ignition cycle, the
system turns on without any control.
If you press the LKAS button again,
the indicator on the cluster display
will go off.
ODE057046N

Driving your vehicle
84
6
Resetting the system
The last break time is set to 00:00
and the driver's attention level is
set to 5 (very attentive) when the
driver resets the Driver Attention
Alert system.
The Driver Attention Alert system resets in the following situations.
- The engine is turned OFF.
- The driver unfastens the seat beltand then opens the driver’s door.
- Stop lasting more than 10 min- utes.
The Driver Attention Alert system operates again, when the driver
restarts driving.
System disabled
The Driver Attention Alert system
enters the ready status and displays
the 'Disabled' screen in the following
situations.
- The camera sensor keeps failing todetect the lanes.
- Driving speed remains under 40 mph (64 km/h) or over 110 mph
(177 km/h).
System malfunction
When the “Check Driver Attention
Alert” warning message appears, the
system is not working properly. In this
case, have the vehicle inspected by
an authorized Kia dealer.
ODE057138LODE057139L

685
Driving your vehicle
WARNING
The Driver Attention Alertsystem is not a substitute for
safe driving practices, but a
convenience function only. It
is the responsibility of the
driver to always drive cau-
tiously to prevent unexpected
and sudden situations from
occurring. Pay attention to the
road conditions at all times.
The system may suggest a break according to the dri-
ver’s driving pattern or habits
even if the driver doesn’t feel
fatigue.
The driver, who feels fatigued, should take a break, even
though there is no break sug-
gestion by the Driver
Attention Alert system.
CAUTION
The Driver Attention Alert sys-tem utilizes the camera sensoron the front windshield for itsoperation.
To prevent potential damage tothe camera and keep the camerasensor operating under optimalconditions, observe the follow-ings:
Do not disassemble camera temporarily for tinted windowor attaching any types of coat-ings and accessories. If youdisassemble a camera andassemble it again, take yourvehicle to an authorized Kiadealer and have the systemchecked to need a calibration.
Do not locate any reflective objects (i.e. white paper, mir-ror) over the dashboard. Anylight reflection may cause amal-function of the DriverAttention Alert (DAA) system.
(Continued)
(Continued) Pay extreme caution to keep the camera sensor out ofwater.
Do not arbitrarily disassemble the camera assembly, norapply any impact on the cam-era assembly.
Playing the vehicle audio sys- tem at high volume may offsetthe Driver Attention Alert sys-tem warning sounds.

What to do in an emergency
67
Charging method for 12V battery
(A) It is recommended to charge the12V battery by starting and run-
ning the vehicle (HEV Ready
Mode) for a minimum of 30 min-
utes if a 12V reset, or jump start
has been used.
(B) If you can not start the vehicle :
After connecting the jumper cables at the recommended locations, you
should press “12V batt Reset”
switch(1) to charge the battery.
The voltage range of the charger should be 13.3~14V and its current
range should be less than 60A.
(13.8V is recommended).
External power source using 12V
battery(Except the use of dash cameras)
The use of external power acces-
sories may reduce performance and
function of the vehicle. Especially,
the use of dash cameras may cause
a shut off the power of the vehicle
prior to the dash camera’s automatic
shut-down.
If the power of the car is shut off,
start the vehicle as explained above
(refer to “Over discharge of 12V bat-
tery”)
CAUTION
• The use of an improper charg- er with a voltage and currentrange higher than specifiedmay cause overheating anddamage to the 12V battery.
The use of an incorrect charg- er will lead to a power shut-offto save the 12V battery. Stopusing the incorrect chargeronce the power of the vehicleis shut off.

Maintenance
106
8
High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water. Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to main-
tain its luster.
Removing oil, tar, and similar materi-
als with a spot remover will usually
strip the wax from the finish. Be sure
to re-wax these areas even if the rest
of the vehicle does not yet need wax-
ing.
Do not apply wax on embossed
unpainted unit, as it may tarnish the
unit.
ODEP077071L
CAUTION - Wet engine
Water washing in the engine
compartment including highpressure water washing maycause the failure of electricalcircuits located in the enginecompartment.
Never allow water or other liq- uids to come in contact withelectrical/electronic compo-nents inside the vehicle asthis may damage them.

I3
Index
Back-up lamp bulb replacement . . . . . . . . . . . . . . . . . 8-100
Battery (Plug-in hybrid) . . . . . . . . . . . . . . . . . . . . . . . . 8-45For best battery service . . . . . . . . . . . . . . . . . . . . . . 8-45
Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . 8-46
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-47
Battery replacement (for smart key) . . . . . . . . . . . . . . . 4-15
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Before Jump starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Blind Spot Detection System(BSD) . . . . . . . . . . . . . . . 6-66 BSD (Blind Spot Detection) /LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 6-67
RCTA (Rear cross traffic alert . . . . . . . . . . . . . . . . . 6-70
Limitations condition . . . . . . . . . . . . . . . . . . . . . . . . 6-72
Bonnet see the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-33\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 8-33
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23 Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 6-27
Electronic stability control (ESC) . . . . . . . . . . . . . . 6-29
Vehicle stability management (VSM) . . . . . . . . . . . 6-32
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 6-34
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-91
Bulb replacement precaution . . . . . . . . . . . . . . . . . . . . 8-91 Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Button start/stop, see engine start/stop button . . . . . . . . 6-9
California Perchlorate notice . . . . . . . . . . . . . . . . . . . 8-116
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7
Care
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-66
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-105
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-110
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-48\
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-22
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-101
Chains - Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-95
Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . . . 8-25
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 8-49
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31 "Securing a child restraint withthe LATCH anchors system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37\
"Securing a child restraint seatwith" "Tether Anchor" "system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
"Securing a child restraint with alap/shoulder belt" . 3-39
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-23
B
C

I11
Index
Non-operational conditions of rear parking assist system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
8
Rear parking assist system precautions . . . . . . . . . 4-109
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Recommended lubricants and capacities . . . . . . . . . . . . 9-7 Recommended SAE viscosity number. . . . . . . . . . . . 9-8
Record your key number . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Reducing the risk of a rollover . . . . . . . . . . . . . . . . . . . 6-89
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Remote control (Outside rear view mirror) . . . . . . . . . 4-51
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . . . . 9-16
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-91
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Room lamp (Bulb type) bulb replacement . . . . . . . . . 8-103
Room lamp (LED type) bulb replacement . . . . . . . . . 8-104
Rotation (Tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-50
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 8-9 Normal maintenance schedule . . . . . . . . . . . . . . . . . 8-10
Maintenance under severe usage conditions . . . . . . 8-21
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-19
Seat belt warning (Front) . . . . . . . . . . . . . . . . . . . . . . . 3-21 Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-19
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-19
Seat belt warning (Front) . . . . . . . . . . . . . . . . . . . . . 3-21
"Driver's 3-point systemwith emergency locking retractor". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 3-22
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-26
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Seatback pocket (Front) . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-2 Headrest(Front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Seatback pocket (Front) . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Headrest (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Armrest (Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Important safety precautions . . . . . . . . . . . . . . . . . . . 3-2
Front seat adjustment (Manual) . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment (Power) . . . . . . . . . . . . . . . . . . 3-8
Driver position memory system . . . . . . . . . . . . . . . . . 3-9
"Securing a child restraint seatwith " "Tether Anchor" "system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-38\
"Securing a child restraint with alap/shoulder belt" . . . 3-39
"Securing a child restraint withthe LATCH anchors system" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
37
Shift-lock override - Dual clutch transmission. . . . . . . 6-20
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-60\
S
