Fuse NameFuse rastingCircuit Protected
Door Lock RH10APassenger Door Module, Rear Door Module RH
Door Lock LH10ADriver Door Module, Rear Door Latch LH
S/Heater RR
RH15ARear Seat Warmer Control Module RH, Rear CCS Control Module RH
S/Heater RR
LH15ARear Seat Warmer Control Module LH, Rear CCS Control Module LH
Spare15ASpare
Fuse NameFuse rastingCircuit Protected
Start 240AMetal Core Block (PCB #2) (Fuse : F8, F9, F12)
AMS10ABattery Sensor
Battery 6100ARear Smart Junction Box (Fuse : F1, F2, F3, F4, F5, F6, F7, F8, F10, F11, F13, F15, F17, F18, F19, F20)\
Battery box fuse panel
KH USA 7:2018 4/14/2017 6:40 PM Page 89

7-90
Maintenance

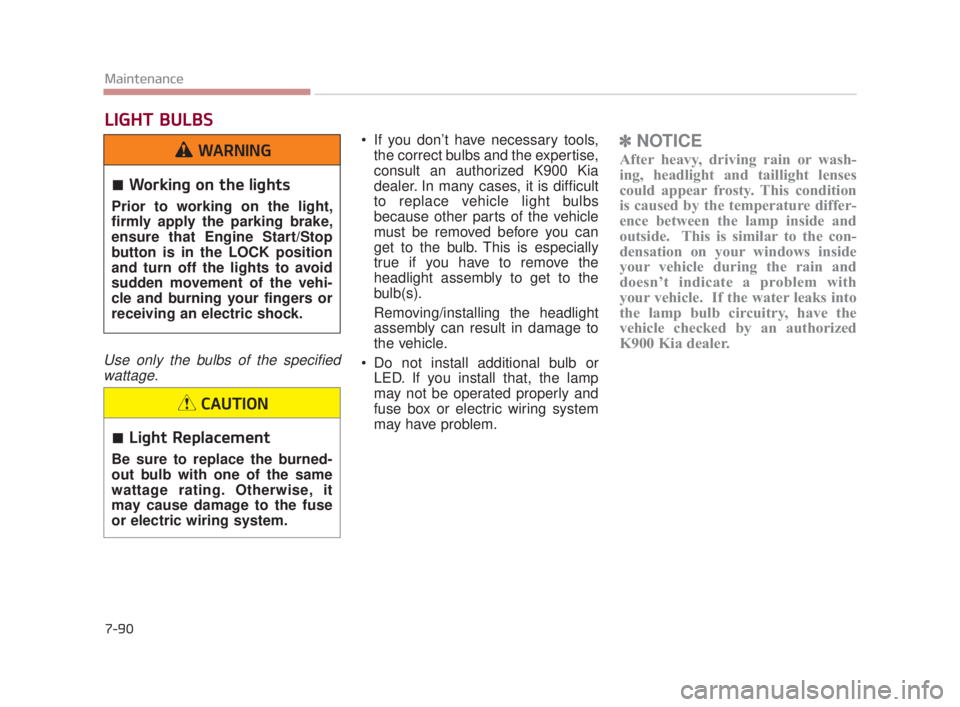

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
If you don’t have necessary tools, the correct bulbs and the expertise,
consult an authorized K900 Kia
dealer. In many cases, it is difficult
to replace vehicle light bulbs
because other parts of the vehicle
must be removed before you can
get to the bulb. This is especially
true if you have to remove the
headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to
the vehicle.
Do not install additional bulb or LED. If you install that, the lamp
may not be operated properly and
fuse box or electric wiring system
may have problem.✽ NOTICE
After heavy, driving rain or wash-
ing, headlight and taillight lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, have the
vehicle checked by an authorized
K900 Kia dealer.
Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that Engine Start/Stop
button is in the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
WARNING
Light Replacement
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
KH USA 7:2018 4/14/2017 6:40 PM Page 90
