2018 KIA K900 engine

8-2
Specifications, Consumer information and Reporting safety defects
DIMENSIONS
Itemin (mm)
Overall length 200.59 (5,095)
Overall width 74.80 (1,900)
Overall height 58.46 (1,485)
Front tread P245/50 R18 63.62 (1,616)
P245/45 R1963.78 (1,620)
Rear tread P245/50 R18 64.33 (1,634)
P275/40 R1964.06 (1,627)
Wheelbase 119.88 (3,045)
Item3.8L5.0L
Displacement cu. in (cc) 230.54 (3,778)
307.3 (5,038)
Bore x Stroke in. (mm)3.78x3.42 (96x87)
3.78x3.42 (96x87)
Firing order 1-2-3-4-5-6
1-2-7-8-4-5-6-3
No. of cylinders 6, V - type
8, V - type
ENGINE
KH USA 8:2018 4/14/2017 6:44 PM Page 2

8-6
Specifications, Consumer information and Reporting safety defects

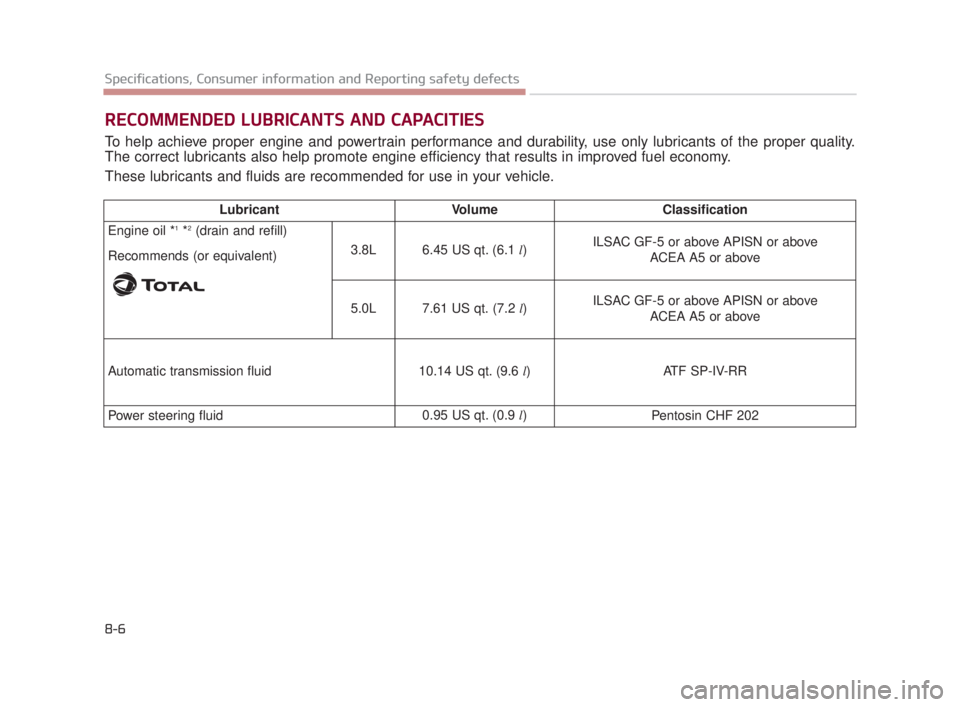

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1*2 (drain and refill)
Recommends (or equivalent)
3.8L6.45 US qt. (6.1 l)ILSAC GF-5 or above APISN or above ACEA A5 or above
5.0L7.61 US qt. (7.2 l)ILSAC GF-5 or above APISN or aboveACEA A5 or above
Automatic transmission fluid10.14 US qt. (9.6 l)ATF SP-IV-RR
Power steering fluid0.95 US qt. (0.9 l)Pentosin CHF 202
KH USA 8:2018 4/14/2017 6:44 PM Page 6

Specifications, Consumer information and Reporting safety defects
8
8-7
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute
to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements
are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the ACEA A5 engine oil is not available in your country, you are able to use API service SL, ILSAC GF-3, ACEA
A3.
LubricantVolumeClassification
Coolant 3.8L9.1 US qt. (8.6 l)Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
5.0L11.4 US qt. (10.8 l)
Brake fluid0.7~0.8 US qt. (0.7~0.8 l)DOT-3 or DOT-4
Rear differential oil1.48 US qt. (1.4 l)Hypoid gear oil MS 517-15, SAE 75W/85
Fuel19.81 US gal. (75 l)Refer to “Fuel requirements” in section 1
KH USA 8:2018 4/14/2017 6:44 PM Page 7

8-8
Specifications, Consumer information and Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change.
Proceed to select the recommended
oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-30
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. An engine oil displaying this API Certification Mark conforms to the
international Lubricant Specification Advisory Committee (ILSAC). It
is recommended to only use engine oils that uphold this API
Certification Mark.
10W-30
5W-20, 5W-30
■3.8L
■ 5.0L
KH USA 8:2018 4/14/2017 6:44 PM Page 8

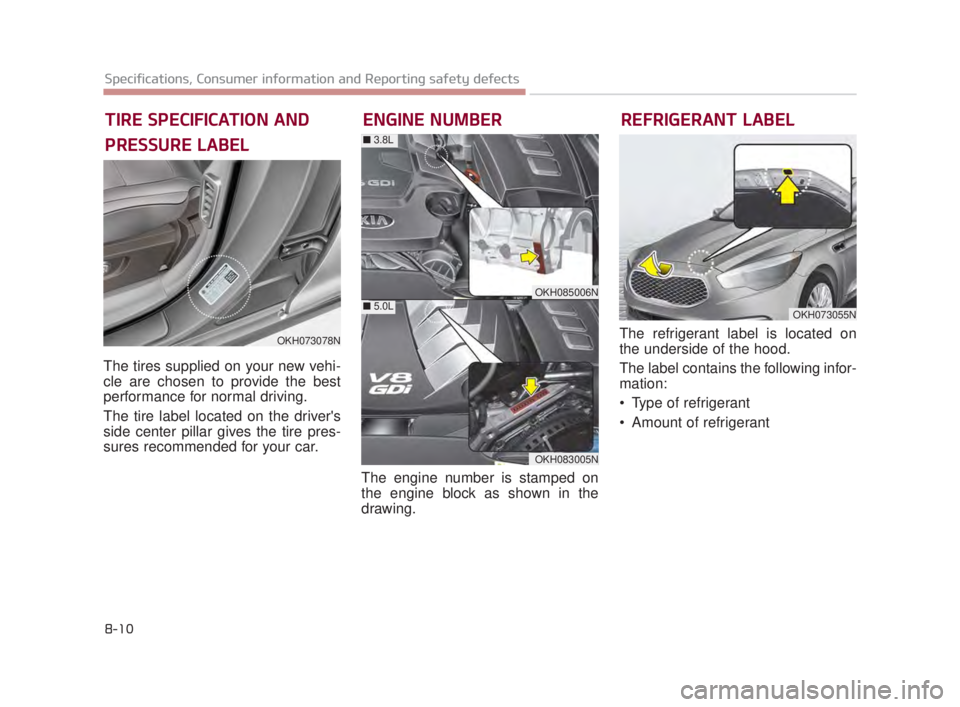

8-10
Specifications, Consumer information and Reporting safety defects
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car. The engine number is stamped on
the engine block as shown in the
drawing.The refrigerant label is located on
the underside of the hood.
The label contains the following infor-
mation:
Type of refrigerant
Amount of refrigerant
TIRE SPECIFICATION AND
PRESSURE LABEL
ENGINE NUMBER REFRIGERANT LABEL
OKH073055N
OKH073078N
OKH085006N
OKH083005N
■
3.8L
■ 5.0L
KH USA 8:2018 4/14/2017 6:44 PM Page 10

Registering your vehicle in a foreign country
If you plan to register your vehicle in a foreign country,
you should confirm that it conforms to the regulations in
that country. Even if you successfully register the vehicle
in a foreign country, you may experience the following
problems and should therefore consider the possibility of
having to deal with them:
1.The fuel specified for your vehicle may be unavailable.If other than the specified fuel is used, it could cause
damage to the engine, the fuel injection system, and
other fuel-related parts which may not be covered
under your New Vehicle Emissions Limited Warranty.
2.We must, therefore, clearly state that when you leave the country in which you purchased your Kia new and
register it in another country, problems arising from the
use of fuel other than the specified fuel are not subject
to manufacturer’s warranty. Because vehicles like yours
may not be marketed in the new country of registration,
parts, servicing techniques and tools necessary to
maintain and repair your vehicle may be unavailable.
Even if vehicles like yours are sold there, mechanical
specifications required by the government may vary
enough from the country of purchase to cause addi-
tional problems. 3.There may not be an Authorized K900 Kia Dealer in the
area in which you plan to register your vehicle. You may
additionally experience difficulty in obtaining services in
a foreign country for any number of reasons.
Further, we cannot assume any responsibility for prob-
lems that result from unsatisfactory service, certain incor-
rect or misleading information or lack of service received
or provided outside the United.
Specifications, Consumer information and Reporting safety defects
8
8-13
KH USA 8:2018 4/14/2017 6:44 PM Page 13

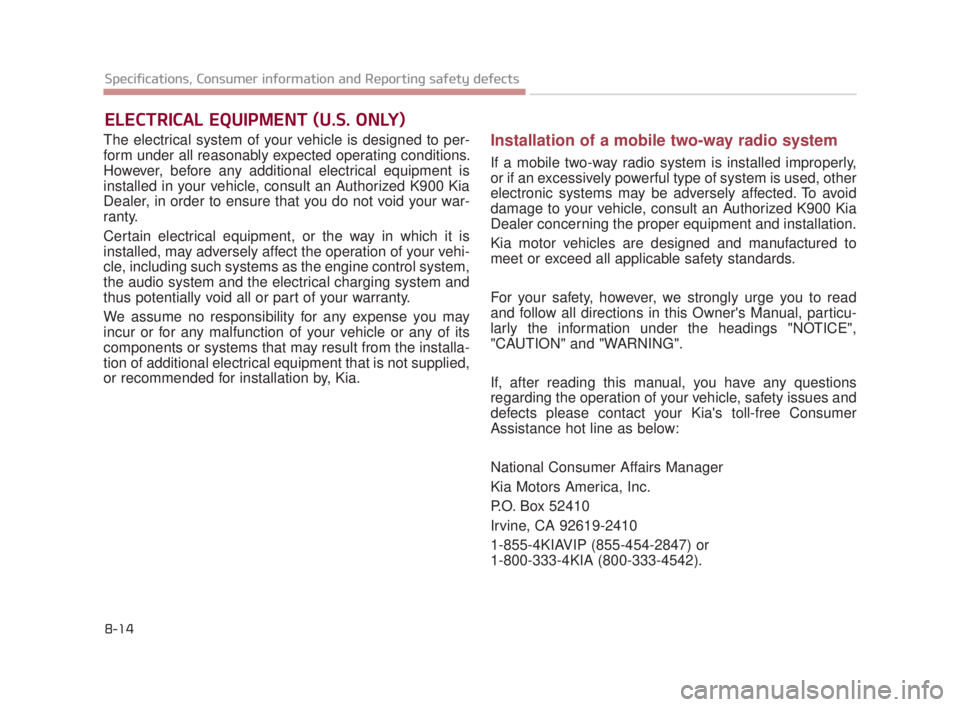

The electrical system of your vehicle is designed to per-
form under all reasonably expected operating conditions.
However, before any additional electrical equipment is
installed in your vehicle, consult an Authorized K900 Kia
Dealer, in order to ensure that you do not void your war-
ranty.
Certain electrical equipment, or the way in which it is
installed, may adversely affect the operation of your vehi-
cle, including such systems as the engine control system,
the audio system and the electrical charging system and
thus potentially void all or part of your warranty.
We assume no responsibility for any expense you may
incur or for any malfunction of your vehicle or any of its
components or systems that may result from the installa-
tion of additional electrical equipment that is not supplied,
or recommended for installation by, Kia.Installation of a mobile two-way radio system
If a mobile two-way radio system is installed improperly,
or if an excessively powerful type of system is used, other
electronic systems may be adversely affected. To avoid
damage to your vehicle, consult an Authorized K900 Kia
Dealer concerning the proper equipment and installation.
Kia motor vehicles are designed and manufactured to
meet or exceed all applicable safety standards.
For your safety, however, we strongly urge you to read
and follow all directions in this Owner's Manual, particu-
larly the information under the headings "NOTICE",
"CAUTION" and "WARNING".
If, after reading this manual, you have any questions
regarding the operation of your vehicle, safety issues and
defects please contact your Kia's toll-free Consumer
Assistance hot line as below:
National Consumer Affairs Manager
Kia Motors America, Inc.
P.O. Box 52410
Irvine, CA 92619-2410
1-855-4KIAVIP (855-454-2847) or
1-800-333-4KIA (800-333-4542).
ELECTRICAL EQUIPMENT (U.S. ONLY)
8-14
Specifications, Consumer information and Reporting safety defects
KH USA 8:2018 4/14/2017 6:44 PM Page 14

If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Kia
Motors America, Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in a
group of vehicles, it may order a recall and remedy cam-
paign. However, NHTSA cannot become involved in indi-
vidual problems between you, your dealer, or Kia Motors
America, Inc.
To contact NHTSA, you may call the Vehicle Safety
Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; download the
SaferCar mobile application; or write to: Administrator,
NHTSA, 1200 New Jersey Ave., SE., West Building,
Washington, DC 20590. You can also obtain other infor-
mation about motor vehicle safety from http://www.safer-
car.gov.The following publications are available on
www.KiaTechinfo.com
Service manual:
This manual covers maintenance and recommended pro-
cedures for repair to engine and chassis components. It
is written for the Journeyman mechanic, but is simple
enough for most mechanically inclined owners to under-
stand.
Electrical troubleshooting manual:
This manual complements the Service Manual by provid-
ing indepth troubleshooting information for each electrical
circuit in your vehicle.
Owner's manual:
This manual describes the overall features and operating
procedures for the vehicle.
Specifications, Consumer information and Reporting safety defects
8
8-15
REPORTING SAFETY DEFECTS (U.S. ONLY) ONLINE FACTORY AUTHORIZED MANUALS
(U.S. ONLY)
KH USA 8:2018 4/14/2017 6:44 PM Page 15
