2018 KIA FORTE headrest

Safety features of your vehicle
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 3-2
• Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-4
• Front seat adjustment - power . . . . . . . . . . . . . . . . . . . 3-6
• Driver position memory system (for power seat) . . . . 3-8
• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-10
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17\
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-17
• Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-21
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-27
• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-28
Air bag-supplemental restraint system . . . . . . . . 3-34
• How does the air bag system operate . . . . . . . . . . . . 3-35
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
• SRS components and functions . . . . . . . . . . . . . . . . . 3-38
• Occupant detection system . . . . . . . . . . . . . . . . . . . . . 3-41
• Driver's and passenger's front air bag . . . . . . . . . . . 3-46
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-51
• Why didn’t my air bag go off in a collision? (Inflation
and non-inflation conditions of the air bag) . . . . . . 3-52
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
57
• Adding equipment to or modifying your air bag- equipped vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-57
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-58
3

Safety features of your vehicle
23
Driver’s seat
(1) Seat adjustment, forward / backward
(2) Seatback recliner
(3) Seat adjustment, height (for driver’s seat)
(4) Lumbar support (for driver’s seat)
(5) Driver position memory system*
(6) Headrest
Front passenger’s seat
(7) Seat adjustment, forward / backward
(8) Seatback recliner
(9) Headrest
Rear seat
(10) Armrest
(11) Headrest
(12) Seatback folding lever (trunk, for 4 Door)*
(13) Seatback folding lever (for 5 Door)
* : if equipped
SEAT
OYDM036001N
Manual seat
5 Door
4 Door
Power seat

Safety features of your vehicle
10
3
Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passen-
ger, but also helps protect the head
and neck in the event of a collision. For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.
Also, adjust the headrest as close to
your head as possible.
For this reason, the use of a cushion
that holds the body away from the
seatback is not recommended.
Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
OYDDSA2009
WARNING- Headrest
removal/adjustment
Do not operate the vehicle with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
OMG038400

311
Safety features of your vehicle
✽ ✽NOTICE
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sunvisor or
other parts of the vehicle.
Removal and installation
To remove the headrest:
1. Recline the seatback (2) with the
recline switch (1).
2. Raise headrest as far as it can go. 3. Press the headrest release button
(3) while pulling the headrest up (4).
WARNING- Headrest
Removal
NEVER allow anyone to ride in a
seat with the headrest removed.
Headrests can provide critical
neck and head support in a
crash.
OYD034102
■Type B
■Type A
OYD034100OYFH034205

Safety features of your vehicle
12
3

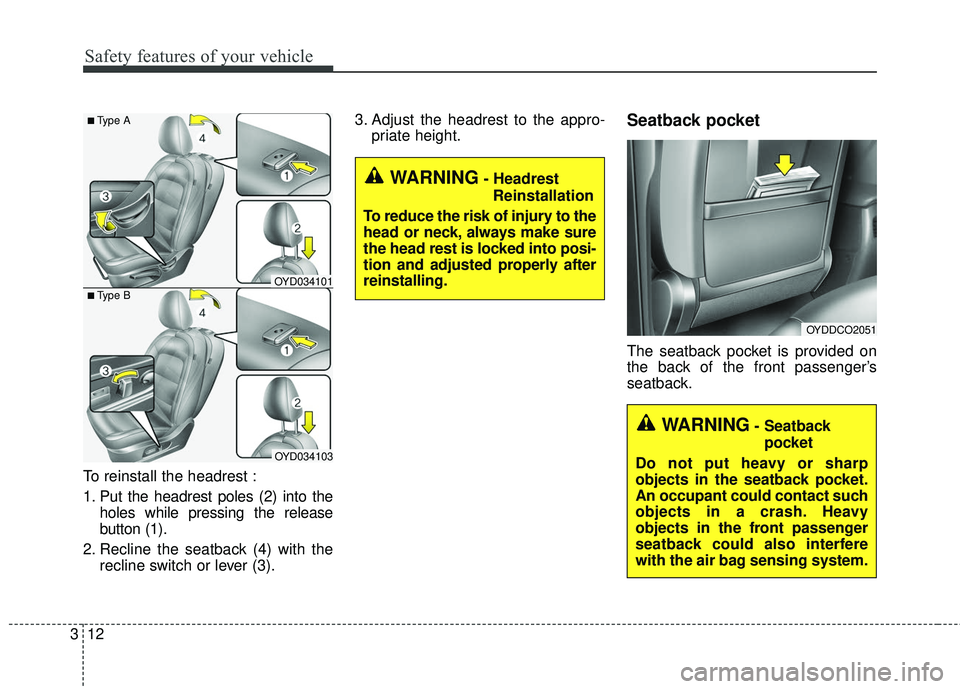

To reinstall the headrest :
1. Put the headrest poles (2) into the
holes while pressing the release
button (1).
2. Recline the seatback (4) with the recline switch or lever (3). 3. Adjust the headrest to the appro-
priate height.
Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s
seatback.
WARNING- Seatback
pocket
Do not put heavy or sharp
objects in the seatback pocket.
An occupant could contact such
objects in a crash. Heavy
objects in the front passenger
seatback could also interfere
with the air bag sensing system.
OYDDCO2051
WARNING- Headrest Reinstallation
To reduce the risk of injury to the
head or neck, always make sure
the head rest is locked into posi-
tion and adjusted properly after
reinstalling.
OYD034103
■Type B
■Type A
OYD034101

313
Safety features of your vehicle
Rear seat adjustment
Headrest (for rear seat)
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height as the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjusting the height up and down
(if equipped)
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
OYDDSA2012
ONF03940I

Safety features of your vehicle
14
3
Removal and installation
To remove the headrest, raise it as
far as it can go then press the
release button (1) while pulling the
headrest upward (2).
To reinstall the headrest, put the
headrest poles (3) into the holes
while pressing the release button (1).
Then adjust it to the appropriate
height and ensure that it locks in
position.
Armrest
To use the armrest, pull it forward
from the seatback.
Folding the rear seat
The rear seatbacks may be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
OYDDSA2013
OYDDSA2019
WARNING- Folded
Seatback
Never allow passengers to sit
on top of the folded down seat-
back while the vehicle is mov-
ing. This is not a proper seating
position and no seat belts are
available for use. This could
result in serious injury or death
in case of an accident or sud-
den stop.

315
Safety features of your vehicle
To fold the rear seatback :

1. Make sure the rear seat belt web-bing is in the guide to prevent the
seat belt from being damaged.
2. Set the front seatback to the upright position and if necessary,
slide the front seat forward.
3. Lower the rear headrests to the lowest position.
4. Open the trunk. 5.Pull the lock release lever (1) and
fold the rear seatback forward and
down firmly.
If the seat belt locks after unfolding
the rear seatback, pull out the
locked seat belt, release it then pull
it out again.
OYDDSA2017
OYDDSA2018
WARNING- Objects
Objects carried on the folded
down seatback should not
extend higher than the top of
the front seatbacks. This could
allow cargo to slide forward and
cause injury or damage during
sudden stops.
OYDDSA2016
