Maintenance
74
7
Engine compartment fuse panel
Fuse Name Fuse rating Circuit Protected
MULTI FUSE MDPS 80A MDPS
Unit
B+1 60A Smart Junction Block (ARISU-LT IPS 1 (4CH), Fuse - MODULE6, MODULE7, MODULE9,
P/WDW LH, P/WDW RH, TRUNK)
ABS 1 40A ESC Module
C/FAN 40A C/Fan Relay
RR HTD 40A RR HTD Relay
BLOWER 40A Blower Relay
GSL PTC HEATER 60A GSL PTC Heater Relay
B+2 60A Smart Junction Block (ARISU-LT IPS 3 (4CH), ARISU-LT IPS 4 (4CH), IPS 5 (2CH), Fuse -
PDM 1, P/SEAT DRV BRAKE SWITCH, S/HEATER RR)
FUSE B/UP LAMP 10A
A/T,DCT : Electro Chromic Mirror, Audio, A/V & Navigation Head Unit, Rear Combination
Lamp (In) LH/RH M/T : Back-Up Lamp Switch
TCU 1 15A A/T : Transaxle Range Switch, DCT : Transaxle Range Switch, TCM
ABS 3 10A ESC Module
ECU 3 10A ECM/PCM, Vacuum Pump
A/CON SWITCH 10A A/C Control Module, Blower Motor, Blower Relay, ECM/PCM, Blower Resistor WIPER FRT 10A ECM/PCM, Wiper Motor, E/R Junction Block (Wiper FRT Relay) B+3 50A Smart Junction Block (Leak Current Autocut Device, Fuse - PDM 2, DR LOCK, SUNROOF)
ECU 6 40A EMS Block (Engine Control Relay, Fuse - ECU 4, A/CON, F/PUMP)
GSL PTC HEATER 50A GSL PTC HEATER RELAY DEICER 15A ICM Relay Box (Front Deicer Relay)
STOP LAMP 10A Stop Signal Electronic Module
775
Maintenance

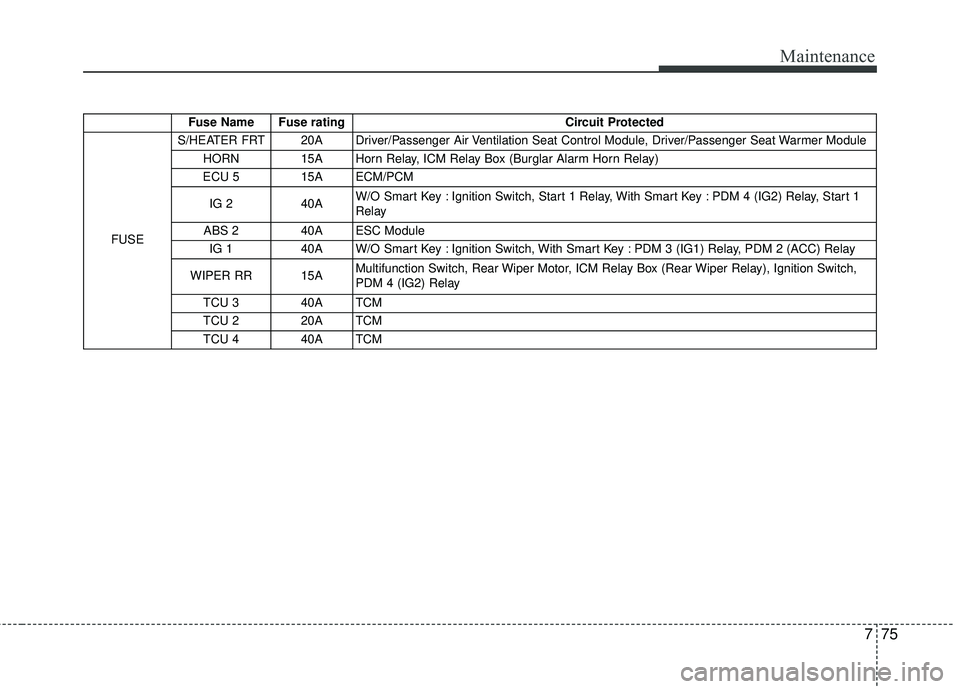

Fuse Name Fuse ratingCircuit Protected
FUSE S/HEATER FRT 20A Driver/Passenger Air Ventilation Seat Control Module, Driver/Passenger Seat Warmer Module
HORN 15A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
ECU 5 15A ECM/PCM
IG 2 40A W/O Smart Key : Ignition Switch, Start 1 Relay, With Smart Key : PDM 4 (IG2) Relay, Start 1
Relay
ABS 2 40A ESC Module
IG 1 40A W/O Smart Key : Ignition Switch, With Smart Key : PDM 3 (IG1) Relay, PDM 2 (ACC) Relay
WIPER RR 15A Multifunction Switch, Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay), Ignition Switch,
PDM 4 (IG2) Relay
TCU 3 40A TCM
TCU 2 20A TCM
TCU 4 40A TCM
Maintenance
76
7
Fuse & Relay Box( NU 2.0L MPI/ NU 2.0 GDI)
Relay NO. Relay Name Type
E41 RR HTD RELAY PLUG MICRO
E42 WIPER RELAY PLUG MICRO
E43 GSL PTC RELAY PLUG MICRO
E44 PDM 2 (ACC) RELAY PLUG MICRO
E45 START 1 RELAY PLUG MICRO
E46 PDM 3 (IG1) RELAY PLUG MICRO
E47 C/FAN RELAY PLUG MINI
E48 HORN RELAY PLUG MICRO
E49 PDM 4 (IG2) RELAY PLUG MICRO
E50 BLOWER RELAY PLUG MICRO
E52 C/FAN 2 RELAY PLUG MICRO
Junction Block (GAMMA 1.6L T-GDI)
Relay NO.Relay Name Type
E41 RR HTD RELAY PLUG MICRO
E42 WIPER RELAY PLUG MICRO
E43 GSL PTC RELAY PLUG MICRO
E44 PDM 2 (ACC) RELAY PLUG MICRO
E45 START 1 RELAY PLUG MICRO
E46 PDM 3 (IG1) RELAY PLUG MICRO
E47 C/FAN RELAY PLUG MINI
E48 HORN RELAY PLUG MICRO
E49 PDM 4 (IG2) RELAY PLUG MICRO
E50 BLOWER RELAY PLUG MICRO
E52 C/FAN 2 RELAY PLUG MICRO
