2018 KIA CADENZA odometer

Features of your vehicle
68
4
✽
✽
NOTICE - Fuel gauge
Running out of fuel can expose vehi-
cle occupants to danger. You must
top and obtain additional fuel as
soon as possible after the warning
light comes on or when the gauge
indicator comes close to the “E
(Empty)” level.
✽ ✽NOTICE
Fuel display may not be accurate if
you are filling in sloping places.
Odometer
The odometer Indicates the total dis-
tance that the vehicle has been driv-
en and should be used to determine
when periodic maintenance should
be performed.
- Odometer range : 0 ~ 999999 miles
or 0 ~ 1599999 kilometers.
Outside Temperature Gauge
This gauge indicates the current out-
side air temperatures by 1°F (1°C).
- Temperature range : -40°F ~ 211°F(-40°C ~ 85°C)
CAUTION- Low fuel
Avoid driving with an extremelylow fuel level. Running out offuel could cause the engine tomisfire damaging the catalyticconverter.OYG046116N
OYG046117N
■Type A
■Type BOYG046118N
OYG046119N
■Type A
■Type B

Features of your vehicle
88
4
Anti-lock Brake System
(ABS) Warning Light
This warning light illuminates:
Once you set the Engine Start/Stop Button to the ON posi-
tion.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the ABS (The normal braking sys-
tem will still be operational without
the assistance of the anti-lock
brake system).
In this case, have your vehicle
inspected by an authorized Kia
dealer.
Electronic
Brake forceDistribution(EBD) SystemWarning Light
These two warning lights illuminate at
the same time while driving:
When the ABS and regular brake system may not work normally.
In this case, have your vehicle
inspected by an authorized Kia
dealer.
✽ ✽ NOTICE- Electronic Brake
force Distribution (EBD)
System Warning Light
When the ABS Warning Light is on
or both ABS and Parking Brake &
Brake Fluid Warning Lights are on,
the speedometer, odometer, or trip-
meter may not work. Also, the EPS
Warning Light may illuminate and
the steering effort may increase or
decrease.
In this case, have your vehicle inspect-
ed by an authorized Kia dealer as
soon as possible.
WARNING - Electronic
Brake force Distribution
(EBD) System Warning Light
When both ABS and Parking
Brake & Brake Fluid Warning
Lights are on, the brake system
will not work normally and you
may experience an unexpected
and dangerous situation during
sudden braking thereby
increasing the risk of a crash
and injury. In this case, avoid
high speed driving and abrupt
braking. Have your vehicle
inspected by an authorized Kia
dealer as soon as possible.

Maintenance
48
7
Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
A wheel that is not the correct size
may adversely affect wheel and
bearing life, braking and stopping
abilities, handling characteristics,
ground clearance, body-to-tire clear-
ance, snow chain clearance,
speedometer and odometer calibra-
tion, headlight aim and bumper
height.
Tire traction
Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. Slow down whenever there
is rain, snow or ice on the road, to
reduce the possibility of losing con-
trol of the vehicle.
Tire maintenance
In addition to proper inflation, correct
wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check the
wheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removed
from the wheel.
Tire sidewall labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. The
TIN can be used to identify the tire in
case of a recall.
1. Manufacturer or brand name
Manufacturer or Brand name is
shown.
CAUTION - Wheel
Wheels that do not meet Kia's
specifications may fit poorlyand result in damage to thevehicle or unusual handling andpoor vehicle control.
OJF085008L

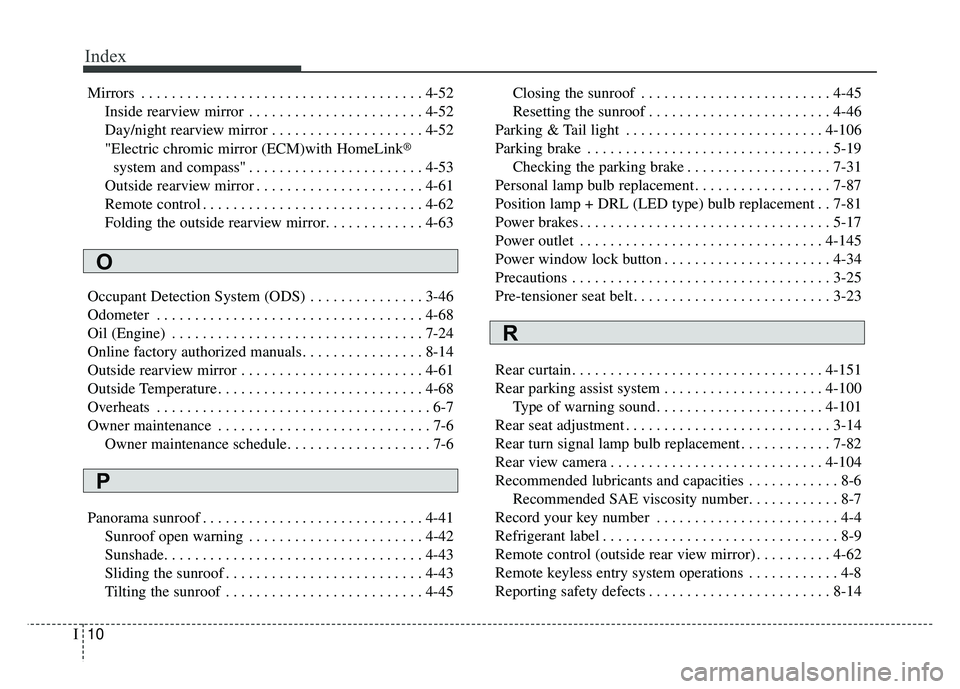

Index
10I
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-52Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-52
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-52
"Electric chromic mirror (ECM)with HomeLink
®
system and compass" . . . . . . . . . . . . . . . . . . . . . . . 4-53
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-61
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Folding the outside rearview mirror. . . . . . . . . . . . . 4-63
Occupant Detection System (ODS) . . . . . . . . . . . . . . . 3-46
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
68
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Online factory authorized manuals . . . . . . . . . . . . . . . . 8-14
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Outside Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6 Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-6
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41 Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-42
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43\
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-31
Personal lamp bulb replacement . . . . . . . . . . . . . . . . . . 7-87
Position lamp + DRL (LED type) bulb replacement . . 7-81
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-34
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Rear curtain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-100 Type of warning sound . . . . . . . . . . . . . . . . . . . . . . 4-101
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear turn signal lamp bulb replacement . . . . . . . . . . . . 7-82
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-7
Record your key number . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Remote control (outside rear view mirror) . . . . . . . . . . 4-62
Remote keyless entry system operations . . . . . . . . . . . . 4-8
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . . . . 8-14
O
P
R
