2018 KIA CADENZA snow chains

755

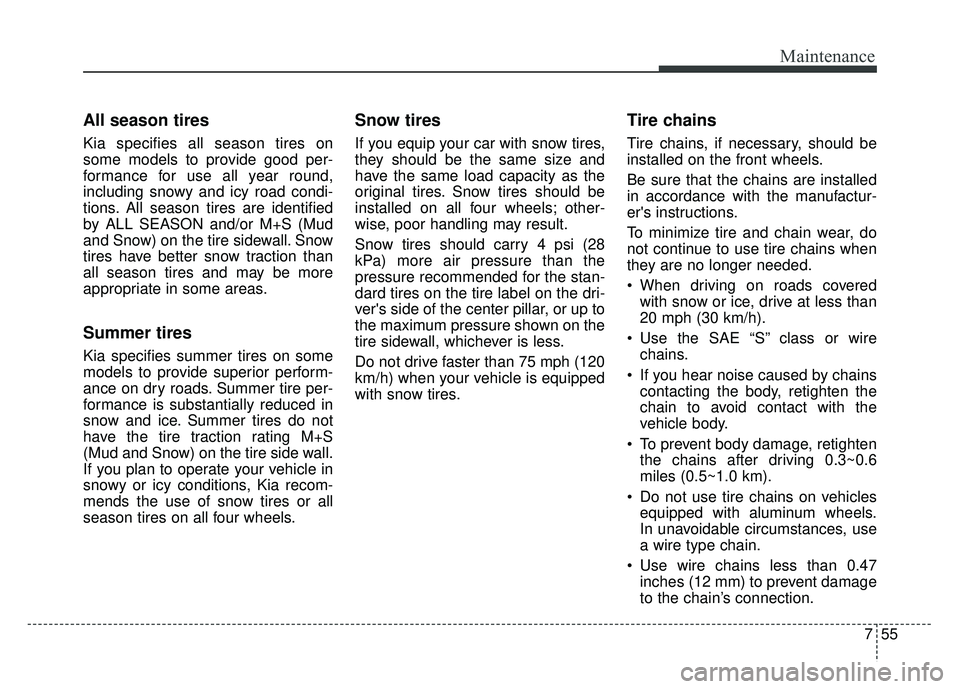

Maintenance
All season tires
Kia specifies all season tires on
some models to provide good per-
formance for use all year round,
including snowy and icy road condi-
tions. All season tires are identified
by ALL SEASON and/or M+S (Mud
and Snow) on the tire sidewall. Snow
tires have better snow traction than
all season tires and may be more
appropriate in some areas.
Summer tires
Kia specifies summer tires on some
models to provide superior perform-
ance on dry roads. Summer tire per-
formance is substantially reduced in
snow and ice. Summer tires do not
have the tire traction rating M+S
(Mud and Snow) on the tire side wall.
If you plan to operate your vehicle in
snowy or icy conditions, Kia recom-
mends the use of snow tires or all
season tires on all four wheels.
Snow tires
If you equip your car with snow tires,
they should be the same size and
have the same load capacity as the
original tires. Snow tires should be
installed on all four wheels; other-
wise, poor handling may result.
Snow tires should carry 4 psi (28
kPa) more air pressure than the
pressure recommended for the stan-
dard tires on the tire label on the dri-
ver's side of the center pillar, or up to
the maximum pressure shown on the
tire sidewall, whichever is less.
Do not drive faster than 75 mph (120
km/h) when your vehicle is equipped
with snow tires.
Tire chains
Tire chains, if necessary, should be
installed on the front wheels.
Be sure that the chains are installed
in accordance with the manufactur-
er's instructions.
To minimize tire and chain wear, do
not continue to use tire chains when
they are no longer needed.
When driving on roads coveredwith snow or ice, drive at less than
20 mph (30 km/h).
Use the SAE “S” class or wire chains.
If you hear noise caused by chains contacting the body, retighten the
chain to avoid contact with the
vehicle body.
To prevent body damage, retighten the chains after driving 0.3~0.6
miles (0.5~1.0 km).
Do not use tire chains on vehicles equipped with aluminum wheels.
In unavoidable circumstances, use
a wire type chain.
Use wire chains less than 0.47 inches (12 mm) to prevent damage
to the chain’s connection.

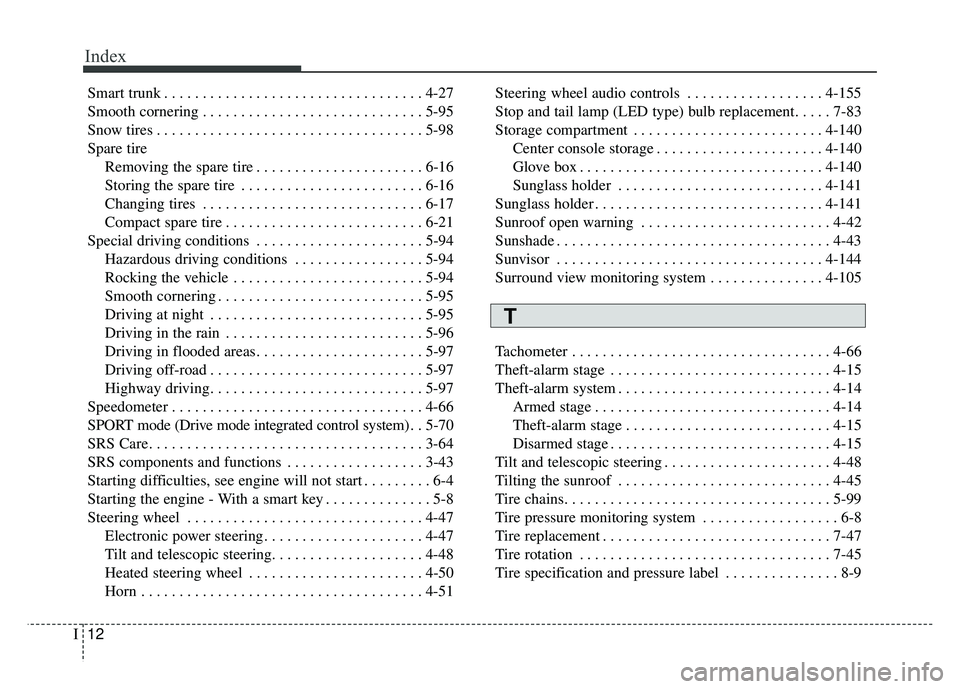

Index
12I
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27\
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-95
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
98
Spare tireRemoving the spare tire . . . . . . . . . . . . . . . . . . . . . . 6-16
Storing the spare tire . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 5-94 Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-94
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-95
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-95
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 5-96
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 5-97
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-97
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-97
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
SPORT mode (Drive mode integrated control system) . . 5-70
SRS Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-64
SRS components and functions . . . . . . . . . . . . . . . . . . 3-43
Starting difficulties, see engine will not start . . . . . . . . . 6-4
Starting the engine - With a smart key . . . . . . . . . . . . . . 5-8
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47 Electronic power steering. . . . . . . . . . . . . . . . . . . . . 4-47
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-48
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-50
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-51 Steering wheel audio controls . . . . . . . . . . . . . . . . . . 4-155
Stop and tail lamp (LED type) bulb replacement. . . . . 7-83
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-140
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-43
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
144
Surround view monitoring system . . . . . . . . . . . . . . . 4-105
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66\
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-48
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Tire chains. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-\
99
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . 6-8
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
Tire specification and pressure label . . . . . . . . . . . . . . . 8-9
T

I13
Index
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43\
Recommended cold tire inflation pressures . . . . . . . 7-43
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44
Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-44
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-46
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Tire terminology and definitions . . . . . . . . . . . . . . . 7-52
All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Low aspect ratio tire. . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-24 Removable towing hook. . . . . . . . . . . . . . . . . . . . . . 6-25
Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-101
Transaxle - Automatic transaxle . . . . . . . . . . . . . . . . . . 5-10
Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . . . 4-69
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Trip information (Trip computer) . . . . . . . . . . . . . . . . . 4-70
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-20 Non-powered trunk . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Power trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Emergency trunk safety release . . . . . . . . . . . . . . . . 4-25
Trunk lamp (LED type) bulb replacement . . . . . . . . . . 7-88
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
Turn signals and lane change signals . . . . . . . . . . . . . 4-110
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Vanity mirror lamp bulb replacement . . . . . . . . . . . . . . 7-86
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Vehicle data collection and Event Data Recorders. . . . . 1-6
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-102 Tire and loading information label. . . . . . . . . . . . . 5-102
Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . 5-105
Vehicle stability management (VSM) . . . . . . . . . . . . . 5-34
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-106
U
V

Index
14I
Warning and Indicator lights . . . . . . . . . . . . . . . . . . . . 4-86
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-86
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30Checking the washer fluid level . . . . . . . . . . . . . . . . 7-30
Welcome system Headlight (Headlamp) escort function . . . . . . . . . . 4-120
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120 Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Wheel alignment and tire balance . . . . . . . . . . . . . . . . 7-46
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
window illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-31 Power window lock button. . . . . . . . . . . . . . . . . . . . 4-34
windows, see instrument cluster . . . . . . . . . . . . . . . . . . 4-64
Windshield defrosting and defogging. . . . . . . . . . . . . 4-135
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-98 Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-98
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-99
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36 Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36 Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Windshield washers . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Wireless smart phone charging system . . . . . . . . . . . 4-146
W
