1. Side ventilator (P.4-25)
2. Meters and gauges (P.2-6)
3. Hazard warning flasher switch (P.6-2)
4. Center ventilator (P.4-25)
5. Center multi-function control panel(See Infiniti InTouch Owner’s Manual.) 6. Center display (See Infiniti InTouch
Owner’s Manual.)
— Around View
®Monitor (P.4-3)
— Navigation system (See Infiniti In-
Touch Owner’s Manual.)
7. Clock (P.2-51) 8. Defroster switch (P.2-36)
9. Front passenger supplemental air bag
(P.1-52)
10. Fuse box (P.8-19)
11. Parking brake (P.5-22)
12. Hood release handle (P.3-21)
13. Steering wheel — Horn (P.2-45)
— Driver supplemental air bag (P.1-52)
— Power steering system (P.5-131)
14. Push-button ignition switch (P.5-12)
15. Climate controlled seat switch (if so equipped) (P.2-48)/Heated seat
switch (if so equipped) (P.2-46)
16. Remote tip-up 2nd row seat switch (if so equipped) (P.1-9)
17. Front passenger air bag status light (P.1-60)
18. Power outlet (P.2-51)
19. USB connection port (See Infiniti In- Touch Owner’s Manual.)
20. Cup holder (P.2-54)/Tray (P.2-58)
21. Automatic climate control system (P.4-26)
22. Audio system (See Infiniti InTouch Owner’s Manual.)
23. Glove box (P.2-56)
INSTRUMENT PANEL

Clock ........................................................................\
........... 2-51Adjusting the time ..................................................... 2-51
Power outlet .................................................................... 2-51 USB (Universal Serial Bus)
charging connector ................................................... 2-53
Storage ........................................................................\
...... 2-54 Cup holders ................................................................. 2-54
Sunglasses holder ...................................................... 2-56
Glove box ..................................................................... 2-56
Console box ................................................................ 2-57
Tray ........................................................................\
....... 2-58
Coat hooks .................................................................. 2-59
Luggage hooks .......................................................... 2-59
Cargo floor box ......................................................... 2-60
Roof rack .................................................................... 2-60
Windows ........................................................................\
... 2-61 Power windows ......................................................... 2-61
Moonroof ........................................................................\
.. 2-64
Power moonroof ....................................................... 2-64
Welcome light .................................................................. 2-65 Battery saver system .............................................. 2-66
Interior lights .................................................................... 2-66 Map lights ................................................................... 2-66
Rear personal lights .................................................. 2-66
Interior light control switch .................................... 2-67
Vanity mirror lights ........................................................ 2-68 Cargo light ....................................................................... 2-68
HomeLink®Universal Transceiver (Type A) (if
so equipped) .................................................................... 2-68
Programming HomeLink
®..................................... 2-69
Programming HomeLink®for Canadian
customers and gate openers ............................... 2-70
Operating the HomeLink
®
Universal Transceiver ............................................. 2-71
Programming troubleshooting ............................ 2-71
Clearing the programmed information ............. 2-71
Reprogramming a single
HomeLink
®button .................................................. 2-71
If your vehicle is stolen .......................................... 2-72
HomeLink
®Universal Transceiver (Type B) (if
so equipped) .................................................................... 2-72
Programming HomeLink
®..................................... 2-73
Programming HomeLink®for Canadian
customers and gate openers ............................... 2-75
Operating the HomeLink
®
Universal Transceiver ............................................. 2-75
Programming troubleshooting ............................ 2-75
Clearing the programmed information ............. 2-75
Reprogramming a single
HomeLink
®button .................................................. 2-76
Using the garage door
two-way communication ...................................... 2-76
If your vehicle is stolen .......................................... 2-77

JVC1129X
1. Side ventilator
2. Meters and gauges
3. Hazard warning flasher switch
4. Center ventilator
5. Center multi-function control panel
6. Center display— Around View®Monitor
— Navigation system
7. Clock
8. Defroster switch
9. Front passenger supplemental air bag
10. Fuse box 11. Parking brake
12. Hood release handle
13. Steering wheel
— Horn
— Driver supplemental air bag
— Power steering system
14. Push-button ignition switch
15. Climate controlled seat switch (if so equipped)/Heated seat switch (if so
equipped)
16. Remote tip-up 2nd row seat switch (if so equipped)
17. Front passenger air bag status light
18. Power outlet
19. USB connection port
20. Cup holder/Tray
21. Automatic climate control system
22. Audio system
23. Glove box
Instruments and controls2-5
INSTRUMENT PANEL

2-36Instruments and controls
JVI0972X
REAR WINDOW WIPER AND
WASHER OPERATION
If the rear window wiper operation is
interrupted by snow etc., the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to OFF and
remove the snow etc. on and around the
wiper arms. After about 1 minute, turn the
switch ON again to operate the wiper.
The rear window wiper and washer operate
when the ignition switch is in the ON
position.
Turn the switch clockwise from the OFF
position to operate the wiper.
Intermittent (INT) — intermittent op-
eration (not adjustable)
Low (ON) — continuous low speed
operation
Push the switch forward
to operate the
washer. Then the wiper will also operate
several times.
SIC4385
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER
To defog/defrost the rear window glass and
outside mirrors, start the engine and push
the switch
on. The indicator lightwill
come on. Push the switch again to turn the
defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH

SIC3325
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIME
1. To set the clock forward, push thebutton.
2. To set the clock backward, push the button
.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment,
see the Infiniti InTouch Owner’s Manual.
CAUTION
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
. When not in use, be sure to close the
cap. Do not allow water or any liquid
to contact the outlet.
SIC4445
Instrument panel
SIC4456
Back side of front console
Instruments and controls2-51
CLOCK POWER OUTLET

.Push the power door lock switch to the
UNLOCK position.
To lock, close the fuel-filler door securely
and lock all doors by operating the door
handle request switch, the LOCK button on
the Intelligent Key, the mechanical key or the
power door lock switch.
FUEL-FILLER CAP
WARNING
. Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or ser-
iously injured if it is misused or
mishandled. Always stop engine and
do not smoke or allow open flames or
sparks near the vehicle when refuel-
ing.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle shuts
off automatically. Continued refuel-
ing may cause fuel overflow, resulting
in fuel spray and possibly a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious malfunction and possible injury. It
could also cause the malfunction
indicator light to come on.
. Never pour fuel into the throttle body
to attempt to start your vehicle.
. Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
— Always place the container on the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage. .
Insert the cap straight into the fuel-
filler tube, then tighten until the fuel-
filler cap clicks. Failure to tighten the
fuel-filler cap properly may cause the
malfunction indicator light (MIL)
to illuminate. If thelight illumi-
nates because the fuel-filler cap is
loose or missing, tighten or install the
cap and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If thelight does
not turn off after a few driving trips,
have the vehicle inspected. It is
recommended you visit an INFINITI
retailer for this service.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the fuel-
filler cap properly after the LOOSE
FUEL CAP warning appears may
cause the
Malfunction Indicator
Light (MIL) to illuminate.
Turn the cap counterclockwise to remove.
To tighten, turn the cap clockwise until a
single click is heard.
Pre-driving checks and adjustments3-27

3-28Pre-driving checks and adjustments
SPA2753
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwiseto remove.
2. Put the fuel-filler cap on the cap holder
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
SPA2815
LOOSE FUEL CAP warning
The LOOSE FUEL CAP warning appears on
the vehicle information display when the
fuel-filler cap is not tightened correctly after
the vehicle has been refueled. It may take a
few driving trips for the warning to be
displayed.
To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap assoon as possible. (See “Fuel-filler cap”
(P.3-27).)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switchon the right side
of the combination meter panel for longer than 1 second to turn off the
LOOSE FUEL CAP warning after tigh-
tening the fuel cap.

6-6In case of emergency

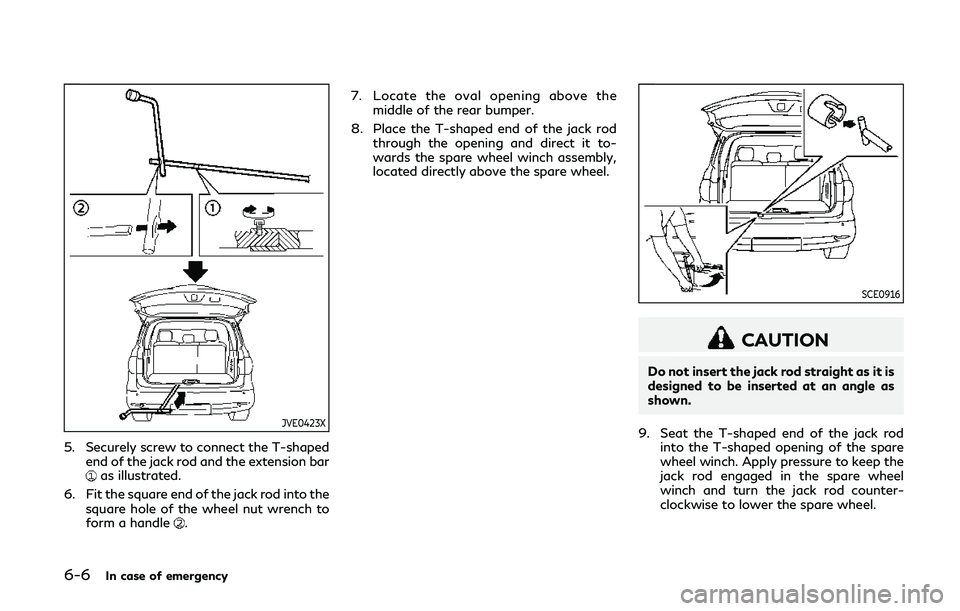

JVE0423X
5. Securely screw to connect the T-shapedend of the jack rod and the extension bar
as illustrated.
6. Fit the square end of the jack rod into the square hole of the wheel nut wrench to
form a handle
. 7. Locate the oval opening above the
middle of the rear bumper.
8. Place the T-shaped end of the jack rod through the opening and direct it to-
wards the spare wheel winch assembly,
located directly above the spare wheel.
SCE0916
CAUTION
Do not insert the jack rod straight as it is
designed to be inserted at an angle as
shown.
9. Seat the T-shaped end of the jack rod into the T-shaped opening of the spare
wheel winch. Apply pressure to keep the
jack rod engaged in the spare wheel
winch and turn the jack rod counter-
clockwise to lower the spare wheel.
