2018 INFINITI QX60 display

6. If the target parking space is narrow,select “Narrow Mode”
5. In this mode,
the target parking frame will turn yellow
and the space between the target park-
ing frame and the clearance guidelines
will become narrower. In this mode,
switching will be required. Select “Start”.
7. The starting position frame for backingup will be displayed in green
1. The
starting position frame is displayed in the
bird’s-eye view.
∙ A green frame indicates the recom- mended position.
∙ A yellow frame indicates that switch- ing will be required.
∙ A red frame indicates that parking is not possible. 8. While the vehicle is stationary, turn the
steering wheel until the starting position
frame turns green and then begin to
move forward into the starting position
frame
2.
9. Keep the steering wheel in its current position and move the vehicle slowly for-
ward. A chime will sound when the ve-
hicle fits into the frame.
LHA4337
Monitor, climate, audio, phone and voice recognition systems4-17

10. Stop the vehicle and place the shift leverin the R (Reverse) position. 11. Predicted course lines (orange)1and
target predicted course lines (green)
2
will be displayed on the screen. While the
vehicle is stationary, turn the steering
wheel until the predicted course lines (or-
ange) and target predicted course lines
(green) are overlapping. A chime will
sound when the two lines overlap. 12. Keep the steering wheel in its current
position and move the vehicle slowly
backward toward the position switch
frame
1(green). A chime will sound
when the vehicle fits into the orange
frame.
13. Stop the vehicle. Predicted course lines (orange) and target predicted course
lines (green) are displayed.
LHA4338LHA4339LHA4340
4-18Monitor, climate, audio, phone and voice recognition systems

14. When the vehicle is stationary, turn thesteering wheel until the predicted course
lines (orange) and target predicted
course lines (green)
1are overlapping. A
chime will sound when the two lines
overlap.
15. Back the vehicle up to the target parking frame (blue)
2.
16. Keep the steering wheel position in its current position and move the vehicle
slowly backward toward the blue frame.
A chime will sound when the vehicle fits
into the orange frame.
17. Stop the vehicle.
AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the SETTING but-
ton, select the “Camera/Sonar” key. For ad-
ditional information about the Sonar, refer to
“Camera aiding parking sensor (sonar)” in this
section. For information about the Display
screen adjustment, refer to “Adjusting the
screen” in this section.
Predicted Course Lines:
When this item is turned to ON, the predicted
course lines are displayed in the front view,
rear view and bird’s-eye view. Camera View Priority:
The view shown on the screen at the begin-
ning of the Around View® Monitor operation
can be selected in order of priority.
Non-viewable Area Reminder:
With this item turned to ON, the non-
viewable area is highlighted in yellow for
seven seconds after the bird’s-eye view is
displayed. It will only be shown the first time
after the ignition switch is placed in the ON
position.
LHA4341LHA4265LHA4266
Monitor, climate, audio, phone and voice recognition systems4-19

MOD Volume:
Adjusts the MOD volume between High, MID
or LOW by touching the “+” or “-” key on the
display screen. This feature is only available
when “Moving Object Detection” is on.
Automatic Display with Sonar:
When this item is turned to ON, the camera
view is automatically shown on the display in
the case that the distance to the objects
measured by the sonar is becoming short.Moving Object Detection (MOD):
When this item is turned to ON, the MOD is
activated. When this item is turned to OFF
(indicator turns off), the MOD system is de-
activated.ADJUSTING THE SCREEN
To adjust the Display ON/OFF, Brightness,
Tint, Color, Contrast and Black Level of the
Around View® Monitor, press the SETTING
button with the monitor on and select the
“Display”, touch the Camera or Camera/
Sonar key and select one of the items and
change the value by touching the “+” or “-” key
or by turning the INFINITI controller.
NOTE:
Do not adjust the Brightness, Tint, Color, Con-
trast and Black Level of the Around View®
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
LHA4267LHA4268
4-20Monitor, climate, audio, phone and voice recognition systems

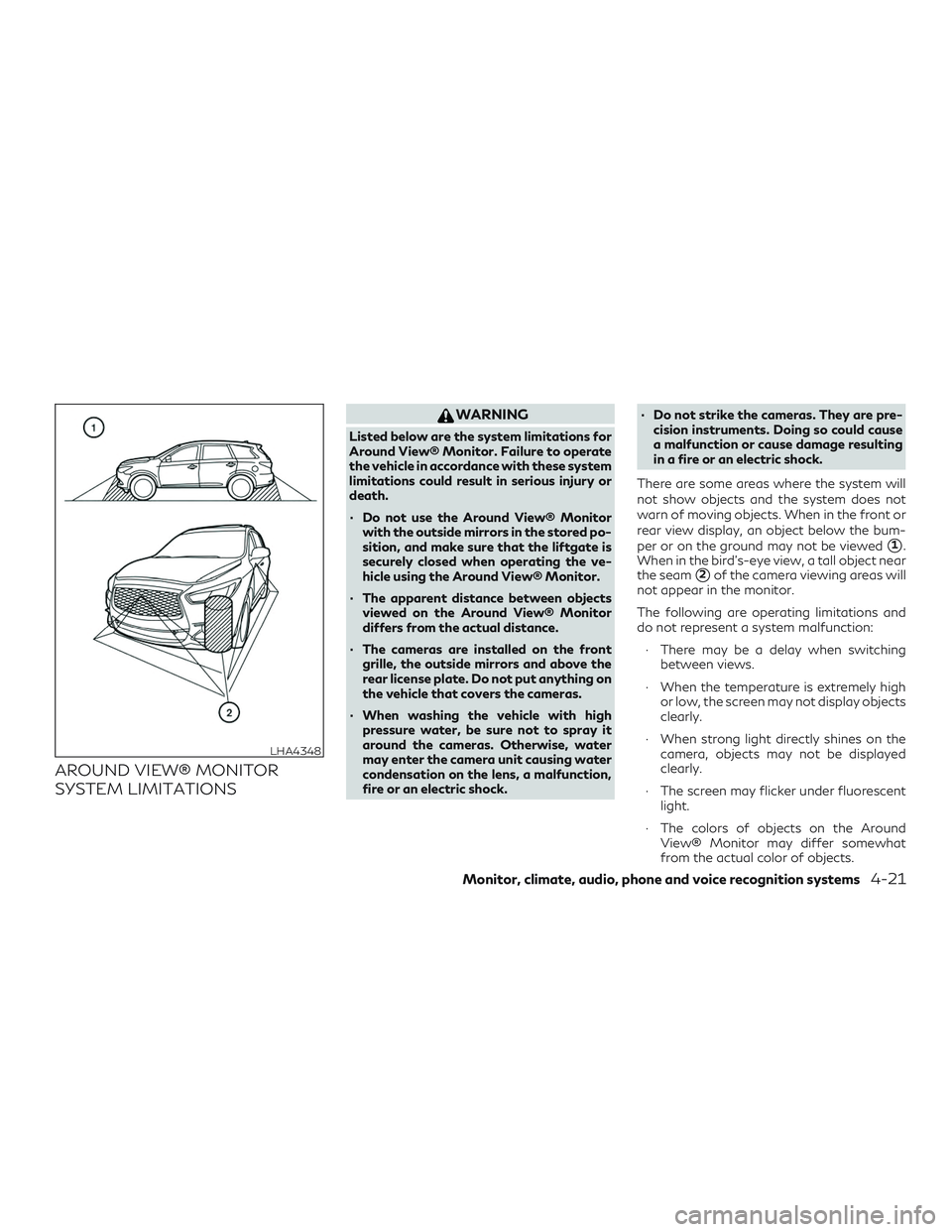

AROUND VIEW® MONITOR
SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Do not use the Around View® Monitorwith the outside mirrors in the stored po-
sition, and make sure that the liftgate is
securely closed when operating the ve-
hicle using the Around View® Monitor.
∙ The apparent distance between objects viewed on the Around View® Monitor
differs from the actual distance.
∙ The cameras are installed on the front grille, the outside mirrors and above the
rear license plate. Do not put anything on
the vehicle that covers the cameras.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock. ∙ Do not strike the cameras. They are pre-
cision instruments. Doing so could cause
a malfunction or cause damage resulting
in a fire or an electric shock.
There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the bum-
per or on the ground may not be viewed
1.
When in the bird’s-eye view, a tall object near
the seam
2of the camera viewing areas will
not appear in the monitor.
The following are operating limitations and
do not represent a system malfunction:
∙ There may be a delay when switching between views.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly.
∙ When strong light directly shines on the camera, objects may not be displayed
clearly.
∙ The screen may flicker under fluorescent light.
∙ The colors of objects on the Around View® Monitor may differ somewhat
from the actual color of objects.
LHA4348
Monitor, climate, audio, phone and voice recognition systems4-21

∙ Objects on the Around View® Monitormay not be clear and the color of the
object may differ in a dark environment.
∙ There may be differences in sharpness between each camera view of the bird’s-
eye view.
∙ Do not use wax on the camera lens. Wipe off any wax with a clean cloth that has
been dampened with a diluted mild
cleaning agent, then wipe with a dry
cloth.
System temporarily unavailable
When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service. When the “[X]” icon is displayed on the
screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.
LHA4270LHA4269
4-22Monitor, climate, audio, phone and voice recognition systems

44
SYSTEM MAINTENANCE
CAUTION
∙ Do not use alcohol, benzine or thinner toclean the camera. This will cause
discoloration.
∙ Do not damage the cameras as the moni- tor screen may be adversely affected.
If dirt, rain or snow accumulates on any of the
cameras
1, the Around View® Monitor may
not display objects clearly. Clean the camera
by wiping with a cloth dampened with a di-
luted mild cleaning agent and then wiping
with a dry cloth.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar function as
outlined in this section could result in seri-
ous injury or death.
∙ The sonar is a convenience feature. It is not a substitute for proper parking.
∙ This function is designed as an aid to the driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.
∙ The driver is always responsible for safety during parking and other
maneuvers.
∙ Always look around and check that it is safe to move before parking.
∙ Read and understand the limitations of the sonar as contained in this section.
The sonar function helps to inform the driver
of large stationary objects around the vehicle
when parking by issuing an audible and visual
alert.
LHA4347
CAMERA AIDING PARKING SENSOR
(sonar)
Monitor, climate, audio, phone and voice recognition systems4-23

1. Center display
2. CAMERA button
3. SETTING buttonSONAR SYSTEM OPERATION
The system gives the tone for front objects
when the shift lever is in the “D” (Drive) posi-
tion and both front and rear objects when the
shift lever is in the “R” (Reverse) position.When the camera image is shown on the
center display, the system shows the sonar
indicator regardless of the shift lever position.
The system is deactivated at speeds above
10 km/h (6 mph). It is reactivated at lower
speeds.
The colors of the sonar indicators and the
distance guide lines in the front, front-wide,
rear, and rear-wide views indicate different
distances to the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking and the rate of the tone increase.
When the vehicle is very close to the object,
the indicator stops blinking and turns red, and
the tone sounds continuously.
The intermittent tone will stop after 3 sec-
onds when an object is detected by only the
corner sonar and the distance does not
change.
The tone will stop when the object is no
longer near the vehicle.
LHA4245
