When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system will adjust the speed
to maintain the distance, selected by the
driver, from the vehicle ahead. If the vehicle
ahead changes lanes or exits the freeway, the
ICC system will accelerate and maintain the
speed up to the set speed. Pay attention to
the driving operation to maintain control of
the vehicle as it accelerates to the set speed.
Normally when controlling the distance to a
vehicle ahead, this system automatically ac-
celerates or decelerates your vehicle accord-
ing to the speed of the vehicle ahead. De-
press the accelerator to properly accelerateyour vehicle when acceleration is required for
a lane change. Depress the brake pedal when
deceleration is required to maintain a safe
distance to the vehicle ahead due to its sud-
den braking or if a vehicle cuts in. Always stay
alert when using the ICC system.
ICC (Vehicle-to-vehicle distance
control) mode
In the vehicle-to-vehicle distance control
mode, the ICC system automatically main-
tains a selected distance from the vehicle
traveling in front of you according to that
vehicle’s speed (up to the set speed), or at the
set speed when the road ahead is clear.
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the radar sensor detects a slower moving
vehicle ahead, the system will reduce the ve-
hicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The system automatically controls the
throttle and applies the brakes (up to ap-
proximately 40% of vehicle braking power) if
necessary. The detection range of the sensor
is approximately 200 m (650 ft) ahead.
Preview Function
The ICC system with the Preview Function
identifies the need to apply emergency brak-
ing by sensing a vehicle ahead in the same
lane, and the distance and relative speed
from it. The system applies the brake pre-
pressure before the driver depresses the
brake pedal and helps improve brake re-
sponse by reducing pedal free play.
∙ This system will not operate when the vehicle is moving at approximately
32 km/h (20 mph) or less.
∙ The pre-pressure function ceases when the following conditions are met:
– When the driver depresses the accel- erator pedal or the brake pedal.
– If the driver does not operate the ac- celerator or brake pedal within ap-
proximately 1 second.
SSD0254
Starting and driving5-81

∙ The sensor will not detect:– Pedestrians or objects in the roadway
– Oncoming vehicles in the same lane
– Motorcycles traveling offset in thetravel lane as illustrated
WARNING
∙This system is only an aid to assist braking
operation and is not a collision warning or
avoidance device. It is the driver’s respon-
sibility to stay alert, drive safely and be in
control of the vehicle at all times.
∙ As there is a performance limit to the Pre- view Function, never rely solely on this system. This system does not correct
careless, inattentive or absentminded
driving, or overcome poor visibility in
rain, fog, or other bad weather. Reduce
vehicle speed by depressing the brake
pedal, in order to maintain a safe distance
between vehicles.
∙ The system may not detect the vehicle in front of you in certain road or weather
conditions. The Preview Function may
not operate properly under the following
conditions. The vehicle is still driveable
under normal conditions and the Brake
Assist will operate.
– When rain or snow adhere to the bum- per around the distance sensor
– Vehicle position in the lane may cause the sensor to temporarily not detect a
vehicle in the same lane or may detect
objects or vehicles in other lanes.
Conventional (fixed speed) cruise
control mode
This mode allows driving at a speed between
32 to 144 km/h (20 to 90 mph) for Mexico,
32 to 144 km/h (20 to 90 mph) for Taiwan or
32 to 189 km/h (20 to 117 mph) for Gulf
Coast Countries without keeping your foot
on the accelerator pedal.
WARNING
∙ In the conventional (fixed speed) cruisecontrol mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
of the vehicle ahead nor the vehicle-to-
vehicle distance is detected.
∙ Pay special attention to the distance be- tween your vehicle and the vehicle ahead
of you or a collision could occur.
∙ Always confirm the setting in the Intelli- gent Cruise Control system display.
∙ Do not use the conventional (fixed speed) cruise control mode when driving under
the following conditions:
– when it is not possible to keep the ve- hicle at a set speed
– in heavy traffic or in traffic that varies in speed
– on winding or hilly roads
– on slippery roads (rain, snow, ice, etc.)
– in very windy areas
∙ Doing so could cause a loss of vehicle con- trol and result in an accident.
SSD0338
5-82Starting and driving

Distance Approximate distance at100 km/h (60 mph) [m (ft)]
1. Long 55 (180)
2. Middle 40 (130)
3. Short 25 (80)
∙ The distance to the vehicle ahead will change according to the vehicle speed.
The higher the vehicle speed, the longer
the distance.
∙
If the engine is stopped, the set distance
becomes “long.” (Each time the engine is
started, the initial setting becomes “long.”)
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and ICC sys-
tem display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if: ∙ The chime sounds.
∙ The vehicle ahead detection indicator blinks.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing.
∙ When the vehicle ahead is traveling faster and the distance between vehicles
is increasing.
∙ When a vehicle cuts in near your vehicle.
The warning chime will not sound when: ∙ The vehicle approaches other vehicles that are parked or moving slowly.
∙ The accelerator pedal is depressed, over- riding the system. NOTE:
The approach warning chime may sound and
the system display may blink when the ICC
sensor detects objects on the side of the ve-
hicle or on the side of the road. This may
cause the ICC system to decelerate or accel-
erate the vehicle. The ICC sensor may detect
these objects when the vehicle is driven on
winding roads, narrow roads, hilly roads, or
when entering or exiting a curve. In these
cases you will have to manually control the
proper distance ahead of your vehicle.
Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or ve-
hicle condition (for example, if a vehicle is
being driven with some damage).
LSD2429
5-90Starting and driving

∙ The system may not detect the vehicle infront of you in certain road or weather
conditions. To avoid accidents, never use
the ICC system under the following
conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the bumper around the distance sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed
and frequent braking may result in
overheating the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it diffi- cult to keep a proper distance be-
tween vehicles because of frequent
acceleration or deceleration
– Interference by other radar sources.
∙ Do not use the ICC system if you are tow- ing a trailer. The system may not detect a
vehicle ahead. ∙ In some road or traffic conditions, a ve-
hicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. Always stay alert and
avoid using the ICC system where not
recommended in this warning section.
The radar sensor will not detect the following
objects: ∙ Stationary and slow moving vehicles
∙ Pedestrians or objects in the roadway
∙ Oncoming vehicles in the same lane
∙ Motorcycles traveling offset in the travel lane
The following are some conditions in which
the sensor cannot properly detect a vehicle
ahead and the system may not operate prop-
erly: ∙ When snow or road spray from traveling vehicles reduces the sensor’s detection.
∙ When excessively heavy baggage is loaded in the rear seat or the cargo area
of your vehicle.
The ICC system is designed to automatically
check the sensor’s operation within the limi-
tations of the system. The detection zone of the ICC sensor is lim-
ited. A vehicle ahead must be in the detection
zone for the vehicle-to-vehicle distance de-
tection mode to maintain the selected dis-
tance from the vehicle ahead.
A vehicle ahead may move outside of the
detection zone due to its position within the
same lane of travel. Motorcycles may not be
detected in the same lane ahead if they are
traveling offset from the centerline of the
lane. A vehicle that is entering the lane ahead
may not be detected until the vehicle has
completely moved into the lane.
If this occurs, the ICC system may warn you
by blinking the system indicator and sound-
ing the chime. The driver may have to manu-
ally control the proper distance away from
the vehicle traveling ahead.
5-94Starting and driving

The DCA system brakes and moves the ac-
celerator pedal upward according to the dis-
tance from and the relative speed of the ve-
hicle ahead to help assist the driver to
maintain a following distance.
DCA SYSTEM OPERATION
Always pay attention to the operation of the
vehicle and be ready to manually decelerate
to maintain the proper following distance.
The DCA system may not be able to deceler-
ate the vehicle under some circumstances.
The DCA system uses a sensor
Alocated
behind the front bumper of the vehicle to
detect vehicles traveling ahead. The sensor
generally detects the signals returned from
the vehicle ahead. Therefore, if the sensor
cannot detect the reflection from the vehicle
ahead, the DCA system may not operate. The system is intended to assist the driver to
keep a following distance from the vehicle
ahead traveling in the same lane and direc-
tion.
The distance sensor is located behind the
front bumper
A. If the distance sensorA
detects a slower moving vehicle ahead, the
system will reduce the vehicle speed to help
assist the driver to maintain a following dis-
tance.
The system automatically controls the
throttle and applies the brakes (up to 40% of
vehicle braking power) if necessary.
The detection range of the sensor is approxi-
mately 150 m (490 ft) ahead.
The distance sensor will not detect the fol-
lowing objects:
∙ Stationary and slow moving vehicles
∙ Pedestrians or objects in the roadway
∙ Oncoming vehicles in the same lane
LSD2702
5-100Starting and driving

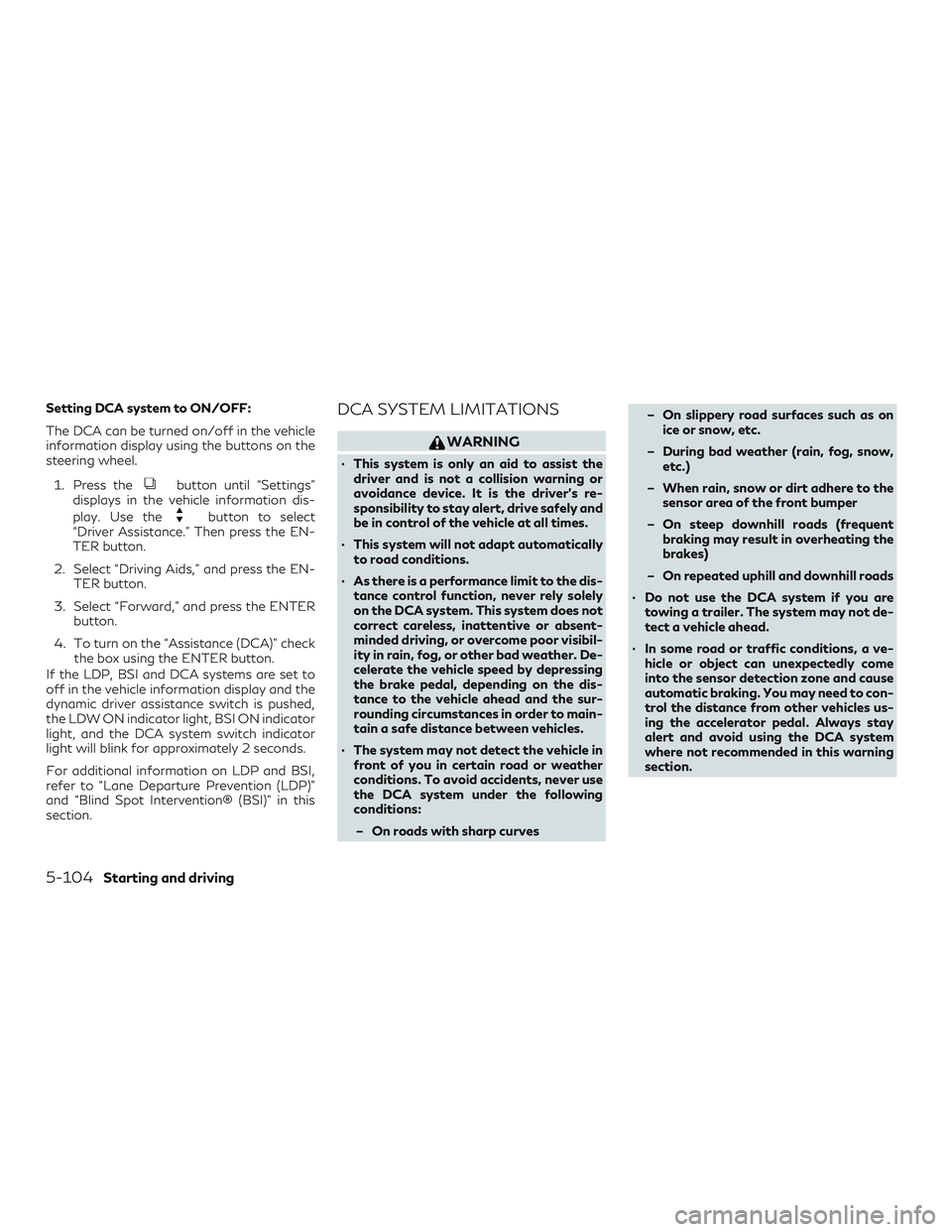

Setting DCA system to ON/OFF:
The DCA can be turned on/off in the vehicle
information display using the buttons on the
steering wheel.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Driving Aids,” and press the EN- TER button.
3. Select “Forward,” and press the ENTER button.
4. To turn on the “Assistance (DCA)” check the box using the ENTER button.
If the LDP, BSI and DCA systems are set to
off in the vehicle information display and the
dynamic driver assistance switch is pushed,
the LDW ON indicator light, BSI ON indicator
light, and the DCA system switch indicator
light will blink for approximately 2 seconds.
For additional information on LDP and BSI,
refer to “Lane Departure Prevention (LDP)”
and “Blind Spot Intervention® (BSI)” in this
section.
DCA SYSTEM LIMITATIONS
WARNING
∙ This system is only an aid to assist the driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
∙ This system will not adapt automatically to road conditions.
∙ As there is a performance limit to the dis- tance control function, never rely solely
on the DCA system. This system does not
correct careless, inattentive or absent-
minded driving, or overcome poor visibil-
ity in rain, fog, or other bad weather. De-
celerate the vehicle speed by depressing
the brake pedal, depending on the dis-
tance to the vehicle ahead and the sur-
rounding circumstances in order to main-
tain a safe distance between vehicles.
∙ The system may not detect the vehicle in front of you in certain road or weather
conditions. To avoid accidents, never use
the DCA system under the following
conditions:
– On roads with sharp curves – On slippery road surfaces such as on
ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the sensor area of the front bumper
– On steep downhill roads (frequent braking may result in overheating the
brakes)
– On repeated uphill and downhill roads
∙ Do not use the DCA system if you are towing a trailer. The system may not de-
tect a vehicle ahead.
∙ In some road or traffic conditions, a ve- hicle or object can unexpectedly come
into the sensor detection zone and cause
automatic braking. You may need to con-
trol the distance from other vehicles us-
ing the accelerator pedal. Always stay
alert and avoid using the DCA system
where not recommended in this warning
section.
5-104Starting and driving

The following are some conditions in which
the sensor cannot detect the signals:∙ When the reflector of the vehicle ahead is covered with dirt, snow and road spray
∙ When dense exhaust or other smoke (black smoke) from vehicles reduces the
sensor’s detection
∙ When excessively heavy baggage is loaded in the rear seat or the luggage
room of your vehicle
The DCA system is designed to automatically
check the sensor’s operation. When the front
bumper area around the distance sensor is
covered with dirt or is obstructed, the system
will automatically cancel. If the front bumper
area of the distance sensor is covered with
ice, a transparent or translucent vinyl bag,
etc., the DCA system may not detect them. In
these instances, the vehicle-to-vehicle dis-
tance control mode may not cancel and may
not be able to maintain the selected following
distance from the vehicle ahead. Be sure to
check and clean the front bumper area
around the distance sensor regularly.
The DCA system is designed to help assist the
driver to maintain a following distance from
the vehicle ahead. The system will decelerate
as necessary and if the vehicle ahead comes to a stop, the vehicle decelerates to a stand-
still. However, the DCA system can only ap-
ply up to 40% of the vehicle’s total braking
power. If a vehicle moves into the traveling
lane ahead or if a vehicle traveling ahead
rapidly decelerates, the distance between ve-
hicles may become closer because the DCA
system cannot decelerate the vehicle quickly
enough. If this occurs, the DCA system will
sound a warning chime and blink the system
display to notify the driver to take necessary
action.
For additional information, refer to “Ap-
proach warning” in this section.
This system only brakes and moves the accel-
erator pedal upward to help assist the driver
to maintain a following distance from the
vehicle ahead. Acceleration should be oper-
ated by the driver.
The DCA system does not control vehicle
speed or warn you when you approach sta-
tionary and slow moving vehicles. You must
pay attention to vehicle operation to main-
tain proper distance from vehicles ahead.
Starting and driving5-105

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the sensor may
detect vehicles in a different lane, or may
temporarily not detect a vehicle traveling
ahead. This may cause the system to work
inappropriately.
The detection of vehicles may also be af-
fected by vehicle operation (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition.If this occurs, the system may warn you by
blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that ve-
hicle or if another vehicle cuts in, the system
warns the driver with the chime and DCA
system display. Decelerate by depressing the
brake pedal to maintain a safe vehicle dis-
tance if:
∙ The chime sounds.
∙ The vehicle ahead detection indicator blinks.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are: ∙ When the vehicles are traveling at the same speed and the distance between
vehicles is not changing
∙ When the vehicle ahead is traveling faster and the distance between vehicles
is increasing
∙ When a vehicle cuts in near your vehicle
The warning chime will not sound when your
vehicle approaches vehicles that are parked
or moving slowly.
DCA Detection Zones On Winding Roads
SSD0253
Starting and driving5-107
