∙ Do not use the climate control seat forextended periods or when no one is using
the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.
∙ Any liquid spilled on the seat should be removed immediately with a dry cloth
∙ The climate controlled seat has an air fil- ter. Do not operate the climate controlled
seat without an air filter. This may result
in damage to the system.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the cli- mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you visit
an INFINITI retailer for this service. The climate controlled seat warms up or
cools down the front seat by blowing warm
or cool air from under the surface of the seat.
The climate control switch is located on the
center console.
The climate controlled seat can be operated
as follows:
1. Start the engine.
2. Turn the control knob
Ato the heat side
1or the cool side2. The indicator light
Bon the control knob will illuminate.
3. Adjust the desired amount of air using the control knob. The climate controlled
seat blower remains on low speed for
approximately 60 seconds after turning
the switch on or selecting the desired
temperature.
4. When the vehicle’s interior is warmed or cooled, or before you leave the vehicle,
be sure to turn the control knob to the
OFF (center) position. The indicator light
Bon the control knob goes off with the
switch in the OFF (center) position.
To check the air filter for the climate con-
trolled seat, it is recommended that you con-
tact an INFINITI retailer.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
CAUTION
∙ The battery could run down if the seat heater is operated while the engine is not
running.
SSS0911
HEATED SEAT SWITCHES (if so
equipped)
Instruments and controls2-47

∙ Do not use the seat heater for extendedperiods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.
The front seats are warmed by built-in heat-
ers. The switches are located on the center
console and can be operated independently
of each other. 1. Start the engine. 2. Turn the control knobAto the right1
and select the desired heat range.
∙ For high heat, turn the knob to the right
1.
∙ For low heat, turn the knob to the left
2.
∙ The indicator light
Bwill illuminate
when the heater is on.
3. To turn off the heater, return the knob to the OFF position
3. Make sure that the
indicator light turns off.
The heater is controlled by a control
module, automatically turning the heater
on and off.
The indicator light will remain on as long
as the switch is on.
When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in serious
injury.
CAUTION
∙ The battery could run down if the seat heater is operated while the engine is not
running.
LIC3037
HEATED 2ND ROW SEAT SWITCHES
(if so equipped)
2-48Instruments and controls

∙ Do not use the seat heater for extendedperiods or when no one is using the seat.
∙ Do not put anything on the seat which insulates heat, such as a blanket, cushion,
seat cover, etc. Otherwise, the seat may
become overheated.
∙ Do not place anything hard or heavy on the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.
∙ Any liquid spilled on the heated seat should be removed immediately with a
dry cloth.
∙ When cleaning the seat, never use gaso- line, benzine, thinner, or any similar
materials.
∙ If any malfunctions are found or the heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.
The rear seats are warmed by built-in heat-
ers. The switches are located on the rear of
the front center console and can be operated
independently of each other. 1. Start the engine. 2. Push the LO or HI position of the switch,
as desired. The indicator light in the
switch will illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and
off. The indicator light will remain on as
long as the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the
switch off.
The heated steering wheel system is de-
signed to operate only when the surface tem-
perature of the steering wheel is below 68°F
(20°C).
Push the heated steering wheel switch to
warm the steering wheel after the engine
starts. The indicator light will come on.
If the surface temperature of the steering
wheel is below 68°F (20°C), the system will
heat the steering wheel and cycle off and on
to maintain a temperature above 68°F
(20°C). The indicator light will remain on as
long as the system is on.
LIC0421
HEATED STEERING WHEEL SWITCH
(if so equipped)
Instruments and controls2-49

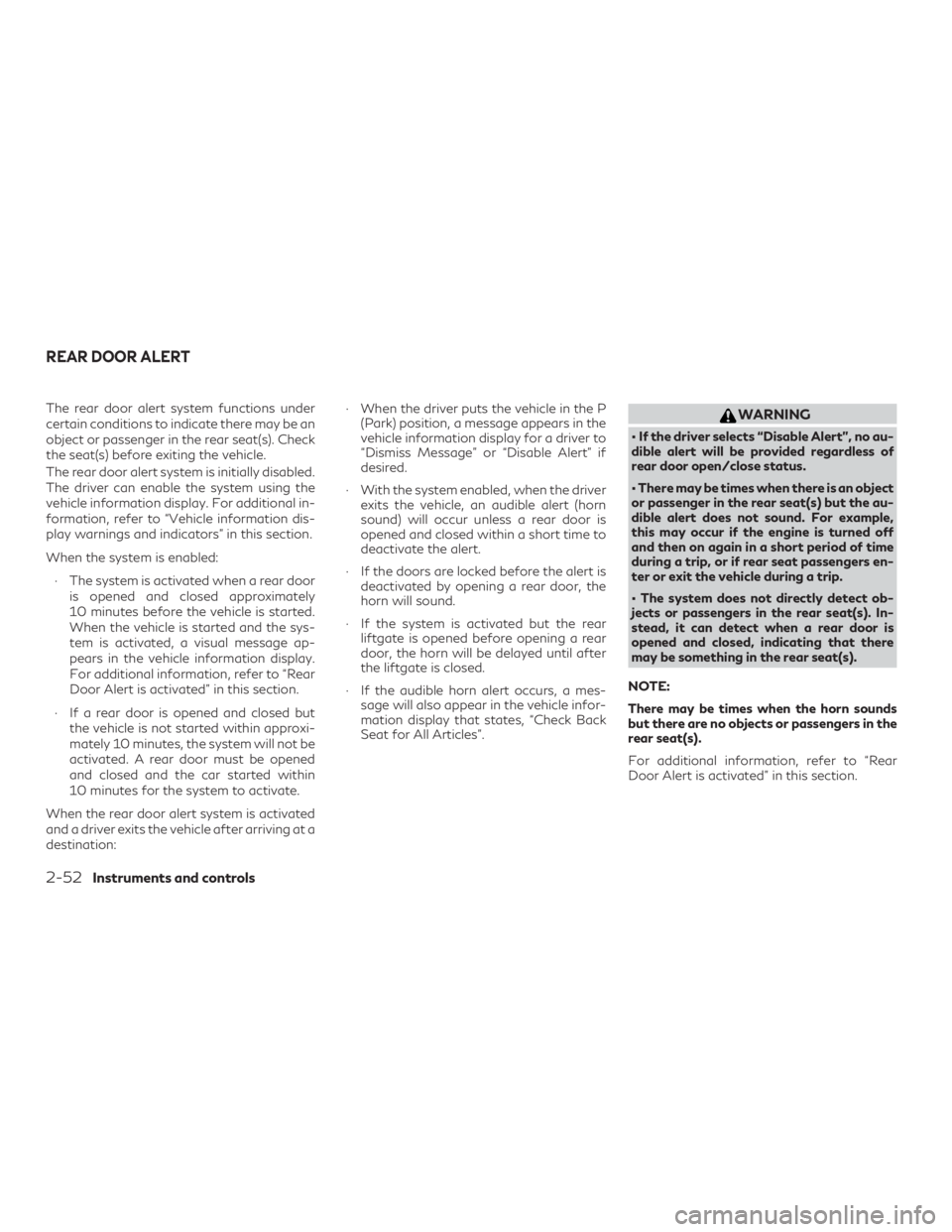

The rear door alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.
The rear door alert system is initially disabled.
The driver can enable the system using the
vehicle information display. For additional in-
formation, refer to “Vehicle information dis-
play warnings and indicators” in this section.
When the system is enabled:∙ The system is activated when a rear door is opened and closed approximately
10 minutes before the vehicle is started.
When the vehicle is started and the sys-
tem is activated, a visual message ap-
pears in the vehicle information display.
For additional information, refer to “Rear
Door Alert is activated” in this section.
∙ If a rear door is opened and closed but the vehicle is not started within approxi-
mately 10 minutes, the system will not be
activated. A rear door must be opened
and closed and the car started within
10 minutes for the system to activate.
When the rear door alert system is activated
and a driver exits the vehicle after arriving at a
destination: ∙ When the driver puts the vehicle in the P
(Park) position, a message appears in the
vehicle information display for a driver to
“Dismiss Message” or “Disable Alert” if
desired.
∙ With the system enabled, when the driver exits the vehicle, an audible alert (horn
sound) will occur unless a rear door is
opened and closed within a short time to
deactivate the alert.
∙ If the doors are locked before the alert is deactivated by opening a rear door, the
horn will sound.
∙ If the system is activated but the rear liftgate is opened before opening a rear
door, the horn will be delayed until after
the liftgate is closed.
∙ If the audible horn alert occurs, a mes- sage will also appear in the vehicle infor-
mation display that states, “Check Back
Seat for All Articles”.WARNING
• If the driver selects “Disable Alert”, no au-
dible alert will be provided regardless of
rear door open/close status.
• There may be times when there is an object
or passenger in the rear seat(s) but the au-
dible alert does not sound. For example,
this may occur if the engine is turned off
and then on again in a short period of time
during a trip, or if rear seat passengers en-
ter or exit the vehicle during a trip.
• The system does not directly detect ob-
jects or passengers in the rear seat(s). In-
stead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).
NOTE:
There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).
For additional information, refer to “Rear
Door Alert is activated” in this section.
REAR DOOR ALERT
2-52Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2
INFINITI Intelligent Key ........................3-2
INFINITI Vehicle Immobilizer System
keys ..........................................3-4
Doors ............................................3-4
Locking with key ..............................3-5
Locking with inside lock knob — Type A
(if so equipped) ................................3-5
Locking with inside lock knob — Type B
(if so equipped) ................................3-5
Locking with power door lock switch ...........3-6
Automatic door locks ..........................3-6
Child safety rear door lock .....................3-6
INFINITI Intelligent Key System ...................3-7
Operating range ..............................3-8
Door locks/unlocks precaution .................3-9
INFINITI Intelligent Key Operation ...........3-10
How to use the remote keyless entry
function .................................... 3-14
Warning signals .............................. 3-17
Troubleshooting guide ....................... 3-18
Remote Engine Start (if so equipped) ............3-20
Remote Engine Start operating range ........3-20
Remote starting the vehicle ..................3-21Extending engine run time
...................3-21
Canceling a Remote Engine Start ............3-21
Conditions the Remote Engine Start will
not work .................................... 3-22
Hood .......................................... 3-23
Liftgate ........................................ 3-23
Operating the power liftgate ................3-24
Motion-Activated Liftgate
(if so equipped) .............................. 3-27
Power liftgate main switch
(if so equipped) .............................. 3-28
Liftgate release ............................. 3-29
Liftgate position setting .....................3-30
Fuel-filler door ................................. 3-30
Opening the fuel-filler door ..................3-30
Fuel-filler cap ............................... 3-31
Steering wheel ................................. 3-33
Tilt and telescopic operation .................3-33
Sun visors ...................................... 3-34
Vanity

mirrors ............................... 3-35
Card holder ................................. 3-35
Mirrors ........................................ 3-36
Automatic anti-glare rearview mirror
(if so equipped) .............................. 3-36

TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the vehicle,
the vehicle system may respond differently
than expected.
SymptomPossible CauseRemedy
When stopping the engine The Shift to Park warning appears on
the display and the inside warning chime
sounds continuously. The shift lever is not in the P (Park)
position.Move the shift lever to the P (Park)
position.
When shifting the shift lever to the P
(Park) position The Push ignition to OFF warning ap-
pears in the display. The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicle The Door Open warning appears on the
display and the inside warning chime
sounds continuously. The ignition switch is in the ACC or ON
position.
Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicle The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately 3 sec-
onds.
The ignition switch is in the ACC or ON
position.
Place the ignition switch in the OFF
position.
The Rear Door Alert warning message
appears on the display, the horn sounds
three times twice, or a Check Back Seat
For All Articles warning appears on the
display. The rear door alert is activated.
Check the back seat for all articles,
press the ENTER button to clear the
Rear Door Alert warning message.
The Shift to Park warning appears on
the display and the outside chime
sounds continuously. The ignition switch is in the ACC posi-
tion and the shift lever is not in the P
(Park) position.Move the shift lever to the P (Park) po-
sition and place the ignition switch in
the OFF position.
3-18Pre-driving checks and adjustments

SymptomPossible CauseRemedy
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for approxi-
mately 3 seconds and all the doors
unlock.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the door handle request
switchorthe
buttononthe
Intelligent Key to lock the door The outside chime sounds for approxi-
mately 2 seconds.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch to
start the engine The Intelligent Key battery indicator ap-
pears on the display.
The battery charge is low.Replace the battery with a new one. For
additional information, refer to “Battery
replacement” in the “Do-it-yourself” sec-
tion of this manual.
The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately 3 sec-
onds. The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch The Intelligent Key system warning light
in the meter illuminates in yellow. It warns of a malfunction with the Intel-
ligent Key system.It is recommended that you visit an
INFINITI retailer.
Pre-driving checks and adjustments3-19

Thebutton will be on the INFINITI In-
telligent Key if the vehicle has Remote Engine
Start. This feature allows the engine to start
from outside the vehicle.
The following features may be affected
when Remote Engine Start is used:
∙ Vehicles with an automatic climate con- trol system will default to either a heating
or cooling mode depending on outside
and cabin temperatures. For additional
information, refer to “Remote Engine
Start with Intelligent Climate Control” in
the “Monitor, climate, audio, phone and
voice recognition systems” section of this
manual. Laws in some local communities may restrict
the use of remote starters. For example,
some laws require a person using Remote
Engine Start to have the vehicle in view.
Check local regulations for any requirements.
Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, refer to “Conditions the
Remote Engine Start will not work” in this
section.
Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, refer to “INFINITI Intelli-
gent Key” in this section.
REMOTE ENGINE START
OPERATING RANGE
WARNING
To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, including entrapment in win-
dows or inadvertent door lock activation,
do not leave children, people who require
the assistance of others or pets unattended
in your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause a
significant risk of injury or death to people
and pets.
CAUTION
When the Intelligent Key battery is dis-
charged or other strong radio wave sources
are present near the operating location, the
Intelligent Key operating range becomes
narrower, and the Intelligent Key may not
function properly.
The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.
The Remote Engine Start operating range is
approximately 197 ft (60 m) from the vehicle.
LPD2272
REMOTE ENGINE START (if so
equipped)
3-20Pre-driving checks and adjustments
