2018 INFINITI QX30 headlight bulb

Lights
NOTE
Vehicles with LEDs in the light clusters: The display message for the corresponding light will only appear if all the LEDs have failed.
MessagePossible causes/consequences and solutions
[Check Left Cornering
Light] or [Check Right Cor-
nering Light] The left or right-hand cornering light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left Low Beam] or
[Check Right Low Beam]
The left or right-hand low beam headlight is faulty.•Check whether you are permitted to replace the bulb yourself (see "Lights" in the "8. Do-it-yourself" section).
or:
•Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Rear Left Turn Sig-
nal] or [Check Rear Right
Turn Signal] The rear left or right-hand turn signal is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Front Left Turn Sig-
nal] or [Check Front Right
Turn Signal]The front left or right-hand turn signal is faulty.•Check whether you are permitted to replace the bulb yourself (see "Lights" in the "8. Do-it-yourself" section).
or:
•Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Center Brake Lamp] The third brake light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left Brake Lamp] or
[Check Right Brake Lamp]The left-hand or right-hand brake light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
Instruments and controls2-41

MessagePossible causes/consequences and solutions
[Check Left Main Beam] or
[Check Right Main Beam] The left or right-hand high beam headlight is faulty.•Check whether you are permitted to replace the bulb yourself (see "Lights" in the "8. Do-it-yourself" section).
or:
•Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[License Plate Lamp] The left or right-hand license plate light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left Fog Lamp] or
[Check Right Fog Lamp]The left or right-hand fog light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Rear Fog Lamp]
The rear fog light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Front Left Side-
marker Lamp] or [Check
Front Right Sidemarker
Lamp]The front left or front right parking light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Backup Light]
The reversing light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left tail lamp] or
[Check Right tail lamp]The left or right-hand tail light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Check Left Daytime Run-
ning Light] or [Check Right
Daytime Running Light]The left or right-hand daytime driving light is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-42Instruments and controls

Halogen headlight bulb
Fitting/removing the access cover on the
front wheel arch:
You must remove the cover of the front
wheel arch before you can change the halo-
gen headlight bulb.
To remove: switch off the lights, turn the
steering so that the wheel behind the light in
question is pointing inwards . Slide cover
1up and remove it.To fit: inset cover
1again and slide it down
until it engages.
The headlight is a semi-sealed beam type
which uses a replaceable headlight (halogen)
bulb. A bulb can be replaced from inside the
engine compartment without removing the
headlight assembly.
If you need assistance for bulb replacement,
it is recommended that you visit an INFINITI
retailer.
Low/High beam Headlight bulb replace-
ment:
1. Open the hood. For details, see "Hood" inthe "3. Pre-driving checks and adjust-
ments" section.
2. Disconnect the negative (—) battery cable.
3. Remove the corresponding access cover from the wheel arch.
4. Turn housing cover
1counterclockwise
and remove it.
5. Turn bulb holder
2counterclockwise and
pull out
6. Take the headlight bulb out of bulb holder
2.
7. Insert the new bulb into bulb holder
2.
8. Insert bulb holder
2and turn it clockwise.
NDI1626NDI1611
Do-it-yourself8-25

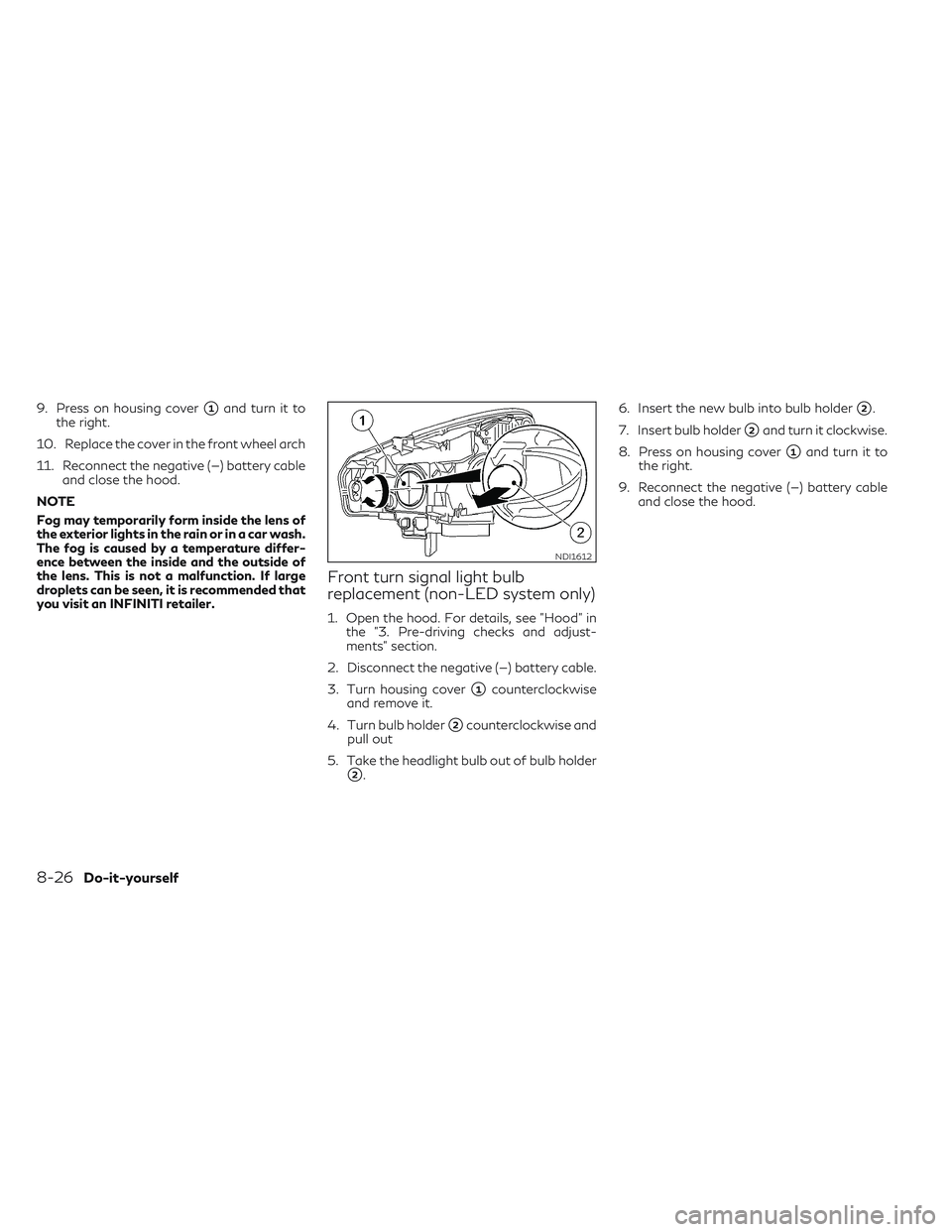

9. Press on housing cover1and turn it to
the right.
10. Replace the cover in the front wheel arch
11. Reconnect the negative (—) battery cable and close the hood.
NOTE
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car wash.
The fog is caused by a temperature differ-
ence between the inside and the outside of
the lens. This is not a malfunction. If large
droplets can be seen, it is recommended that
you visit an INFINITI retailer.
Front turn signal light bulb
replacement (non-LED system only)
1. Open the hood. For details, see "Hood" in the "3. Pre-driving checks and adjust-
ments" section.
2. Disconnect the negative (—) battery cable.
3. Turn housing cover
1counterclockwise
and remove it.
4. Turn bulb holder
2counterclockwise and
pull out
5. Take the headlight bulb out of bulb holder
2. 6. Insert the new bulb into bulb holder
2.
7. Insert bulb holder
2and turn it clockwise.
8. Press on housing cover
1and turn it to
the right.
9. Reconnect the negative (—) battery cable and close the hood.
NDI1612
8-26Do-it-yourself
