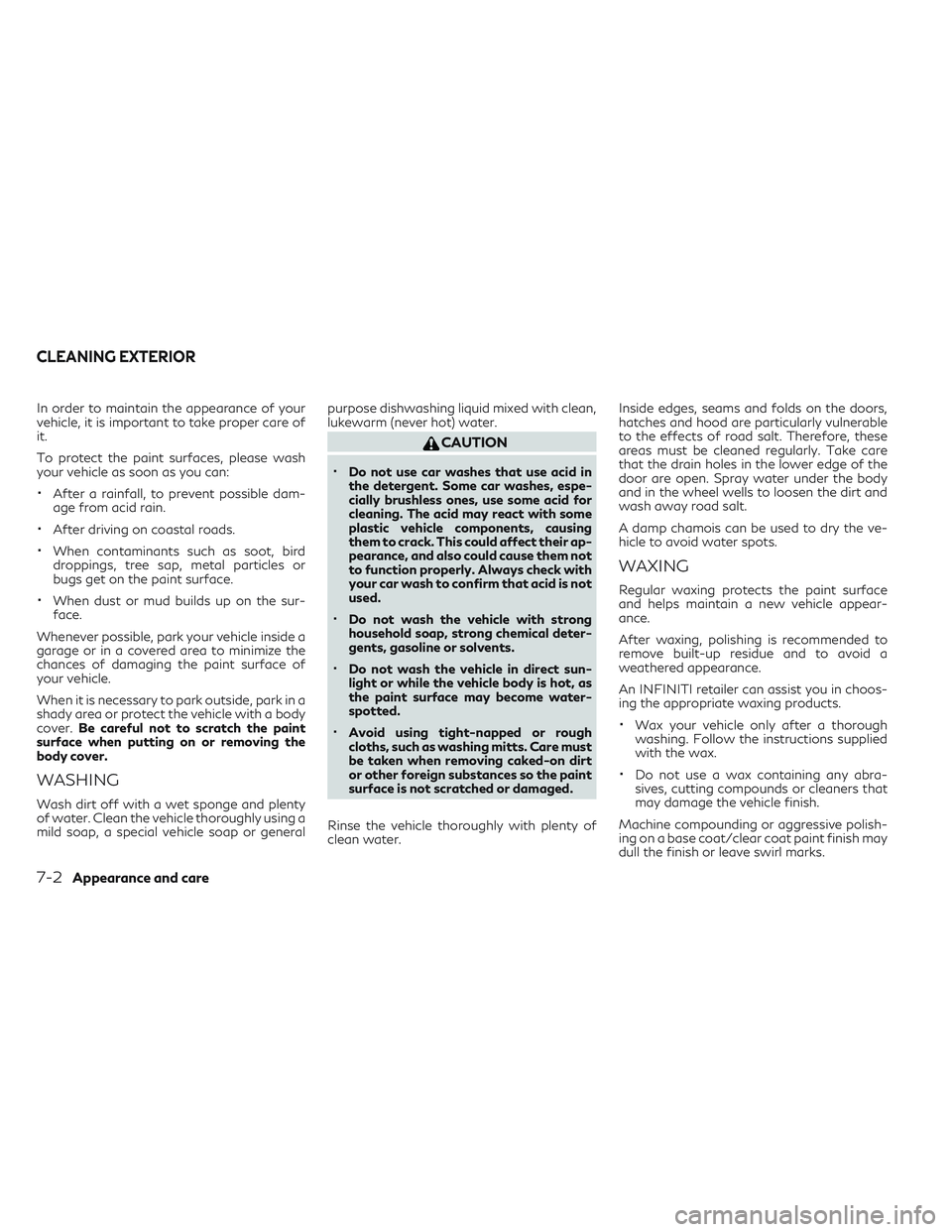

2018 INFINITI QX30 ESP

In order to maintain the appearance of your
vehicle, it is important to take proper care of
it.
To protect the paint surfaces, please wash
your vehicle as soon as you can:
•After a rainfall, to prevent possible dam-
age from acid rain.
•After driving on coastal roads.
•When contaminants such as soot, bird
droppings, tree sap, metal particles or
bugs get on the paint surface.
•When dust or mud builds up on the sur-
face.
Whenever possible, park your vehicle inside a
garage or in a covered area to minimize the
chances of damaging the paint surface of
your vehicle.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover. Be careful not to scratch the paint
surface when putting on or removing the
body cover.
WASHING
Wash dirt off with a wet sponge and plenty
of water. Clean the vehicle thoroughly using a
mild soap, a special vehicle soap or general purpose dishwashing liquid mixed with clean,
lukewarm (never hot) water.
CAUTION
•Do not use car washes that use acid in
the detergent. Some car washes, espe-
cially brushless ones, use some acid for
cleaning. The acid may react with some
plastic vehicle components, causing
them to crack. This could affect their ap-
pearance, and also could cause them not
to function properly. Always check with
your car wash to confirm that acid is not
used.
•Do not wash the vehicle with strong
household soap, strong chemical deter-
gents, gasoline or solvents.
•Do not wash the vehicle in direct sun-
light or while the vehicle body is hot, as
the paint surface may become water-
spotted.
•Avoid using tight-napped or rough
cloths, such as washing mitts. Care must
be taken when removing caked-on dirt
or other foreign substances so the paint
surface is not scratched or damaged.
Rinse the vehicle thoroughly with plenty of
clean water. Inside edges, seams and folds on the doors,
hatches and hood are particularly vulnerable
to the effects of road salt. Therefore, these
areas must be cleaned regularly. Take care
that the drain holes in the lower edge of the
door are open. Spray water under the body
and in the wheel wells to loosen the dirt and
wash away road salt.
A damp chamois can be used to dry the ve-
hicle to avoid water spots.
WAXING
Regular waxing protects the paint surface
and helps maintain a new vehicle appear-
ance.
After waxing, polishing is recommended to
remove built-up residue and to avoid a
weathered appearance.
An INFINITI retailer can assist you in choos-
ing the appropriate waxing products.
•Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
•Do not use a wax containing any abra-
sives, cutting compounds or cleaners that
may damage the vehicle finish.
Machine compounding or aggressive polish-
ing on a base coat/clear coat paint finish may
dull the finish or leave swirl marks.
CLEANING EXTERIOR
7-2Appearance and care

REMOVING SPOTS
Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the paint surface to avoid lasting damage or
staining. Special cleaning products are avail-
able at an INFINITI retailer or any automotive
accessory store.
UNDERBODY
In areas where road salt is used in the winter,
it is necessary to clean the vehicle’s under-
body regularly in order to prevent dirt and salt
from building up and causing the acceleration
of corrosion on the underbody and suspen-
sion.
Before the winter and again in the spring, the
underseal must be checked and, if necessary,
re-treated.
GLASS
Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.
CAUTION
When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
WHEELS
•Wash the wheels when washing the ve-
hicle to maintain their appearance.
•Clean the inner side of the wheels when
the wheel is changed or the underside of
the vehicle is washed.
•Do not use abrasive cleaners when wash-
ing the wheels.
•Inspect wheel rims regularly for dents or
corrosion. This may cause loss of pressure
or damage the tire bead.
•INFINITI recommends that the road
wheels be waxed to protect against road
salt in areas where it is used during winter.
ALUMINUM ALLOY WHEELS
Wash the wheels regularly with a sponge
dampened in a mild soap solution, especially
during winter in areas where road salt is used. The salt residue from road salt could discolor
the wheels if it is not washed off regularly.
CAUTION
Follow the directions below to avoid stain-
ing or discoloring the wheels:
•Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.
•Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as am-
bient temperature.
•Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.
CHROME PARTS
Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGS
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a
compound. This compound may come off the
tire while driving and stain the vehicle paint.
Appearance and care7-3

MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION
Most vehicle corrosion is caused by:
•The accumulation of moisture-retaining
dirt and debris in body panel sections, cavi-
ties, and other areas.
•Damage to the paint surface and other
protective coatings caused by gravel and
stone chips or minor traffic accidents.
ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION
Moisture
The accumulation of sand, dirt and water on
the inside floor of the vehicle can accelerate
corrosion. Wet floor carpet/floor mats will
not dry completely inside the vehicle. They
should be removed and completely dried to
avoid floor panel corrosion.
Relative humidity
Corrosion will be accelerated in areas of high
relative humidity, especially those areas
where the temperatures stay above freezing
and where atmospheric pollution exists and
road salt is used.
Temperature
High temperatures accelerate the rate of cor-
rosion to those parts which are not well ven-
tilated.
Air pollution
Industrial pollution, the presence of salt in the
air in coastal areas, or heavy road salt use
accelerates the corrosion process. Road salt
also accelerates the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE
FROM CORROSION
•Wash and wax your vehicle often to keep
the vehicle clean.
•Always check for minor damage to the
paint surface and repair it as soon as pos-
sible.
•Keep drain holes in the lower edge of the
doors open to avoid water accumulation.
•Check the underbody for accumulation of
sand, dirt or salt. If present, wash with
water as soon as possible.
CAUTION
•NEVER remove dirt, sand or other de-
bris from the passenger compartment
by washing it out with a hose. Remove
dirt with a vacuum cleaner or broom.
•Never allow water or other liquids to
come in contact with electronic compo-
nents inside the vehicle as this may dam-
age them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corro-
sion and deterioration of underbody compo-
nents such as the exhaust system, fuel and
brake lines, brake cables, floor pan and fend-
ers.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some
areas, it is recommended that you visit an
INFINITI retailer.
CORROSION PROTECTION
Appearance and care7-7

4. Repeatedly tap the key against your palmuntil battery
1falls out. 5. Insert the new battery with the positive
terminal facing upwards. Use a lint-free
cloth to do so.
6. Make sure that the surface of the battery is free of lint, grease and other contami-
nation.
7. Insert the front tabs of battery cover
1and then press to close it.
8. Insert emergency key element into the key (see "Mechanical key" in the "3. Pre-
driving checks and adjustments" section).
9. Check the function of all key buttons on the vehicle.
If you need assistance with replacement, it is
recommended that you visit an INFINITI re-
tailer for this service. FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
NOTE
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
NPA1473SPA0784Z
Do-it-yourself8-21

Halogen headlight bulb
Fitting/removing the access cover on the
front wheel arch:
You must remove the cover of the front
wheel arch before you can change the halo-
gen headlight bulb.
To remove: switch off the lights, turn the
steering so that the wheel behind the light in
question is pointing inwards . Slide cover
1up and remove it.To fit: inset cover
1again and slide it down
until it engages.
The headlight is a semi-sealed beam type
which uses a replaceable headlight (halogen)
bulb. A bulb can be replaced from inside the
engine compartment without removing the
headlight assembly.
If you need assistance for bulb replacement,
it is recommended that you visit an INFINITI
retailer.
Low/High beam Headlight bulb replace-
ment:
1. Open the hood. For details, see "Hood" inthe "3. Pre-driving checks and adjust-
ments" section.
2. Disconnect the negative (—) battery cable.
3. Remove the corresponding access cover from the wheel arch.
4. Turn housing cover
1counterclockwise
and remove it.
5. Turn bulb holder
2counterclockwise and
pull out
6. Take the headlight bulb out of bulb holder
2.
7. Insert the new bulb into bulb holder
2.
8. Insert bulb holder
2and turn it clockwise.
NDI1626NDI1611
Do-it-yourself8-25

Some day-to-day and regular maintenance is
essential to maintain your vehicle’s good me-
chanical condition, as well as its emission and
engine performance.
It is the owner’s responsibility to make sure
that the specified maintenance, as well as
general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives the
proper maintenance care. You are a vital link
in the maintenance chain.
GENERAL MAINTENANCE
General maintenance includes those items
which should be checked during normal day-
to-day operation of the vehicle. They are es-
sential if your vehicle is to continue to operate
properly. It is your responsibility to perform
these procedures regularly as prescribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.
These checks and inspections can be done by
yourself, a qualified technician, or if you pre-
fer, an INFINITI retailer.
SCHEDULED MAINTENANCE
The maintenance items listed under "Mainte-
nance schedules" later in this section are re-
quired to be serviced at regular intervals.
However under severe driving conditions, ad-
ditional or more frequent maintenance will be
required.
WHERE TO GO FOR SERVICE
If maintenance service is required or your
vehicle appears to malfunction, have the sys-
tems checked and serviced. It is recom-
mended you visit an INFINITI retailer for this
service.
INFINITI technicians are well-trained spe-
cialists and are kept up to date with the latest
service information through technical bulle-
tins, service tips and training programs. They
are completely qualified to work on INFINITI
vehiclesbeforework begins.
You can be confident that an INFINITI retail-
er’s service department can perform the ser-
vice needed to meet the maintenance re-
quirements on your vehicle. During normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section.
If you detect any unusual sounds, vibrations
or smells, be sure to check for the cause or
have an INFINITI retailer do it promptly. In
addition, it is recommended you notify an
INFINITI retailer if you think that repairs are
required.
When performing any checks or maintenance
work, closely observe "Explanation of general
maintenance items" later in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Additional information on the following
items with “*” is found later in the “Do-it-
yourself” section of this manual.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless other-
wise specified.
Doors and engine hood:
Check that all doors, the lift gate and the
engine hood operate smoothly. Also make
sure that all latches lock securely. Lubricate if
necessary. Make sure that the secondary
latch keeps the hood from opening when the
MAINTENANCE REQUIREMENTS
GENERAL MAINTENANCE
9-2Maintenance and Schedules

Propeller shaft(s):
Check for damage, looseness, and grease
leakage. (4WD/AWD).
Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:
Check for damage, looseness, and leakage of
oil or grease. Under severe driving conditions,
inspect more frequently
Tire rotation:
Tires should be rotated every 5,000 miles
(8,000 km) according to the instructions un-
der "Tire rotation*" earlier in this section.
When rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission fluid/oil, differential oil,
transfer case oil:
Visually inspect for signs of leakage at speci-
fied intervals.To ensure smooth, trouble-free, safe and
economical driving, INFINITI provides two
maintenance schedules that may be used,
depending upon the conditions in which you
usually drive. These schedules contain both
distance and time intervals, up to 120,000
miles (192,000 km)/144 months. For most
people, the odometer reading will indicate
when service is needed. However, if you drive
very little, your vehicle should be serviced at
the regular time intervals shown in the sched-
ule.
After 120,000 miles (192,000 km)/144
months, continue maintenance at the same
mileage/time intervals.
ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
SYSTEMS
Additional maintenance items for severe op-
erating conditions; should be performed on
vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following con-
ditions:
•Repeated short trips of less than 5 miles in
normal temperatures or less than 10 miles
in freezing temperatures.
•Stop-and-go traffic in hot weather or low
speed driving for long distances.
•Driving in dusty conditions or on rough,
muddy or salt-spread roads.
•Towing a trailer, or using a camper or car-
top carrier.
OIL CHANGE MONITOR
This vehicle is equipped with oil change moni-
tor. It calculates engine oil and filter change
interval base on driving conditions. Driving in
severe conditions will shorten the engine oil
and filter change interval. When the Engine
Oil – Service Due Now warning appears in
the vehicle information display, the engine oil
and filter need to be replaced.
NOTE
For vehicles operated in Canada, both stan-
dard and severe maintenance items should
be performed at every interval.
MAINTENANCE SERVICE
MESSAGES
The maintenance service interval display in-
forms you of the next service due date.
NOTE
The maintenance service interval display
does not show any information on the engine
oil level.
MAINTENANCE SCHEDULES
Maintenance and Schedules9-7

Fuel containing MMT
MMT, or methylcyclopentadienyl manganese
tricarbonyl, is an octane boosting additive.
INFINITI does not recommend the use of fuel
containing MMT. Such fuel may adversely
affect vehicle performance, including the
emissions control system. Note that while
some fuel pumps label MMT content, not all
do, so you may have to consult your gasoline
retailer for more details.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel in-
jector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may con-
tain active solvent or similar ingredients that
can be harmful to the fuel system and engine.
Octane rating tips
Using unleaded gasoline with an octane rat-
ing lower than recommended above can
cause persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If severe,
this can lead to engine damage. If you detect
a persistent heavy spark knock even when
using gasoline of the stated octane rating, or
if you hear steady spark knock while holding
a steady speed on level roads, it is recom-mended you have an INFINITI retailer cor-
rect the condition. Failure to correct the con-
dition is misuse of the vehicle, for which
INFINITI is not responsible.
Incorrect ignition timing will result in knock-
ing, after-run and/or overheating. This in turn
may cause excessive fuel consumption or
damage to the engine. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended you visit an
INFINITI retailer.
However, now and then you may notice light
spark knock for a short time while accelerat-
ing or driving up hills. This is no cause for
concern, because you get the greatest fuel
benefit when there is light spark knock for a
short time under heavy engine load.
ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure sat-
isfactory engine life and performance. For
additional information, refer to "Recom-
mended fluids/lubricants and capacities"
earlier in this section.
Select only engine oils that meet the
MB229.5 specification and SAE viscosity
standard. These oils have the MB229.5
specification label on the container. Oils
which do not have the specified quality label
should not be used as they could cause en-
gine damage.
Oil additives
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is impor-
tant that the engine oil viscosity be selected
Technical information10-5
