2018 INFINITI QX30 check engine

2.0L GASOLINE ENGINE
1. Engine coolant reservoir (P.8-3)
2. Engine oil dipstick (P.8-5)
3. Engine oil filler cap (P.8-5)
4. Brake fluid reservoir (P.8-7)
5. Engine air cleaner filter (P.8-13)6. Battery (P.8-9)
7. Fuse box (P.8-17)
8. Window washer fluid reservoir (P.8-8)
WARNING
The engine cooling system is filled at the
factory with a high-quality, year-round,
antifreeze coolant solution. The antifreeze
solution contains rust and corrosion inhibi-
tors, therefore additional cooling system
additives are not necessary.
•Never remove the radiator or coolant
reservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused by
high-pressure fluid escaping from the
radiator. For additional information on
precautions, refer to "If your vehicle
overheats" in the "6. In case of emer-
gency" section
•The engine coolant reservoir tank is
equipped with a pressure type cap. To
prevent engine damage, use only a
genuine INFINITI pressure cap.
CAUTION
•Never use any cooling system additives
such as radiator sealer. Additives may
clog the cooling system and cause dam-
age to the engine, transmission and/or
cooling system.
NIC2833
ENGINE COMPARTMENT CHECK
LOCATIONS ENGINE COOLING SYSTEM
Do-it-yourself8-3

•When adding or replacing coolant, be
sure to use only INFINITI Genuine En-
gine Coolant, BASF Glysantin G40 or
equivalent in its quality. The use of other
types of engine coolant may damage the
engine cooling system.
CHECKING ENGINE COOLANT
LEVEL
NOTE
The coolant level must only be checked and
corrected when the engine is cold.
1. Park the vehicle on a level surface.
Only check the coolant level if the vehicle
is on a level surface and the engine is cold. 2. Slowly turn cap
1half a turn counter-
clockwise to allow excess pressure to es-
cape.
3. Turn cap
1further counter-clockwise
and remove it.
If the coolant is at the level of marker bar
3in the filler neck when cold, there is
enough coolant in coolant expansion tank
2.
4. If necessary, top up with INFINITI Genu- ine Engine Coolant, BASF Glysantin G40
or equivalent in its quality.
5. Replace cap
1and turn it clockwise as
far as it will go.
If the cooling system frequently requires
coolant, have it checked. It is recommended
that you visit an INFINITI retailer for this
service.
CHANGING ENGINE COOLANT
An INFINITI retailer can change the engine
coolant.
Improper servicing can result in reduced
heater performance and engine overheating.
WARNING
•To avoid being scalded, never change
the coolant when the engine is hot.
•Never remove the radiator cap when the
engine is hot. Serious burns could be
caused by high pressure fluid escaping
from the radiator.
•Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
•Keep coolant out of reach of children
and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
NDI1602
8-4Do-it-yourself

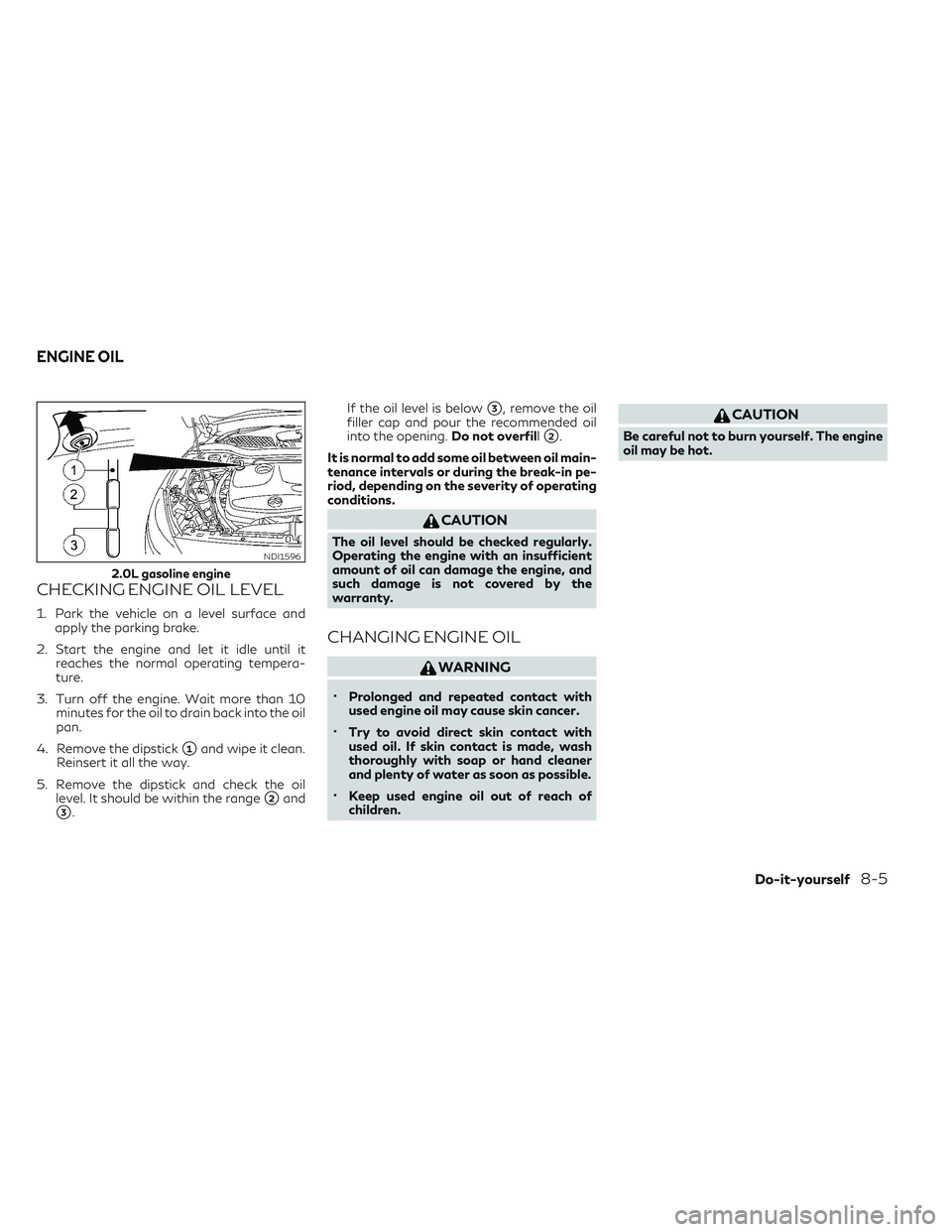

CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches the normal operating tempera-
ture.
3. Turn off the engine. Wait more than 10 minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick
1and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick and check the oil level. It should be within the range
2and
3. If the oil level is below
3, remove the oil
filler cap and pour the recommended oil
into the opening. Do not overfill
2.
It is normal to add some oil between oil main-
tenance intervals or during the break-in pe-
riod, depending on the severity of operating
conditions.
CAUTION
The oil level should be checked regularly.
Operating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by the
warranty.
CHANGING ENGINE OIL
WARNING
•Prolonged and repeated contact with
used engine oil may cause skin cancer.
•Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
and plenty of water as soon as possible.
•Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
NDI1596
2.0L gasoline engine
ENGINE OIL
Do-it-yourself8-5

1. Park the vehicle on a level surface andapply the parking brake.
2. Start the engine and let it idle until it reaches the normal operating tempera-
ture, then turn it off.
3. Remove the oil filler cap by turning it counterclockwise.
4. Remove the engine undershield.
5. Place a large drain pan under the drain plug.
6. Remove the drain plug with a wrench by turning it counterclockwise and com-
pletely drain the oil. If the oil filter is to be
changed, remove and replace it at this
time. For additional information, refer to
"Changing engine oil filter" later in this
section.
•Waste oil must be disposed of prop-
erly.
•Check your local regulations.
7. Clean and reinstall the drain plug and a new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.
Drain plug tightening torque: 22 ft-lb, 30
N•m
8. Refill engine with recommended oil through the oil filler opening, then install
the oil filler cap securely.
For additional information on drain and
refill capacity, refer to "Recommended
fluids/lubricants and capacities" in the "9.
Maintenance and Schedules" section.
The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only.
Always use the dipstick to determine
when the proper amount of oil is in the
engine.
9. Start the engine. Check for leakage around the drain plug and oil filter. Correct
as required.
10. Turn the engine off and wait more than 10 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface andapply the parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
1.
4. Loosen the oil filter
1with an oil filter
wrench by turning it counterclockwise.
Then remove the oil filter by turning it by
hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
NDI1622NDI1610
2.0L gasoline engine
8-6Do-it-yourself

CAUTION
•Be sure to remove any old gasket mate-
rial remaining on the sealing surface of
the engine. Failure to do so could lead to
an oil leak and engine damage.
•The dipstick must be inserted in place to
prevent oil spillage from the dipstick
hole when filling the engine with oil.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw on the oil filter until a slight resis- tance is felt, then tighten an additional
2/3 turn.
Engine oil filter tightening torque: 19 ft-lb,
25 N•m
8. Start the engine and check for leakage around the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add en-
gine oil if necessary. It is recommended that you visit an INFINITI
retailer if checking or replacement is required.
CAUTION
•Use only Shell DCT-M1 or equivalent.
Do not mix with other fluids.
•Using automatic transmission fluid
other than Shell DCT-M1 may cause de-
terioration in driveability and automatic
transmission durability, and may dam-
age the automatic transmission. Dam-
age caused by the use of fluids other
than as recommended is not covered by
the warranty.
WARNING
•Use only new fluid. Old, inferior, or con-
taminated fluid may damage the brake
systems. The use of improper fluids can
damage the brake system and affect the
vehicle's stopping ability.
•Clean the filler cap before removing.
•Brake fluid is poisonous and should be
stored carefully in marked containers
out of the reach of children.
CAUTION
•Do not spill the fluid on painted surfaces.
This will damage the paint. If fluid is
spilled, wash with water.
NDI1599
AUTOMATIC TRANSMISSION FLUID
(ATF) BRAKE FLUID
Do-it-yourself8-7

Check the fluid level in the reservoir. If the
brake fluid is below the MIN line
2, the brake
warning light will illuminate. Add brake fluid
up to the MAX line
1. Use Genuine INFINITI
brake fluid DOT4+ or equivalent. Never mix
different types of fluids. For additional infor-
mation on the recommended type of brake
fluid, refer "Recommended fluids/lubricants
and capacities" in the "9. Maintenance and
Schedules" section.
If the brake fluid must be added frequently,
the brake system should be thoroughly
checked. It is recommended that you visit an
INFINITI retailer for this service. Fill the windshield-washer fluid reservoir pe-
riodically. Add fluid when the low washer
fluid warning appears on the vehicle informa-
tion display.
To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.
Add a washer solvent to the washer for bet-
ter cleaning. In the winter season, add a
windshield-washer antifreeze. Follow the
manufacturer’s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of windshield-washer fluid.Recommended fluid is Genuine INFINITI
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.CAUTION
•Do not substitute engine antifreeze
coolant for window washer solution.
This may result in damage to the paint.
•Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
•Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the window washer reservoir tank.
Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.
NDI1601
WINDOW WASHER FLUID
8-8Do-it-yourself

4. Fit the replacement battery in the vehicle.
REINITIALISATION PROCEDURE
AFTER BATTERY
RECONNECTION
If the battery has been reconnected, check
the following items:
•Clock setting (if so equipped). For details,
see "Clock" in the "2. Instruments and con-
trols" section, or the separately provided
navigation system Owner's Manual, or the
audio device descriptions in " Audio system
(if equipped)" in the "4. Display screen,
heater and air conditioner, and audio sys-
tem" section.
•Reset the desired radio stations to the pre-
set station buttons. For details, see the
audio device descriptions in the “4. Heater
and air conditioner, and audio system”.
JUMP-STARTING
If jump-starting is necessary, see "Jump
starting" in the "6. In case of emergency" sec-
tion. If the engine does not start by jump
starting, the battery may have to be replaced.
It is recommended that you visit an INFINITI
retailer for this service.
WARNING
Be sure the ignition switch is in the OFF
position before servicing drive belt. The en-
gine could rotate unexpectedly.
1. Visually inspect each belt for signs of un- usual wear, cuts, fraying or looseness. If
the belt is in poor condition or loose, have
it replaced or adjusted. It is recommended
that you visit an INFINITI retailer for this
service.
2. Have the belts checked regularly for con- dition and tension in accordance with the
maintenance schedule as shown in a
separately provided Warranty Informa-
tion and Maintenance booklet.
NDI1635
DRIVE BELT
8-12Do-it-yourself

Replace the spark plugs according to the
maintenance schedule shown in a separate
maintenance booklet.
If replacement is required, it is recommended
that you visit an INFINITI retailer.
Always replace spark plugs with recom-
mended or equivalent ones.
WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
•Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can cause damage to the spark
plugs. It is recommended that you visit an INFINITI
retailer if checking or replacement is required.
WARNING
•Operating the engine with the air
cleaner filter off can cause you or others
to be burned. The air cleaner filter not
only cleans the intake air, it also stops
the flame if the engine backfires. If the
air cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when
the air cleaner is off.
•Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
CLEANING
If the windshield or rear window is not clear
after using the window washer or if a wiper
blade chatters when running, wax or other
material may be on the blade or windshield.
Clean the outside of the windshield or rear
window with a washer solution or a mild
detergent. The windshield or rear window is
clean if beads do not form when rinsing with
clear water.
Clean the blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
the windshield or rear window is still not clear
after cleaning the blades and using the wiper,
replace the blades.
CAUTION
Worn windshield wiper blades can damage
the windshield and impair driver vision.
SPARK PLUGS AIR CLEANER FILTERWIPER BLADES
Do-it-yourself8-13
