2018 INFINITI QX30 sensor

MessagePossible causes/consequences and solutions
[Emergency Brake
Currently Unavailable See
Operator's Manual] Forward Emergency Braking is temporarily inoperative.
Possible causes:
•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations
or other sources of electromagnetic radiation.
•The system is outside the operating temperature range.•The on-board voltage is too low.
Once the causes listed above no longer apply, the display message goes out.
Forward Emergency Braking is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Restart the engine.
[Emergency Brake Inop-
erative] Forward Emergency Braking is temporarily inoperative due to a malfunction.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
Instruments and controls2-37

MessagePossible causes/consequences and solutions
[Radar Sensor (See
Operator's Manual):] At least one of the following driving systems or driving safety systems is temporarily restricted or inoperative:
•Forward Emergency Braking•Intelligent Cruise Control•Blind Spot Warning
Possible causes:
•The sensors in the radiator trim and/or at the sides of the rear bumpers are dirty.•The function of the driving system and/or driving safety system is impaired due to heavy rain or snow.
A warning tone also sounds.
Once the causes listed above no longer apply, the display message goes out. All driving systems/driving safety systems are operative
again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions
2. Secure the vehicle against rolling away.
3. Switch off the engine.
4. Clean the sensors in the following locations: - In the radiator trim
- At the sides of the rear bumper
5. Restart the engine. The display message disappears.
[SRS Malfunction Service
Required] The restraint system needs servicing. Thewarning light also lights up in the combination meter.
It is recommended you visit an INFINITI retailer for these services.
Unless checked and repaired, the Supplemental Restraint Systems and/or the pretensioner seat belt may not function properly.
WARNING
If this light is on, it could mean that the front air bag, side air bag, curtain air bag systems and/or pretensioner systems will not
operate in an accident. To help avoid injury to yourself or others, have your vehicle checked as soon as possible. It is recommended
you visit an INFINITI retailer for this service.
For further information about the restraint system, see "Supplemental Restraint System (SRS)" in the "1. Safety — seats, seat belts and
supplemental restraint system" section.
2-38Instruments and controls

MessagePossible causes/consequences and solutions
[Front Passenger Airbag
Disabled See Operator's
Manual] The front-passenger front air bag is disabled during the journey although an adult or person of corresponding stature is on the front
passenger seat.
Front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause
the front passenger air bag to be automatically turned OFF. For small adults it may be turned OFF, however if the occupant takes
his/her weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out
of position), this could cause the sensor to turn the air bag OFF. Always be sure to be seated and wearing the seat belt properly for
the most effective protection by the seat belt and supplemental air bag.
If additional forces are applied to the seat, the system may interpret the occupant's weight as lower than it actually is.
1. Stop the vehicle in a safe area away from traffic as soon as possible, paying attention to road and traffic conditions.
2. Secure the vehicle against rolling away.
3. Switch the ignition off.
4. Have the occupant on the front-passenger seat step out of the vehicle.
5. Make sure that the seat is unoccupied, close the front passenger door and switch on the ignition.
6. Observe the indicator lights in the center console and the vehicle information display and check the
following. Seat unoccupied and ignition switched on:
- The and indicator lights must light up simultaneously for
approximately six seconds.
- The indicator lights must then light up and remain lit. If the indicator light is on, the automatic
front-passenger front air bag deactivation system has disabled the front-passenger front air bag (see "Front passenger air bag
and status light" in the "1. Safety — seats, seat belts and supplemental restraint system" section)
- the [Front Passenger Airbag Enabled See Operator's Manual] or [Front Passenger Airbag Disabled See Operator's Manual]
display messages must not be shown in the vehicle information display.
7. Wait for a period of at least 60 seconds until the necessary system checks have been completed.
8. Make sure that the display messages do not appear in the vehicle information display.
If these conditions are met, the front-passenger seat can be occupied again. Whether the or
indicator light remains lit or goes out depends on how the automatic front passenger front air bag deactivation system classifies the
occupant.
If, after taking the steps above, you still believe the system is not operating properly, have it checked immediately. It is recommended
you visit an INFINITI retailer for this service.
For further information on the automatic front-passenger front air bag deactivation feature (see "Front passenger air bag and status
light" in the "1. Safety — seats, seat belts and supplemental restraint system" section).
Instruments and controls2-39

MessagePossible causes/consequences and solutions

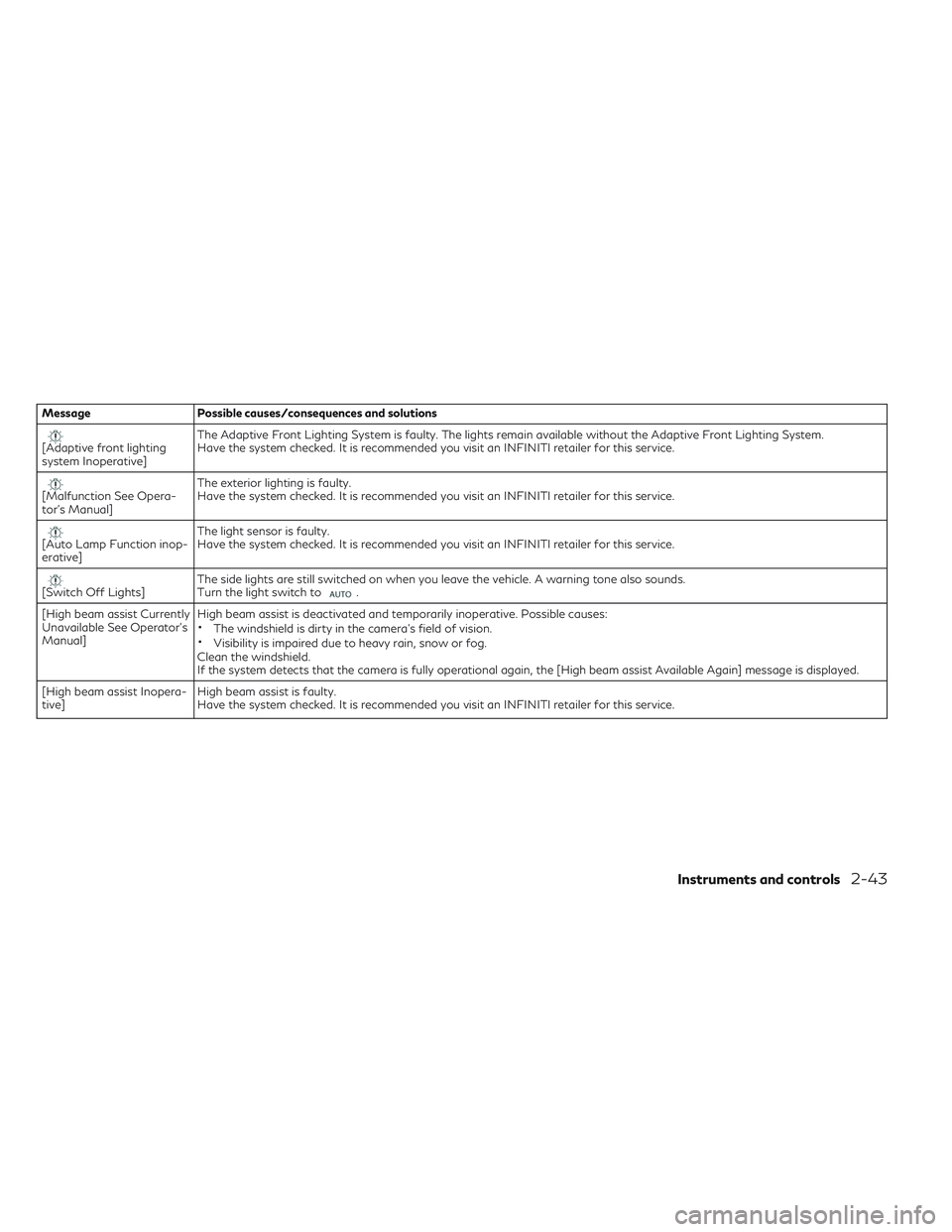

[Adaptive front lighting
system Inoperative] The Adaptive Front Lighting System is faulty. The lights remain available without the Adaptive Front Lighting System.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Malfunction See Opera-
tor's Manual]The exterior lighting is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Auto Lamp Function inop-
erative]The light sensor is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Switch Off Lights]
The side lights are still switched on when you leave the vehicle. A warning tone also sounds.
Turn the light switch to.
[High beam assist Currently
Unavailable See Operator's
Manual] High beam assist is deactivated and temporarily inoperative. Possible causes:
•The windshield is dirty in the camera's field of vision.•Visibility is impaired due to heavy rain, snow or fog.
Clean the windshield.
If the system detects that the camera is fully operational again, the [High beam assist Available Again] message is displayed.
[High beam assist Inopera-
tive] High beam assist is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
Instruments and controls2-43

Driving systems
MessagePossible causes/consequences and solutions
[Lane Departure Warning
Currently Unavailable See
Operator's Manual] Lane Departure Warning is deactivated and temporarily inoperative.
Possible causes:
•The windshield is dirty in the camera's field of vision.•Visibility is impaired due to heavy rain, snow or fog.•There have been no lane markings for an extended period.•The lane markings are worn, dark or covered, e.g. by dirt or snow.
Once the causes listed above no longer apply, the display message goes out.
Lane Departure Warning is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away.
3. Clean the windshield
[Lane Departure Warning
Inoperative] Lane Departure Warning is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Blind Spot Warning Cur-
rently Unavailable See Op-
erator's Manual] Blind Spot Warning is temporarily inoperative. Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations
or other sources of electromagnetic radiation.
•The radar sensor system is outside the operating temperature range.
The yellow indicator lights also light up in the exterior mirrors.
Once the causes listed above no longer apply, the display message goes out.
Blind Spot Warning is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away.
3. Restart the engine
2-48Instruments and controls

MessagePossible causes/consequences and solutions
[Blind Spot Warning Not
Available When Towing a
Trailer See Operator's
Manual] Blind Spot Warning is deactivated while towing a trailer.
You have established the electrical connection between the trailer and your vehicle.
Press on the steering wheel to confirm the display message.
[Blind Spot Warning
Inoperative] Blind Spot Warning (BSW) is faulty.
The BSW indicator lights also light up.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Canceled] The driver's door is open and the driver's seat belt has not been fastened. Repeat the parking process with the seat belt fastened and the driver's door closed.
You inadvertently touched the steering wheel while steering intervention was active.
While steering intervention is active, make sure not to touch the steering wheel.
The vehicle has started to skid and VDC has intervened.
Use Intelligent Park Assist again later.
[Park Assist Inoperative] You have just carried out a large number of turning or parking maneuvers. Intelligent Park Assist will become available again after approximately ten minutes.
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off theengine.
2. Restart the engine.
If the display message continues to be displayed, have the system checked. It is recommended you visit an INFINITI retailer for this
service.
The parking sensor system is faulty.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[Park Assist Finished] The vehicle is parked. A warning tone also sounds. The display message disappears automatically.
[ICC Off] Intelligent Cruise Control has been deactivated (see " Intelligent Cruise Control (ICC) system (Full speed range) (if equipped)" in the
"5. Starting and driving" section).
If it was not deactivated by the driver, a warning tone also sounds.
Instruments and controls2-49

MessagePossible causes/consequences and solutions
[ICC Now Available] Intelligent Cruise Control is operational again after having been temporarily unavailable. You can now reactivate Intelligent Cruise Control (see " Intelligent Cruise Control (ICC) system (Full speed range) (if equipped)" in the "5. Starting and driving" section)
[ICC Currently Unavailable
See Operator's Manual] Intelligent Cruise Control is temporarily inoperative.
Possible causes:
•The function is impaired due to heavy rain or snow.•The radar sensor system is temporarily inoperative, e.g. due to electromagnetic radiation emitted by nearby TV or radio stations
or other sources of electromagnetic radiation.
•The system is outside the operating temperature range.•The on-board voltage is too low.
A warning tone also sounds.
Once the causes listed above no longer apply, the display message goes out.
Intelligent Cruise Control is operational again.
If the display message does not disappear:
1. Pull over and stop the vehicle safely as soon as possible, paying attention to road and traffic conditions, and switch off the engine.
2. Secure the vehicle against rolling away
3. Restart the engine
[ICC Inoperative] Intelligent Cruise Control is faulty. Forward Emergency Braking may also have become inoperative. A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
[ICC Suspended] You have depressed the accelerator pedal. Intelligent Cruise Control is no longer controlling the speed of the vehicle. Remove your foot from the accelerator pedal.
[ICC - - - MPH] An activation condition for Intelligent Cruise Control is not fulfilled.
Check the activation conditions for Intelligent Cruise Control (see " Intelligent Cruise Control (ICC) system (Full speed range) (if
equipped)" in the "5. Starting and driving" section)
[ICC and Speed Limiter
Inoperative] Intelligent Cruise Control and Speed Limiter are faulty.
A warning tone also sounds.
Have the system checked. It is recommended you visit an INFINITI retailer for this service.
2-50Instruments and controls

MessagePossible causes/consequences and solutions
[Tire Press. Monitor
Currently Unavailable] No signals can be received from the tire pressure sensors due to strong RF interference. The tire pressure monitor is temporarily
malfunctioning.
Drive on. The tire pressure monitoring system restarts automatically as soon as the cause has been rectified.
[Tire Press. Sensor(s)
Missing] There is no signal from the tire pressure sensor of one or several wheels. The pressure of the affected tire is not displayed in the
vehicle information display.
Have the faulty tire pressure sensor replaced. It is recommended you visit an INFINITI retailer for this service.
[Tire Press. Monitor
Inoperative No Wheel
Sensors] The wheels fitted do not have suitable tire pressure sensors. The tire pressure monitoring system is deactivated.
Fit wheels with suitable tire pressure sensors The tire pressure monitoring system is activated automatically after driving for a few
minutes.
[Tire Press. Monitor
Inoperative] The tire pressure monitoring system is faulty.
Instruments and controls2-53
