2018 INFINITI QX30 Traction Control

•If both thewarning light andwarning light are lit continuously, VDC
is not available due to a malfunction.
TRACTION CONTROL SYSTEM
(TCS)
The Traction Control System (TCS) is part of
VDC.
Traction control brakes the drive wheels indi-
vidually if they spin. This enables you to pull
away and accelerate on slippery surfaces, for
example if the road surface is slippery on one
side. In addition, more drive torque is trans-
ferred to the wheel or wheels with traction.
Traction control remains active if you deacti-
vate VDC.
CHARACTERISTICS OF VDC
If theVDC warning light goes out before
beginning the journey, VDC is automatically
active.
If VDC intervenes, the
VDC warning
light flashes in the combination meter.
If VDC intervenes:
•Do not deactivate VDC under any circum-
stances.
•When pulling away, only depress the ac-
celerator pedal as far as is necessary.
•Adapt your driving style to suit the prevail-
ing road and weather conditions.
Deactivating/activating VDC
WARNING
If you deactivate VDC, VDC no longer sta-
bilizes the vehicle. There is an increased risk
of skidding and an accident.
Only deactivate VDC in the situations de-
scribed in the following section.
You can select between the following sta-
tuses of VDC:
•VDC is activated.
•VDC is deactivated.
It may be best to deactivate VDC in the fol-
lowing situations:
•When using snow chains.
•In deep snow.
•On sand or gravel. NOTE
Activate VDC as soon as the situations de-
scribed above no longer apply. VDC will oth-
erwise not be able to stabilize the vehicle if
the vehicle starts to skid or a wheel starts to
spin.
You can activate/deactivate VDC using the
vehicle information display. To activate/
deactivate VDC:
1. Start the engine
2. Press the
orbutton on the
steering wheel to select the [DriveAssist]
menu in the vehicle information display.
3. Press the
orbutton to select
VDC.
4. Press the button on the steering
wheel. The current selection is displayed.
5. To activate/deactivate: press the
button again.
VDC is deactivated if the
warning
light in the combination meter lights up
continuously when the engine is running.
Characteristics when VDC is deactivated:
If VDC is deactivated and one or more wheels
start to spin, the
VDC warning light
flashes in the combination meter. In such
situations, VDC will not stabilize the vehicle.
Starting and driving5-95

If you deactivate VDC:
•VDC no longer intervenes in understeer or
oversteer situations.
•Engine torque is no longer limited and the
drive wheels are able to spin.
The spinning of the wheels results in a
cutting action, so the tires cut through the
loose surface until the hit solid ground,
giving better traction.
•Traction control is still activated.
•VDC still provides support when you
brake.
EBD (ELECTRONIC BRAKE
FORCE DISTRIBUTION)
EBD monitors and controls the brake pres-
sure on the rear wheels to help improve han-
dling during braking.
WARNING
If EBD is malfunctioning, the EBD [Inop-
erative See Operator's Manual] warning is
displayed in the vehicle information dis-
play. The
VDC warning light may also
light up.
If EBD is malfunctioning as a result of a
VDC malfunction, the rear wheels can lock, e.g. under full braking. This increases the
risk of skidding and an accident.
You should therefore adapt your driving
style to the different handling characteris-
tics. Have the brake system checked. It is
recommended you see an INFINITI retailer.
STEER CONTROL
STEER CONTROL helps you by transmitting
a noticeable steering force to the steering
wheel in the direction required for vehicle
stabilisation.
This steering support is provided in particular
if:
•Both right wheels or both left wheels are
on a wet or slippery road surface when
you brake.
•The vehicle starts to skid.
WARNING
No steering support is provided from
STEER CONTROL, if:
•VDC is malfunctioning.
•The steering is faulty.
Power steering will, however, continue to
function.
WARNING
•Never rely solely on the Hill Start Assist
(HSA) system to prevent the vehicle
from moving backward on a hill. Always
drive carefully and attentively. Depress
the brake pedal when the vehicle is
stopped on a steep hill. Be especially
careful when stopped on a hill on frozen
or muddy roads. Failure to prevent the
vehicle from rolling backwards may re-
sult in a loss of control of the vehicle and
possible serious injury or death.
•The Hill Start Assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Failure to do so may cause the vehicle to
roll backwards and may result in a colli-
sion or serious personal injury.
•The Hill Start Assist system may not
prevent the vehicle from rolling back-
wards on a hill under all load or road
conditions. Always be prepared to de-
press the brake pedal to prevent the ve-
hicle from rolling backwards. Failure to
do so may result in a collision or serious
personal injury.
•After a short time, hill start assist will no
longer brake your vehicle and it could
HILL START ASSIST (HSA)
5-96Starting and driving

drive at a reduced speed, otherwise, your
vehicle may be damaged and/or vehicle
handling and performance may be ad-
versely affected.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during the winter:
•A scraper and stiff-bristled brush to re-
move ice and snow from the windows.
•A sturdy, flat board to be placed under the
jack to give it firm support.
•A shovel to dig the vehicle out of snow-
drifts.
•Extra washer fluid to refill the windshield
washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
•Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or sanded.
•Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.
•Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
•Allow greater following distances on
slippery roads.
•Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.
•Do not use cruise control on slippery
roads.
•Snow can trap dangerous exhaust gas
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.
5-98Starting and driving

10 Technical information
Recommended fluids/lubricants and capacities . .10-2Fuel recommendation ............... .10-3
Engine oil and oil filter recommendations . . . .10-5
Air conditioner system refrigerant and oil
recommendations .................. .10-6
Engine specifications .................. .10-7
Wheels and Tires .................... .10-8
Dimensions ........................ .10-9
When traveling or registering in another
country ......................... .10-10
Vehicle identification ................. .10-10
Vehicle identification number (VIN) plate . . .10-10
Vehicle identification number (chassis
number) ....................... .10-11
Engine serial number ............... .10-11
F.M.V.S.S./C.M.V.S.S. Certification label. . . .10-11
Emission control information label .......10-12
Tire and loading information label ........10-12
Air conditioner specification label ........10-12Installing front license plate
..............10-13
Vehicle loading information ..............10-14
TERMS ....................... .10-14
Vehicle load capacity ............... .10-15
Loading tips .................... .10-16
Measurement of weights .............10-16
Trailer towing ..................... .10-16
Uniform tire quality grading ..............10-17
Treadwear ..................... .10-17
Traction AA, A, B and C ..............10-17
Temperature A, B and C ..............10-17
Emission control system warranty .........10-18
Reporting safety defects ...............10-18
Readiness for inspection/maintenance (I/M)
test ............................ .10-19
Event data recorders (EDR) (if so equipped) . . .10-20
Owner's manual/service manual order
information ....................... .10-20

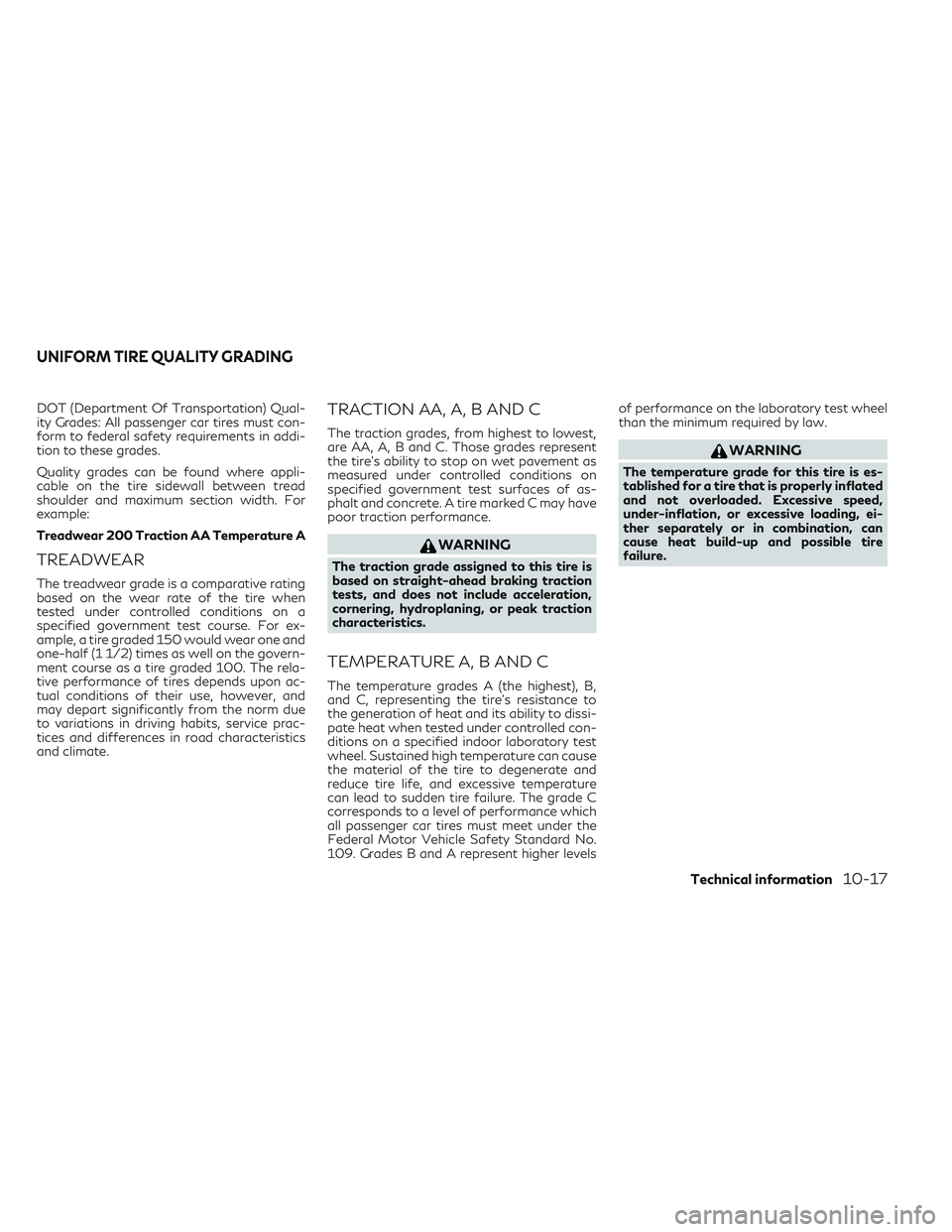

DOT (Department Of Transportation) Qual-
ity Grades: All passenger car tires must con-
form to federal safety requirements in addi-
tion to these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one and
one-half (1 1/2) times as well on the govern-
ment course as a tire graded 100. The rela-
tive performance of tires depends upon ac-
tual conditions of their use, however, and
may depart significantly from the norm due
to variations in driving habits, service prac-
tices and differences in road characteristics
and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest,
are AA, A, B and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions on
specified government test surfaces of as-
phalt and concrete. A tire marked C may have
poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B,
and C, representing the tire’s resistance to
the generation of heat and its ability to dissi-
pate heat when tested under controlled con-
ditions on a specified indoor laboratory test
wheel. Sustained high temperature can cause
the material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure. The grade C
corresponds to a level of performance which
all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard No.
109. Grades B and A represent higher levelsof performance on the laboratory test wheel
than the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, ei-
ther separately or in combination, can
cause heat build-up and possible tire
failure.
UNIFORM TIRE QUALITY GRADING
Technical information10-17
