•In some situations, the system may not be
able to recognize your command even if
you say the exact command. This can be
due to noise conditions or an accent.
•Bluetooth® Compatibility: Some wireless
devices do not allow phonebook down-
loads, text messaging, or other
Bluetooth® audio functions. Some wire-
less devices may only have partial func-
tionality of these features even though the
phone is compatible for hands-free com-
munication. If your phone is listed as com-
patible and you are still experiencing is-
sues, please confirm that your phone also
has the latest software updates.
Additional help
For additional technical information, please
contact us online at OWNERS.www.infini-
tiusa.com or call us at 1–800–662–6200,
menu option 6.
ARearView Monitor display
BINFINITI controller
C

•The RearView Monitor is a convenience
feature but it is not a substitute for
proper backing up. Always turn and look
out the windows, and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.
•The system is designed as an aid to the
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
•The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the lens.
The RearView Monitor system automatically
shows a rear view of the vehicle when the
shift lever is placed in the R (Reverse) posi-
tion.
The radio can still be heard while the Rear-
View Monitor is active. To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s rear license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion to operate the RearView Monitor.
NAA1642
4-18Display screen, heater and air conditioner, and audio system

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to
the bumper line
Aare displayed on the moni-
tor.
Distance guide lines:
Indicate distances from the bumper.
•Red line1: approx. 1.5 ft (0.5 m)
•Yellow line2: approx. 3 ft (1 m)
•Green line3: approx. 7 ft (2 m)
•Green line4: approx. 10 ft (3 m)
Vehicle width guide lines
5:
Indicate the approximate vehicle width when
backing up. Predicted course lines
6:
Indicate the predicted course when backing
up. The predicted course lines will be dis-
played on the monitor when the shift lever is
in the R (Reverse) position and the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and will not be displayed
while the steering wheel is in the neutral po-
sition.
The vehicle width guide lines and the width
of the predicted course lines are wider than
the actual width and course.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
viewed in the monitor farther than it appears.
SAA1896Z
NAA1675
Display screen, heater and air conditioner, and audio system4-19

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
viewed in the monitor closer than it appears.
Backing up near a projecting object
The predicted course linesAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
moving course.
Backing up behind a projecting
object
The positionCis shown further than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the object
NAA1676SAA1923SAA1980
4-20Display screen, heater and air conditioner, and audio system

when backing up to the positionAif the
object projects over the actual moving
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
•If the tires are replaced with different
sized tires, the predicted course line may
not be displayed correctly.
•On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.
•The displayed lines will appear slightly
off to the right because the rear view
camera is not installed in the rear center
of the vehicle.
•If the battery is disconnected or be-
comes discharged, the predicted course
lines may be displayed incorrectly. If this
occurs, please perform the following
procedures: – Turn the steering wheel from lock to
lock while the engine is running.
– Drive the vehicle on a straight road
for more than 5 minutes.
•When the steering wheel is turned with
the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.
The vehicle width and predicted course lines
are wider than the actual width and course.
1. Visually check that the parking space issafe before parking your vehicle.
SAA1897
Display screen, heater and air conditioner, and audio system4-21

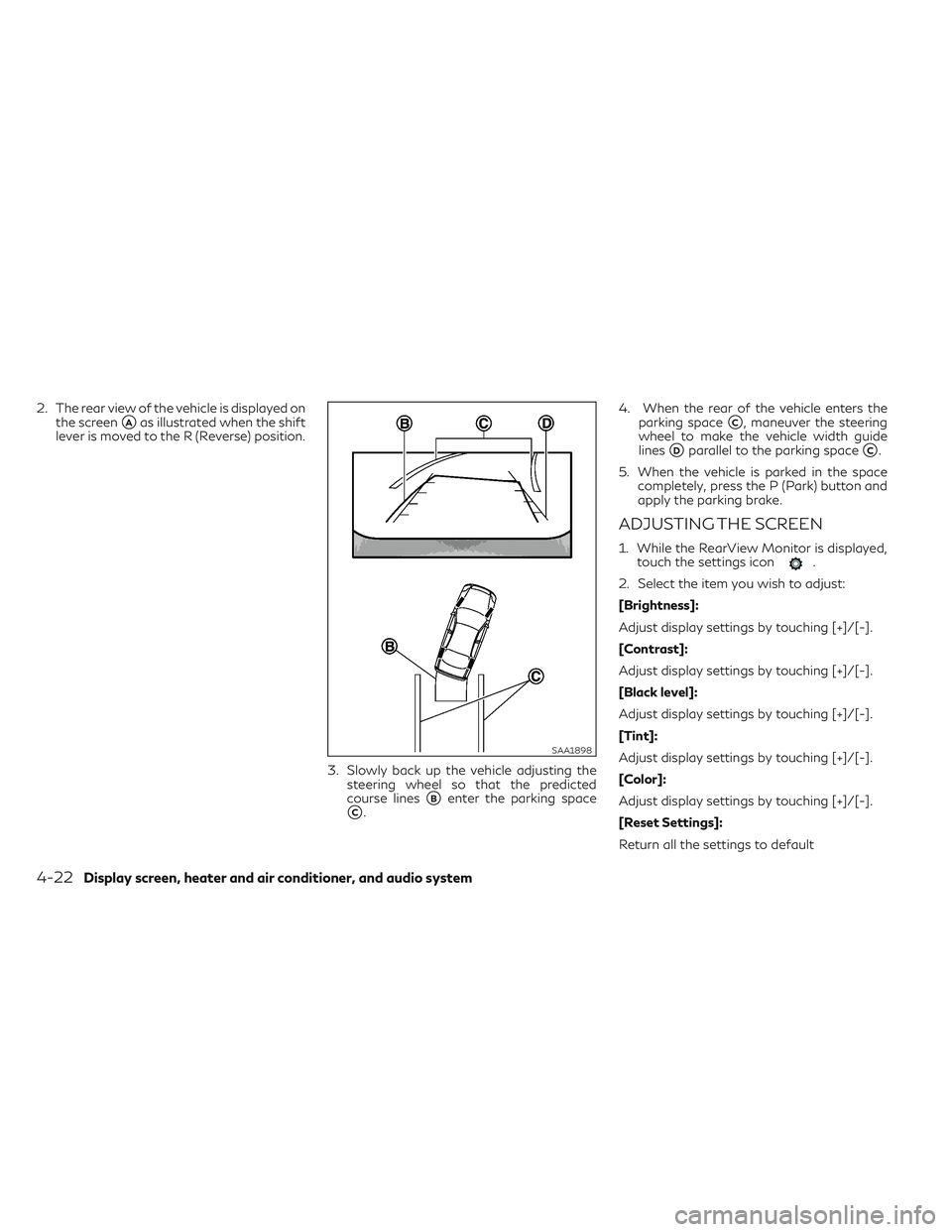

2. The rear view of the vehicle is displayed onthe screen
Aas illustrated when the shift
lever is moved to the R (Reverse) position.
3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted
course lines
Benter the parking space
C. 4. When the rear of the vehicle enters the
parking space
C, maneuver the steering
wheel to make the vehicle width guide
lines
Dparallel to the parking spaceC.
5. When the vehicle is parked in the space completely, press the P (Park) button and
apply the parking brake.
ADJUSTING THE SCREEN
1. While the RearView Monitor is displayed,touch the settings icon.
2. Select the item you wish to adjust:
[Brightness]:
Adjust display settings by touching [+]/[-].
[Contrast]:
Adjust display settings by touching [+]/[-].
[Black level]:
Adjust display settings by touching [+]/[-].
[Tint]:
Adjust display settings by touching [+]/[-].
[Color]:
Adjust display settings by touching [+]/[-].
[Reset Settings]:
Return all the settings to default
SAA1898
4-22Display screen, heater and air conditioner, and audio system

NOTE
Do not adjust any of the display settings of
the RearView Monitor while the vehicle is
moving. Make sure the parking brake is
firmly applied.
A[Settings] key
B

1. Push the
