2018 INFINITI Q70 HYBRID stop start

in an accident. Immediately stop the
vehicle in a safe location and it is
recommended you contact an INFINITI
retailer.
A chime sounds if a malfunction occurs in the
brake system power supply.
. Anti-lock Braking System (ABS) warning
light
— Avoid driving at high speed and sud-
den braking, and see an INFINITI
retailer as soon as possible for an
inspection.
WARNING
.Your brake system may not be work-
ing properly if the brake warning
light (red) is on. Driving could be
dangerous. If you judge it to be safe,
drive carefully to the nearest service
station for repairs. Otherwise, have
your vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
hybrid system stopped and/or low
brake fluid level may increase your
stopping distance and braking will
require greater pedal effort as well as
pedal travel. .
If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended you visit an INFINITI
retailer for this service.
Direct Response Hybrid®Sys-
tem warning light
When the ignition switch is in the ON
position, the Direct Response Hybrid®Sys-
tem (hybrid system) warning light illumi-
nates. After starting the hybrid system, the
hybrid system warning light turns off.
If the hybrid system warning light illuminates
while driving, it may indicate that there is a
malfunction in the electric motor and/or
other hybrid system components.
Stop your vehicle immediately and it is
recommended that you contact your
INFINITI retailer.
If the hybrid system warning light blinks
while driving, it may indicate that the Li-ion
battery charge is low and you cannot
continue to drive.
Do not allow the vehicle to coast when the
Li-ion battery is low or when the hybrid
system warning light blinks while driving.
The engine will not automatically start to charge the Li-ion battery while the vehicle is
coasting.
Distance Control Assist (DCA)
system warning light (orange; if so
equipped)
This light comes on if there is a malfunction
in the Distance Control Assist (DCA) system.
If the warning light illuminates, park the
vehicle in a safe place. Stop the hybrid
system, restart the hybrid system, resume
driving and turn on the DCA system again.
If it is not possible to turn on the system or
the warning light stays on, it may indicate
that the system is malfunctioning. Although
the vehicle is still driveable under normal
conditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If
the light flickers or comes on during normal
driving, pull off the road in a safe area, stop
the engine immediately and it is recom-
mended that you call an INFINITI retailer or
other authorized repair shop.
The engine oil pressure warning light is not
Instruments and controls2-13

2-14Instruments and controls
designed to indicate a low oil level. Use the
dipstick to check the oil level.(See “Engine
oil” (P.8-8).)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Forward Emergency Braking
(FEB) system warning light (if so
equipped)
This light comes on when the ignition switch
is placed in the ON position. It turns off after
the hybrid system is started.
This light illuminates when the Forward
Emergency Braking (FEB) system is set to
OFF on the center display.
If the light illuminates when the FEB system
is ON, it may indicate that the system is
unavailable. See “Forward Emergency Brak-
ing (FEB)” (P.5-101) for more details.
This light will also illuminates if the Active
Trace Control is malfunctioning. Although the vehicle is still driveable under normal
conditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service. (See “Vehicle Dynamic Con-
trol (VDC) system” (P.5-122).)
High temperature warning
light
When the ignition switch is in the ON
position, the high temperature warning light
illuminates and then turns off. This indicates
that the high temperature sensor in the
engine coolant system is operational.
CAUTION
If the high temperature warning light
illuminates when the ignition switch is in
the ON position, it may indicate the
engine temperature is extremely high.
Stop the vehicle safety as soon as
possible.
If the vehicle is overheated, continuing
vehicle operation may seriously damage
the engine. (See “If your vehicle over-
heats” (P.6-12) for the immediate action
required.)
Hybrid EPS (Electrical Power
Steering) warning light
When the ignition switch is in the ON
position, the Hybrid EPS (Electrical Power
Steering) warning light illuminates. After
starting the hybrid system, the Hybrid EPS
warning light turns off. This indicates that
the electrical power steering system is
operational.
If the Hybrid EPS warning light illuminates
while the hybrid system is running, it may
indicates the Hybrid EPS system is not
functioning properly and may need servicing.
Have the Hybrid EPS system checked. It is
recommended you visit an INFINITI retailer
for this service.
When the Hybrid EPS warning light illumi-
nates with the hybrid system running, the
power assist to the steering will cease
operation but you will still have control of
the vehicle. At this time, greater steering
efforts are required to operate the steering
wheel, especially in sharp turns and at low
speeds. However, if the steering wheel
operation is still performed, the Hybrid EPS
may stop and the Hybrid EPS warning light
will illuminate. Place the ignition switch in
the OFF position. For a while after it refrains
from the steering wheel control, the tem-
perature of the Hybrid EPS system will go

down and the power assist level will return
to normal after starting the hybrid system.
The Hybrid EPS warning light will go off.
Intelligent Cruise Control (ICC)
system warning light (orange; if so
equipped)
This light comes on if there is a malfunction
in the Intelligent Cruise Control (ICC) sys-
tem.
If the warning light comes on, park the
vehicle in a safe place. Stop the hybrid
system, restart the hybrid system, resume
driving and set the ICC system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal con-
ditions, have the vehicle checked. It is
recommended you visit an INFINITI retailer
for this service.
Lane Departure Warning
(LDW) indicator light (orange; if so
equipped)
When the ignition switch is placed in the ON
position, the light will come on in orange,
turn green, and then turn off. This indicates
that the Lane Departure Warning (LDW) and Lane Departure Prevention (LDP) sys-
tems are operational.
While the LDW and/or LDP system is on,
the light will blink in orange and a warning
chime will sound if the vehicle is traveling
close to either the left or the right of a
traveling lane with detectable lane markers.
If the light comes on in orange and remains
on, it may indicate that the LDW and LDP
systems are not functioning properly. Have
the systems checked. It is recommended you
visit an INFINITI retailer for this service.
See “Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP)” (P.5-21).
Low tire pressure warning light
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors
the tire pressure of all tires except the spare.
The low tire pressure warning light warns of
low tire pressure or indicates that the TPMS
is not functioning properly.
After the ignition switch is pushed ON, this
light illuminates for about 1 second and
turns off.
Low tire pressure warning:
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
CHECK TIRE PRESSURE warning also
appears in the vehicle information display.
If you select tire pressure information in the
display, the LOW PRESSURE warning mes-
sage will be displayed. The tire pressure for
each tire will also be displayed.
When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure
warning light does not automatically turn
off when the tire pressure is adjusted. After
the tire is inflated to the recommended
pressure, the vehicle must be driven at
speeds above 16 MPH (25 km/h) to activate
the TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge to
check the tire pressure.
The CHECK TIRE PRESSURE warning is
active as long as the low tire pressure
warning light remains illuminated.
For additional information, see “Vehicle
information display” (P.2-21), “Tire Pressure
Monitoring System (TPMS) ” (P.5-5) and
“Tire Pressure Monitoring System (TPMS) ”
(P.6-3).
TPMS malfunction:If the TPMS is not functioning properly, the
low tire pressure warning light will flash for
approximately 1 minute when the ignition
switch is pushed ON. The light will remain on
Instruments and controls2-15

OPERATIONAL INDICATORS
1. Hybrid system start operation
indicator
This indicator appears when the shift lever is
in the P (Park) position.
This indicator means that the hybrid system
will start by pushing the ignition switch with
the brake pedal depressed. You can start the
INFINITI Direct Response Hybrid
®System
directly in any position of the ignition switch.
2. Steering lock release malfunction
indicator (if so equipped)
This indicator appears when the steering
wheel cannot be released from the LOCK
position.
If this indicator appears, push the push-
button ignition switch while lightly turning
the steering wheel right and left.
3. NO KEY warning
This warning appears in either of the
following conditions.
No key inside the vehicle:
The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle. Unregistered Intelligent Key:
The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recognized
by the system. You cannot start the hybrid
system with an unregistered key. Use the
registered Intelligent Key.
See “Intelligent Key system” (P.3-7) for more
details.

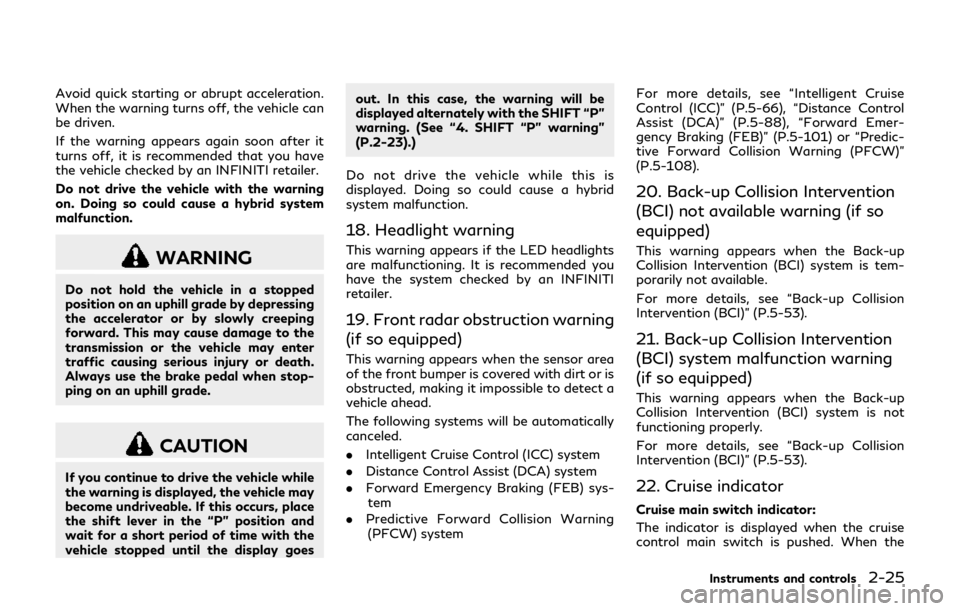

4. SHIFT “P” warning
This will be displayed in the following
conditions.
. When the shift lever is in any position
except P (Park) and the push button
ignition switch has been placed in the
OFF position from the ON position.
. When the shift lever is operated while the
READY to drive indicator light is flashing.
. The driver’s door is opened with the shift
lever in “N”, “D” or “R”.
. When the vehicle cannot be driven be-
cause the hybrid system temperature has
become too high.
. When the shift lever is in the “N”, “D” or
“R” position and level of remaining
charge in the Litium-ion (Li-ion) battery
is low.
. When the engine stops due to sudden
deceleration on a cold winter day. .
If a malfunction occurs in a situation
other than those described above and
the engine cannot start automatically.
When this warning appears, place the shift
lever in the P (Park) position.
When the Shift “P” warning appears, a
buzzer will sound.
This will turn off in the following conditions.
. When the shift lever has been placed in
the P (Park) position.
. When the push button ignition switch has
been pushed to ON.
5. “PUSH” warning
This warning appears when the shift lever is
moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT “P” warning appears.
To push the ignition switch to the OFF
position, perform the following procedure:
. SHIFT “P” warning ?(Move the shift
lever to “P”) ?PUSH warning ?(Push
the ignition switch ?ignition switch
position is turned to ON) ?PUSH
warning ?(Push the ignition switch ?
ignition switch position is turned to OFF)
6. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent
Instruments and controls2-23

2-24Instruments and controls
Key battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “Intelligent Key battery
replacement” (P.8-21).)
7. Intelligent Key ignition indicator
This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and vehicle
are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while depres-
sing the brake pedal. (See “Intelligent Key
battery discharge” (P.5-12).)
8. Parking brake release warning
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
9. Low fuel warning
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining in
the tank when the fuel gauge reaches the
empty (0) position.
10. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “Window washer fluid” (P.8-
12).)
11. Door/trunk open warning (igni-
tion switch is in the ON position)
This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
12. Intelligent Key system warning
This warning appears if there is a malfunc-
tion in the steering lock system or Intelligent
Key system.
If this warning appears while the hybrid
system is stopped, the steering lock (if so
equipped) cannot be released or the hybrid
system cannot be started. If this warning
appears while the hybrid system is running,
the vehicle can be driven. However, it is
recommended you contact an INFINITI
retailer for repair as soon as possible.
13. Loose fuel cap warning
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap” (P.3-22).)
14. Check tire pressure warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. If
this warning appears, stop the vehicle and
adjust the pressure to the recommended
COLD tire pressure shown on the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“Low tire pressure warning light” (P.2-15)
and “Tire Pressure Monitoring System
(TPMS) ” (P.5-5).)
15. “TIMER” indicator
This indicator appears when the set “TIMER”
indicator activates. You can set the time for
up to 6 hours. (See “Trip computer” (P.2-
28).)
16. Low outside temperature
warning
This warning appears if the outside tem-
perature is below 37°F (3°C). The warning
can be set not to be displayed. (See “Trip
computer” (P.2-28).)
17. Hybrid system over heat warn-
ing
This warning appears when the temperature
of the hybrid system is too high. Stop the
vehicle in a safe location as soon as possible.

Avoid quick starting or abrupt acceleration.
When the warning turns off, the vehicle can
be driven.
If the warning appears again soon after it
turns off, it is recommended that you have
the vehicle checked by an INFINITI retailer.
Do not drive the vehicle with the warning
on. Doing so could cause a hybrid system
malfunction.
WARNING
Do not hold the vehicle in a stopped
position on an uphill grade by depressing
the accelerator or by slowly creeping
forward. This may cause damage to the
transmission or the vehicle may enter
traffic causing serious injury or death.
Always use the brake pedal when stop-
ping on an uphill grade.
CAUTION
If you continue to drive the vehicle while
the warning is displayed, the vehicle may
become undriveable. If this occurs, place
the shift lever in the “P” position and
wait for a short period of time with the
vehicle stopped until the display goesout. In this case, the warning will be
displayed alternately with the SHIFT “P”
warning. (See “4. SHIFT “P” warning”
(P.2-23).)
Do not drive the vehicle while this is
displayed. Doing so could cause a hybrid
system malfunction.
18. Headlight warning
This warning appears if the LED headlights
are malfunctioning. It is recommended you
have the system checked by an INFINITI
retailer.
19. Front radar obstruction warning
(if so equipped)
This warning appears when the sensor area
of the front bumper is covered with dirt or is
obstructed, making it impossible to detect a
vehicle ahead.
The following systems will be automatically
canceled.
. Intelligent Cruise Control (ICC) system
. Distance Control Assist (DCA) system
. Forward Emergency Braking (FEB) sys-
tem
. Predictive Forward Collision Warning
(PFCW) system For more details, see “Intelligent Cruise
Control (ICC)” (P.5-66), “Distance Control
Assist (DCA)” (P.5-88), “Forward Emer-
gency Braking (FEB)” (P.5-101) or “Predic-
tive Forward Collision Warning (PFCW)”
(P.5-108).
20. Back-up Collision Intervention
(BCI) not available warning (if so
equipped)
This warning appears when the Back-up
Collision Intervention (BCI) system is tem-
porarily not available.
For more details, see “Back-up Collision
Intervention (BCI)” (P.5-53).
21. Back-up Collision Intervention
(BCI) system malfunction warning
(if so equipped)
This warning appears when the Back-up
Collision Intervention (BCI) system is not
functioning properly.
For more details, see “Back-up Collision
Intervention (BCI)” (P.5-53).
22. Cruise indicator
Cruise main switch indicator:
The indicator is displayed when the cruise
control main switch is pushed. When the
Instruments and controls2-25

2-34Instruments and controls
The alarm is activated by:
.Unlocking the door or opening the trunk
lid without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if the
door is opened by releasing the door
inside lock knob, the alarm will activate.)
. Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key. The alarm will not stop if
the ignition switch is pushed to the ACC or
ON position.
If the system does not operate as described
above, it is recommended you have it
checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System
will not allow the INFINITI Direct Response
Hybrid
®System to start without the use of
the registered Intelligent Key. Never leave
these keys in the vehicle. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any inter-
ference, including interference that may
cause undesired operation of the device.
SIC2045
Security indicator light
The security indicator light is located on the
meter panel. It indicates the status of the
INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch was
in the LOCK, ACC or OFF position. This
function indicates the security systems
equipped on the vehicle are operational.
If the INFINITI Vehicle Immobilizer System is
malfunctioning, this light will remain on
while the ignition switch is in the ON
position.

to contact the outlet.
. Do not leave the console box open.
The open lid may suddenly close when
the vehicle stops.
SIC4341
REAR
To open the ashtray lid, pull.
To empty the ashtray, pull
.
CUP HOLDERS
CAUTION
. Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Instruments and controls2-49
ASHTRAYS STORAGE
