2018 INFINITI Q60 keyless entry

JVC0939X
1. Hood (P.3-22)
2. Windshield wiper and washer
— Switch operation (P.2-35)
— Window washer fluid (P.8-15)
3. Headlights and turn signal lights
(P.2-38)— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-42)
4. Moonroof (if so equipped) (P.2-54)
5. Power windows (P.2-52)
6. Outside mirrors (P.3-30)
— Side turn signal lights (P.2-43)— Side view camera* (if so equipped)
7. Front view camera* (if so equipped)
8. Sonar sensors (if so equipped)
— Around View Monitor* (if so
equipped)
9. Fog lights (P.2-44)
10. Tires
— Wheels and tires (P.8-32, P.10-12)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-14, P.5-5)
11. Doors
— Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Remote engine start (if so equipped)
(P.3-19)
— Courtesy light (P.2-59)
*: Refer to the Infiniti InTouch Owner’s
Manual.
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
JVC0940X
1. Trunk lid (P.3-22)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-15)
— Auxiliary battery (for 2.0L turbo
gasoline engine models) (P.8-17)2. High-mounted stop light (P.8-29)
3. Satellite antenna (P.4-3)
4. Rear window defroster (P.2-37)/An-
tenna (P.4-3)
5. Sonar sensors (if so equipped)
— Around View Monitor* (if soequipped)
— Back-up Collision Intervention (BCI)
system (if so equipped) (P.5-61)
6. Rear view camera*
7. Rear combination light (P.8-29)
8. Fuel-filler door (P.3-25)
— Fuel information (P.10-3, P.10-5)
*: Refer to the Infiniti InTouch Owner’s
Manual.
EXTERIOR REAR

POWER MOONROOF
The moonroof only operates when the
ignition switch is in the ON position.
The moonroof is operational for about 45
seconds, even if the ignition switch is pushed
to the OFF position. If the driver’s door or
the passenger’s door is opened during this
period of about 45 seconds, power to the
moonroof is canceled.
JVI0655X
Sunshade
The sunshade will open automatically when
the moonroof is opened. However, it must
be closed manually.
Tilting the moonroof
To tilt up, first close the moonroof, then
push the switch to the tilt up positionand
release it; it need not be held. To tilt down
the moonroof, push the switch to the tilt
down position
.
Sliding the moonroof
To fully open or close the moonroof, push
the switch to the openor closeposition
and release it; it need not be held. The roofwill automatically open or close all the way.
To stop the roof, push the switch once more
while it is opening or closing.
Operating moonroof with Intelli-
gent Key (if so equipped)
The moonroof can be opened by pushing the
UNLOCK button on the Intelligent Key. This
function will not operate while the moonroof
timer is activated or when the moonroof
need to be initialized. For details about the
Intelligent Key button usage, see “How to
use remote keyless entry system” (P.3-16).
Opening:
To open the sunroof, push the UNLOCK
button on the Intelligent Key for about 3
seconds after the door is unlocked.
To stop opening, release the
button.
Auto reverse function
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
Instruments and controls2-55

3 Pre-driving checks and adjustments
Keys........................................................................................ 3-2
Intelligent Key................................................................ 3-2
Valet hand-off............................................................... 3-4
Doors ..................................................................................... 3-4
Locking with mechanical key .................................... 3-4
Opening and closing windows with
mechanical key .............................................................. 3-5
Locking with inside lock knob................................... 3-5
Locking with power door lock switch .................... 3-5
Automatic door locks .................................................. 3-6
Intelligent Key system....................................................... 3-6
Intelligent Key operating range................................ 3-8
Door locks/unlocks precaution ............................... 3-9
Intelligent Key operation............................................ 3-9
Battery saver system................................................. 3-13
Warning signals........................................................... 3-13
Troubleshooting guide .............................................. 3-14
Log-in function ........................................................... 3-15
Remote keyless entry system....................................... 3-15
How to use remote keyless entry system ........... 3-16
Remote engine start (if so equipped)......................... 3-19
Remote engine start operating range ................. 3-20
Remote starting the engine.................................... 3-20
Extending engine run time...................................... 3-20Canceling a remote start....................................... 3-20
Conditions the remote start will not work ....... 3-21
Hood ................................................................................... 3-22
Trunk lid ............................................................................. 3-22
Trunk lid release switch.......................................... 3-23
Trunk open request switch .................................... 3-23
TRUNK button .......................................................... 3-23
Trunk release power cancel switch..................... 3-24
Interior trunk lid release ......................................... 3-24
Fuel-filler door ................................................................. 3-25
Opening the fuel-filler door................................... 3-25
Fuel-filler cap............................................................. 3-25
Tilt/telescopic steering.................................................. 3-27
Manual operation (if so equipped) ...................... 3-28
Electric operation (if so equipped)....................... 3-28
Sun visors .......................................................................... 3-28
Mirrors................................................................................ 3-29
Inside mirror............................................................... 3-29
Outside mirrors ........................................................ 3-30
Vanity mirror.............................................................. 3-32
Automatic drive positioner (if so equipped) ............ 3-32
Memory storage ....................................................... 3-32
System operation ..................................................... 3-33

.You can switch the lock system to the
mode that allows you to open all the
doors when the key is turned once. (See
the Infiniti InTouch Owner’s Manual for
details.)
OPENING AND CLOSING WIN-
DOWS WITH MECHANICAL KEY
The driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-52).)
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while turning
the key.
This function can also be performed by
pushing and holding the UNLOCK button
on the Intelligent Key. (See “Remote keyless
entry system” (P.3-15).)
To close the window, turn the driver’s door
key cylinder to the front of the vehicle for
longer than 1 second. The door is locked and
the window keeps closing while turning the
key.
SPA2726
LOCKING WITH INSIDE LOCK
KNOB
To lock the door individually, move the inside
lock knob to the lock positionthen close
the door.
To unlock, move the inside lock knob to the
unlock position
.
When locking the door without an Intelli-
gent Key, be sure not to leave the Intelligent
Key inside the vehicle.
JVP0319X
LOCKING WITH POWER DOOR
LOCK SWITCH
Operating the power door lock switch will
lock or unlock all the doors and trunk lid. The
switches are located on the driver’s and
front passenger’s door armrests.
To lock the doors and trunk lid, push the
power door lock switch to the lock position
with the driver’s or front passenger’s door
open, then close the door.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors including the fuel-filler
door and trunk lid, push the power door lock
Pre-driving checks and adjustments3-5

LOG-IN FUNCTION
After setting up the user information, the
system will automatically recognize the user
upon turning on the vehicle.
There will be a personalized welcome greet-
ing and screen prompt to log-in.
This feature allows 4 drivers to use their
own registration, drive mode, driving posi-
tion, air conditioner, and auto settings and
memorizes these custom settings.
The log-in user can be changed on the
welcome greeting screen or the User List
screen. For more details, see the Infiniti
InTouch Owner’s Manual.
The log-in function is linked to the following
items:
.Meter
.Audio
.Navigation system display (if so
equipped)
.Navigation settings (if so equipped)
.Air conditioner
.Automatic drive positioner (if so
equipped)
.Engine/Transmission
.Steering
.Suspension (if so equipped).Active trace control system
.Driver assistance* (if so equipped)
.Body Control Module (BCM)
*: except for the Forward Emergency Brak-
ing (FEB) with pedestrian detection systemWARNING
The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
It is possible to lock/unlock all doors and
fuel-filler door, open the trunk lid, activate
the panic alarm and open the windows by
pushing the buttons on the Intelligent Key
from outside the vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The remote keyless entry function can
operate at a distance of approximately 33
ft (10 m) from the vehicle. (The effective
distance depends upon the conditions
around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concerning
the purchase and use of additional Intelli-
gent Keys, contact an INFINITI retailer.
The buttons on the Intelligent Key will not
operate when:
Pre-driving checks and adjustments3-15
REMOTE KEYLESS ENTRY SYSTEM

3-16Pre-driving checks and adjustments
.the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
.the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, ap-
proach the vehicle to about 3 ft (1 m) from
the door.
SPA2100
Type A (if so equipped)
JVP0409X
Type B (if so equipped)1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
5. Remote engine start button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as
a confirmation. For details, see “Setting
hazard indicator and horn mode” (P.3-18).
Locking doors, trunk lid and fuel-
filler door
1. Push the ignition switch to the OFF
position and make sure you carry the
Intelligent Key with you.*1
2. Close all the doors.
3. Push the LOCK
buttonon the
Intelligent Key.
4. All the doors, trunk lid and fuel-filler door
will lock.
5. The hazard indicator flashes twice and
the horn chirps once.
*1: Doors will lock with the Intelligent Key
while the ignition switch is in the ACC
or ON position.

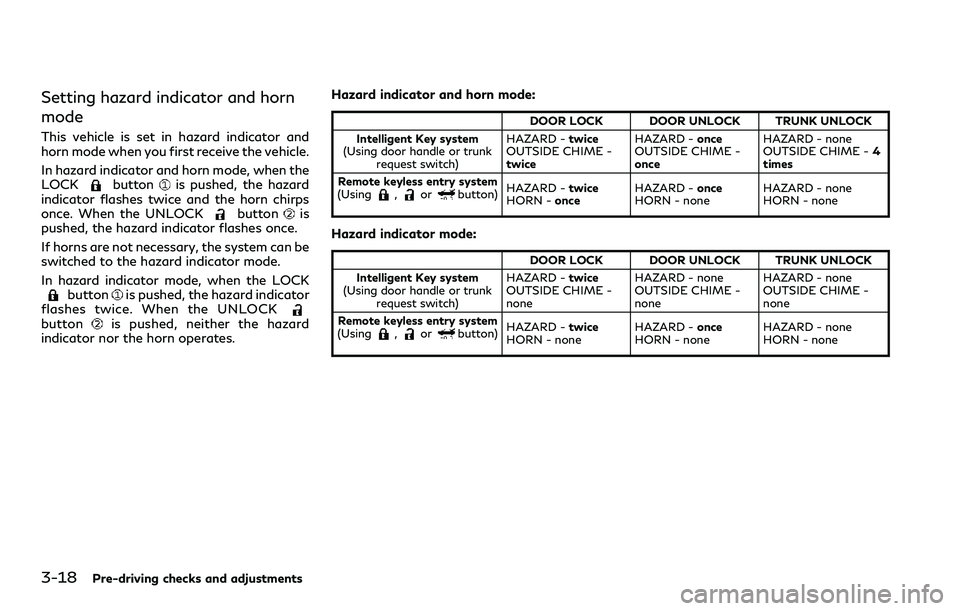

3-18Pre-driving checks and adjustments
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and
horn mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
buttonis pushed, the hazard
indicator flashes twice and the horn chirps
once. When the UNLOCK
buttonis
pushed, the hazard indicator flashes once.
If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
buttonis pushed, the hazard indicator
flashes twice. When the UNLOCK
buttonis pushed, neither the hazard
indicator nor the horn operates.Hazard indicator and horn mode:
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or trunk
request switch)HAZARD -twice
OUTSIDE CHIME -
twiceHAZARD -once
OUTSIDE CHIME -
onceHAZARD - none
OUTSIDE CHIME -4
times
Remote keyless entry system
(Using
,orbutton)HAZARD -twice
HORN -onceHAZARD -once
HORN - noneHAZARD - none
HORN - none
Hazard indicator mode:
DOOR LOCK DOOR UNLOCK TRUNK UNLOCK
Intelligent Key system
(Using door handle or trunk
request switch)HAZARD -twice
OUTSIDE CHIME -
noneHAZARD - none
OUTSIDE CHIME -
noneHAZARD - none
OUTSIDE CHIME -
none
Remote keyless entry system
(Using
,orbutton)HAZARD -twice
HORN - noneHAZARD -once
HORN - noneHAZARD - none
HORN - none
