10 Technical and consumer information
Capacities and recommended fluids/lubricants...... 10-2
Fuel information (for VR30DDTT
engine model)............................................................... 10-3
Fuel information (for 2.0L turbo gasoline
engine model)............................................................... 10-5
Engine oil and oil filter recommendation............ 10-8
Air conditioning system refrigerant and
lubricant recommendations .................................. 10-10
Specifications.................................................................. 10-11
Engine.......................................................................... 10-11
Wheels and tires ...................................................... 10-12
Dimensions ................................................................ 10-13
When traveling or registering in
another country............................................................. 10-14
Vehicle identification.................................................... 10-14
Vehicle Identification Number (VIN) plate ....... 10-14
Vehicle identification number
(chassis number) ...................................................... 10-14
Engine serial number .............................................. 10-15
F.M.V.S.S./C.M.V.S.S. certification label.......... 10-15
Emission control information label..................... 10-16
Tire and loading information label...................... 10-16
Air conditioner specification label ...................... 10-16Installing front license plate....................................... 10-17
Removing air deflectors............................................... 10-17
Vehicle loading information....................................... 10-18
Terms ........................................................................ 10-18
Vehicle load capacity............................................ 10-19
Loading tips ............................................................ 10-20
Measurement of weights.................................... 10-20

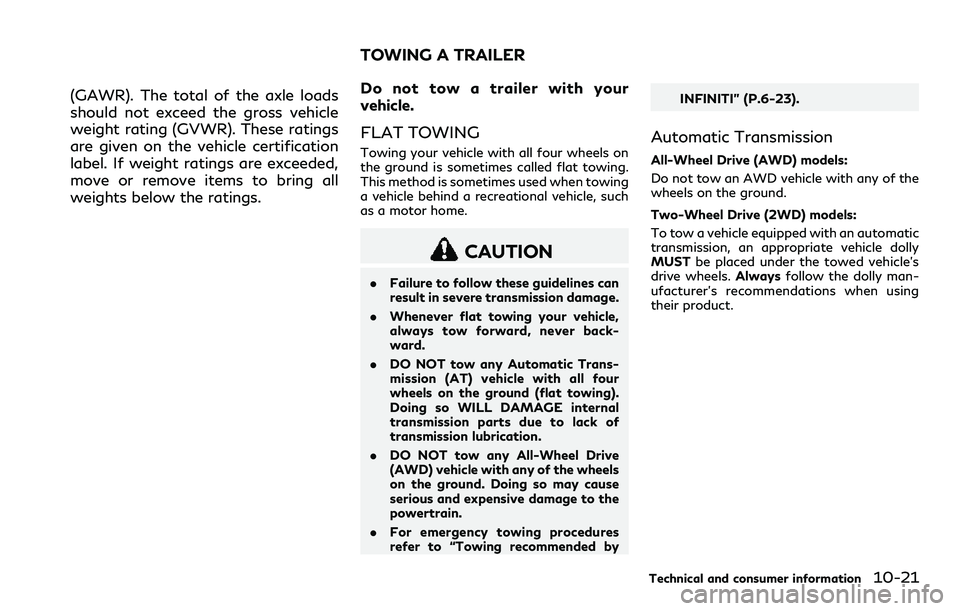

Towing a trailer............................................................. 10-21
Flat towing.............................................................. 10-21
Uniform tire quality grading...................................... 10-22
Treadwear ............................................................... 10-22
Traction AA, A, B and C...................................... 10-22
Temperature A, B and C...................................... 10-22
Emission control system warranty.......................... 10-23
Reporting safety defects............................................ 10-23
Readiness for Inspection/Maintenance (I/M)
test (US only)................................................................. 10-24
Event Data Recorders (EDR) .................................... 10-25
Owner’s Manual/Service Manual
order information ......................................................... 10-25

10-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Do-it-yourself” section to determine the proper refill capacity.
Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
MeasureUS
MeasureImperial
Measure
Fuel 76 L 20 gal 16-5/8 galÂSee “Fuel information (for VR30DDTT engine model)” (P.10-3) or “Fuel information (for
2.0L turbo gasoline engine model)” (P.10-5).
Engine oil
*1Drain and refill*1: For additional
information, see
“Engine oil” (P.8-
10).VR30DDTT
engine modelTwo-Wheel
Drive (2WD)
modelWith oil filter
change4.8 L 5-1/8 qt 4-1/4 qtÂGenuine “NISSAN Motor Oil 0W-20 SN” is recommended.
ÂIf the above motor oil is not available, use an equivalent motor oil that matches the above
grade and viscosity. For additional information, see “Engine oil and oil filter
recommendation” (P.10-8). Without oil fil-
ter change4.6 L 4-7/8 qt 4 qt
All-Wheel
Drive (AWD)
modelWith oil filter
change5.4 L 5-3/4 qt 4-3/4 qt
Without oil fil-
ter change5.2 L 5-1/2 qt 4-5/8 qt
2.0L turbo
gasoline en-
gine modelTwo-Wheel
Drive (2WD)
modelWith oil filter
change6.3 L 6-5/8 qt 5-1/2 qtÂEngine oil meeting specification MB229.5, viscosity SAE 0W-30 or equivalent.
ÂAs an alternative to this recommended oil, engine oils meeting specification MB229.5,
viscosity SAE 0W-40, 5W-30 and 5W-40 may be used and meet all specifications and
requirements necessary to maintain the new vehicle limited warranty.
ÂFor additional information, refer to “Selecting the correct oil” (P.10-9) and “Oil viscosity”
(P.10-9) under “Engine oil and oil filter recommendation” (P.10-8) of this manual. Without oil fil-
ter change5.8 L 6-1/8 qt 5-1/8 qt
All-Wheel
Drive (AWD)
modelWith oil filter
change6.6 L 7 qt 5-7/8 qt
Without oil fil-
ter change6.1 L 6-1/2 qt 5-3/8 qt
Engine coolant VR30DDTT
engine modelStandard and
premium
gradeTotal (with re-
servoir)8.8 L 9-1/4 qt 7-3/4 qtÂPre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 0.6 L 5/8 qt 1/2 qt
Sport grade Total (with re-
servoir)10.3 L 10-7/8 qt 9-1/8 qt
Reservoir 0.6 L 5/8 qt 1/2 qt
2.0L turbo
gasoline en-
gine modelTotal (with reservoir) 9.0 L 9-1/2 qt 7-7/8 qtÂBASF Glysantin
®G48®ÂUse BASF Glysantin®G48®or equivalent in its quality. Any damage to the vehicle or
within the engine cooling system caused by the use of engine coolant other than as
recommended is not covered under the INFINITI’s new vehicle limited warranty.
Reservoir 0.9 L 1 qt 3/4 qt
Intercooler coolant Total (with reservoir) 3.2 L 3-3/8 qt 2-7/8 qtÂPre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 0.4 L 3/8 qt 3/8 qt
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS

Fluid typeCapacity (approximate)
Recommended Fluids/Lubricants
Metric
MeasureUS
MeasureImperial
Measure
Automatic Transmission Fluid (ATF) — — —ÂGenuine NISSAN Matic S ATF
ÂINFINITI recommends using Genuine NISSAN Matic S ATF ONLY in INFINITI automatic
transmissions. Do not mix with other fluids. Using fluids that are not equivalent to
Genuine NISSAN Matic S ATF may damage the automatic transmission. Damage caused
by the use of fluids other than as recommended is not covered under the INFINITI’s new
vehicle limited warranty.
Differential gear
oilFront — — —ÂGenuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or equivalent conven-
tional (non-synthetic) oil
Rear — — —ÂGenuine NISSAN Differential Oil Hypoid Super-S GL-5 synthetic 75W-90 or equivalent
Transfer fluid — — —ÂGenuine NISSAN Matic J ATF
ÂINFINITI recommends using Genuine NISSAN Matic J ATF ONLY in INFINITI transfers.
Do not mix with other fluids. Using fluids that are not equivalent to Genuine NISSAN
Matic J ATF may damage the transfer. Damage caused by the use of fluids other than as
recommended is not covered under the INFINITI’s new vehicle limited warranty.
Brake fluid Refill to the proper oil level according
to the instructions in the “8. Do-it-
yourself” section.ÂGenuine NISSAN Super Heavy Duty Brake Fluid
*4or equivalent DOT 3*4: Available in mainland U.S.A. through an INFINITI retailer.
Power steering fluidÂGenuine NISSAN E-PSF or equivalent
ÂUse of a power steering fluid other than Genuine NISSAN E-PSF may prevent the power
steering system from operating properly.
Multi-purpose grease — — —ÂNLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — —ÂHFC-134a (R-134a)
For additional information, see “Vehicle identification” (P.10-14) for air conditioner
specification label.
Air conditioning system lubricants — — —ÂNISSAN A/C System Oil PAG or exact equivalent
Window washer fluid — — —ÂGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
FUEL INFORMATION (for
VR30DDTT engine model)
Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number 96).
INFINITI recommends the use of unleaded
premium gasoline with 93 AKI number
(Research octane number 98) to obtain the
maximum vehicle performance and the best
driveability.If unleaded premium gasoline is not avail-
able, unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91) may be tem-
porarily used, but only under the following
precautions:
.Have the fuel tank filled only partially
with unleaded regular gasoline, and fill
up with unleaded premium gasoline as
soon as possible..Avoid full throttle driving and abrupt
acceleration.
Use unleaded premium gasoline for max-
imum vehicle performance.
Technical and consumer information10-3

use in INFINITI vehicles.
If any undesirable driveability problems such
as engine stalling or hard hot starting are
experienced after using oxygenate-blend
fuels, immediately change to a non-oxyge-
nate fuel or a fuel with a low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-15 fuel
E-15 fuel is a mixture of approximately 15%
fuel ethanol and 85% unleaded gasoline. E-
15 can only be used in vehicles designed to
run on E-15 fuel. U.S. government regula-
tions require fuel ethanol dispensing pumps
to be identified with small, square, orange
and black label with the common abbrevia-
tion or the appropriate percentage for that
region.
E-85 fuel
E-85 fuel is a mixture of approximately 85%
fuel ethanol and 15% unleaded gasoline. E-
85 can only be used in a Flexible Fuel Vehicle
(FFV). Do not use E-85 fuel in your vehicle.
U.S. government regulations require fuel
ethanol dispensing pumps to be identified
by a small, square, orange and black label
with the common abbreviation or the appro-
priate percentage for that region.
Fuel containing MMT
MMT, or methylcyclopentadienyl manga-
nese tricarbonyl, is an octane boosting
additive. INFINITI does not recommend the
use of fuel containing MMT. Such fuel may
adversely affect vehicle performance, in-
cluding the emissions control system. Note
that while some fuel pumps label MMT
content, not all do, so you may have to
consult your gasoline retailer for more de-
tails.
Aftermarket fuel additives
INFINITI does not recommend the use of any
aftermarket fuel additives (Example: fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold com-
mercially. Many of these additives intended
for gum, varnish or deposit removal may
contain active solvent or similar ingredients
that can be harmful to the fuel system and
engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If severe,
this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octanerating, or if you hear steady spark knock
while holding a steady speed on level roads,
it is recommended you have an INFINITI
retailer correct the condition. Failure to
correct the condition is misuse of the
vehicle, for which INFINITI is not respon-
sible.
Incorrect ignition timing will result in knock-
ing, after-run or overheating. This in turn
may cause excessive fuel consumption or
damage to the engine. If any of the above
symptoms are encountered, have your ve-
hicle checked. It is recommended you visit an
INFINITI retailer for servicing.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
FUEL INFORMATION (for 2.0L
turbo gasoline engine model)
Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number 96).
If unleaded premium gasoline is not avail-
able, unleaded regular gasoline with an
octane rating of at least 87 AKI number
(Research octane number 91) may be tem-
Technical and consumer information10-5

10-8Technical and consumer information
hicle checked. It is recommended you visit an
INFINITI retailer for servicing.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
JVT0342X
API certification mark
API service symbol
ENGINE OIL AND OIL FILTER
RECOMMENDATION
VR30DDTT engine model
Selecting the correct oil:
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-2). INFINITI recommends
the use of an energy conserving oil in order
to improve fuel economy.Select only engine oils that meet the Amer-
ican Petroleum Institute (API) certification
or International Lubricant Standardization
and Approval Committee (ILSAC) certifica-
tion and SAE viscosity standard. These oils
have the API certification mark on the front
of the container. Oils which do not have the
specified quality label should not be used as
they could cause engine damage.
Oil additives:
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.

Oil viscosity:
The engine oil viscosity or thickness changes
with temperature. Because of this, it is
important that the engine oil viscosity be
selected based on the temperatures at which
the vehicle will be operated before the next
oil change. Choosing an oil viscosity other
than that recommended could cause serious
engine damage.
Selecting the correct oil filter:
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervals:
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other
than the specified quality, or oil and filter
change intervals longer than recommended
could reduce engine life. Damage to engines
caused by improper maintenance or use of
incorrect oil and filter quality and/or vis-
cosity is not covered by the new INFINITI
vehicle limited warranties.
Your engine was filled with a high quality
engine oil when it was built. You do not have
to change the oil before the first recom-
mended change interval. Oil and filterchange intervals depend upon how you use
your vehicle.
2.0L turbo gasoline engine model
Selecting the correct oil:
It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see “Capacities and recommended fluids/
lubricants” (P.10-2).
Select only engine oils that meet the
MB229.5 and SAE viscosity standard. These
oils have the MB229.5 on the container. Oils
which do not have the specified quality label
should not be used as they could cause
engine damage.
Oil additives:
INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosity:
The engine oil viscosity or thickness changes
with temperature. Because of this, it is
important that the engine oil viscosity be
selected based on the temperatures at which
the vehicle will be operated before the next
oil change. Choosing an oil viscosity otherthan that recommended could cause serious
engine damage.
Technical and consumer information10-9

(GAWR). The total of the axle loads
should not exceed the gross vehicle
weight rating (GVWR). These ratings
are given on the vehicle certification
label. If weight ratings are exceeded,
move or remove items to bring all
weights below the ratings.Do not tow a trailer with your
vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on
the ground is sometimes called flat towing.
This method is sometimes used when towing
a vehicle behind a recreational vehicle, such
as a motor home.
CAUTION
.Failure to follow these guidelines can
result in severe transmission damage.
.Whenever flat towing your vehicle,
always tow forward, never back-
ward.
.DO NOT tow any Automatic Trans-
mission (AT) vehicle with all four
wheels on the ground (flat towing).
Doing so WILL DAMAGE internal
transmission parts due to lack of
transmission lubrication.
.DO NOT tow any All-Wheel Drive
(AWD) vehicle with any of the wheels
on the ground. Doing so may cause
serious and expensive damage to the
powertrain.
.For emergency towing procedures
refer to “Towing recommended byINFINITI” (P.6-23).
Automatic Transmission
All-Wheel Drive (AWD) models:
Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly
MUSTbe placed under the towed vehicle’s
drive wheels.Alwaysfollow the dolly man-
ufacturer’s recommendations when using
their product.
Technical and consumer information10-21
TOWING A TRAILER

This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle, data
that will assist in understanding how a
vehicle’s systems performed. The EDR is
designed to record data related to vehicle
dynamics and safety systems for a short
period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record
such data as:
.How various systems in your vehicle were
operating;
.Whether or not the driver and passenger
safety belts were buckled/fastened;
.How far (if at all) the driver was depres-
sing the accelerator and/or brake pedal;
and,
.How fast the vehicle was traveling.
.Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR
under normal driving conditions and no
personal data (e.g. name, gender, age and
crash location) are recorded. However, other
parties, such as law enforcement, could
combine the EDR data with the type ofpersonally identifying data routinely ac-
quired during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI re-
tailer, other parties, such as law enforce-
ment, that have the special equipment, can
read the information if they have access to
the vehicle or the EDR. EDR data will only be
accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.Genuine INFINITI Service Manual for this
model year and prior can be purchased. A
genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manuals can also be
purchased.
For USA:
For current pricing and availability of genu-
ineINFINITI Service Manuals, contact:
1-800-450-9491
www.infiniti-techinfo.com
For current pricing and availability of genu-
ineINFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine INFINITI
Service Manual or Owner’s Manual for this
model year and prior, contact an INFINITI
retailer. For the phone number and location
of an INFINITI retailer in your area call the
INFINITI Satisfaction Center at 1-800-361-
4792 and a bilingual INFINITI representative
will assist you.
Technical and consumer information10-25
EVENT DATA RECORDERS (EDR)OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
