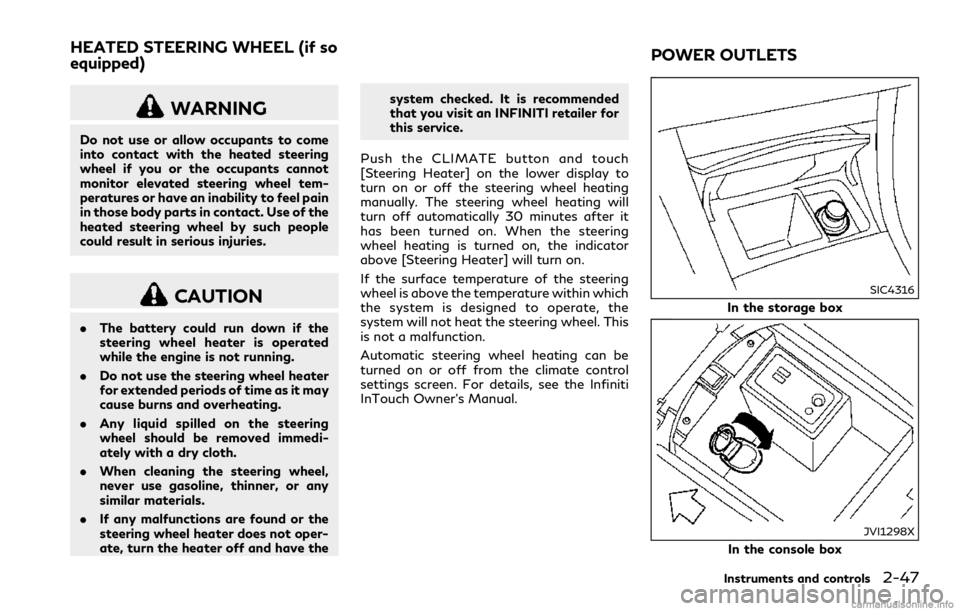

WARNING
Do not use or allow occupants to come
into contact with the heated steering
wheel if you or the occupants cannot
monitor elevated steering wheel tem-
peratures or have an inability to feel pain
in those body parts in contact. Use of the
heated steering wheel by such people
could result in serious injuries.
CAUTION
.The battery could run down if the
steering wheel heater is operated
while the engine is not running.
.Do not use the steering wheel heater
for extended periods of time as it may
cause burns and overheating.
.Any liquid spilled on the steering
wheel should be removed immedi-
ately with a dry cloth.
.When cleaning the steering wheel,
never use gasoline, thinner, or any
similar materials.
.If any malfunctions are found or the
steering wheel heater does not oper-
ate, turn the heater off and have thesystem checked. It is recommended
that you visit an INFINITI retailer for
this service.
Push the CLIMATE button and touch
[Steering Heater] on the lower display to
turn on or off the steering wheel heating
manually. The steering wheel heating will
turn off automatically 30 minutes after it
has been turned on. When the steering
wheel heating is turned on, the indicator
above [Steering Heater] will turn on.
If the surface temperature of the steering
wheel is above the temperature within which
the system is designed to operate, the
system will not heat the steering wheel. This
is not a malfunction.
Automatic steering wheel heating can be
turned on or off from the climate control
settings screen. For details, see the Infiniti
InTouch Owner’s Manual.
SIC4316
In the storage box
JVI1298X
In the console box
Instruments and controls2-47
HEATED STEERING WHEEL (if so
equipped)POWER OUTLETS

2-54Instruments and controls
Automatic adjusting function
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work and
the side roof panel may be damaged.
The power window has an automatic ad-
justing function. When the door is being
opened, the window is automatically low-
ered slightly to avoid contact between the
window and the side roof panel. When the
door is closed, the window is automatically
raised slightly.
While the automatic adjusting function does
not work, the window will be controlled as
follows:
.When the door is opened, the window
lowers for approximately 2 seconds.
.While the door is open, the window
cannot be raised.
If the windows do not close auto-
matically
If the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initializethe power window system.
1. Push the ignition switch to start the
engine.
2. Close the door.
3. After starting the engine, open the
window completely by operating the
power window switch.
4. Pull the power window switch and hold it
to close the window, and then hold the
switch more than 3 seconds after the
window is closed completely.
5. Release the power window switch. Op-
erate the window by the automatic
function to confirm the initialization is
complete.
6. Perform steps 2 through 5 above for
other windows.
If the power window automatic function
does not operate properly after performing
the procedure above, it is recommended you
have your vehicle checked by an INFINITI
retailer.
WARNING
.In an accident you could be thrown
from the vehicle through an open
moonroof. Always use seat belts
and child restraints.
.Do not allow anyone to stand up or
extend any portion of their body out
of the moonroof opening while the
vehicle is in motion or while the
moonroof is closing.
CAUTION
.Remove water drops, snow, ice or
sand from the moonroof before
opening.
.Do not place any heavy object on the
moonroof or surrounding area.
MOONROOF (if so equipped)

3 Pre-driving checks and adjustments
Keys........................................................................................ 3-2
Intelligent Key................................................................ 3-2
Valet hand-off............................................................... 3-4
Doors ..................................................................................... 3-4
Locking with mechanical key .................................... 3-4
Opening and closing windows with
mechanical key .............................................................. 3-5
Locking with inside lock knob................................... 3-5
Locking with power door lock switch .................... 3-5
Automatic door locks .................................................. 3-6
Intelligent Key system....................................................... 3-6
Intelligent Key operating range................................ 3-8
Door locks/unlocks precaution ............................... 3-9
Intelligent Key operation............................................ 3-9
Battery saver system................................................. 3-13
Warning signals........................................................... 3-13
Troubleshooting guide .............................................. 3-14
Log-in function ........................................................... 3-15
Remote keyless entry system....................................... 3-15
How to use remote keyless entry system ........... 3-16
Remote engine start (if so equipped)......................... 3-19
Remote engine start operating range ................. 3-20
Remote starting the engine.................................... 3-20
Extending engine run time...................................... 3-20Canceling a remote start....................................... 3-20
Conditions the remote start will not work ....... 3-21
Hood ................................................................................... 3-22
Trunk lid ............................................................................. 3-22
Trunk lid release switch.......................................... 3-23
Trunk open request switch .................................... 3-23
TRUNK button .......................................................... 3-23
Trunk release power cancel switch..................... 3-24
Interior trunk lid release ......................................... 3-24
Fuel-filler door ................................................................. 3-25
Opening the fuel-filler door................................... 3-25
Fuel-filler cap............................................................. 3-25
Tilt/telescopic steering.................................................. 3-27
Manual operation (if so equipped) ...................... 3-28
Electric operation (if so equipped)....................... 3-28
Sun visors .......................................................................... 3-28
Mirrors................................................................................ 3-29
Inside mirror............................................................... 3-29
Outside mirrors ........................................................ 3-30
Vanity mirror.............................................................. 3-32
Automatic drive positioner (if so equipped) ............ 3-32
Memory storage ....................................................... 3-32
System operation ..................................................... 3-33

CAUTION
.Be sure to carry the Intelligent Key
with you when operating the vehicle.
.Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions.
.When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
.When in possession of wireless equip-
ment, such as a cellular telephone,
transceiver, and CB radio.
.When the Intelligent Key is in contact
with or covered by metallic materials.
.When any type of radio wave remote
control is used nearby.
.When the Intelligent Key is placed near
an electric appliance such as a personal
computer..When the vehicle is parked near a parking
meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key func-
tion or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions, the
battery’s life is approximately 2 years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is almost
discharged, see “Intelligent Key battery dis-
charge” (P.5-14) to start the engine.
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery replace-
ment” (P.8-26).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
information about the purchase and use of
additional Intelligent Keys, contact an
INFINITI retailer.
CAUTION
.Do not allow the Intelligent Key,
which contains electrical compo-
nents, to come into contact with
water or salt water. This could affect
the system function.
.Do not drop the Intelligent Key.
.Do not strike the Intelligent Key
sharply against another object.
.Do not change or modify the Intelli-
gent Key.
.Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.
.Do not place the Intelligent Key for
an extended period in an area where
temperatures exceed 140°F (60°C).
.If the outside temperature is below
14°F (−10°C), the battery of the
Intelligent Key may not function
properly.
.Do not attach the Intelligent Key
with a key holder that contains a
magnet.
.Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment
Pre-driving checks and adjustments3-7

3-14Pre-driving checks and adjustments
TROUBLESHOOTING GUIDE
Symptom Possible cause Action to take
When pushing the ignition
switch to stop the engineThe SHIFT P warning appears on the
display and the inside warning chime
sounds continuously.The shift lever is not in the P (Park)
position.Shift the shift lever to the P (Park)
position.
When shifting the shift lever to
the P (Park) position.The inside warning chime sounds continu-
ously.The ignition switch is in the ACC or
ON position.Push the ignition switch to the OFF
position.
When opening the driver’s door
to get out of the vehicleThe inside warning chime sounds continu-
ously.The ignition switch is in the ACC
position.Push the ignition switch to the OFF
position.
When closing the door after
getting out of the vehicleThe NO KEY warning appears on the
display, the outside chime sounds 3 times
and the inside warning chime sounds for a
few seconds.The ignition switch is in the ACC or
ON position.Push the ignition switch to the OFF
position.
The SHIFT P warning appears on the
display and the outside chime sounds
continuously.The ignition switch is in the ACC or
OFF position and the shift lever is not
in the P (Park) position.Move the shift lever to the P (Park)
position and push the ignition switch to
the OFF position.
When closing the door with the
inside lock knob turned to
LOCKThe outside chime sounds for a few
seconds and all the doors unlock.The Intelligent Key is inside the
vehicle or trunk.Carry the Intelligent Key with you.
When pushing the request
switch or LOCK button on the
Intelligent Key to lock the doorThe outside chime sounds for a few
seconds.The Intelligent Key is inside the
vehicle or trunk.Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lidThe outside chime sounds for approxi-
mately 10 seconds and the trunk lid opens.The Intelligent Key is inside the trunk. Carry the Intelligent Key with you.

LOG-IN FUNCTION
After setting up the user information, the
system will automatically recognize the user
upon turning on the vehicle.
There will be a personalized welcome greet-
ing and screen prompt to log-in.
This feature allows 4 drivers to use their
own registration, drive mode, driving posi-
tion, air conditioner, and auto settings and
memorizes these custom settings.
The log-in user can be changed on the
welcome greeting screen or the User List
screen. For more details, see the Infiniti
InTouch Owner’s Manual.
The log-in function is linked to the following
items:
.Meter
.Audio
.Navigation system display (if so
equipped)
.Navigation settings (if so equipped)
.Air conditioner
.Automatic drive positioner (if so
equipped)
.Engine/Transmission
.Steering
.Suspension (if so equipped).Active trace control system
.Driver assistance* (if so equipped)
.Body Control Module (BCM)
*: except for the Forward Emergency Brak-
ing (FEB) with pedestrian detection systemWARNING
The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
It is possible to lock/unlock all doors and
fuel-filler door, open the trunk lid, activate
the panic alarm and open the windows by
pushing the buttons on the Intelligent Key
from outside the vehicle.
Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.
The remote keyless entry function can
operate at a distance of approximately 33
ft (10 m) from the vehicle. (The effective
distance depends upon the conditions
around the vehicle.)
As many as 4 Intelligent Keys can be used
with one vehicle. For information concerning
the purchase and use of additional Intelli-
gent Keys, contact an INFINITI retailer.
The buttons on the Intelligent Key will not
operate when:
Pre-driving checks and adjustments3-15
REMOTE KEYLESS ENTRY SYSTEM

3-16Pre-driving checks and adjustments
.the distance between the Intelligent Key
and the vehicle is over 33 ft (10 m).
.the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure
the doors are securely locked.
The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, ap-
proach the vehicle to about 3 ft (1 m) from
the door.
SPA2100
Type A (if so equipped)
JVP0409X
Type B (if so equipped)1. LOCK button
2. UNLOCK button
3. TRUNK button
4. PANIC button
5. Remote engine start button
HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM
When you lock or unlock the doors or the
trunk lid, the hazard indicator will flash and
the horn (or the outside chime) will sound as
a confirmation. For details, see “Setting
hazard indicator and horn mode” (P.3-18).
Locking doors, trunk lid and fuel-
filler door
1. Push the ignition switch to the OFF
position and make sure you carry the
Intelligent Key with you.*1
2. Close all the doors.
3. Push the LOCK
buttonon the
Intelligent Key.
4. All the doors, trunk lid and fuel-filler door
will lock.
5. The hazard indicator flashes twice and
the horn chirps once.
*1: Doors will lock with the Intelligent Key
while the ignition switch is in the ACC
or ON position.

Unlocking doors, trunk lid and fuel-
filler door
1. Push the UNLOCKbuttonon the
Intelligent Key once.
2. The hazard indicator flashes once. The
driver’s door will unlock.
3. Push the UNLOCK
buttonon the
Intelligent Key again within 1 minute.
4. The hazard indicator flashes once again.
All the doors, trunk lid and the fuel-filler
door will unlock.
All doors, trunk lid and the fuel-filler door
will be locked automatically unless one of
the following operations is performed within
1 minute after pushing the UNLOCK
button on the Intelligent Key while the doors
are locked. If during this 1-minute time
period, the UNLOCK
button on the
Intelligent Key is pushed, all doors will be
locked automatically after another 1 minute.
.Opening any door
.Pushing the ignition switch
Opening windows (if so equipped)
The UNLOCKbuttonoperation also
allows you to open the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-52).)
To open the window, push the door UN-LOCK
button on the Intelligent Key
forabout 3 secondsafter the door is
unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped in
mid-operation while pushing the UNLOCK
button, release and push the
UNLOCKbuttonagain until the
window opens completely.
Window cannot be closed using the Intelli-
gent Key.
The door window can also be operated by
turning the mechanical key in a door lock.
(See “Doors” (P.3-4).)
Opening moonroof (if so equipped)
The moonroof can be opened by pushing the
UNLOCKbuttonon the Intelligent
Key. This function will not operate while the
moonroof timer is activated or when the
windows need to be initialized.
To open the moonroof, push the UNLOCK
buttonon the Intelligent Key for
about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
Opening trunk lid
1. Push the TRUNKbuttonon the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm
If you are near your vehicle and feel
threatened, you may activate the alarm to
call attention as follows:
1. Push the PANIC
buttonon the key
formore than 1 second.
2. The theft warning alarm and headlights
will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the Intelligent
Key are pushed. (Note: PANIC
buttonor TRUNKbuttonshould be pushed for more than 1
second.)
Remote engine start (if so equipped)
The remote engine startbuttonis on
the Intelligent Key if the vehicle has remote
engine start function. This function allows
the engine to start from outside the vehicle.
See “Remote engine start” (P.3-19) for more
details.
Pre-driving checks and adjustments3-17
