2018 INFINITI Q50-HYBRID jump start

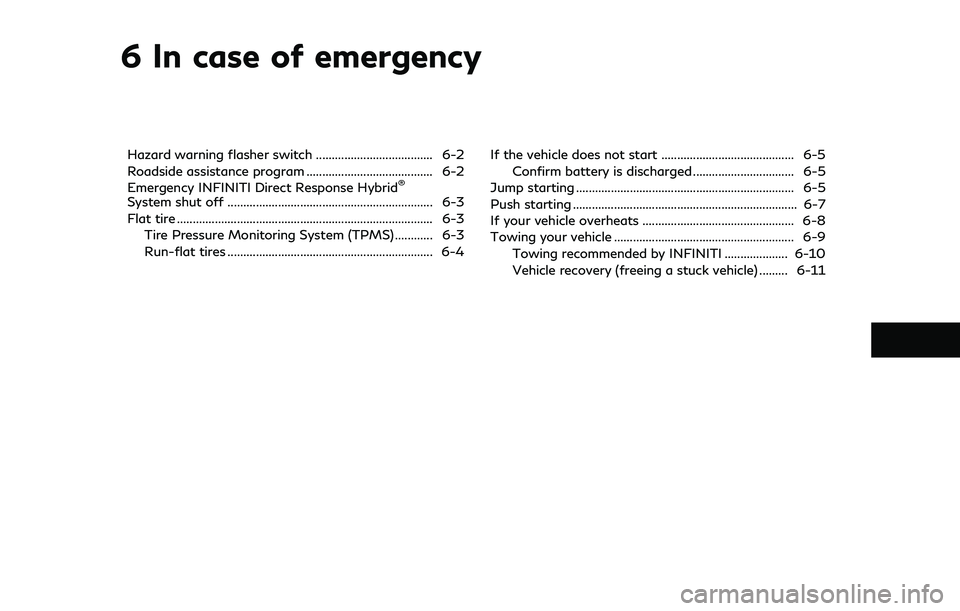

6 In case of emergency
Hazard warning flasher switch ..................................... 6-2
Roadside assistance program ........................................ 6-2
Emergency INFINITI Direct Response Hybrid
®
System shut off ................................................................. 6-3
Flat tire ........................................................................\
......... 6-3Tire Pressure Monitoring System (TPMS) ............ 6-3
Run-flat tires ................................................................. 6-4 If the vehicle does not start .......................................... 6-5
Confirm battery is discharged ................................ 6-5
Jump starting ..................................................................... 6-5
Push starting ....................................................................... 6-7
If your vehicle overheats ................................................ 6-8
Towing your vehicle ......................................................... 6-9
Towing recommended by INFINITI .................... 6-10
Vehicle recovery (freeing a stuck vehicle) ......... 6-11

Before attempting to jump start the vehicle,
make sure the fuel tank is not empty and the
correct starting procedure is followed. See
“Starting the INFINITI Direct Response
Hybrid
®System” (P.5-14). Do not drive the
vehicle on battery power only if the fuel tank
is empty. The Lithium ion (Li-ion) battery will
become discharged and the INFINITI Direct
Response Hybrid
®System will turn off.
CONFIRM BATTERY IS DIS-
CHARGED
If any of the following conditions occurs, the
12-volt battery might discharged:
. The instrument cluster and/or headlights
are not normal brightness.
. Audio accessories cannot be turned on.
. The hybrid system does not become
READY to drive mode.
. The ignition switch cannot be placed in
the ON position.
Check the following if you notice above
conditions.
1. Check that the 12-volt battery terminals are tight and clean. See “12-volt battery”
(P.8-14). The 12-volt battery is located
on the left hand side of the trunk behind
an access panel. If the 12-volt battery
terminals are loose, it is recommended
you contact an INFINITI retailer. 2. If the 12-volt battery terminals are tight
and clean, try to jump start the vehicle.
See “Jump starting” (P.6-5).
If the hybrid system still does not start, it is
recommended that you contact an INFINITI
retailer. To start your INFINITI Direct Response
Hybrid
®System with a booster battery, the
instructions and precautions below must be
followed.
Jump starting provides power to the 12 volt
system to allow the electrical systems to
operate. The electrical systems must be
operating to allow the Lithium ion (Li-ion)
battery to be charged. Jump starting does
not charge the Li-ion battery.
WARNING
. If done incorrectly, jump starting can
lead to a 12-volt battery explosion,
resulting in severe injury or death. It
could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the 12-volt
battery. Make sure that the vent
tube is mounted.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with any-
thing, immediately flush the con-
tacted area with water.
. Keep the 12-volt battery out of the
reach of children.
In case of emergency6-5
IF THE VEHICLE DOES NOT STARTJUMP STARTING

6-6In case of emergency
.The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle.
. Whenever working on or near a 12-
volt battery, always wear suitable
eye protectors (for example, goggles
or industrial safety spectacles) and
remove rings, metal bands, or any
other jewelry. Do not lean over the
12-volt battery when jump starting.
. Do not attempt to jump start a
frozen battery. It could explode and
cause serious injury.
. Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it.
CAUTION
Do not attempt to jump start a hybrid
vehicle as a booster vehicle.JVE0174X
WARNING
Always follow the instructions below.
Failure to do so could result in damage to
the charging system and cause personal
injury. 1. If the booster battery is in another
vehicle
, position the two vehicles (and) to bring the battery and the fuse
box into close proximity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the shift lever to the P (Park) position. Switch off all

unnecessary electrical systems (light,
heater, air conditioner, etc.).
3. Connect jumper cables in the sequence as illustrated (
???).
CAUTION
.Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (as illustrated) − not to the
12-volt battery.
. Make sure the jumper cables do not
touch moving parts in the engine
compartment and that clamps do
not contact any other metal.
4. Start the engine of the booster vehicle
and let it run for a few minutes.
5. Start the hybrid system of the vehicle being jump started
.
CAUTION
If the hybrid system does not start right
away, push the ignition switch to the
OFF position and wait 10 seconds
before trying again. 6. After starting your hybrid system, care-
fully disconnect the negative cable and
then the positive cable (
???).
NOTE:
If it is not possible to turn the hybrid system
ON by following this procedure, it is
recommended that you contact an INFINITI
retailer immediately. Do not attempt to start the engine by
pushing.CAUTION
.
Automatic Transmission (AT) models
cannot be push-started or tow-
started. Attempting to do so may
cause transmission damage.
. Three-way catalyst equipped models
should not be started by pushing
since the three-way catalyst may be
damaged.
. Never try to start the vehicle by
towing it; when the engine starts,
the forward surge could cause the
vehicle to collide with the tow vehi-
cle.
. Hybrid models cannot be push-
started or tow-started. Attempting
to do so may cause electrical or
transmission damage.
In case of emergency6-7
PUSH STARTING

8 Do-it-yourself
Maintenance precautions ................................................ 8-2
Engine compartment check locations ......................... 8-3VQ35HR engine ........................................................... 8-3
Engine cooling system ..................................................... 8-5 Checking engine coolant level .................................. 8-6
Changing engine coolant ........................................... 8-7
Inverter cooling system ................................................... 8-7 Checking inverter coolant level ................................ 8-8
Changing inverter coolant ......................................... 8-9
Engine oil ........................................................................\
..... 8-9
Checking engine oil level ............................................ 8-9
Changing engine oil and oil filter .......................... 8-10
Automatic Transmission Fluid (ATF) ......................... 8-12
Brake fluid ........................................................................\
. 8-12
Window washer fluid ..................................................... 8-13
12-volt battery ................................................................. 8-14
Checking battery fluid level .................................... 8-15
Jump starting .............................................................. 8-15
Spark plugs ........................................................................\
8-15 Replacing spark plugs ............................................... 8-16
Air cleaner ........................................................................\
.. 8-16 Windshield wiper blades ............................................... 8-17
Cleaning ...................................................................... 8-17
Replacing .................................................................... 8-18
Brakes ........................................................................\
........ 8-18 Self-adjusting brakes .............................................. 8-18
Brake pad wear warning ....................................... 8-18
Fuses ........................................................................\
.......... 8-19 Engine compartment and trunk ........................... 8-19
Passenger compartment ....................................... 8-20
Intelligent Key battery replacement .......................... 8-21
Lights ........................................................................\
........ 8-24 Headlights .................................................................. 8-25
Exterior and interior lights .................................... 8-25
Wheels and tires ............................................................ 8-28 Tire pressure ............................................................. 8-28
Tire labeling ............................................................... 8-32
Types of tires ........................................................... 8-34
Tire chains .................................................................. 8-35
Changing wheels and tires .................................... 8-36
Jacking up the vehicle and replacing tires ........ 8-39

JVM0729X
CHECKING BATTERY FLUID LE-
VEL
.(blue) indicates OK.
.
(white) indicates that charging is
necessary.
.
(red) indicates that replacement is
necessary.
If it is necessary to replace the 12-volt
battery, it is recommended you contact an
INFINITI retailer.
JUMP STARTING
If jump starting is necessary, see “Jump
starting” (P.6-5). If the INFINITI Direct
Response Hybrid
®System does not start
by jump starting, the 12-volt battery may
have to be replaced. It is recommended you
visit an INFINITI retailer for this service.
WARNING
Be sure the engine and the ignition
switch are off and that the parking
brake is engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
Do-it-yourself8-15
SPARK PLUGS

11-4
I
If the vehicle does not start ................................ 6-5
Ignition switch(Push-button) ................................................. 5-11
Automatic transmission models ................ 5-15
Immobilizer system .............................................. 2-32
Indicator Vehicle information display ........................ 2-18
Indicator lights ...................................................... 2-15
INFINITI Direct Response
Hybrid
®System ............................. Hybrid System-2
Before starting the INFINITI Direct
Response Hybrid
®System .......................... 5-14
Starting the INFINITI Direct Response
Hybrid
®System .............................................. 5-14
INFINITI Drive Mode Selector ......................... 5-21
Infiniti InTouch Owner’s Manual ...................... 4-2
INFINITI Vehicle Immobilizer System ............ 2-32 Engine start ..................................................... 2-32
Inside mirror .......................................................... 3-28
Inspection/maintenance (I/M) test .............. 10-21
Instrument brightness control ......................... 2-42
Instrument panel .................................................... 2-4
Intelligent All-Wheel Drive (AWD) ............... 5-123
Intelligent Cruise Control (ICC) ....................... 5-72
Intelligent Cruise Control (ICC) system
ON indicator ......................................................... 2-24
Intelligent Key .......................................................... 3-2
Intelligent Key system ........................................... 3-6 Battery replacement ..................................... 8-21 Key operating range ....................................... 3-8
Key operation ................................................... 3-9
Warning signals .............................................. 3-13
Interior light control switch .............................. 2-57
Interior light replacement .................................. 8-25
Interior lights ......................................................... 2-56
Interior trunk lid release .................................... 3-24
Inverter cooling system ......................................... 8-7
ISOFIX child restraint ......................................... 1-20
J
Jump starting ........................................................... 6-5
K
Keyless entry (See remote keyless
entry system) ........................................................ 3-15
Keys ........................................................................\
.... 3-2
For Intelligent Key system ............................ 3-6
L
LabelsAir bag warning labels ................................. 1-54
Air conditioner specification label ......... 10-12
Emission control information label ......... 10-11
Engine serial number .................................. 10-11
F.M.V.S.S./C.M.V.S.S.
certification label ......................................... 10-11
Tire and Loading
information label ............................. 8-30, 10-12 Vehicle identification number (VIN) ...... 10-10
Lane Departure Warning (LDW)/Lane
Departure Prevention (LDP) ............................ 5-32
LATCH system ..................................................... 1-20
License plate Installing front license plate .................... 10-13
Light
Air bag warning light .................................... 1-54
Bulb replacement .......................................... 8-24
Fog light switch ............................................. 2-43
Headlight switch ............................................ 2-36
Indicator lights ................................................ 2-15
Interior light control switch ........................ 2-57
Interior lights ................................................... 2-56
Map lights ........................................................ 2-56
Personal lights ................................................ 2-57
Replacement .................................................. 8-24
Trunk light ....................................................... 2-58
Vanity mirror lights ....................................... 2-58
Warning/indicator lights and
audible reminders ............................................ 2-9
Lights
Exterior and interior light replacement .... 8-25
Lithium-ion (Li-ion) battery ....... Hybrid System-2
Loading information (See vehicle
loading information) ......................................... 10-15
Lock
Automatic door locks ..................................... 3-5
Door locks .......................................................... 3-4
Power door lock ............................................... 3-4
Trunk lid ........................................................... 3-22

11-6
Cruise control ................................................. 5-70
Maintenance ..................................................... 8-2
Seat belt usage ................................................. 1-9
Supplemental restraint system .................. 1-37
When starting and driving ............................ 5-4
Pre-crash seat belts with
comfort function ................................................... 1-11
Predictive Forward Collision
Warning (PFCW) ............................................... 5-112
Push starting ............................................................ 6-7
Push-button ignition switch .................. 5-11, 5-12
R
Radio Car phone or CB radio ................................... 4-3
Rain-sensing auto wiper system ..................... 2-35
Rapid air pressure loss .......................................... 5-9
Readiness for inspection/maintenance
(I/M) test (US only) ........................................... 10-21
Rear door lock Child safety rear door lock ........................... 3-6
Rear window and outside mirror
defroster switch ................................................... 2-36
Recorders Event data .................................................... 10-21
Regenerative brake ...................... Hybrid System-8
Registering in another country ..................... 10-10
Remote engine start ........................................... 3-19
Remote keyless entry system .......................... 3-15
Reporting safety defects ................................ 10-20 Request switch (See Intelligent
Key system) .............................................................. 3-9
Road accident cautions .............. Hybrid System-3
Roadside assistance program ............................. 6-2
Rollover ..................................................................... 5-9
Roof
Moonroof ......................................................... 2-55
Run-flat tires .......................................................... 6-4
S
Safety Child seat belts ............................................... 1-16
Reporting safety defects .......................... 10-20
Seat adjustment Front power seat adjustment ....................... 1-3
Front seats ......................................................... 1-3
Seat belt(s) Child safety ..................................................... 1-16
Infants ............................................................... 1-16
Injured persons ................................................ 1-11
Larger children ............................................... 1-17
Precautions on seat belt usage .................... 1-9
Pre-crash seat belts with
comfort function ............................................. 1-11
Pregnant women ............................................ 1-11
Seat belt cleaning ............................................. 7-7
Seat belt extenders ....................................... 1-15
Seat belt maintenance ................................. 1-15
Seat belt warning light and chime ............ 2-14
Seat belts ............................................................ 1-9
Seat belts with pretensioners .................... 1-53 Shoulder belt height adjustment ............... 1-14
Small children .................................................. 1-17
Three-point type ............................................ 1-12
Seat(s)
Driver-side memory ..................................... 3-30
Heated seats .................................................. 2-44
Seats .................................................................... 1-2
Security system Vehicle security system ................................ 2-31
Security system (INFINITI Vehicle
Immobilizer System) Engine start ..................................................... 2-32
Shift lever
Shift lock release ........................................... 5-18
Shift lock release, Transmission ...................... 5-18
SHIFT “P” warning .............................................. 2-20
Shifting Automatic transmission ............................... 5-15
Shoulder belt height adjustment ..................... 1-14
SNOW mode ......................................................... 5-21
Spark plugs ............................................................ 8-15
Speedometer ............................................................ 2-6
SPORT mode ........................................................ 5-21
Standard maintenance .......................................... 9-7
STANDARD mode ............................................... 5-21
Starting
Before starting the INFINITI Direct
Response Hybrid
®System .......................... 5-14
Jump starting .................................................. 8-15
Precautions when starting and driving ..... 5-4
Push starting ...................................................... 6-7
