INFINITI Q50 HYBRID 2018  Dismantling Guide The following warning label is applied to the high-voltage battery located inside the luggage compartment.
2-5
High-voltage Safety System
The high-voltage safety system is intended to help keep vehicl

Page 15 of 56

INFINITI Q50 HYBRID 2018  Dismantling Guide • The high-voltage system and high-voltage capacitor may remain powered for up to
approximately 10 minutes after the vehicle is shut off. Personal Protective Equipment
(PPE) must always be worn when

Page 16 of 56

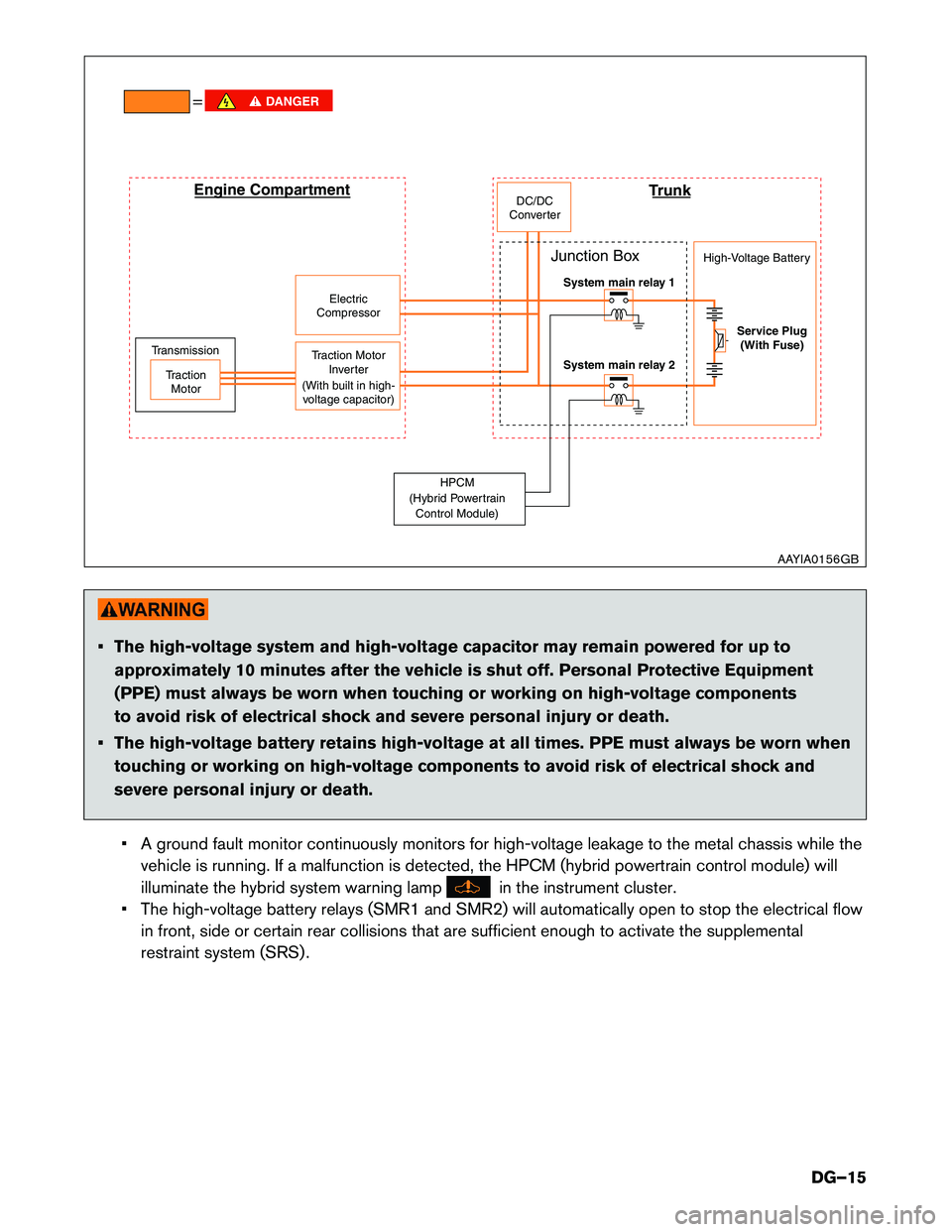

INFINITI Q50 HYBRID 2018  Dismantling Guide 2-6 High-voltage Circuit Shut-Off System
This
vehicle is equipped with a system to shut off the current from the high-voltage battery by the following
methods: Service plug
Positioned in the center ar

Page 48 of 56

INFINITI Q50 HYBRID 2018  Dismantling Guide 9. Remove the rear seat back finisher (1) , and rear seat
back plate (2) .
10. Remove the trunk room finisher, trunk side finisher LH, and trunk side finisher RH. Refer to the Trunk Room Trim Exploded
