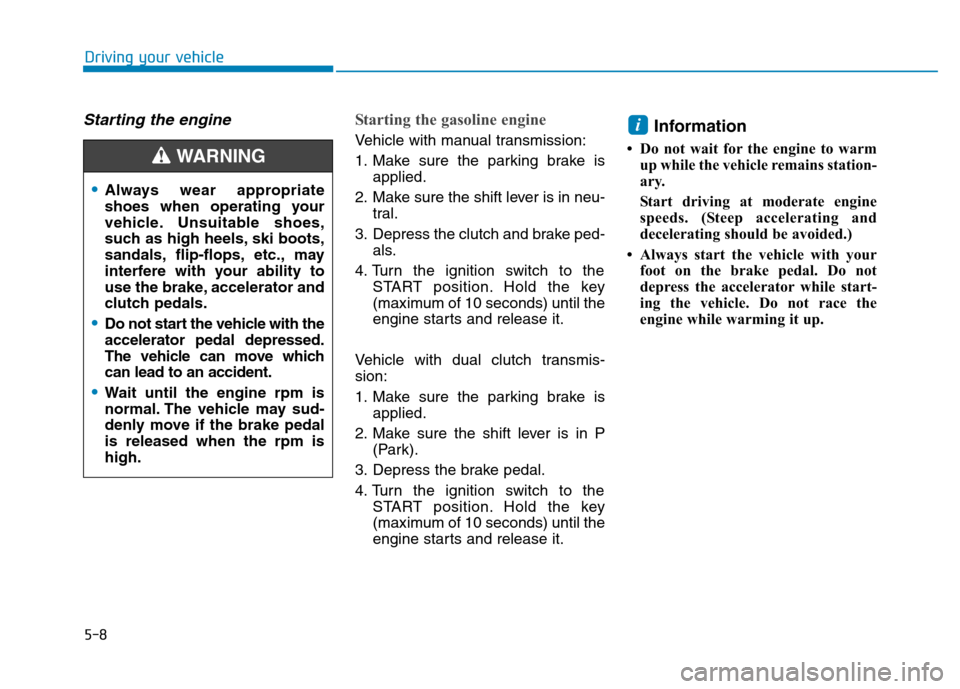

5-8
Driving your vehicle
Starting the engine Starting the gasoline engine
Vehicle with manual transmission:
1. Make sure the parking brake isapplied.
2. Make sure the shift lever is in neu- tral.
3. Depress the clutch and brake ped- als.
4. Turn the ignition switch to the START position. Hold the key
(maximum of 10 seconds) until the
engine starts and release it.
Vehicle with dual clutch transmis-sion:
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in P (Park).
3. Depress the brake pedal.
4. Turn the ignition switch to the START position. Hold the key
(maximum of 10 seconds) until the
engine starts and release it. Information
 Do not wait for the engine to warm up while the vehicle remains station-
ary.
Start driving at moderate engine
speeds. (Steep accelerating and
decelerating should be avoided.)
 Always start the vehicle with your foot on the brake pedal. Do not
depress the accelerator while start-
ing the vehicle. Do not race the
engine while warming it up.i
Always wear appropriate
shoes when operating your
vehicle. Unsuitable shoes,
such as high heels, ski boots,
sandals, flip-flops, etc., may
interfere with your ability to
use the brake, accelerator and
clutch pedals.
Do not start the vehicle with the accelerator pedal depressed.
The vehicle can move whichcan lead to an accident.
Wait until the engine rpm is
normal. The vehicle may sud-
denly move if the brake pedalis released when the rpm ishigh.
WARNING

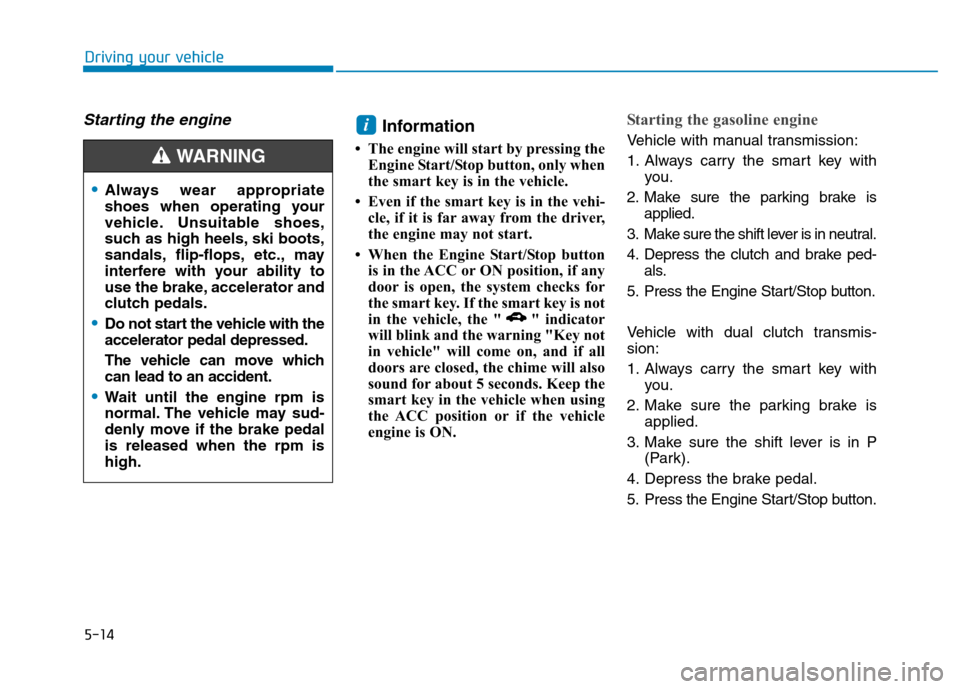

5-14
Driving your vehicle
Starting the engine Information
 The engine will start by pressing the Engine Start/Stop button, only when
the smart key is in the vehicle.
 Even if the smart key is in the vehi- cle, if it is far away from the driver,
the engine may not start.
 When the Engine Start/Stop button is in the ACC or ON position, if any
door is open, the system checks for
the smart key. If the smart key is not
in the vehicle, the " " indicator
will blink and the warning "Key not
in vehicle" will come on, and if all
doors are closed, the chime will also
sound for about 5 seconds. Keep the
smart key in the vehicle when using
the ACC position or if the vehicle
engine is ON.Starting the gasoline engine
Vehicle with manual transmission:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in neutral.
4. Depress the clutch and brake ped- als.
5. Press the Engine Start/Stop button.
Vehicle with dual clutch transmis- sion:
1. Always carry the smart key with you.
2. Make sure the parking brake is applied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button.i
Always wear appropriate
shoes when operating your
vehicle. Unsuitable shoes,
such as high heels, ski boots,
sandals, flip-flops, etc., may
interfere with your ability to
use the brake, accelerator and
clutch pedals.
Do not start the vehicle with the accelerator pedal depressed.
The vehicle can move which can lead to an accident.
Wait until the engine rpm is
normal. The vehicle may sud-
denly move if the brake pedalis released when the rpm ishigh.
WARNING

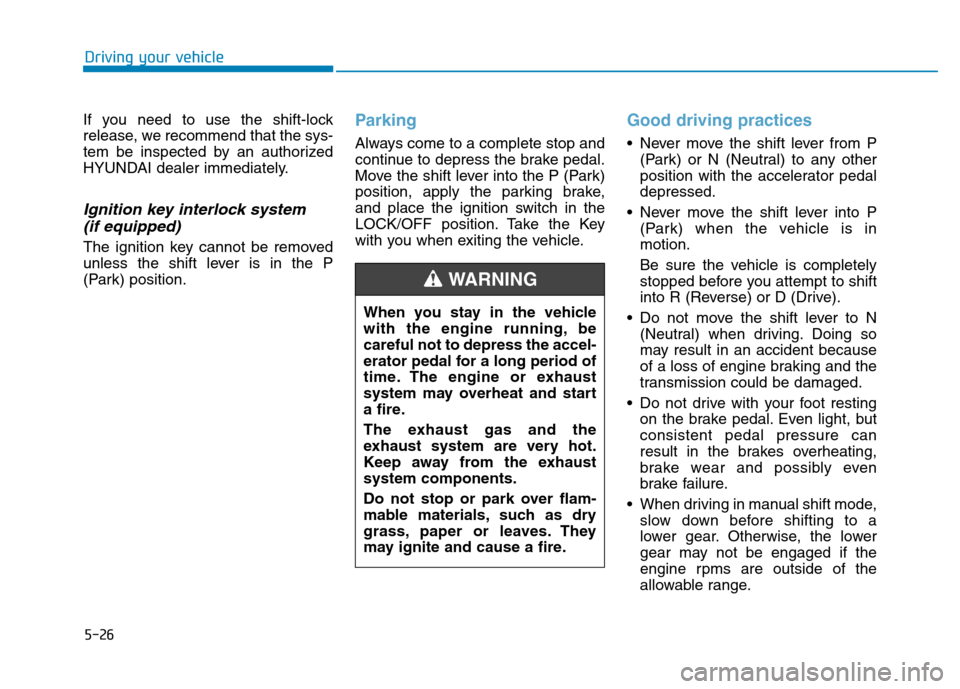

5-26
Driving your vehicle
If you need to use the shift-lock
release, we recommend that the sys-
tem be inspected by an authorized
HYUNDAI dealer immediately.
Ignition key interlock system (if equipped)
The ignition key cannot be removed
unless the shift lever is in the P
(Park) position.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the parking brake,
and place the ignition switch in the
LOCK/OFF position. Take the Key
with you when exiting the vehicle.
Good driving practices
Never move the shift lever from P (Park) or N (Neutral) to any other
position with the accelerator pedaldepressed.
Never move the shift lever into P (Park) when the vehicle is inmotion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).
Do not move the shift lever to N (Neutral) when driving. Doing so
may result in an accident because
of a loss of engine braking and the
transmission could be damaged.
Do not drive with your foot resting on the brake pedal. Even light, butconsistent pedal pressure can
result in the brakes overheating,
brake wear and possibly even
brake failure.
When driving in manual shift mode, slow down before shifting to a
lower gear. Otherwise, the lower
gear may not be engaged if the
engine rpms are outside of the
allowable range.
When you stay in the vehicle
with the engine running, becareful not to depress the accel-
erator pedal for a long period of
time. The engine or exhaust
system may overheat and start
a fire.
The exhaust gas and the
exhaust system are very hot.
Keep away from the exhaustsystem components.
Do not stop or park over flam-
mable materials, such as dry
grass, paper or leaves. They
may ignite and cause a fire.
WARNING

7-51
7
Maintenance
Driver's side fuse Panel
Fuse NameSymbolFuse RatingCircuit Protected
MODULE5MODULE57.5A
ATM Shift Lever IND., Electro Chromic Mirror, Audio, AMP, Head Lamp RH,
A/V & Navigation Head Unit, A/C Control Module, Crash Pad Switch, Head Lamp LH,
ISG DC-DC Convertor, Auto Head Lamp Leveling Device Module,
Front Air Ventilation Seat Module, Front Seat Warmer Module
MODULE3MODULE37.5AStop Switch, BCM, ATM Shift Lever
S/ROOF20ASunroof Unit
T/Gate10ATail Gate Relay
P/WDW LHLH25APower Window LH Relay, Driver Safety Power Window Module (LHD)
Multi MediaMULTI
MEDIA15AISG DC-DC Convertor, Audio, A/V & Navigation Head Unit
P/WDW RHRH25APower Window RH Relay, Driver Safety Power Window Module (RHD)
DR/P/SeatDRV25ADriver Seat Manual Switch
PS/P/SeatPA SS25APassenger Seat Manual Switch
MODULE4MODULE47.5ABlind-Spot Collision Warning Unit LH/RH, Active Air Flap, BCM, Parking Distance Warning Buzzer,
Lane Keeping Assist Unit (Line), 4WD ECM
PDM337.5ASmart Key Control Module, Immobilizer Module
P/OUTLET2POWER
OUTLET
220AICM Relay Box (Power Outlet Relay)

I-6Hazard warning flasher...................................................6-3
Hazardous driving conditions .......................................5-96
Head up display (HUD)................................................3-80
Headlamp delay function..............................................3-90
Headlamp leveling device ............................................3-91
Headlamp position ........................................................3-84
Headlight bulb replacement..........................................7-64
Headrest ........................................................................2-15
Front seat headrests ..................................................2-16
Rear seat headrests ...................................................2-18
Heated steering wheel...................................................3-18
Height adjustment .........................................................2-26
High beam assist (HBA)...............................................3-85
High beam operation ....................................................3-84
Highway driving ...........................................................5-98
Hill-start assist control (HAC) .....................................5-37
Hood .............................................................................3-31
Horn ..............................................................................3-19
How to use this manual ..................................................F-5
If the engine doesn't turn over or turns over slowly ......6-4
If the engine overheats ...................................................6-8
If the engine stalls at a crossroad or crossing ................6-3
If the engine stalls while driving ....................................6-3
If the engine turns over normally but doesn't start.........6-5 If the engine will not start ..............................................6-4
If you have a flat tire (with spare tire) .........................6-20
Jack and tools ...........................................................6-20
Changing tires ..........................................................6-21
Jack label ..................................................................6-26
If you have a flat tire (with TMK) - Type A ................6-28
If you have a flat tire (with TMK) - Type B ................6-35
Ignition switch ................................................................5-6
Key ignition switch ....................................................5-6
Engine Start/Stop button ............................................5-9
Immobilizer system ......................................................3-10
Impact sensing door unlock..........................................3-15
Improtant safety precautions ..........................................2-2 Always wear your seat belt ........................................2-2
Restrain all children ...................................................2-2
Air bag hazards ..........................................................2-2
Driver distraction .......................................................2-2
Control your speed .....................................................2-3
Keep your vehicle in safe condition ..........................2-3
In case of emergency while driving ...............................6-3
Indicator light ...............................................................3-44
Inside rearview mirror ..................................................3-19
Instrument cluster .........................................................3-37 Instrument panel illumination ..................................3-38
Gauges and meters ...................................................3-38
Warning and indicator lights ....................................3-44
LCD display messages .............................................3-57
LCD display control.................................................3-64
Manual transmission shift indicator.........................3-42
Index
H
I
