1-3
Your vehicle at a glance
1
1. Door lock ................................................3-9
2. Fuel filler door ......................................3-48
3. Antenna ..................................................4-2
4. Rear combination lamp ........................7-61
5. High mounted stop lamp ......................7-646. Liftgate ..................................................3-46
7. Rearview camera ................................3-125
8. Rear parking assist system ................3-126
9. Towing hook ..........................................6-41
OAE016002
■
■
Rear view
The actual shape may differ from the illustration.
1-8
Your vehicle at a glance
1. Door lock ................................................3-9
2. Fuel filler door ......................................3-51
3. Antenna ..................................................4-2
4. Rear combination lamp ........................7-61
5. High mounted stop lamp ......................7-646. Liftgate ..................................................3-46
7. Rearview camera ................................3-125
8. Rear parking assist system ................3-126
9. Towing hook ..........................................6-41
OAEPH016002
■
■
Rear view
The actual shape may differ from the illustration.
What to do in an emergency
6
Hazard Warning Flasher .......................................6-2
In Case of an Emergency While Driving.............6-2
If the Engine Stalls While Driving .................................6-2
If the Vehicle Stalls at a Crossroad or Crossing .......6-2
If You Have a Flat Tire While Driving ..........................6-3
If the Vehicle will not Start ..................................6-3
If the 12 Volt Battery is Discharged
(Hybrid Vehicle) .....................................................6-5
Before Jump Starting .......................................................6-5
Jump Starting......................................................................6-\
6
If the 12 Volt Battery is Discharged
(Plug-In Hybrid Vehicle) .......................................6-9
Jump Starting......................................................................6-\
9
If the Engine Overheats......................................6-12
Tire Pressure Monitoring System (TPMS).......6-14
Check Tire Pressure .......................................................6-14
Tire Pressure Monitoring System ...............................6-15
Low Tire Pressure Telltale ............................................6-16
Low Tire Pressure LCD Display with
Position Indicator ............................................................6-16
TPMS Malfunction Indicator ........................................6-17
Changing a Tire with TPMS..........................................6-18
If You Have a Flat Tire........................................6-20
With Spare Tire................................................................6-20
With Tire Mobility Kit (TMK) - Type A ......................6-25
With Tire Mobility Kit (TMK) - Type B ......................6-33
Towing ...................................................................6-40
Towing Service .................................................................6-40
Removable Towing Hook ...............................................6-41
Emergency Towing..........................................................6-42
If an Accident Occurs..........................................6-44
6-41
What to do in an emergency
6
When towing your vehicle in an
emergency without wheel dollies :
1. Place the Engine Start/Stop but-ton in the ACC position.
2. Place the shift lever in N (Neutral).
3. Release the parking brake.Removable Towing Hook
1. Open the liftgate, and take the towing hooks out from the tool
case.
2. Remove the hole cover pressingthe lower part of the cover on the
front or rear bumper.
3. Install the towing hook by turning it clockwise into the hole until it is
fully secured.
4. Remove the towing hook and install the cover after use.
Failure to place the transmis-
sion shift lever in N (Neutral)
may cause internal damage to
the transmission.
CAUTION
OAE066021N
OAE066022N
OAE066028N
■Front
■Rear
6-42
What to do in an emergency
Emergency Towing
(if equipped)
If towing is necessary, we recom-
mend you to have it done by an
authorized HYUNDAI dealer or a
commercial tow truck service.If a towing service is not available in
an emergency, your vehicle may be
temporarily towed using a cable or
chain secured to the emergency tow-
ing hook at the rear of the vehicle.
Use extreme caution when towing
the vehicle with a cable or chain. A
driver must be in the vehicle to steer
it and operate the brakes.
Towing should be done only on a
solid ground for a short distance and
at a low speed.
Also, the wheels, axles, power train,
steering and brakes must all be in
good condition.
Always follow these emergency tow-
ing precautions:
Place the Engine Start/Stop button
in the ACC position so the steering
wheel is not locked.
Place the shift lever in N (Neutral).
Release the parking brake.
Depress the brake pedal with more force than normal since you will
have reduced braking perform-
ance.
More steering effort will be required because the power steering system
will be disabled.
Use a vehicle heavier than your own to tow your vehicle.
The drivers of both vehicles should communicate with each other fre-
quently.
Before emergency towing, check that the hook is not broken or dam-
aged.
Fasten the towing cable or chain securely to the hook.
Do not jerk the hook. Apply steady and even force.
OAE066024N
OAE066023N
■Front
■Rear
6-43
What to do in an emergency
6
Use a towing cable or chain lessthan 16 feet (5 m) long. Attach a
white or red cloth (about 12 inches
(30 cm) wide) in the middle of the
cable or chain for easy visibility.
Drive carefully so the towing cable or chain remains tight during tow-
ing.
Before towing, check the dual clutch transmission for fluid leaks
under your vehicle. If the dual
clutch transmission fluid is leaking,
flatbed equipment or a towing dolly
must be used.
OAE066025
To avoid damage to your vehicle
and vehicle components when
towing:
Always pull straight ahead
when using the towing hooks.
Do not pull from the side or at
a vertical angle.
Do not use the towing hooks
to pull a vehicle out of mud,
sand or other conditions from
which the vehicle cannot be
driven out under its own
power.
Limit the vehicle speed to 10
mph (15 km/h) and drive less
than 1 mile (1.5 km) when tow-
ing to avoid serious damage
to the dual clutch transmis-
sion.
CAUTION

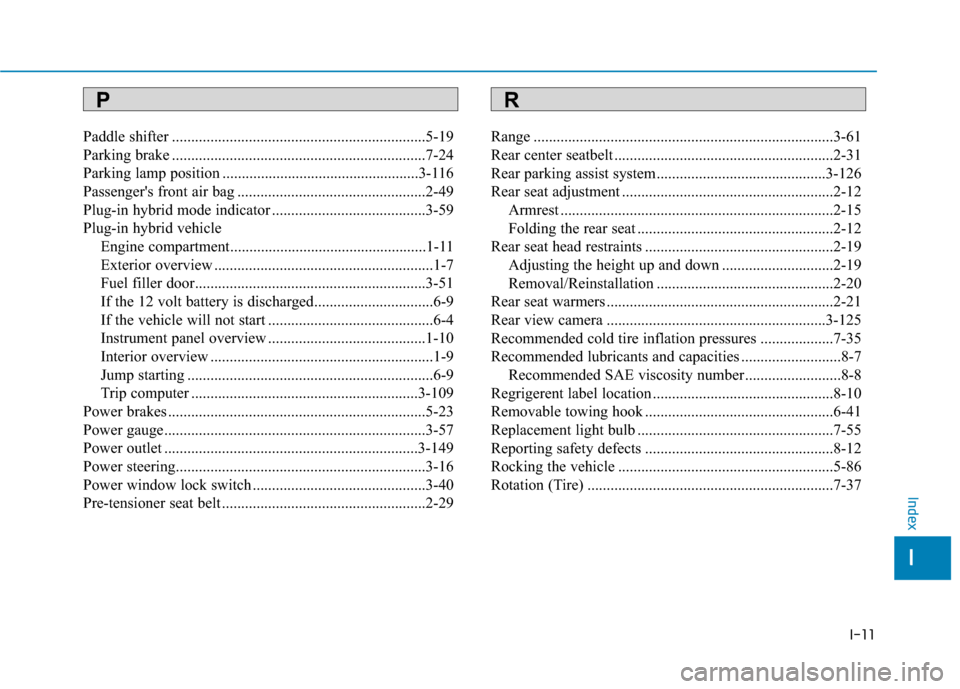

I-11
Paddle shifter ..................................................................5-19
Parking brake ..................................................................7-24
Parking lamp position ...................................................3-116
Passenger's front air bag .................................................2-49
Plug-in hybrid mode indicator ........................................3-59
Plug-in hybrid vehicleEngine compartment...................................................1-11
Exterior overview .........................................................1-7
Fuel filler door............................................................3-51
If the 12 volt battery is discharged...............................6-9
If the vehicle will not start ...........................................6-4
Instrument panel overview .........................................1-10
Interior overview ..........................................................1-9
Jump starting ................................................................6-9
Trip computer ...........................................................3-109
Power brakes ...................................................................5-23
Power gauge....................................................................3-57\
Power outlet ..................................................................3-149
Power steering.................................................................3-16
Power window lock switch .............................................3-40
Pre-tensioner seat belt .....................................................2-29 Range ........................................................................\
......3-61
Rear center seatbelt .........................................................2-31
Rear parking assist system............................................3-126
Rear seat adjustment .......................................................2-12
Armrest .......................................................................2\
-15
Folding the rear seat ...................................................2-12
Rear seat head restraints .................................................2-19 Adjusting the height up and down .............................2-19
Removal/Reinstallation ..............................................2-20
Rear seat warmers ...........................................................2-21
Rear view camera .........................................................3-125
Recommended cold tire inflation pressures ...................7-35
Recommended lubricants and capacities ..........................8-7 Recommended SAE viscosity number .........................8-8
Regrigerent label location ...............................................8-10
Removable towing hook .................................................6-41
Replacement light bulb ...................................................7-55
Reporting safety defects .................................................8-12
Rocking the vehicle ........................................................5-86
Rotation (Tire) ................................................................7-37
I
Index
PR
